◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#7783) — 226 parça
çizim 8649
227 232 230 237 245 246 296 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
227 PUMP ASM; TIRE 9-85521-132-0 01 1 9902-0003 ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0004- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9902-0003 ●
230 PUMP; GREASE 1-85556-007-2 01 1 0004- ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 9902-0003 ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 0004- ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9902-0003 ●
237 BAG; TOOL 8-97130-902-0 01 1 0004- ● ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 01 1 9902-0003 ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 01 1 0004- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 01 1 9902-0003 ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 01 1 0004- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 01 1 9902-0003 ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 01 1 0004- ● ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 01 1 9902-0003 ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 01 1 0004- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
L=2787 10.00-20 DOUBLE TYPE 		9-85591-240-0 01 1 9902-0003 ●
248 CHAIN; TIRE,1000-20,DOUBLE
L=2787 10.00-20 DOUBLE TYPE 		9-85591-240-0 01 1 0004- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 01 1 9902-0003 ●
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 01 1 0004- ● ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 01 1 9902-0003 ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 01 1 0004- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 01 1 9902-0003 ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 01 1 0004- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 01 1 9902-0003 ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 01 1 0004- ● ●
296 REPLACER; SLINGER 1-85210-027-0 01 1 9902-0003 ●
296 REPLACER; SLINGER 1-85210-027-0 01 1 0004- ● ●

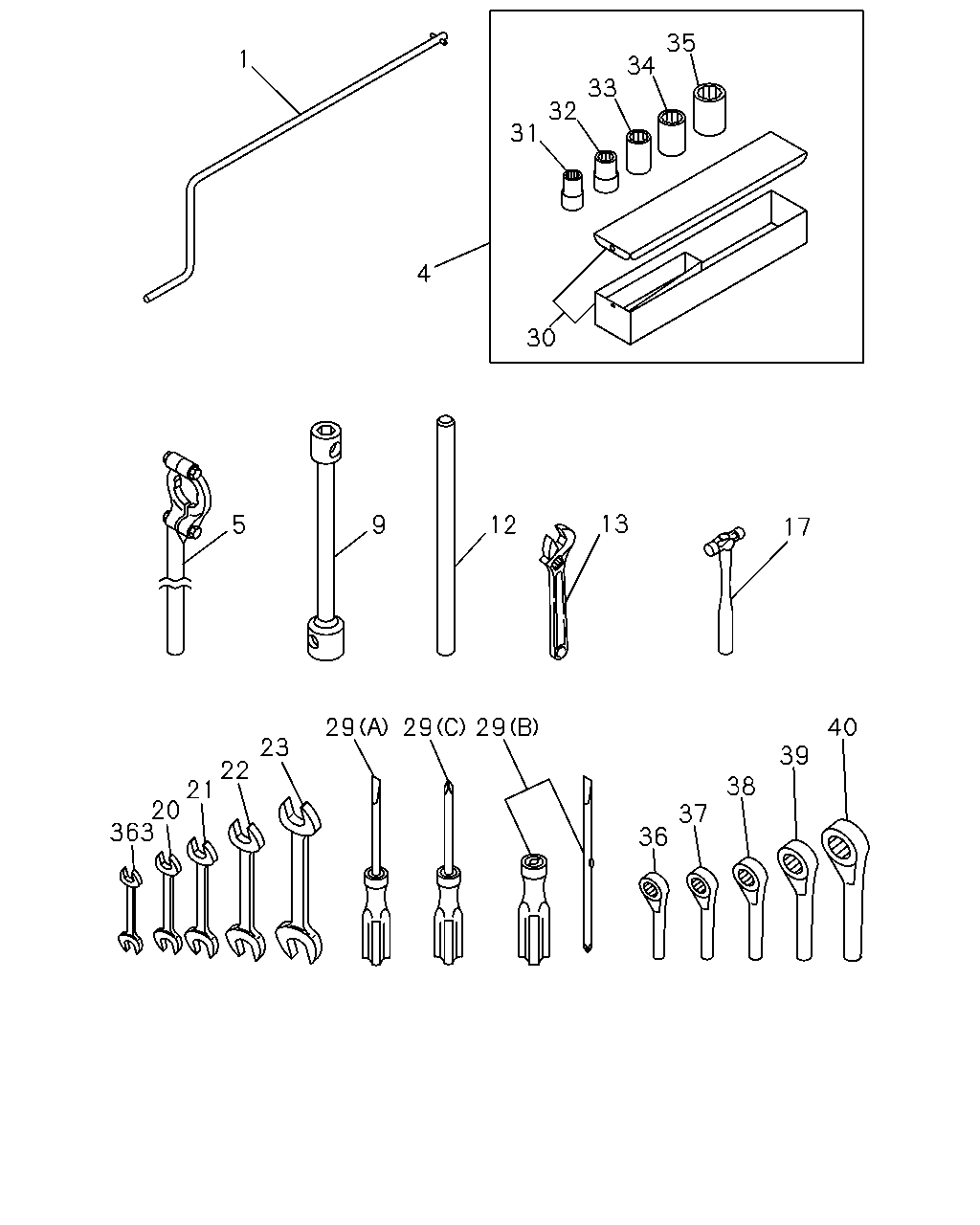

çizim 42762
35 34 33 32 31 1 4 30 13 5 9 12 17 40 23 22 21 20 363 39 38 37 36 29 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9902-0003 ●
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0004- ● ●
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 9902-0003 ●
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 0004- ● ●
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 9902-0003 ●
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 0004- ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9902-9904 ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450 		1-85111-033-1 01 1 9905-0003 ●
9 WRENCH; WHEEL PIN
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450 		1-85111-033-1 01 1 0004- ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0004- ●
9 WRENCH; WHEEL PIN
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440 		1-85113-015-1 01 1 9905- ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9902-0003 ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0004- ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9902-0003 ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0004- ● ●
17 HAMMER 9-85121-406-0 01 1 9902-0003 ●
17 HAMMER 9-85121-406-0 01 1 0004- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9902-0003 ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0004- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9902-0003 ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0004- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9902-0003 ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0004- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9902-0003 ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0004- ● ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 9902-0003 ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0004- ● ●
29 DRIVER; SCREW
(B) <+>,<-> L=160 		8-94242-798-1 01 1 9902-0003 ●
29 DRIVER; SCREW
(B) <+>,<-> L=160 		8-94242-798-1 01 1 0004- ● ●
29 DRIVER; SCREW
(C) <+> L=275 		9-09595-023-0 01 1 9902-0003 ●
29 DRIVER; SCREW
(C) <+> L=275 		9-09595-023-0 01 1 0004- ● ●
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9902-0003 ●
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 0004- ● ●
31 WRENCH; 12 9-09590-012-0 01 1 9902-0003 ●
31 WRENCH; 12 9-09590-012-0 01 1 0004- ● ●
32 WRENCH; 14 9-09590-014-0 01 1 9902-0003 ●
32 WRENCH; 14 9-09590-014-0 01 1 0004- ● ●
33 WRENCH; 17 9-09590-017-0 01 1 9902-0003 ●
33 WRENCH; 17 9-09590-017-0 01 1 0004- ● ●
34 WRENCH; 19 9-09590-019-0 01 1 9902-0003 ●
34 WRENCH; 19 9-09590-019-0 01 1 0004- ● ●
35 WRENCH; 22 9-09590-022-0 01 1 9902-0003 ●
35 WRENCH; 22 9-09590-022-0 01 1 0004- ● ●
36 WRENCH; 24 9-85111-377-0 01 1 9902-0003 ●
36 WRENCH; 24 9-85111-377-0 01 1 0004- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 9902-0003 ●
37 WRENCH; 27 9-85111-375-0 01 1 0004- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 9902-0003 ●
38 WRENCH; 32 9-85111-358-0 01 1 0004- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 9902-0003 ●
39 WRENCH; 36 9-85111-374-0 01 1 0004- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 9902-0003 ●
40 WRENCH; 41 9-85111-356-0 01 1 0004- ● ●
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 9902-0003 ●
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 0004- ● ●

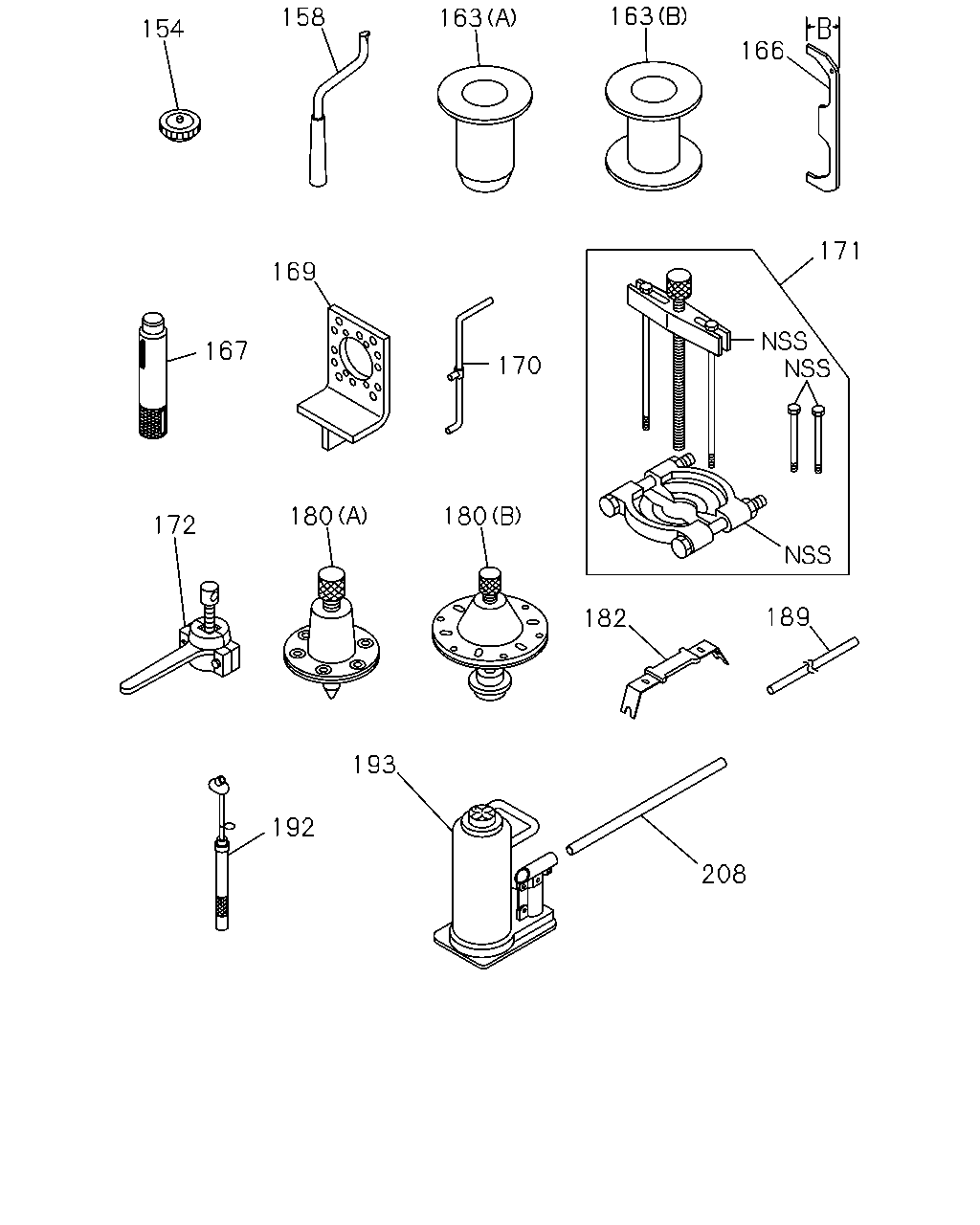

çizim 43601
163 158 163 154 166 171 169 167 170 180 180 172 189 182 193 192 208
BalonParca AdiParca NoAdetTipApplied Date A B
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9902-0003 ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0004- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9902-0003 ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0004- ● ●
163 TOOL; SETTING
ISUZU M/T<X9A> (A) L=195 		1-85221-162-1 01 1 9902- ●
163 TOOL; SETTING
ISUZU M/T<X9A> (B) L=150 		1-85221-163-0 01 1 9902- ●
166 ALIGNER; CLU RELEASE LEVER
B=140 L=550 H=57.5 		1-85253-015-0 01 1 9902-9909 ●
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) B=140 L=550 H=57.5 		1-85253-015-0 01 1 9910- ●
166 ALIGNER; CLU RELEASE LEVER
EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) B=100 L=550 H=17.5 		1-85253-010-0 01 1 9910- ●
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 9902-0003 ●
167 ALIGNER; CLU PILOT
L=300 OD=41.1 		1-85253-020-0 01 1 0004- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9902-0003 ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 0004- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9902-0003 ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 0004- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 9902-0003 ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0004- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 9902-0003 ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0004- ● ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 9902-0003 ●
180 PULLER; FRT & RR HUB
(A) 		1-85210-002-0 01 1 0004- ● ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 9902-0003 ●
180 PULLER; FRT & RR HUB
(B) 		1-85210-003-0 01 1 0004- ● ●
182 REMOVER ASM 1-85239-008-0 01 1 9902-0003 ●
182 REMOVER ASM 1-85239-008-0 01 1 0004- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9902-0003 ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0004- ● ●
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-001-0 01 1 9902-9912 ●
192 GAUGE; TIRE PRESSURE 1-85315-001-0 01 1 9902-9912 ●
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0001-0003 ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0001-0003 ●
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0004- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0004- ● ●
193 JACK ASM
15TON 		1-85510-019-1 01 1 9902-0003 ●
193 JACK ASM
15TON 		1-85510-019-1 01 1 0004- ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9902-0003 ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0004- ● ●

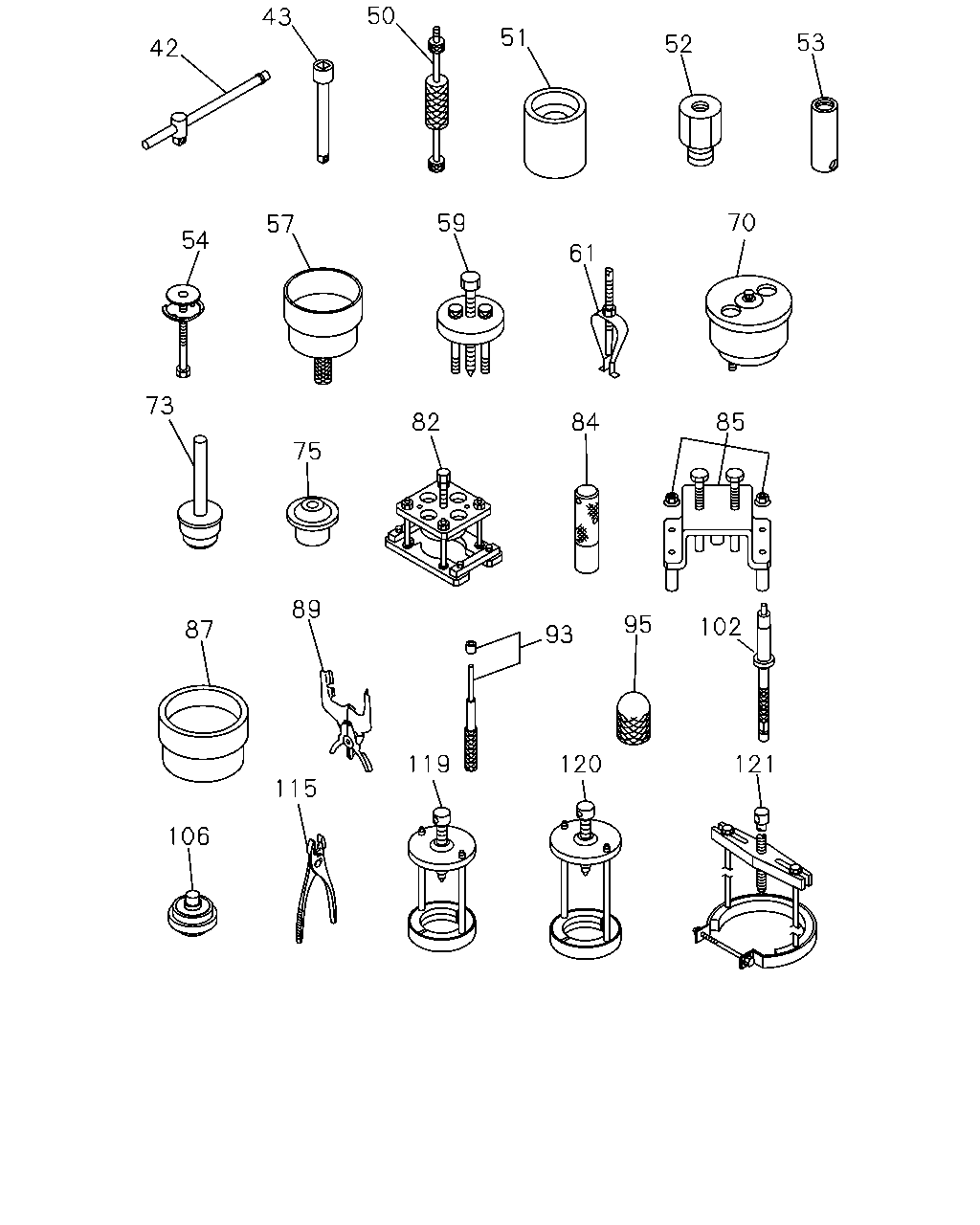

çizim 44412
50 43 51 53 52 42 70 59 57 54 61 73 82 84 85 75 89 95 102 87 93 119 120 121 115 106
BalonParca AdiParca NoAdetTipApplied Date A B
42 HANDLE; SLIDING 9-09590-512-0 01 1 9902-0003 ●
42 HANDLE; SLIDING 9-09590-512-0 01 1 0004- ● ●
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9902-0003 ●
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 0004- ● ●
50 REPLACER; NOZZLE HOLDER
L=300 		1-85230-013-0 01 1 9902-0003 ●
50 REPLACER; NOZZLE HOLDER
L=300 		1-85230-013-0 01 1 0004- ● ●
51 PULLER ASM; WATER PUMP 1-85220-047-0 01 1 9902-0003 ●
51 PULLER ASM; WATER PUMP 1-85220-047-0 01 1 0004- ● ●
52 REMOVER; WATER PUMP 1-85210-062-0 01 1 9902-0003 ●
52 REMOVER; WATER PUMP 1-85210-062-0 01 1 0004- ● ●
53 PULLER; TAPER BUSHING 1-85210-063-0 01 1 9902-0003 ●
53 PULLER; TAPER BUSHING 1-85210-063-0 01 1 0004- ● ●
54 PULLER; THERMOSTAT SEAL 1-85210-067-0 01 1 9902-0003 ●
54 PULLER; THERMOSTAT SEAL 1-85210-067-0 01 1 0004- ● ●
57 TOOL; SETTING CRANK GEAR
OD=162 		1-85220-045-0 01 1 9902-0003 ●
57 TOOL; SETTING CRANK GEAR
OD=162 		1-85220-045-0 01 1 0004- ● ●
59 PULLER ASM; TIMING GEAR 1-85210-065-0 01 1 9902- ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9902-0003 ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 0004- ● ●
70 TOOL; SETTING,OIL SEAL 1-85220-043-0 01 1 9902-0003 ●
70 TOOL; SETTING,OIL SEAL 1-85220-043-0 01 1 0004- ● ●
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 9902-0003 ●
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 0004- ● ●
75 TOOL; SETTING,OIL SEAL 1-85220-049-0 01 1 9902-0003 ●
75 TOOL; SETTING,OIL SEAL 1-85220-049-0 01 1 0004- ● ●
82 PULLER ASM; CR/SHF GEAR 1-85210-064-0 01 1 9902-0003 ●
82 PULLER ASM; CR/SHF GEAR 1-85210-064-0 01 1 0004- ● ●
84 REPLACER; VALVE SEAL
EXHAUST 		1-85221-184-0 01 1 9902-0003 ●
84 REPLACER; VALVE SEAL
EXHAUST 		1-85221-184-0 01 1 0004- ● ●
84 REPLACER; VALVE SEAL
INLET 		1-85221-187-0 01 1 9902-0003 ●
84 REPLACER; VALVE SEAL
INLET 		1-85221-187-0 01 1 0004- ● ●
85 REPLACER ASM; VALVE SPR 1-85235-013-0 01 1 9902-0003 ●
85 REPLACER ASM; VALVE SPR 1-85235-013-0 01 1 0004- ● ●
87 TOOL; PISTON 1-85220-046-0 01 1 9902-9904 ●
87 TOOL; PISTON
6WA1 TC-C(55L) 		1-85220-046-0 01 1 9905- ●
87 TOOL; PISTON
6WG1 TC-R(75L) 		1-85220-059-0 01 1 9905-9909 ●
87 TOOL; PISTON
6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-85220-059-0 01 1 9910-0003 ●
87 TOOL; PISTON
6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-85220-059-0 01 1 0004- ●
87 TOOL; PISTON 1-85220-059-0 01 1 0004- ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9902-9904 ●
89 TOOL; PISTON RING
6WA1 TC-C(55L) 		1-85221-029-0 01 1 9905- ●
89 TOOL; PISTON RING
6WG1 TC-R(75L) 		1-85221-025-0 01 1 9905-9909 ●
89 TOOL; PISTON RING
6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-85221-025-0 01 1 9910-0003 ●
89 TOOL; PISTON RING
6WG1 TC-C(72L),6WG1 TC-R(75L) 		1-85221-025-0 01 1 0004- ●
89 TOOL; PISTON RING 1-85221-025-0 01 1 0004- ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 9902-0003 ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0004- ● ●
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 9902-0003 ●
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 0004- ● ●
102 ADAPTER; COMP GAGE 1-85317-019-0 01 1 9902-0003 ●
102 ADAPTER; COMP GAGE 1-85317-019-0 01 1 0004- ● ●
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 9902-0003 ●
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 0004- ● ●
115 PLIER 5-85171-001-0 01 1 9902-0003 ●
115 PLIER 5-85171-001-0 01 1 0004- ● ●
119 PULLER ASM; TOP GEAR BRG
ISUZU M/T<X9A> L=235 		9-85210-190-0 01 1 9902- ●
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 9902- ●
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> 		1-85210-069-0 01 1 9902- ●

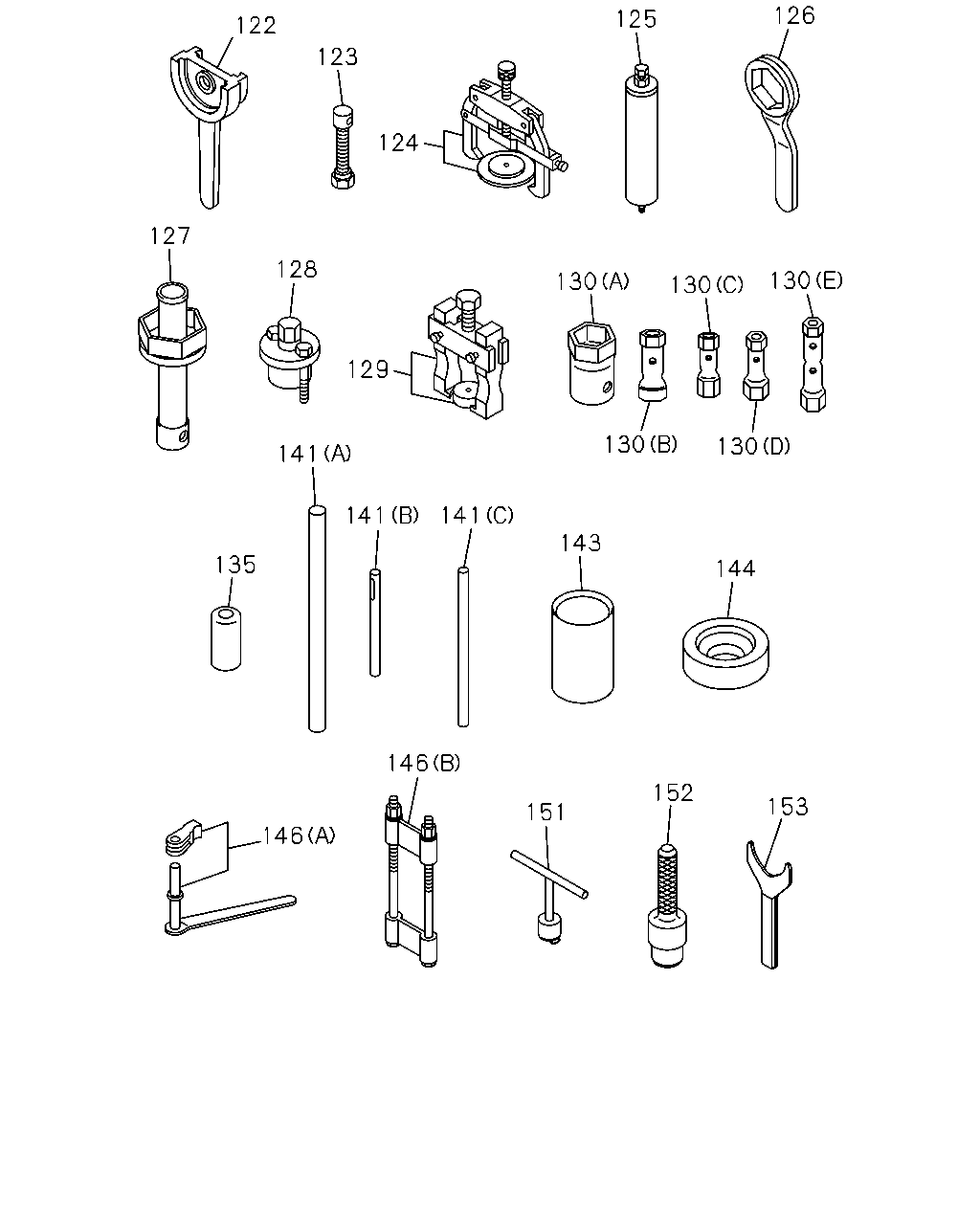

çizim 44682
126 125 122 123 124 127 128 130 130 130 129 130 130 141 141 141 143 135 144 146 152 153 151 146
BalonParca AdiParca NoAdetTipApplied Date A B
122 PULLER ASM; COUNTER FRT
ISUZU M/T<X9A> 		9-85210-129-1 01 1 9902- ●
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 9902- ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 9902-0003 ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0004- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9902-0003 ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0004- ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9902-0003 ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 0004- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 9902-0003 ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0004- ● ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 9902-0003 ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0004- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9902-0003 ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0004- ● ●
130 WRENCH; BOX
(A) B=63 		9-85111-368-0 01 1 9902-0003 ●
130 WRENCH; BOX
(A) B=63 		9-85111-368-0 01 1 0004- ● ●
130 WRENCH; BOX
(B) B=46 & 54 L=165 		9-85112-320-0 01 1 9902-0003 ●
130 WRENCH; BOX
(B) B=46 & 54 L=165 		9-85112-320-0 01 1 0004- ● ●
130 WRENCH; BOX
(C) B=32 & 41 L=150 		9-85112-322-0 01 1 9902-0003 ●
130 WRENCH; BOX
(C) B=32 & 41 L=150 		9-85112-322-0 01 1 0004- ● ●
130 WRENCH; BOX
(D) B=36 & 41 L=200 		9-85112-330-0 01 1 9902-0003 ●
130 WRENCH; BOX
(D) B=36 & 41 L=200 		9-85112-330-0 01 1 0004- ● ●
130 WRENCH; BOX
(E) B=41 & 46 L=165 		9-85113-401-0 01 1 9902-0003 ●
130 WRENCH; BOX
(E) B=41 & 46 L=165 		9-85113-401-0 01 1 0004- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 9902-0003 ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0004- ● ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9902-0003 ●
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 0004- ● ●
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 9902-0003 ●
141 HANDLE; WRENCH
(B) OD=16 L=200 		9-85111-934-0 01 1 0004- ● ●
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 9902-0003 ●
141 HANDLE; WRENCH
(C) OD=19 L=400 		9-85114-306-0 01 1 0004- ● ●
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 9902-0003 ●
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 0004- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 9902-0003 ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0004- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 9902-0003 ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0004- ● ●
146 REPLACER KIT; LEAF SPR
(A) 		1-85237-017-0 01 1 9902-0003 ●
146 REPLACER KIT; LEAF SPR
(A) 		1-85237-017-0 01 1 0004- ● ●
146 REPLACER KIT; LEAF SPR
(B) 		9-85231-556-0 01 1 9902-0003 ●
146 REPLACER KIT; LEAF SPR
(B) 		9-85231-556-0 01 1 0004- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 9902-0003 ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0004- ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9902-0003 ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0004- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9902-0003 ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
