2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#77827) — 29 parça

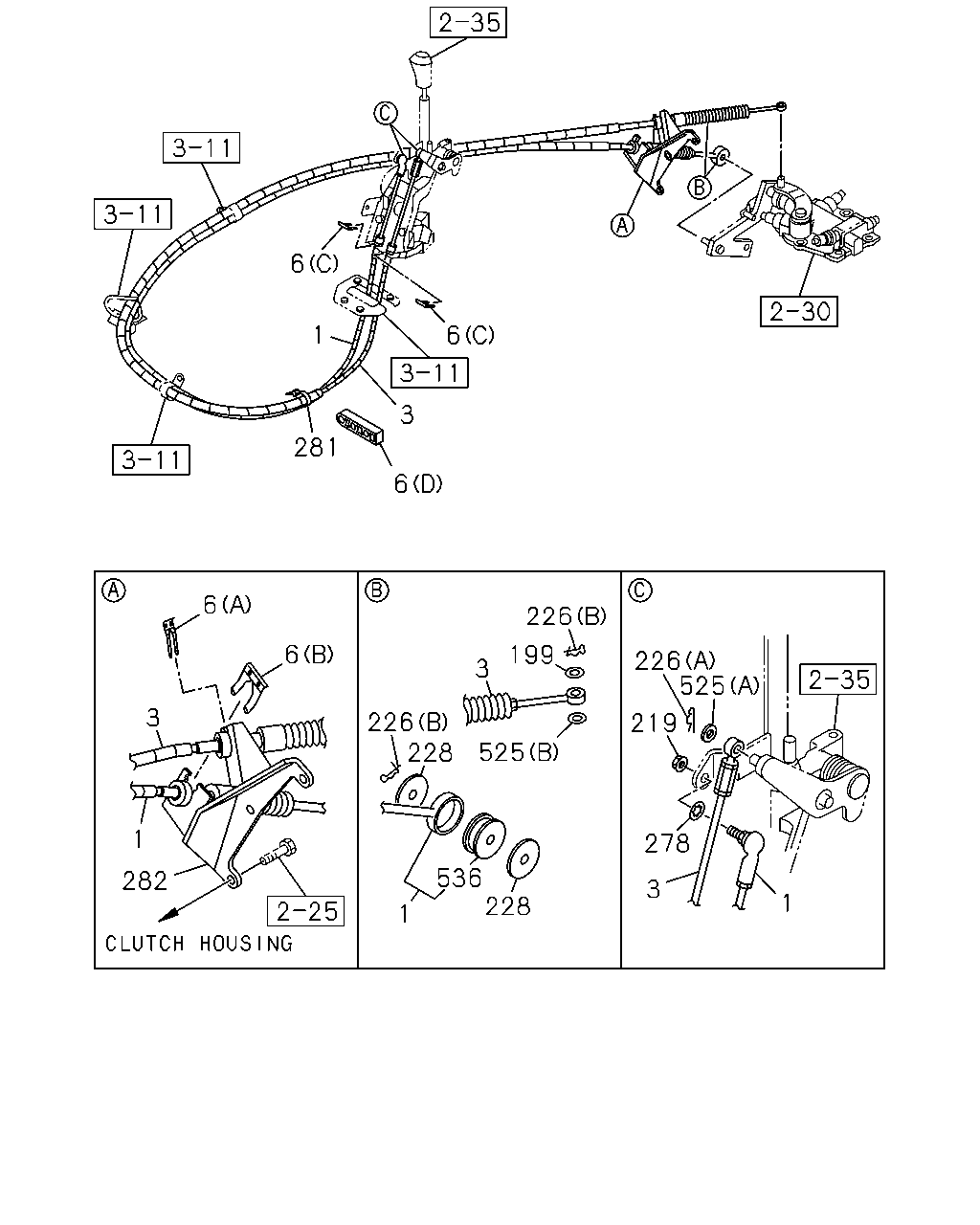

çizim 114193
6 6 1 3 6 281 1 525 219 226 278 3 226 199 3 525 226 228 536 228 1 6 6 3 1 282
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCC ENG(RDU) L=3065 		8-98146-877-1 01 1 1209- ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=3140 		8-98146-879-0 01 1 1109- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=3115 		8-98146-878-0 01 1 1010-1108 ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=3115 		8-98146-878-0 01 1 1109- ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCC ENG(RDU) L=3175 		8-98025-444-2 01 1 1209- ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=3279 		8-98025-446-5 01 1 1109- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=3247 		8-98025-445-4 01 1 1010-1108 ●
3 00.852 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=3247 		8-98025-445-4 01 1 1109- ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1010- ● ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1010- ● ● ●
6 04.047 CLIP; CABLE
04.008 (D) 		8-97093-491-1 01 1 1010-1102 ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1103-1108 ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1109- ● ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1010- ● ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1010- ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1010- ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1010- ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1010- ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1010- ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1010- ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1010- ● ● ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCC ENG(RDU) 		8-97350-449-0 01 1 1209- ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98032-396-2 01 1 1109- ● ●
282 04.010 BRACKET; TRANS SIDE 8-98032-395-1 01 1 1010-1108 ●
282 04.010 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98032-395-1 01 1 1109- ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1010- ● ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1010- ● ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1010-1108 ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1109- ● ● ●
