◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#77826) — 35 parça

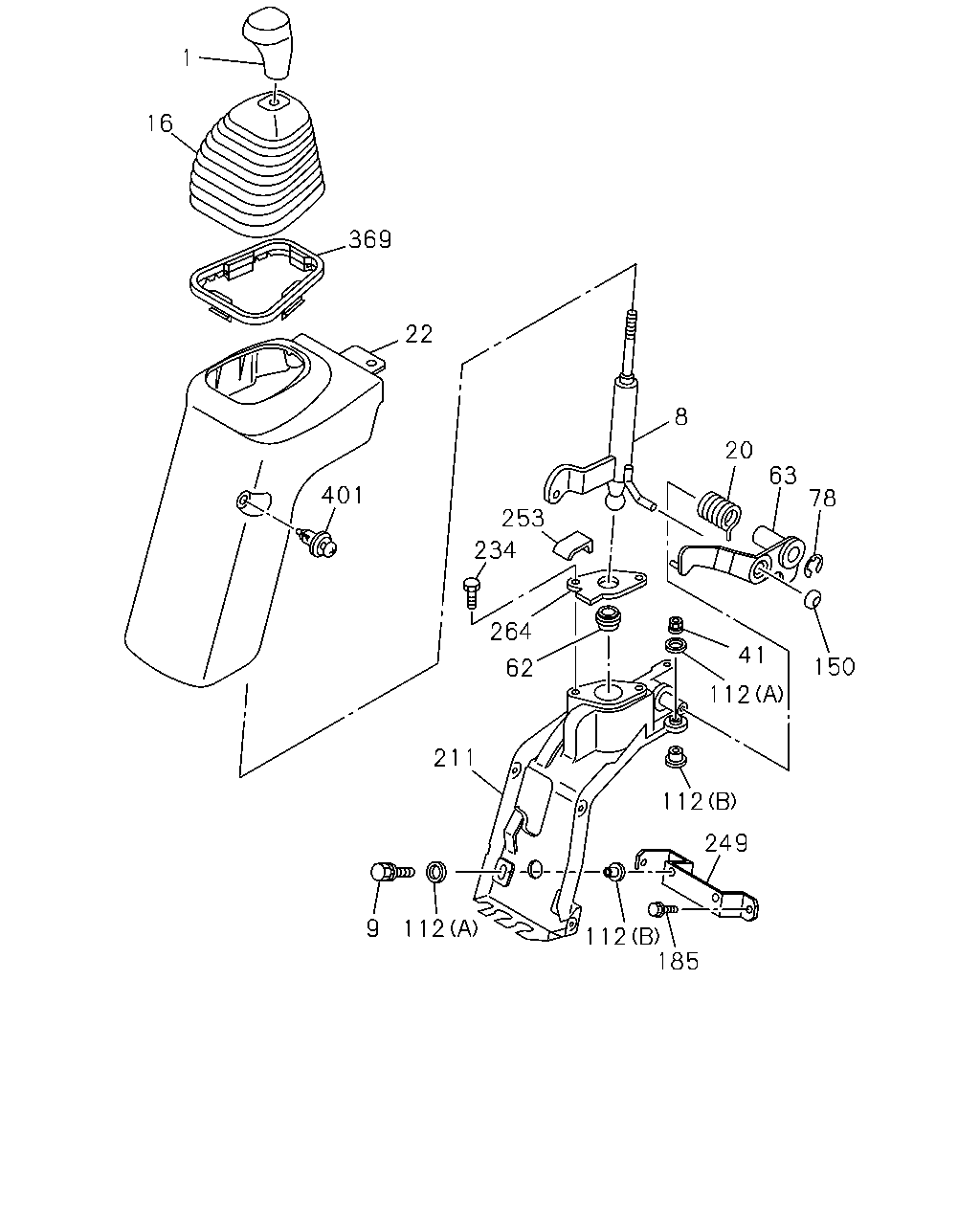

çizim 113884
1 16 369 22 401 78 63 20 8 253 234 264 62 211 112 9 150 41 112 112 249 185 112
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 1010-1108 ●
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 1109- ● ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 1010-1108 ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 1109- ● ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1010- ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-98035-063-0 01 1 1010- ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1010-1108 ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1109- ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-505-1 01 1 1010-1012 ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1101- ● ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1010- ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1010-1108 ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1109- ● ● ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 1010-1108 ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 1109- ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1010-1108 ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1109- ● ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1010-1108 ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1109- ● ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1010-1108 ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1109- ● ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1010-1108 ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1109- ● ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1010-1108 ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1109- ● ● ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1010-1108 ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1109- ● ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1010- ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1010-1108 ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1109- ● ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1010-1108 ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1109- ● ● ●
369 04.012 RETAINER; REINF 8-98032-213-1 01 1 1010- ● ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1010- ● ● ●
