2-30 — GEAR SHIFTER AND QUADRANT BOX (#77825) — 139 parça

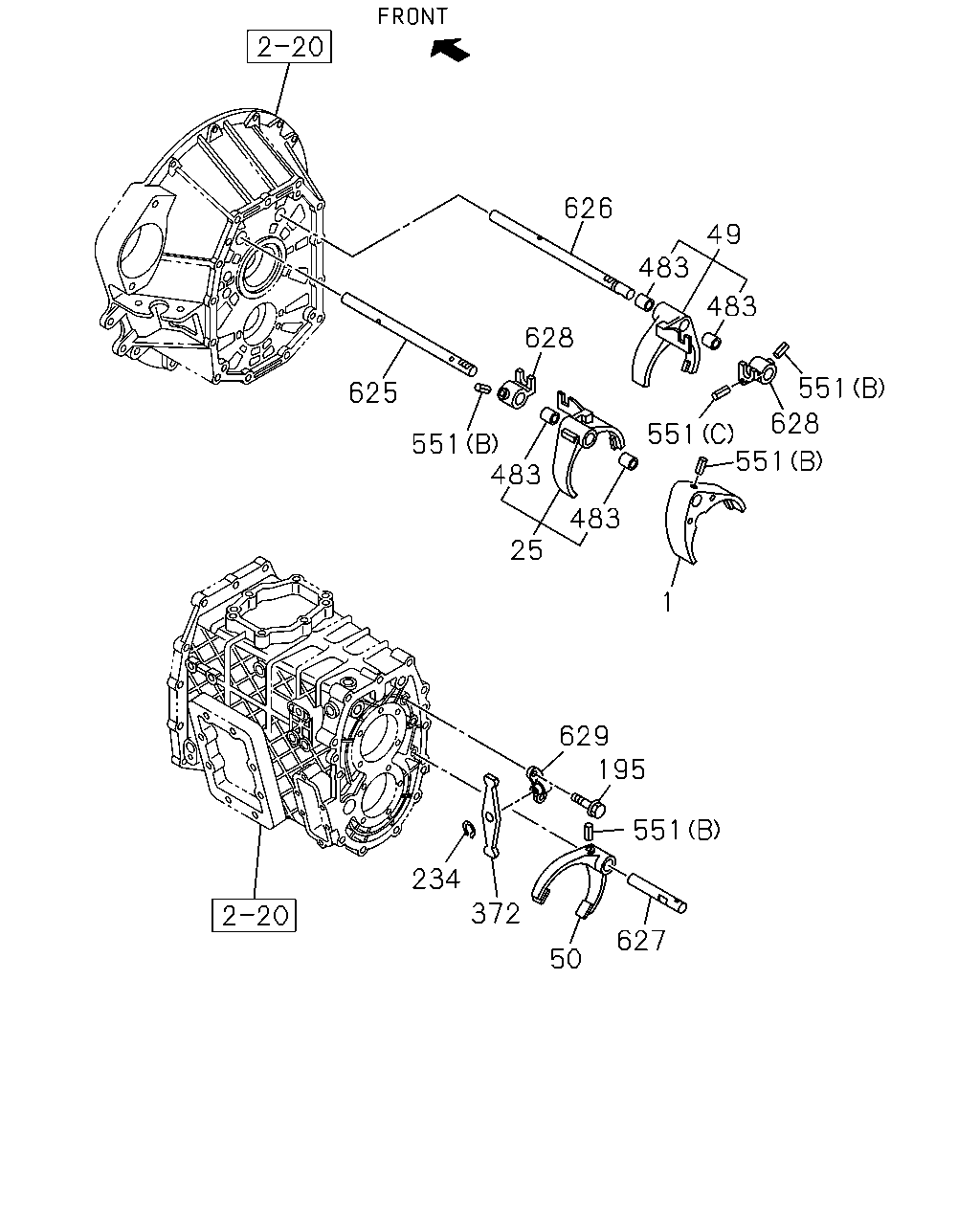

çizim 113435
551 483 49 483 626 628 628 551 483 483 551 1 25 551 625 629 195 551 627 50 372 234
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-319-2 01 1 1109- ● ●
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1010- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-737-1 01 1 1109- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1010-1407 ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-738-1 01 1 1109- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1010- ●
50 04.302 ARM; SHIFT,6TH 8-97241-324-1 01 1 1109- ● ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1010- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1010-1108 ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1109- ● ● ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1010-1108 ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1109- ● ● ●
372 04.302 LEVER; RELAY,6TH 8-97241-342-0 01 1 1109- ● ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1010- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1010-1108 ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 1109- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1010-1108 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) (A) L=25 OD=5 		1-09748-032-0 01 1 1109-1208 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1109-1208 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1209- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1010-1108 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1109- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1010-1108 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1109- ● ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-735-0 01 1 1109- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1010- ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98107-548-0 01 1 1109- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1010- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1010-1108 ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1109- ● ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1010-1108 ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1109- ● ● ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1010-1108 ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1109- ● ● ●

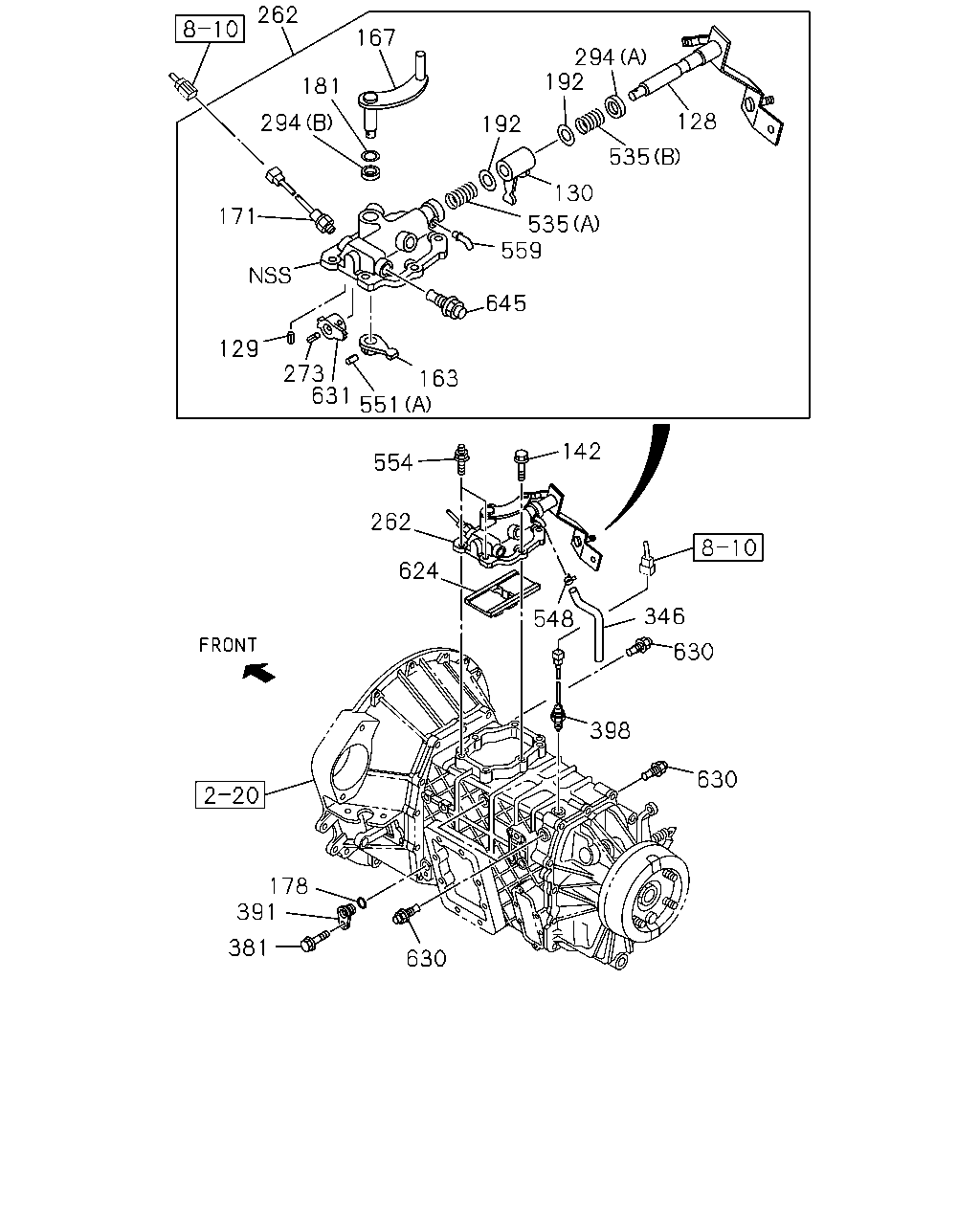

çizim 113443
128 294 192 192 535 130 535 559 645 163 551 631 273 129 171 167 262 181 294 142 554 624 262 630 346 548 398 630 630 178 391 381
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-97363-226-0 01 1 1209- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 1010-1108 ●
128 04.030 LEVER; SHIFT,EXTERNAL
4HK1-TCN ENG(RDQ) 		8-98021-595-0 01 1 1109- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 1109- ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1010-1108 ●
129 04.027 PIN; SPR,SHIFT
4HK1-TCN ENG(RDQ) L=30 OD=4 		1-09748-031-0 01 1 1109-1208 ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1109-1208 ● ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1209- ● ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1010-1108 ●
130 04.302 LEVER; SHIFT,INTERNAL
4HK1-TCN ENG(RDQ) 		8-97306-647-0 01 1 1109-1208 ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1109-1208 ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1209- ● ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1010-1108 ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1109- ● ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1010-1108 ●
163 04.302 LEVER; SELECT,INTERNAL
4HK1-TCN ENG(RDQ) 		8-97305-663-0 01 1 1109-1208 ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1109-1208 ● ●
163 04.302 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1209- ● ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCC ENG(RDU) 		8-98039-436-0 01 1 1209- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1010-1108 ●
167 04.302 LEVER; SELECT,EXTERNAL
4HK1-TCN ENG(RDQ) 		8-98039-444-0 01 1 1109- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1109- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1010-1108 ●
171 04.054 SWITCH; NEUTRAL
4HK1-TCN ENG(RDQ) 02.698 		8-98023-050-0 01 1 1109-1208 ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1109-1208 ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1209-1312 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1010-1108 ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1109- ● ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1010-1108 ●
181 04.302 WASHER; PL,SELECT LEVER
4HK1-TCN ENG(RDQ) 		8-97367-327-0 01 1 1109-1208 ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1109-1208 ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1209- ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1010-1108 ●
192 04.309 WASHER; PL
4HK1-TCN ENG(RDQ) 		8-97305-661-0 02 1 1109-1208 ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1109-1208 ● ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1209- ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98021-591-1 01 1 1209-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCC ENG(RDU) 		8-98240-993-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 1010-1108 ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) 		8-98021-592-1 01 1 1109-1312 ●
262 04.105 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 1109-1312 ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98240-994-0 01 1 1401-1402 ● ● ●
262 04.105 BOX ASM; SHIFT CONT
4HK1-TCN ENG(RDQ) 		8-98240-994-2 01 1 1403- ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-994-2 01 1 1403- ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1010-1108 ●
273 04.309 PIN; SPR,STOPPER
4HK1-TCN ENG(RDQ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 1109-1208 ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1109-1208 ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1209- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1010-1108 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ). (B) 		8-97305-662-0 01 1 1109-1208 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1109-1208 ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1209- ● ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1010-1108 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ). (A) 		8-97363-225-0 01 1 1109-1208 ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1109-1208 ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1209- ● ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1010-1108 ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1109- ● ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1010-1108 ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1109- ● ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1010-1108 ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1109- ● ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 1010-1106 ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1107-1108 ●
398 02.698 SWITCH; REV LAMP 8-98186-003-0 01 1 1109-1311 ● ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1312- ● ● ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1010-1108 ●
535 04.302 SPRING; LEVER
4HK1-TCN ENG(RDQ) (A) 		8-97305-659-0 01 1 1109-1208 ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1109-1208 ● ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1209- ● ● ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1010-1108 ●
535 04.302 SPRING; LEVER
4HK1-TCN ENG(RDQ) (B) 		8-97305-660-0 01 1 1109-1208 ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1109-1208 ● ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1209- ● ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1010-1108 ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1109- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1010-1108 ●
551 04.303 PIN; SPRING
4HK1-TCN ENG(RDQ) (A) L=25 OD=5 		1-09748-032-0 01 1 1109-1208 ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1109-1208 ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1209- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1010-1108 ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 1109- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1010-1108 ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1109- ● ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1010-1108 ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1109- ● ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1010-1108 ●
559 04.302 PIPE; BREATHER
4HK1-TCN ENG(RDQ) 04.510 		8-97358-318-0 01 1 1109-1208 ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1109-1208 ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1209- ● ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1010-1108 ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1109- ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1010-1108 ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1109- ● ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1010-1108 ●
631 04.105 STOPPER; SPRING
4HK1-TCN ENG(RDQ) 		8-97305-666-0 01 1 1109-1208 ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1109-1208 ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1209- ● ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1010-1108 ●
645 04.311 DETENT ASM
4HK1-TCN ENG(RDQ) 04.307 		8-98019-536-0 01 1 1109-1208 ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1109-1208 ● ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1209- ● ● ●
