◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#77820) — 87 parça

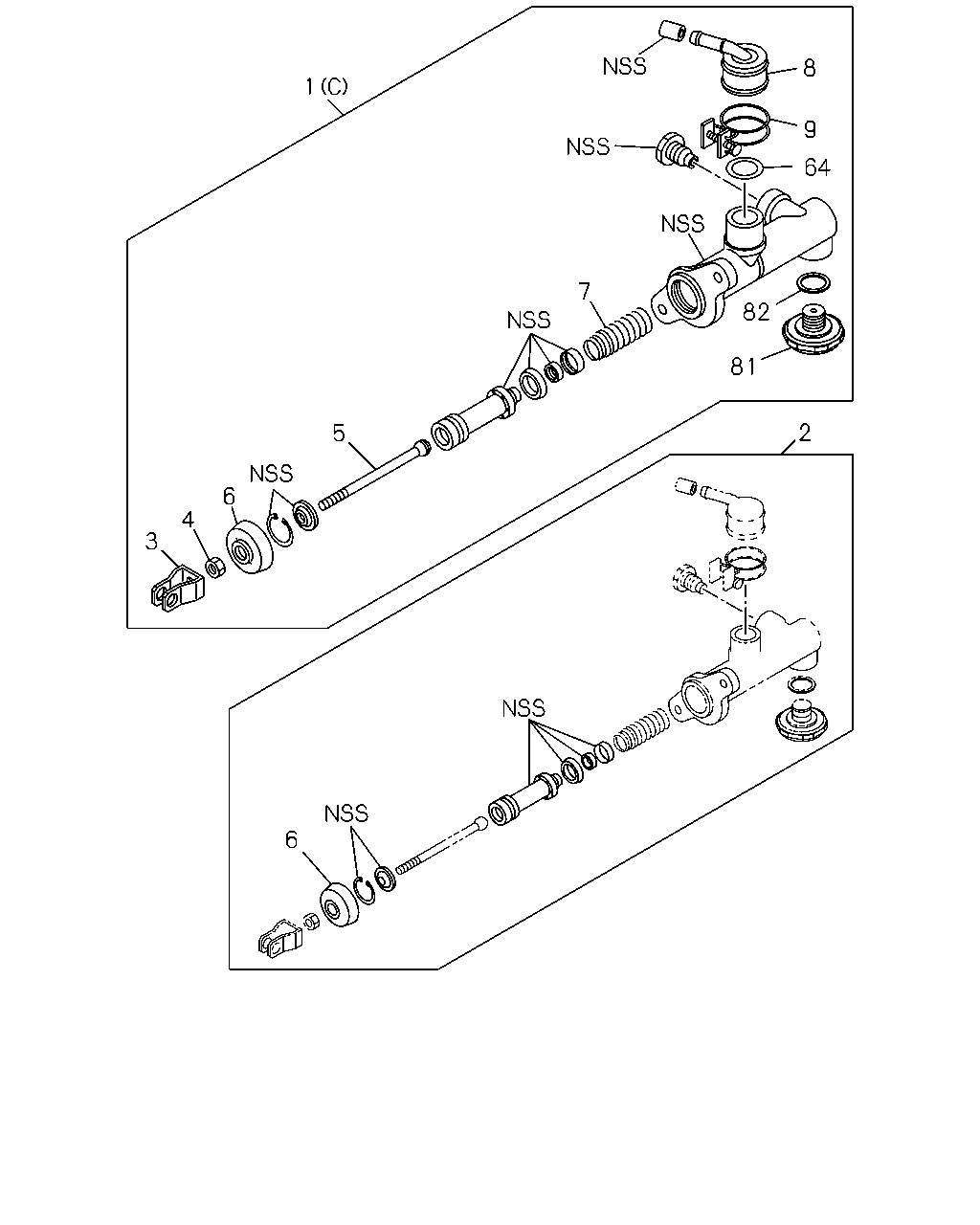

çizim 102686
8 9 64 82 81 2 6 3 4 6 5 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98117-643-0 01 1 1209- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1109- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1109- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1109- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1010-1108 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1109- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1010-1108 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1109- ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1010-1108 ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1109- ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1010-1108 ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1109- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1010-1108 ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1109- ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1010-1108 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1109- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1010-1108 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1109- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1010-1108 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1109- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1010-1108 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1109- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1010-1108 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1109- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1010-1108 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1109- ● ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1010-1108 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1109- ● ● ●
81 00.777 DAMPER; MASTER CYL
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-97190-913-0 01 1 1209- ●
82 00.777 GASKET; DAMPER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-97191-396-0 01 1 1209- ●
çizim 103090
8 9 7 64 1 5 6 4 3 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98117-643-0 01 1 1209- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1109- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1109- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1109- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1010-1108 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1109- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1010-1108 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1109- ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1010-1108 ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1109- ● ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1010-1108 ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1109- ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1010-1108 ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1109- ● ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1010-1108 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1109- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1010-1108 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1109- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1010-1108 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1109- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1010-1108 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1109- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1010-1108 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1109- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1010-1108 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1109- ● ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1010-1108 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1109- ● ● ●
çizim 292050
2 1 8 9 64 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 CYLINDER ASM; CLUTCH MASTER
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98117-643-0 01 1 1209- ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1109- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-251-0 01 1 1109- ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1010-1108 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98025-308-0 01 1 1109- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1010-1108 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1109- ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1010-1108 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1109- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1010-1108 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1109- ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1010-1108 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1109- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1010-1108 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1109- ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1010-1108 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-191-0 01 1 1109- ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1010-1108 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1109- ● ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1010-1108 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1109- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
