8-90 — RADIO AND TV (#7782) — 120 parça

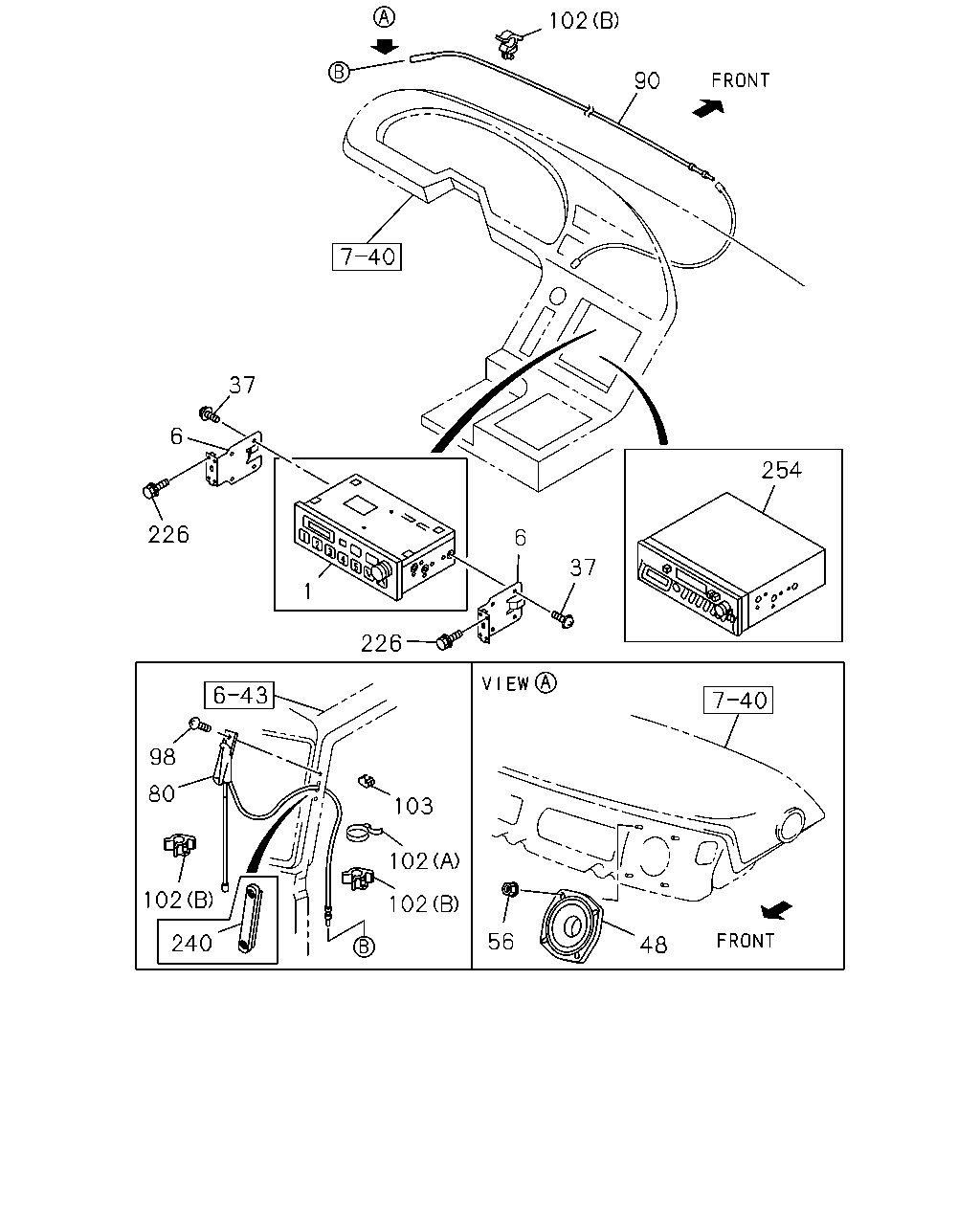

102 90 37 6 254 226 6 37 1 226 98 80 103 102 102 102 56 240 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIO RADIO CLARION(SK2)	1-84112-063-0	01	1	9902-9911	●
1	RADIO RADIO CLARION(SK2) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-84112-063-0	01	1	9912-	●
1	RADIO RADIO CLARION(SK2) SAUDI ARABIA EQUIPMENT(WH1)	1-84112-068-0	01	1	9912-	●
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	9902-0003	●
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	0004-	●	●
37	SCREW; CASSETTE & RADIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9902-0003	●
37	SCREW; CASSETTE & RADIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0004-	●
37	SCREW; CASSETTE & RADIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0004-		●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>	1-84114-062-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>	1-84114-062-0	02	1	0004-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU>	1-84114-050-0	01	1	9902-	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>	1-84114-057-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>	1-84114-057-0	02	1	0004-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	9902-0003	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	0004-	●	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	0004-	●	●
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	02	1	9902-	●
56	NUT; SPEAKER,RADIO OR STEREO EXC. SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	04	1	9902-0003	●
56	NUT; SPEAKER,RADIO OR STEREO EXC. SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	04	1	0004-	●
56	NUT; SPEAKER,RADIO OR STEREO M5 FLANGE	1-09984-170-0	04	1	0004-		●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	9902-0003	●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	0004-	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	9902-0003	●
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	0004-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	9902-0003	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0004-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8	8-94128-483-0	07	1	9902-9902	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8	8-94128-483-0	02	1	9903-	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/PACKING ID=4.8	1-73907-618-0	05	1	9903-0003	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/PACKING ID=4.8	1-73907-618-0	05	1	0004-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	9902-0003	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	0004-	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	0004-		●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) ID=4.8	8-94128-483-0	03	1	0004-		●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	9902-0003	●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	0004-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	9902-0003	●
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	0004-	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION	1-84122-032-2	01	1	9902-9911	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION	1-84122-032-2	01	1	9912-0003	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION	1-84122-032-3	01	1	0004-	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION	1-84122-032-3	01	1	0004-		●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) SAUDI ARABIA EQUIPMENT(WH1)	1-84122-038-1	01	1	9912-	●

62 63 49 48 52 215 49 48 52 68 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>	1-84114-062-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>	1-84114-062-0	02	1	0004-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU>	1-84114-050-0	01	1	9902-	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>	1-84114-057-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>	1-84114-057-0	02	1	0004-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	9902-0003	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	0004-	●	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	0004-	●	●
49	SCREW; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	9902-0003	●
49	SCREW; SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER	8-94279-400-0	08	1	0004-	●	●
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9902-0003	●
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0004-	●	●
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	9902-0003	●
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0004-0008	●
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0004-0008		●
52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0009-	●	●
62	BOX; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73347-749-3	01	1	9902-0003	●
62	BOX; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73347-749-3	01	1	0004-	●	●
62	BOX; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73347-748-3	01	1	9902-0003	●
62	BOX; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F>	1-73347-748-3	01	1	0004-	●	●
63	SCREW; RR SPEAKER BOX SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	9902-0003	●
63	SCREW; RR SPEAKER BOX SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	0004-	●	●
68	BRACKET; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-786-2	01	1	9902-0003	●
68	BRACKET; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-786-2	01	1	0004-	●	●
68	BRACKET; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-785-2	01	1	9902-0003	●
68	BRACKET; RR SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F>	1-73347-785-2	01	1	0004-	●	●
215	SCREW; BRKT,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9902-0003	●
215	SCREW; BRKT,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0004-	●	●
215	SCREW; BRKT,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9902-0003	●
215	SCREW; BRKT,SPEAKER SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	0004-	●	●

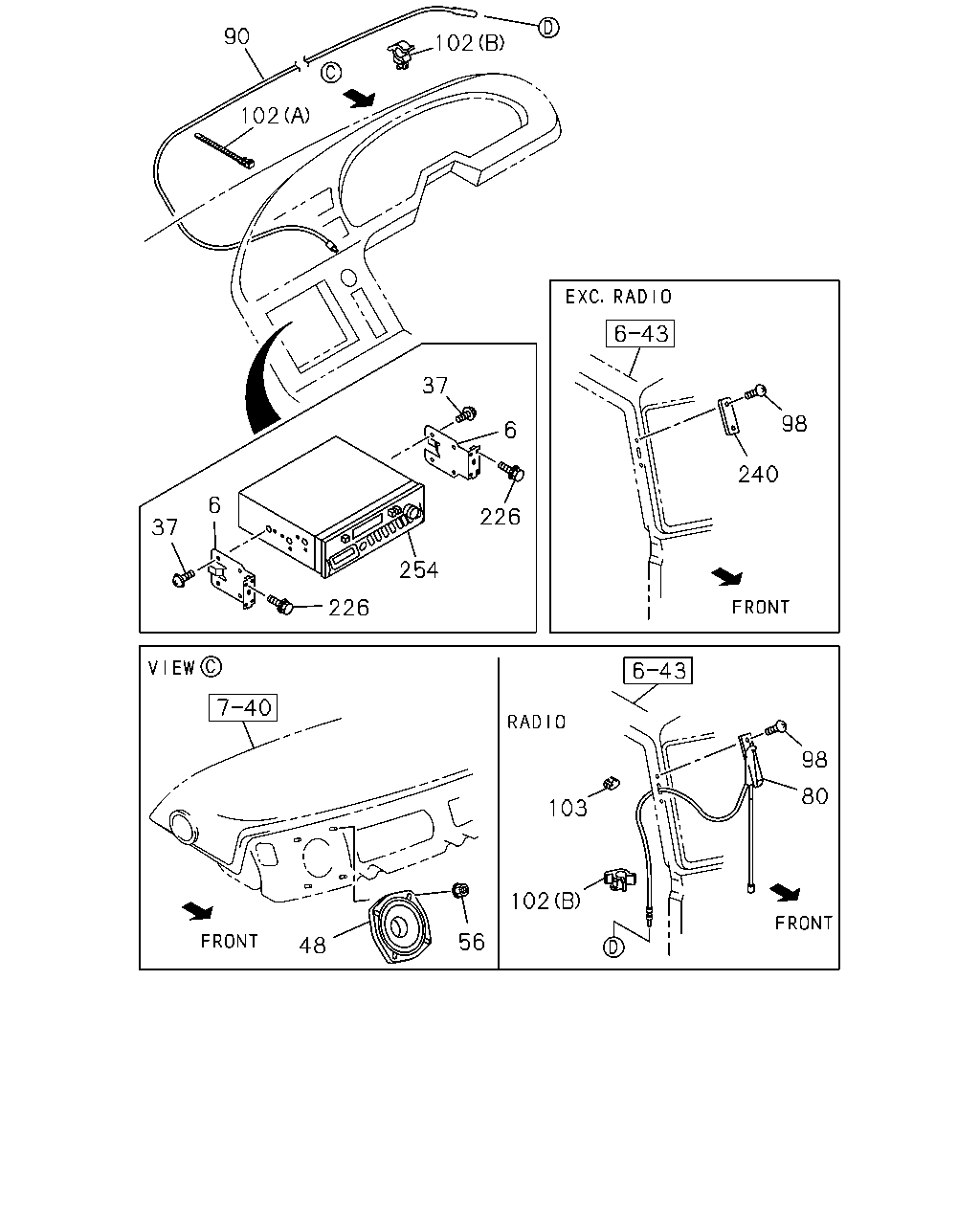

90 102 102 37 98 6 240 6 226 37 254 226 98 80 103 102 56 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	9902-0003	●
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	0004-	●	●
37	SCREW; CASSETTE & RADIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9902-0003	●
37	SCREW; CASSETTE & RADIO RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0004-	●
37	SCREW; CASSETTE & RADIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0004-		●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>	1-84114-062-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>	1-84114-062-0	02	1	0004-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 1 SPEAKER<NBU>	1-84114-050-0	01	1	9902-	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>	1-84114-057-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>	1-84114-057-0	02	1	0004-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	9902-0003	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	9902-0003	●
48	SPEAKER; AUDIO SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	0004-	●	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-050-0	02	1	0004-	●	●
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	02	1	9902-	●
56	NUT; SPEAKER,RADIO OR STEREO EXC. SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	04	1	9902-0003	●
56	NUT; SPEAKER,RADIO OR STEREO EXC. SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE	1-09984-170-0	04	1	0004-	●
56	NUT; SPEAKER,RADIO OR STEREO M5 FLANGE	1-09984-170-0	04	1	0004-		●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	9902-0003	●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	0004-	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	9902-0003	●
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	0004-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	9902-0003	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0004-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8	8-94128-483-0	07	1	9902-9902	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8	8-94128-483-0	02	1	9903-	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/PACKING ID=4.8	1-73907-618-0	05	1	9903-0003	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/PACKING ID=4.8	1-73907-618-0	05	1	0004-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	9902-0003	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	0004-	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	0004-		●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) ID=4.8	8-94128-483-0	03	1	0004-		●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	9902-0003	●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	0004-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9902-0003	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0004-	●	●
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	9902-0003	●
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	0004-	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION	1-84122-032-2	01	1	9902-9911	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION	1-84122-032-2	01	1	9912-0003	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION	1-84122-032-3	01	1	0004-	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION	1-84122-032-3	01	1	0004-		●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) SAUDI ARABIA EQUIPMENT(WH1)	1-84122-038-1	01	1	9912-	●
