◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#77816) — 48 parça

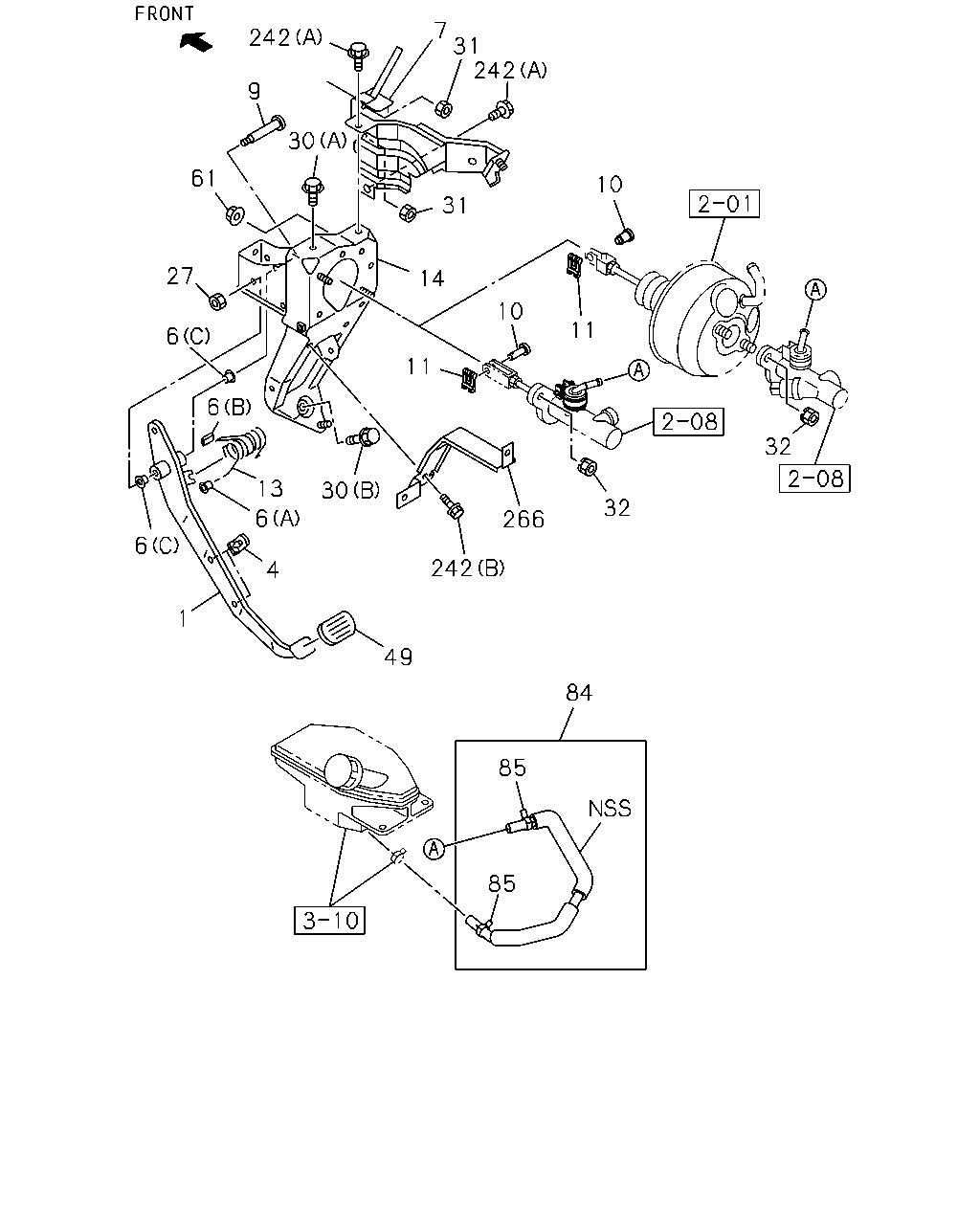

çizim 98514
32 32 266 242 49 84 85 85 1 4 6 6 6 27 61 11 30 13 6 11 10 10 31 14 242 31 7 242 9 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.830 PEDAL; CLU
4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 1209- ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-754-0 01 1 1010-1108 ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-754-0 01 1 1109- ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1010-1204 ● ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1205-1208 ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1209- ●
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98002-484-0 01 1 1209- ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1010- ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1010- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 1010- ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 1010- ● ●
7 00.829 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98111-112-1 01 1 1010-1409 ● ●
7 00.829 BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98222-745-0 01 1 1410- ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98062-632-3 01 1 1010-1204 ● ●
7 00.829 BRACKET; CLU PEDAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98062-632-3 01 1 1205-1208 ● ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98062-632-3 01 1 1209-1409 ●
7 00.829 BRACKET; CLU PEDAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98062-632-3 01 1 1209-1409 ●
7 00.829 BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98222-746-0 01 1 1410- ●
7 00.829 BRACKET; CLU PEDAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98222-746-0 01 1 1410- ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1010- ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-98147-657-0 01 1 1010- ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 1010- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1010- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1010-1204 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1205-1208 ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1209- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98023-621-1 01 1 1209- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-98054-878-0 01 1 1010- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1010-1204 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1205-1208 ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1209- ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) 		8-98054-876-0 01 1 1209- ●
27 00.833 NUT; FULCRUM PIN
04.634 M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1010- ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1010- ● ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1010- ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1010- ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1010- ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1010- ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 1010- ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98023-512-1 01 1 1010-1208 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) 		8-98218-209-1 01 1 1209- ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98025-423-1 01 1 1010-1208 ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-210-1 01 1 1209- ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-98031-178-0 02 1 1010-1208 ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1209- ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1010- ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 (A) M8X16 FLANGE 		0-28450-816-0 02 1 1010- ● ●
266 04.054 BRACKET; CLU SWITCH 8-98078-745-4 01 1 1010- ● ●
