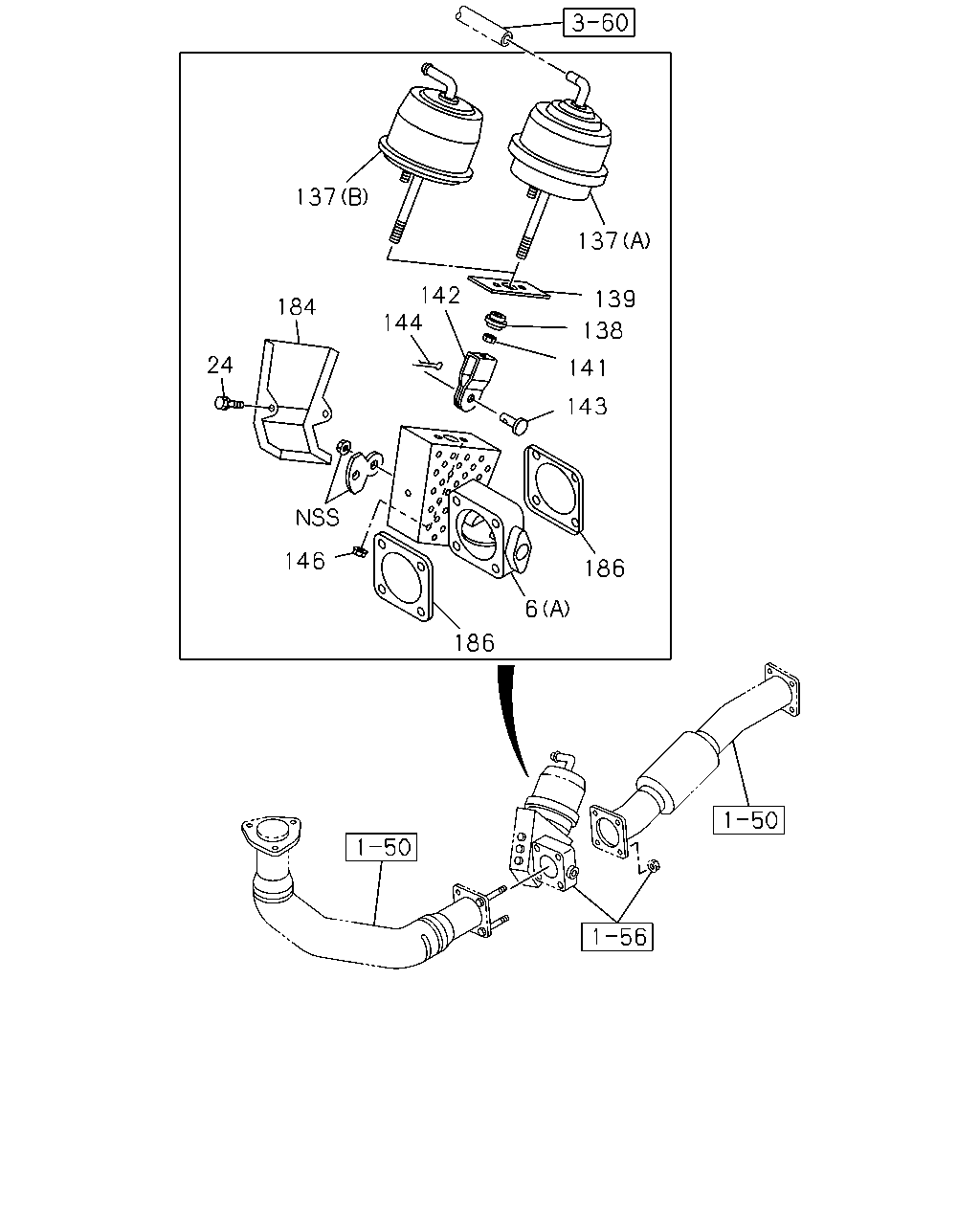

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#77813) — 74 parça

186 186 6 146 143 141 138 139 137 142 144 137 184 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) (B)	8-97360-025-1	01	1	1209-	●
6	03.632 VALVE; EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98069-291-0	01	1	1010-1108	●	●
6	03.632 VALVE; EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98069-291-0	01	1	1109-	●	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.444	8-97065-029-0	02	1	1010-1208	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1209-	●	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98229-058-0	01	1	1301-	●	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98043-596-0	01	1	1010-1208	●	●
137	03.634 CHAMBER; POWER (A)	8-98043-596-0	01	1	1209-1212	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) (A)	8-98043-596-0	01	1	1301-	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1209-	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	5-22189-004-0	01	1	1010-1108	●	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	5-22189-004-0	01	1	1109-1212	●	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98231-608-0	01	1	1301-	●	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94328-234-0	01	1	1010-1208	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1209-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1209-	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.122	8-94311-428-0	01	1	1010-1108	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.122	8-94311-428-0	01	1	1109-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98231-609-0	01	1	1301-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97177-311-0	01	1	1010-1208	●	●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1209-1212	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1301-	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98231-610-0	01	1	1301-	●	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94311-452-0	01	1	1010-1208	●	●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1209-1212	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1301-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97985-124-0	01	1	1301-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97029-428-0	01	1	1010-1208	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1209-1212	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1301-	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 M8 FLANGE	0-91150-108-0	02	1	1209-	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1108	●	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU)	8-97311-447-1	01	1	1209-	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97370-068-0	01	1	1010-1108	●	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97370-068-0	01	1	1109-	●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98022-713-0	02	1	1010-1108	●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98022-713-0	02	1	1109-	●	●

6 146 143 141 138 139 137 142 144 24 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) (B)	8-97360-025-1	01	1	1209-	●
6	03.632 VALVE; EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98069-291-0	01	1	1010-1108	●	●
6	03.632 VALVE; EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98069-291-0	01	1	1109-	●	●
24	03.634 BOLT; COVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.444	8-97065-029-0	02	1	1010-1208	●	●
24	03.634 BOLT; COVER 03.444	8-97065-029-0	02	1	1209-	●	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98229-058-0	01	1	1301-	●	●
137	03.634 CHAMBER; POWER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98043-596-0	01	1	1010-1208	●	●
137	03.634 CHAMBER; POWER (A)	8-98043-596-0	01	1	1209-1212	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) (A)	8-98043-596-0	01	1	1301-	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1209-	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	5-22189-004-0	01	1	1010-1108	●	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	5-22189-004-0	01	1	1109-1212	●	●
138	03.634 BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98231-608-0	01	1	1301-	●	●
139	03.634 GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94328-234-0	01	1	1010-1208	●	●
139	03.634 GASKET; EXH BRK VLV	8-94328-234-0	01	1	1209-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1209-	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.122	8-94311-428-0	01	1	1010-1108	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 05.122	8-94311-428-0	01	1	1109-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98231-609-0	01	1	1301-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97177-311-0	01	1	1010-1208	●	●
142	03.636 CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1209-1212	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1301-	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98231-610-0	01	1	1301-	●	●
143	03.636 PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-94311-452-0	01	1	1010-1208	●	●
143	03.636 PIN; EXH BRK VLV	8-94311-452-0	01	1	1209-1212	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1301-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97985-124-0	01	1	1301-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97029-428-0	01	1	1010-1208	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1209-1212	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1301-	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 M8 FLANGE	0-91150-108-0	02	1	1209-	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1108	●	●
146	03.634 NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●
184	03.634 COVER; BRKT 4JJ1-TCC ENG(RDU)	8-97311-447-1	01	1	1209-	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97370-068-0	01	1	1010-1108	●	●
184	03.634 COVER; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97370-068-0	01	1	1109-	●	●
