1 |

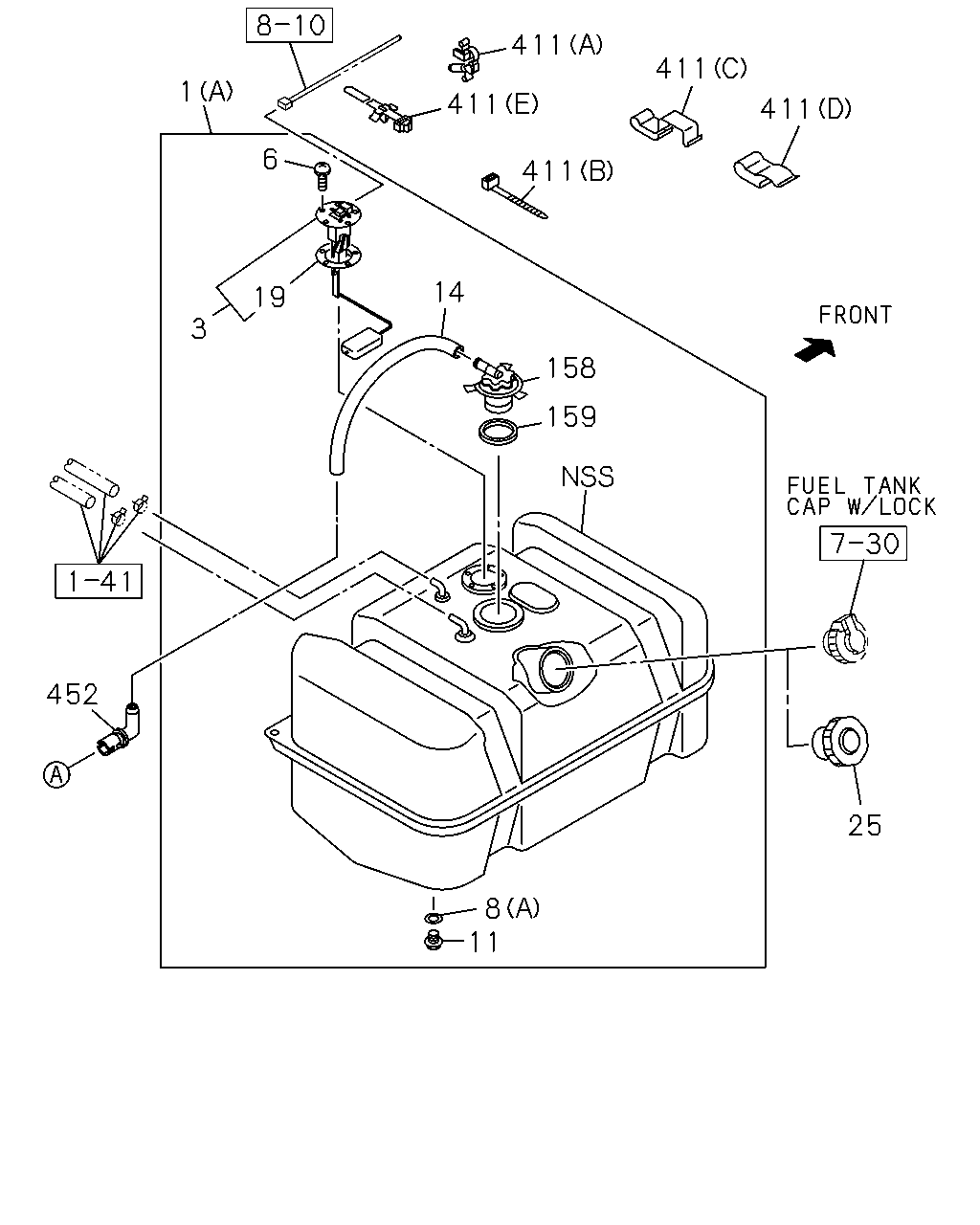

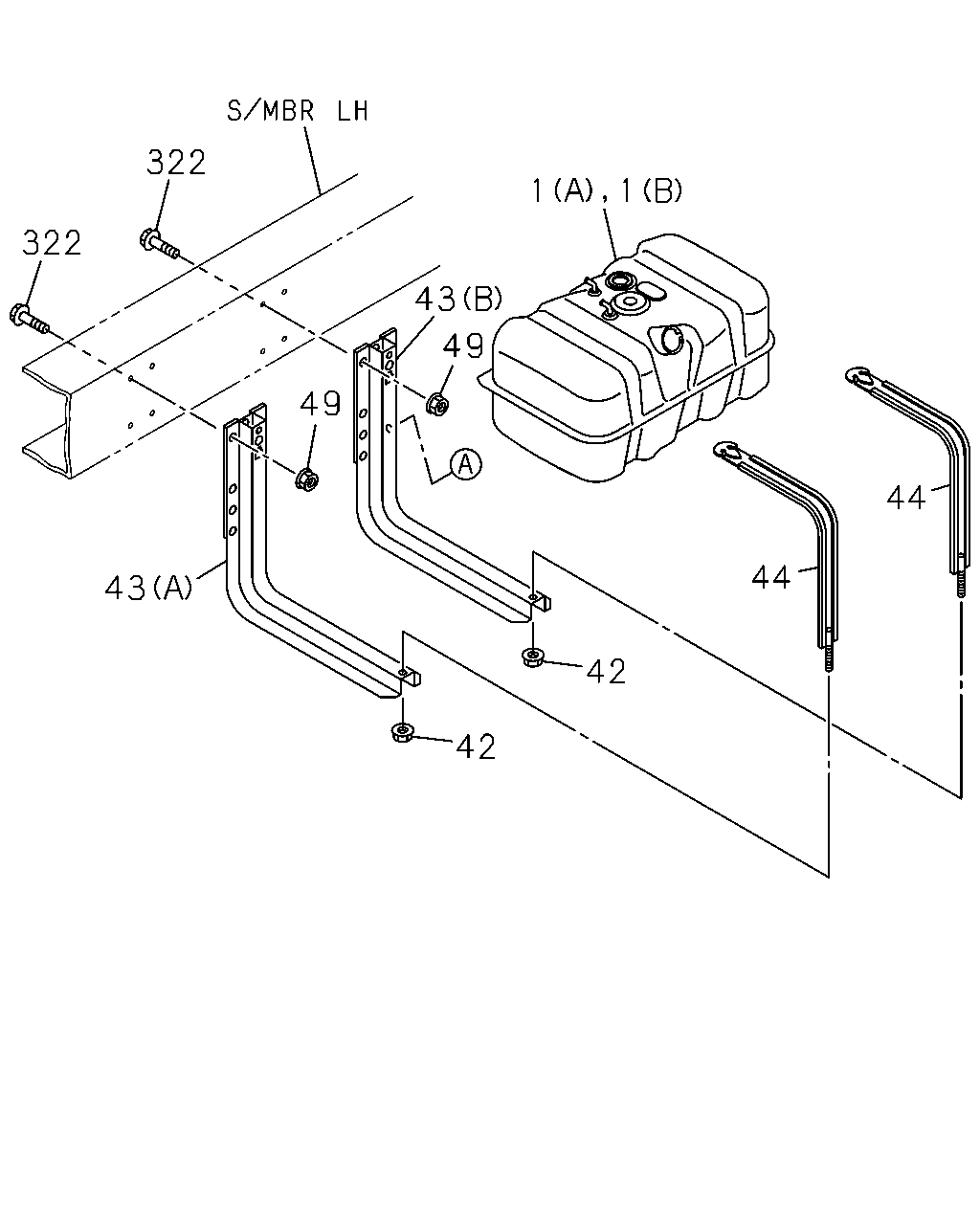

03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12)
FUEL TANK 140 LITTER<N19>
(B)
820X500X400 140L
|
8-98101-073-2 |
01 |
1 |
1403-1506 |
● |
|
| |
1 |
03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19>
EXC. RUSSIA EQUIPMENT(B12)
(B)
820X500X400 140L
|
8-98051-031-4 |
01 |
1 |
1403-1507 |
● |
|
| |
1 |
03.001 TANK; FUEL
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
(B)
820X500X400 140L
|
8-98051-031-4 |
01 |
1 |
1508-1510 |
● |
|
| |
1 |
03.001 TANK; FUEL
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
(B)
820X500X400 140L
|
8-98051-031-4 |
01 |
1 |
1511- |
● |
|
| |
1 |
03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12)
(A)
756X482X376 90L
|
8-98153-046-2 |
01 |
1 |
1103-1402 |
● |
|
| |
1 |
03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12)
FUEL TANK 100 LITTER<N02>
(A)
756X482X376 90L
|
8-98153-046-2 |
01 |
1 |
1403-1410 |
● |
|
| |
1 |
03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
FUEL TANK 100 LITTER<N02>
(A)
756X482X376 90L
|
8-98153-046-2 |
01 |
1 |
1411- |
● |
|
| |
1 |
03.001 TANK; FUEL
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1010-1108 |
● |
● |
| |
1 |
03.001 TANK; FUEL
EXC. RUSSIA EQUIPMENT(B12)
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1109-1402 |
● |
|
| |
1 |
03.001 TANK; FUEL
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1109-1402 |
|
● |
| |
1 |
03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02>
EXC. RUSSIA EQUIPMENT(B12)
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1403-1410 |
● |
|
| |
1 |
03.001 TANK; FUEL
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1403-1410 |
|
● |
| |
1 |
03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1411-1507 |
● |
|
| |
1 |
03.001 TANK; FUEL
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1411-1507 |
|
● |
| |
1 |
03.001 TANK; FUEL
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1508-1510 |
● |
|
| |
1 |
03.001 TANK; FUEL
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1508-1510 |
|
● |
| |
1 |
03.001 TANK; FUEL
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1511- |
● |
|
| |
1 |
03.001 TANK; FUEL
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
(A)
756X482X376 100L
|
8-98153-048-2 |
01 |
1 |
1511- |
|
● |
| |
1 |
03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12)
FUEL TANK 140 LITTER<N19>
(B)
820X500X400 140L
|
8-98318-341-0 |
01 |
1 |
1507-1507 |
● |
|
| |
1 |
03.001 TANK; FUEL
RUSSIA EQUIPMENT(B12)
EURO4 SPECIFICATION(NT4)
FUEL TANK 140 LITTER<N19>
CATALYSIS CONTROL(6MZ)
(B)
820X500X400 140L
|
8-98318-341-0 |
01 |
1 |
1508- |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12)
FUEL TANK 140 LITTER<N19>
|
8-98113-180-0 |
01 |
1 |
1403- |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19>
EXC. RUSSIA EQUIPMENT(B12)
|
8-98065-304-0 |
01 |
1 |
1403-1507 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98065-304-0 |
01 |
1 |
1508-1510 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98065-304-0 |
01 |
1 |
1511- |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12)
|
8-98113-179-0 |
01 |
1 |
1103-1402 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12)
FUEL TANK 100 LITTER<N02>
|
8-98113-179-0 |
01 |
1 |
1403-1410 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
FUEL TANK 100 LITTER<N02>
|
8-98113-179-0 |
01 |
1 |
1411- |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-98056-705-0 |
01 |
1 |
1010-1108 |
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
EXC. RUSSIA EQUIPMENT(B12)
|
8-98056-705-0 |
01 |
1 |
1109-1402 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-98056-705-0 |
01 |
1 |
1109-1402 |
|
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02>
EXC. RUSSIA EQUIPMENT(B12)
|
8-98056-705-0 |
01 |
1 |
1403-1410 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-98056-705-0 |
01 |
1 |
1403-1410 |
|
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
|
8-98056-705-0 |
01 |
1 |
1411-1507 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
|
8-98056-705-0 |
01 |
1 |
1411-1507 |
|
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-98056-705-0 |
01 |
1 |
1508-1510 |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-98056-705-0 |
01 |
1 |
1508-1510 |
|
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-98056-705-0 |
01 |
1 |
1511- |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-98056-705-0 |
01 |
1 |
1511- |
|
● |
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
1010- |
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19>
06.673
(C)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1504-1507 |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
06.673
(C)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1508-1510 |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
06.673
(C)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1511- |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19>
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1403-1507 |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1508-1510 |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1511- |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1010-1402 |
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02>
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1403-1507 |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1403-1507 |
|
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1508-1510 |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1508-1510 |
|
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT
(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1511- |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
03.107
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
1511- |
|
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19>
M18
|
8-98068-006-0 |
01 |
1 |
1403-1507 |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
M18
|
8-98068-006-0 |
01 |
1 |
1508-1510 |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
M18
|
8-98068-006-0 |
01 |
1 |
1511- |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1010-1402 |
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02>
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1403-1507 |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1403-1507 |
|
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1508-1510 |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1508-1510 |
|
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT
(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1511- |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
1511- |
|
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19>
L=460
|
8-98082-184-1 |
01 |
1 |
1403-1507 |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
L=460
|
8-98082-184-1 |
01 |
1 |
1508-1510 |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
L=460
|
8-98082-184-1 |
01 |
1 |
1511- |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
L=420
|
8-98157-809-0 |
01 |
1 |
1010-1402 |
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02>
L=420
|
8-98157-809-0 |
01 |
1 |
1403-1507 |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
L=420
|
8-98157-809-0 |
01 |
1 |
1403-1507 |
|
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
L=420
|
8-98157-809-0 |
01 |
1 |
1508-1510 |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
L=420
|
8-98157-809-0 |
01 |
1 |
1508-1510 |
|
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT
(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
L=420
|
8-98157-809-0 |
01 |
1 |
1511- |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
L=420
|
8-98157-809-0 |
01 |
1 |
1511- |
|
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12)
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1103-1402 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19>
EXC. RUSSIA EQUIPMENT(B12)
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1403-1410 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12)
FUEL TANK 100 LITTER<N02>,FUEL TANK 140
LITTER<N19>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1403-1410 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
FUEL TANK 100 LITTER<N02>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1411-1507 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1411-1507 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
FUEL TANK 100 LITTER<N02>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1508-1510 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1508-1510 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
FUEL TANK 100 LITTER<N02>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1511- |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1511- |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
|
8-98051-797-0 |
01 |
1 |
1010-1108 |
● |
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
EXC. RUSSIA EQUIPMENT(B12)
|
8-98051-797-0 |
01 |
1 |
1109-1402 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
|
8-98051-797-0 |
01 |
1 |
1109-1402 |
|
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02>
EXC. RUSSIA EQUIPMENT(B12)
|
8-98051-797-0 |
01 |
1 |
1403-1410 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
|
8-98051-797-0 |
01 |
1 |
1403-1410 |
|
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02>
EXC. RUSSIA EQUIPMENT(B12),MOROCCO
EQUIPMENT(CGA)
|
8-98051-797-0 |
01 |
1 |
1411-1507 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
|
8-98051-797-0 |
01 |
1 |
1411-1507 |
|
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-98051-797-0 |
01 |
1 |
1508-1510 |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-98051-797-0 |
01 |
1 |
1508-1510 |
|
● |
| |
19 |
03.112 GASKET; FUEL TANK UNIT
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-98051-797-0 |
01 |
1 |
1511- |
● |
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-98051-797-0 |
01 |
1 |
1511- |
|
● |
| |
25 |
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-97387-179-0 |
01 |
1 |
1010- |
● |
● |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19>
|
8-98095-223-0 |
01 |
1 |
1403-1507 |
● |
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98095-223-0 |
01 |
1 |
1508-1510 |
● |
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98095-223-0 |
01 |
1 |
1511- |
● |
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
|
8-97179-645-0 |
01 |
1 |
1010-1402 |
● |
● |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02>
|
8-97179-645-0 |
01 |
1 |
1403-1507 |
● |
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
|
8-97179-645-0 |
01 |
1 |
1403-1507 |
|
● |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-97179-645-0 |
01 |
1 |
1508-1510 |
● |
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-97179-645-0 |
01 |
1 |
1508-1510 |
|
● |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT
(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-97179-645-0 |
01 |
1 |
1511- |
● |
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-97179-645-0 |
01 |
1 |
1511- |
|
● |
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19>
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
1403-1507 |
● |
|
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
1508-1510 |
● |
|
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
1511- |
● |
|
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
|
8-97326-488-0 |
01 |
1 |
1010-1402 |
● |
● |
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02>
|
8-97326-488-0 |
01 |
1 |
1403-1507 |
● |
|
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
|
8-97326-488-0 |
01 |
1 |
1403-1507 |
|
● |
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),MOROCCO EQUIPMENT(CGA),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-97326-488-0 |
01 |
1 |
1508-1510 |
● |
|
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-97326-488-0 |
01 |
1 |
1508-1510 |
|
● |
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
MOROCCO EQUIPMENT(CGA),AZERBAIJAN EQUIPMENT
(CX0),PERU EQUIPMENT(E07),CHILE
EQUIPMENT(KE1)
FUEL TANK 100 LITTER<N02>
|
8-97326-488-0 |
01 |
1 |
1511- |
● |
|
| |
159 |
03.015 SEAL; ROLL OVER & FLOAT VALVE
PHILIPPINE ISLANDS EQUIPMENT(B15),
COLOMBIA EQUIPMENT(CB7),AZERBAIJAN
EQUIPMENT(CX0),CHILE EQUIPMENT(KE1)
|
8-97326-488-0 |
01 |
1 |
1511- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
(D)
T=5.5
|
8-97371-951-0 |
04 |
1 |
1403-1403 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1403- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1403- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
1209-1402 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19>,FRAME
STRAIGHT TYPE<7KJ>
(E)
L=170.3
|
1-09987-182-0 |
01 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
T=5.5
|
8-97371-951-0 |
02 |
1 |
1209- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
MINI BUS CHASSIS VAR.2(6GQ)
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
1206-1402 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
(C)
T=4.5 & 9
|
8-97371-947-0 |
02 |
1 |
1403-1403 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
(C)
T=4.5 & 9
|
8-97371-947-0 |
02 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1103-1108 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1103-1108 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1109-1205 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1109-1205 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1109-1205 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1109-1205 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1206-1208 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1206-1208 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1206-1208 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1206-1208 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1209-1402 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1209-1402 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FUEL TANK 140 LITTER<N19>
FRAME STRAIGHT TYPE<7KJ>
(D)
T=5.5
|
8-97371-951-0 |
04 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1103-1108 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1103-1108 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1109-1205 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1109-1205 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1206-1208 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1206-1208 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1206-1208 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1206-1208 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1209-1402 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1209-1402 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1403-1407 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1403-1407 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1403-1407 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1403-1407 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(C)
T=4.5 & 9
|
8-97371-947-0 |
01 |
1 |
1408- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1103-1108 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1103-1108 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1109-1205 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
03 |
1 |
1109-1205 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1206-1208 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1206-1208 |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1206-1208 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1206-1208 |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1209-1402 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1209-1402 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),MINI BUS
CHASSIS VAR.2(6GQ)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
EXC. COLOMBIA EQUIPMENT(CB7),FUEL TANK
140 LITTER<N19>
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1403- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W)
COLOMBIA EQUIPMENT(CB7)
EXC. MINI BUS CHASSIS(V4B)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1403- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W)
EXC. COLOMBIA EQUIPMENT(CB7)
(D)
T=5.5
|
8-97371-951-0 |
07 |
1 |
1403- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
06.525
(A)
ID=5-12 L=18
|
1-09709-287-0 |
01 |
1 |
1010-1208 |
● |
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.525
(A)
ID=5-12 L=18
|
1-09709-287-0 |
01 |
1 |
1209- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.525
(A)
ID=5-12 L=18
|
1-09709-287-0 |
01 |
1 |
1209- |
● |
|
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
06.525
(A)
ID=5-12 L=18
|
1-09709-287-0 |
01 |
1 |
1209- |
|
● |
| |
411 |
02.559 CLIP; FUEL TANK UNIT HARNESS
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
1010- |
● |
● |
| |
422 |
03.023 PLUG; FUEL TANK
FUEL TANK 140 LITTER<N19>
03.890
M30
|
8-98067-038-0 |
01 |
1 |
1504-1507 |
● |
|
| |
422 |
03.023 PLUG; FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
03.890
M30
|
8-98067-038-0 |
01 |
1 |
1508-1510 |
● |
|
| |
422 |
03.023 PLUG; FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
03.890
M30
|
8-98067-038-0 |
01 |
1 |
1511- |
● |
|
| |
635 |
03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19>
02.361
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
1403-1507 |
● |
|
| |
635 |
03.001 SCREW; ROLL OVER & FLOAT VALVE
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
02.361
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
1508-1510 |
● |
|
| |
635 |
03.001 SCREW; ROLL OVER & FLOAT VALVE
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
02.361
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
1511- |
● |
|
| |
640 |
03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19>
|
8-98092-398-0 |
01 |
1 |
1403-1507 |
● |
|
| |
640 |
03.164 VENTILATOR; HOSE,BREATHER
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98092-398-0 |
01 |
1 |
1508-1510 |
● |
|
| |
640 |
03.164 VENTILATOR; HOSE,BREATHER
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98092-398-0 |
01 |
1 |
1511- |
● |
|
| |
656 |
03.023 CLAMP; FUEL TANK
FUEL TANK 140 LITTER<N19>
|
8-98304-416-0 |
02 |
1 |
1504-1507 |
● |
|
| |
656 |
03.023 CLAMP; FUEL TANK
RUSSIA EQUIPMENT(B12),COLOMBIA
EQUIPMENT(CB7),AZERBAIJAN EQUIPMENT(CX0),CHILE
EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98304-416-0 |
02 |
1 |
1508-1510 |
● |
|
| |
656 |
03.023 CLAMP; FUEL TANK
RUSSIA EQUIPMENT(B12),PHILIPPINE ISLANDS
EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),
AZERBAIJAN EQUIPMENT(CX0),PERU
EQUIPMENT(E07),CHILE EQUIPMENT(KE1)
FUEL TANK 140 LITTER<N19>
|
8-98304-416-0 |
02 |
1 |
1511- |
● |
|
