Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#77808) — 208 parça

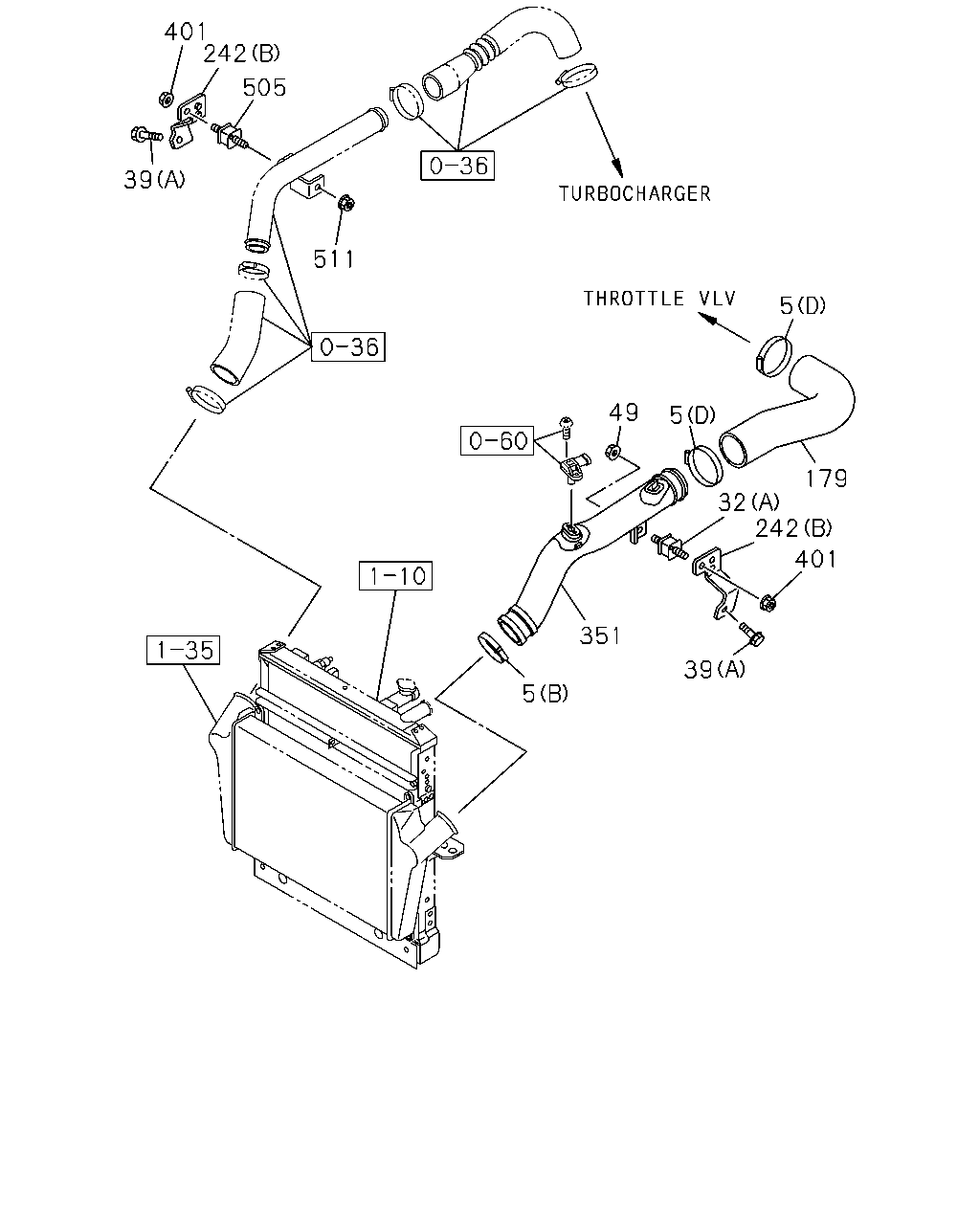

511 505 242 401 39 5 179 5 49 401 242 32 39 351 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=45-65	8-98133-348-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=55-75	8-98133-349-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1103-1108	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1109-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1103-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=127	1-14239-263-0	01	1	1010-1208	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1209-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	1010-1102	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1103-1208	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=65-85	8-98133-350-0	01	1	1209-		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	1010-1102	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1103-1108	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1109-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=75-95	8-98133-357-0	02	1	1109-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1010-	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 01.277 (B) OD=32	8-94395-766-0	01	1	1209-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (C) OD=23	8-97105-689-6	01	1	1209-	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-98036-826-0	01	1	1010-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-97081-886-0	01	1	1107-1108	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97081-886-0	01	1	1109-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1209-	●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-1208	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1209-	●	●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1209-	●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	1010-1108	●	●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98117-928-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98205-759-0	01	1	1209-1504	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98245-899-0	01	1	1505-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98205-760-0	01	1	1209-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1010-1108	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98032-142-1	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1010-1108	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98032-143-1	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1010-	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417	8-98051-032-1	01	1	1209-	●
351	03.407 DUCT; AIR	8-98105-722-1	01	1	1010-1108	●	●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98105-722-1	01	1	1109-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	8-98036-826-0	01	1	1010-1106	●	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	8-97081-886-0	01	1	1107-1208	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1209-	●	●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●

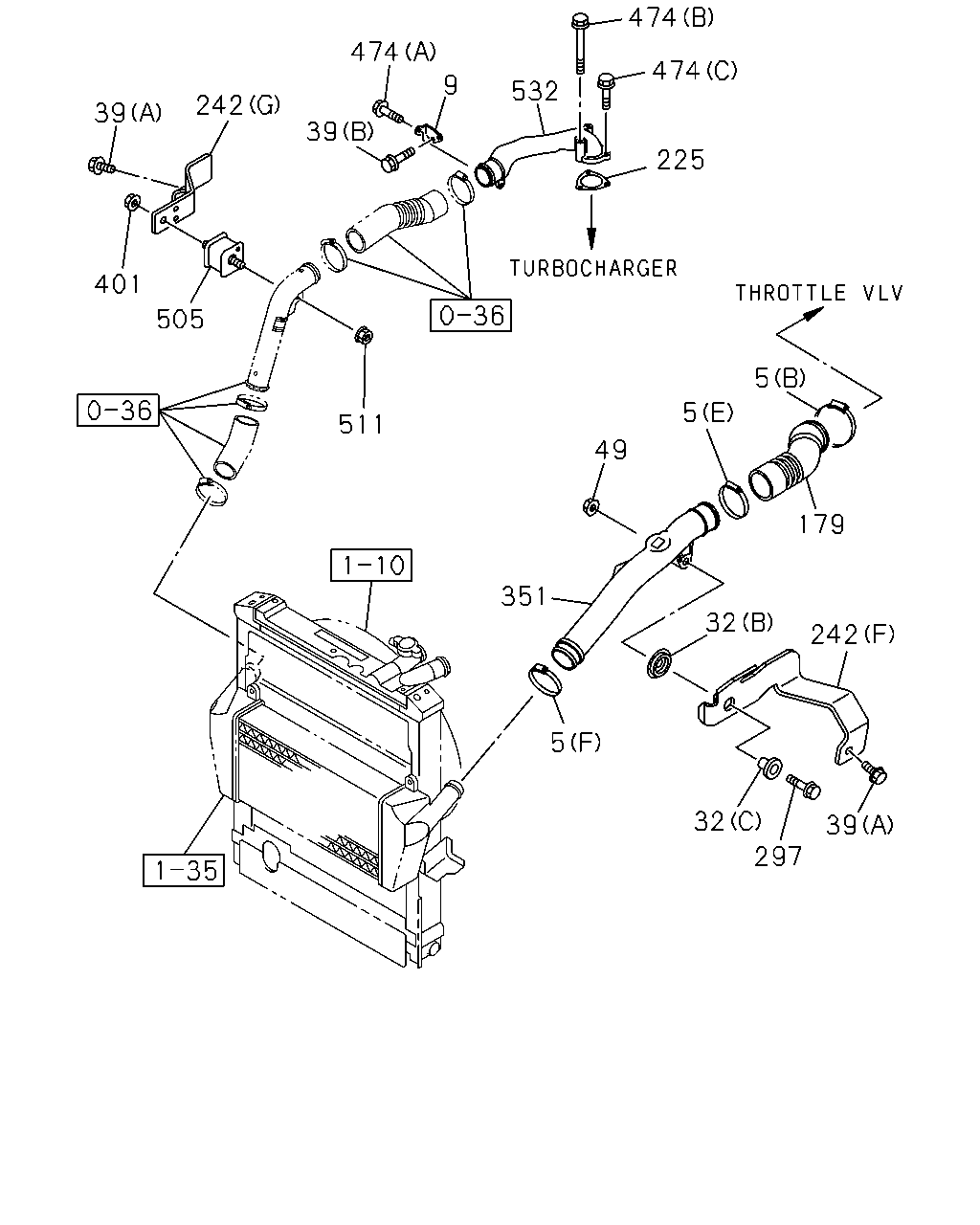

474 474 225 532 9 474 39 242 39 505 401 511 5 5 49 179 351 242 32 5 39 32 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=45-65	8-98133-348-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=55-75	8-98133-349-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1103-1108	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1109-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1103-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=127	1-14239-263-0	01	1	1010-1208	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1209-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	1010-1102	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1103-1208	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=65-85	8-98133-350-0	01	1	1209-		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	1010-1102	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1103-1108	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1109-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=75-95	8-98133-357-0	02	1	1109-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1010-	●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	1209-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 01.277 (B) OD=32	8-94395-766-0	01	1	1209-	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (C) OD=23	8-97105-689-6	01	1	1209-	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-98036-826-0	01	1	1010-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-97081-886-0	01	1	1107-1108	●	●
32	03.417 RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97081-886-0	01	1	1109-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1209-	●
39	03.417 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1010-1208	●	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1209-	●	●
49	03.417 NUT; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1209-	●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	1010-1108	●	●
179	03.417 HOSE; AIR INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98117-928-2	01	1	1109-	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	1209-	●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1103-1108	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98205-759-0	01	1	1209-1504	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98245-899-0	01	1	1505-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98205-760-0	01	1	1209-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1010-1108	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98032-142-1	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1010-1108	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98032-143-1	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1010-	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1209-	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417	8-98051-032-1	01	1	1209-	●
351	03.407 DUCT; AIR	8-98105-722-1	01	1	1010-1108	●	●
351	03.407 DUCT; AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98105-722-1	01	1	1109-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
401	03.403 NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1209-	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1209-	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1209-	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	8-98036-826-0	01	1	1010-1106	●	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417	8-97081-886-0	01	1	1107-1208	●	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1209-	●	●
511	03.417 NUT; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1010-1208	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1209-	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-97385-203-1	01	1	1209-1303	●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1304-	●

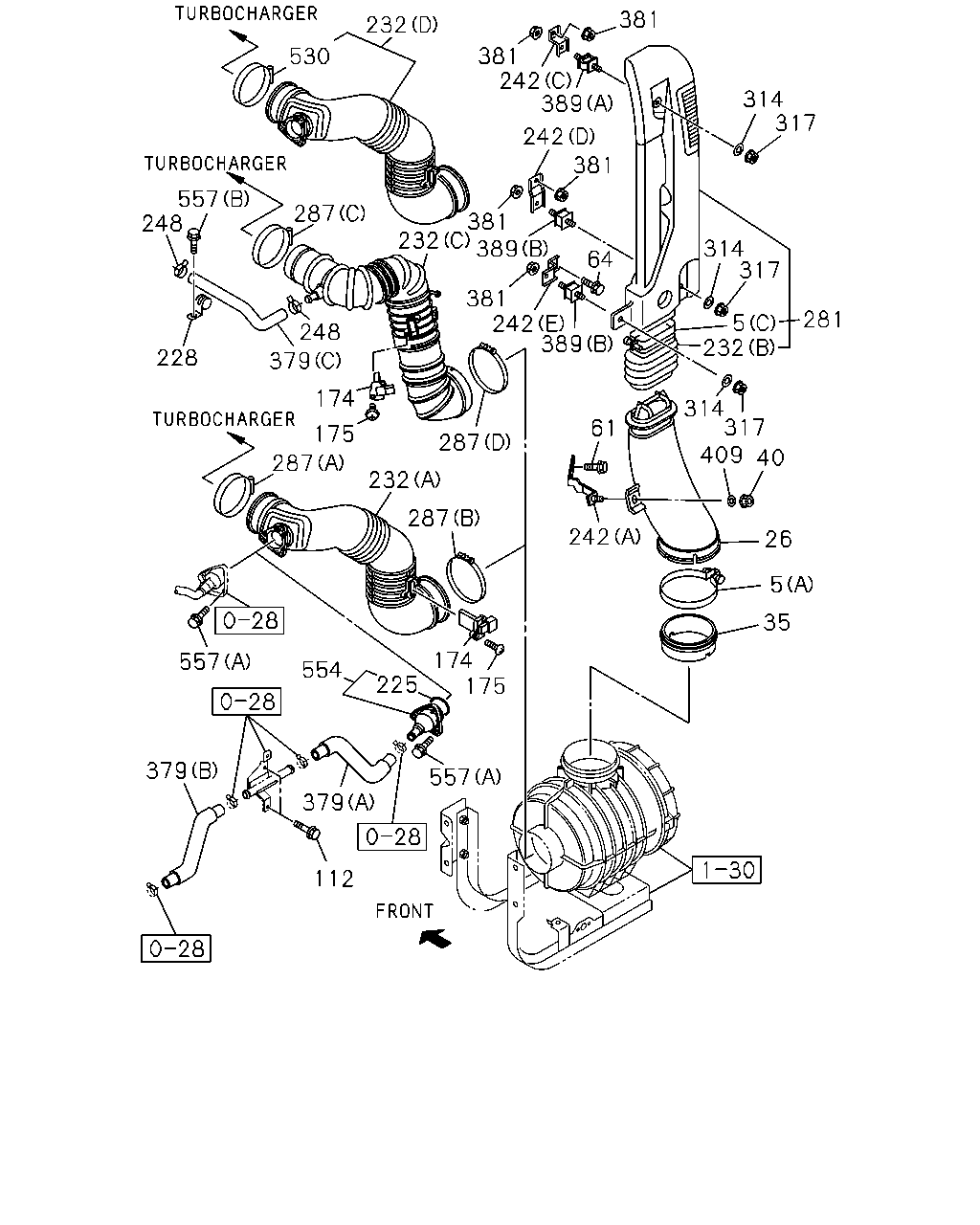

530 232 381 242 389 242 381 314 317 281 40 26 5 35 242 61 314 409 317 112 379 557 175 174 225 554 557 379 232 287 287 175 174 379 287 228 248 557 287 381 232 381 242 389 5 314 317 232 248 389 64 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (F) ID=45-65	8-98133-348-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=55-75	8-98133-349-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=58-79	1-09707-136-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (F) ID=60-65	8-98096-418-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1103-1108	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1109-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1103-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=127	1-14239-263-0	01	1	1010-1208	●	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1209-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	1010-1102	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1103-1208	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1209-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=65-85	8-98133-350-0	01	1	1209-		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	1010-1102	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1103-1108	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1109-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=75-95	8-98133-357-0	02	1	1109-		●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1010-	●	●
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1010-	●	●
35	03.406 SEAL; DUCT,INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98029-332-0	01	1	1010-1208	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1209-	●	●
40	03.417 NUT; AIR INT DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1010-1208	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1209-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1010-	●	●
112	03.417 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1103-	●	●
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCC ENG(RDU)	8-98113-202-1	01	1	1209-	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1010-1108	●	●
174	03.682 SENSOR; AIR FLOW CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97601-967-0	01	1	1109-	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1010-1208	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1209-	●	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	1209-	●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1103-1108	●
225	03.417 GASKET; AIR PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 01.097 ID=43.7	9-09561-344-0	01	1	1109-	●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) ID=24.5 H=29 L=25	8-98120-913-0	01	1	1209-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98048-137-0	01	1	1209-	●
232	03.417 HOSE; CONN (A)	8-98059-989-2	01	1	1010-1108	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98059-989-2	01	1	1109-1402	●	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98272-698-0	01	1	1403-1406	●	●
232	03.417 HOSE; CONN (D)	8-98281-176-0	01	1	1407-	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1010-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98205-759-0	01	1	1209-1504	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98245-899-0	01	1	1505-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98205-760-0	01	1	1209-	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	1010-1108	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98032-142-1	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	1010-1108	●	●
242	03.417 BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98032-143-1	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1010-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1010-	●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 ID=21.7	8-97203-074-0	02	1	1209-	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU)	8-98000-230-5	01	1	1209-	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-1	01	1	1010-1108	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98080-929-2	01	1	1109-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (D) ID=117	9-09915-075-1	01	1	1209-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=65-85	8-98133-350-0	01	1	1209-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=70-90	8-98122-372-0	01	1	1209-	●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=77-99	1-09707-141-0	01	1	1103-1108	●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=77-99	1-09707-141-0	01	1	1109-1406	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=75-95	8-98133-357-0	01	1	1010-1102	●	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=75-95	8-98133-357-0	01	1	1103-1108	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=75-95	8-98133-357-0	01	1	1109-1406	●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.407 (A) ID=75-95	8-98133-357-0	01	1	1109-1406		●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	1010-1108	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.407 (B) ID=112	9-09915-074-1	01	1	1109-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1010-1208	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1209-	●	●
317	03.417 NUT; CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	03	1	1010-1208	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1209-	●	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (C)	8-98156-950-0	01	1	1209-	●
379	03.675 HOSE; RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) (A)	8-98153-093-1	01	1	1103-	●	●
379	03.675 HOSE; RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3) 03.975 (B)	8-98153-119-0	01	1	1103-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1010-	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	03	1	1010-1208	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1209-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98036-825-0	01	1	1010-1208	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1209-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B)	8-98036-826-0	02	1	1010-1208	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1209-	●	●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1010-1208	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1209-	●	●
530	03.407 CLAMP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=77-99	1-09707-141-0	01	1	1407-	●	●
554	04.439 FLANGE; PIPE,PCV FRIGID ZONE(YL3)	8-98038-208-0	01	1	1103-1108	●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRIGID ZONE(YL3)	8-98038-208-0	01	1	1109-	●	●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1209-	●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1010-1108	●	●
557	03.403 BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
