1-10 — RADIATOR (#77805) — 143 parça

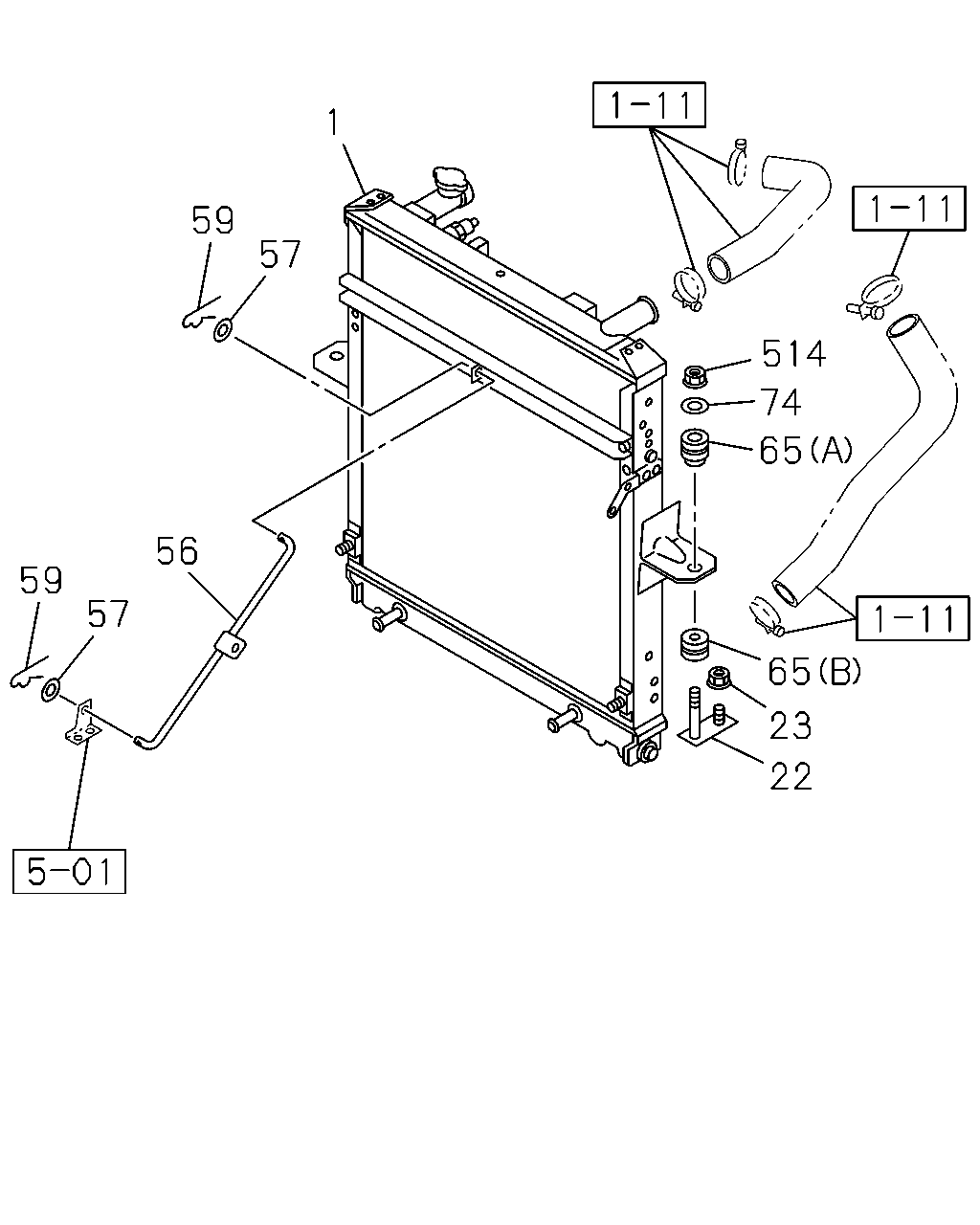

1 59 57 56 57 59 22 65 23 65 74 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98094-465-0	01	1	1209-1410	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98259-933-0	01	1	1411-	●
1	01.219 RADIATOR ASM	8-98095-595-0	01	1	1010-1108	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98095-595-0	01	1	1109-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1209-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1209-	●
22	01.270 BRACKET; RAD MTG 01.277	8-97330-527-1	02	1	1010-1108	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	8-97330-527-1	02	1	1109-	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1209-	●
23	01.271 NUT; RAD MTG 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1108	●	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●
56	01.270 STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1209-	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98049-051-0	01	1	1010-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1010-	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1010-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1010-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1010-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1010-	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

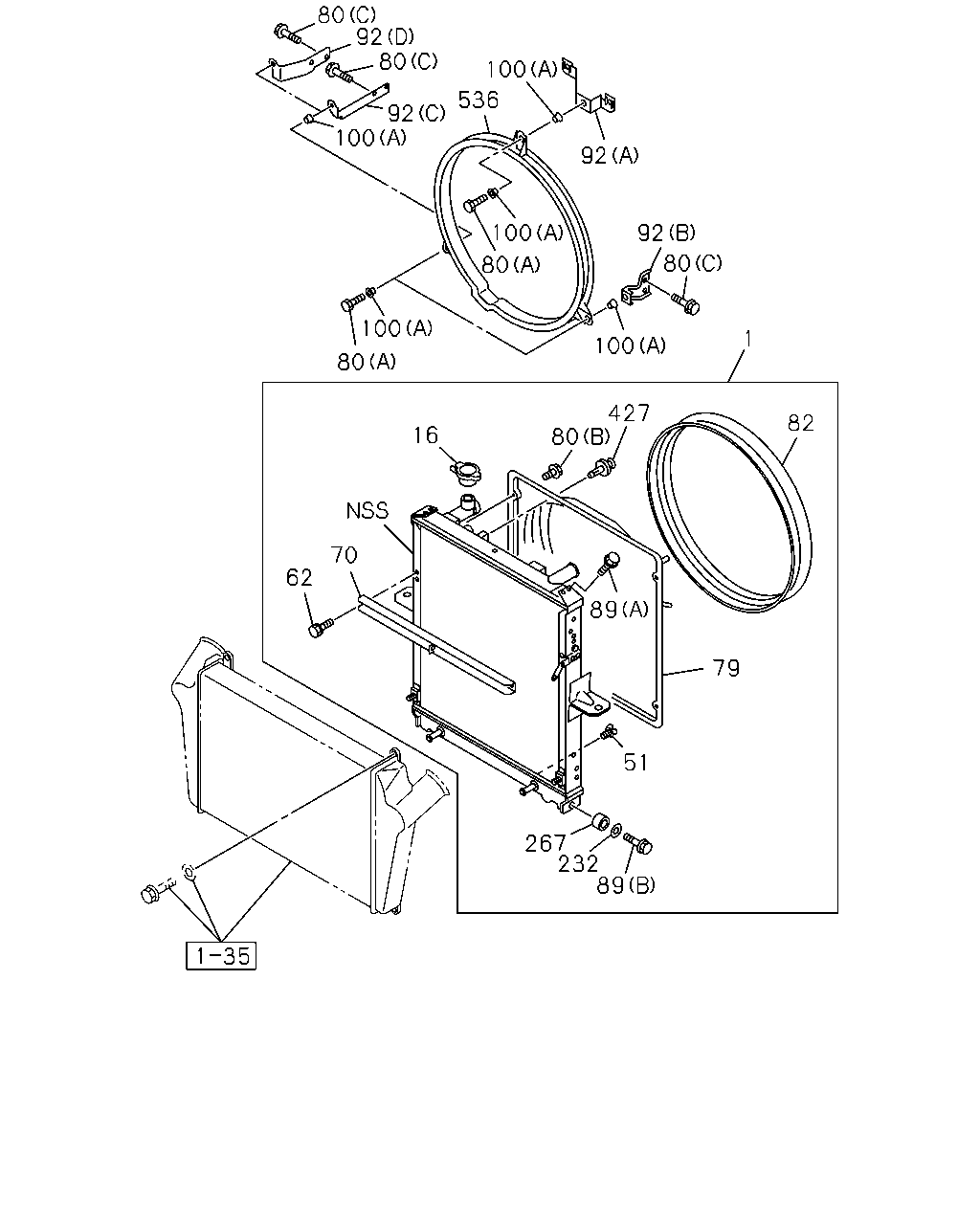

80 80 92 92 100 536 100 92 92 100 100 80 427 1 82 80 16 70 62 89 79 51 89 232 267 80 100 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98094-465-0	01	1	1209-1410	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98259-933-0	01	1	1411-	●
1	01.219 RADIATOR ASM	8-98095-595-0	01	1	1010-1108	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98095-595-0	01	1	1109-	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	1010-	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1010-	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98114-297-0	01	1	1209-	●
70	01.271 STAY; RAD	8-98018-941-0	01	1	1010-1108	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1109-	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1209-1410	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1411-	●
79	01.277 GUIDE; FAN,RAD	8-98006-477-0	01	1	1010-1108	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1109-	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) 01.428 (E) M8X130 FLANGE	0-28055-813-0	01	1	1209-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (D) M6X12	8-98039-672-0	02	1	1209-1410	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (D) M6X12	8-98039-672-0	04	1	1411-	●
80	01.277 BOLT; FAN GUIDE 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
80	01.277 BOLT; FAN GUIDE (B) M6X16	1-21559-481-0	04	1	1010-1108	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M6X16	1-21559-481-0	04	1	1109-	●	●
80	01.277 BOLT; FAN GUIDE GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1010-1108	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1109-	●	●
80	01.277 BOLT; FAN GUIDE EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1010-1108	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1109-	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1209-	●
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	1010-1108	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1109-	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1010-	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-97381-550-1	01	1	1209-1303	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1304-	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1010-1108	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97386-233-0	01	1	1109-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1010-	●	●
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1010-1108	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1109-	●	●
92	01.277 BRACKET; FAN GUIDE EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1010-1108	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1109-	●	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1209-	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1209-	●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	1010-1108	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	1109-	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1010-1410	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4)	1-87410-723-0	02	1	1411-	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1010-	●	●
427	01.240 CLIP; FAN GUIDE 01.277	1-09470-009-0	01	1	1010-1108	●	●
427	01.240 CLIP; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	1-09470-009-0	01	1	1109-	●	●
536	01.020 SHROUD; FAN 01.277	8-97350-995-0	01	1	1010-1108	●	●
536	01.020 SHROUD; FAN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	8-97350-995-0	01	1	1109-	●	●

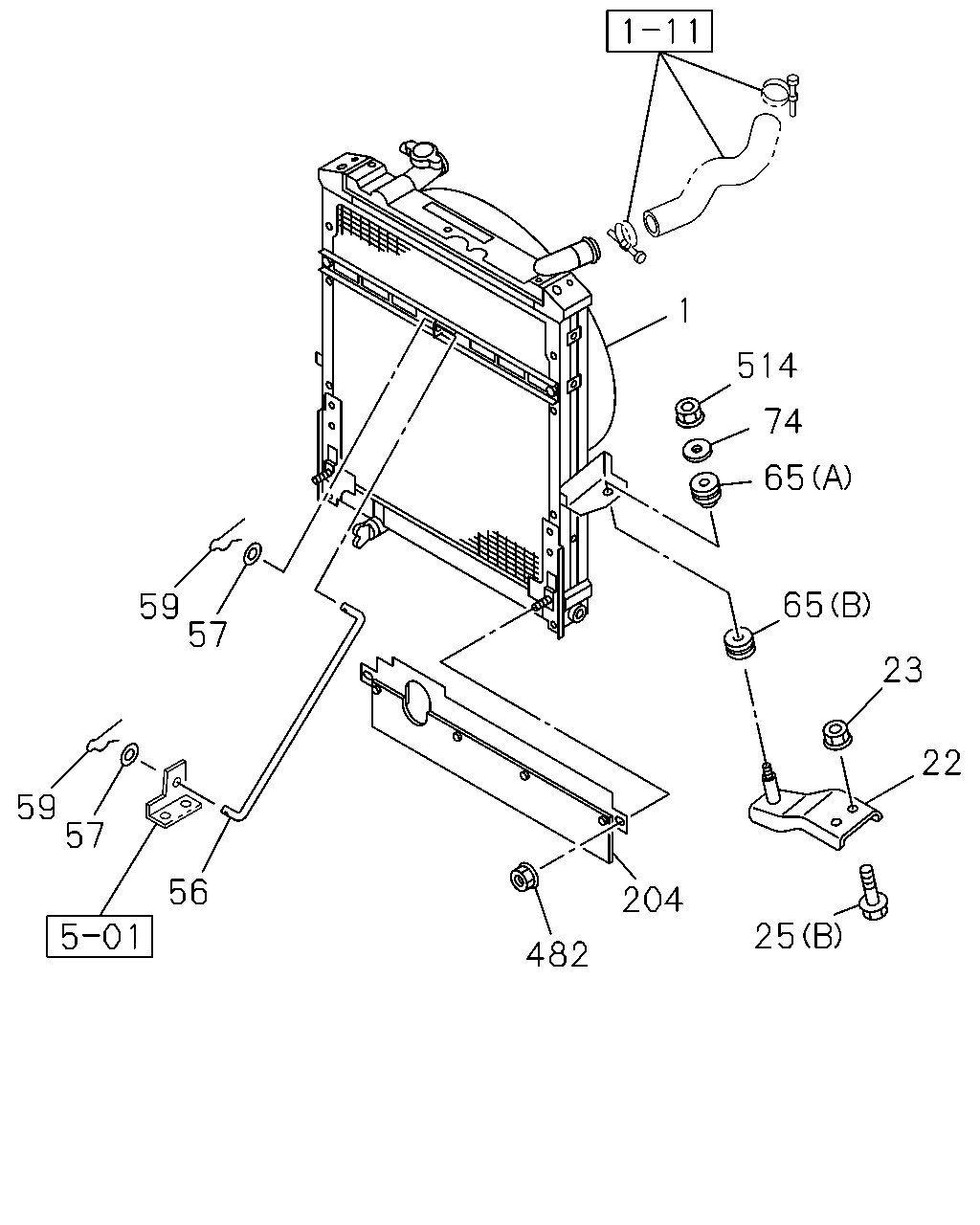

1 74 514 65 65 22 23 25 204 482 57 59 56 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98094-465-0	01	1	1209-1410	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98259-933-0	01	1	1411-	●
1	01.219 RADIATOR ASM	8-98095-595-0	01	1	1010-1108	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98095-595-0	01	1	1109-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1209-	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1209-	●
22	01.270 BRACKET; RAD MTG 01.277	8-97330-527-1	02	1	1010-1108	●	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.277	8-97330-527-1	02	1	1109-	●	●
23	01.271 NUT; RAD MTG 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1209-	●
23	01.271 NUT; RAD MTG 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-1108	●	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1209-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1209-	●
56	01.270 STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1209-	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98049-051-0	01	1	1010-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1010-	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1010-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1010-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1010-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1010-	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1209-	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1209-	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

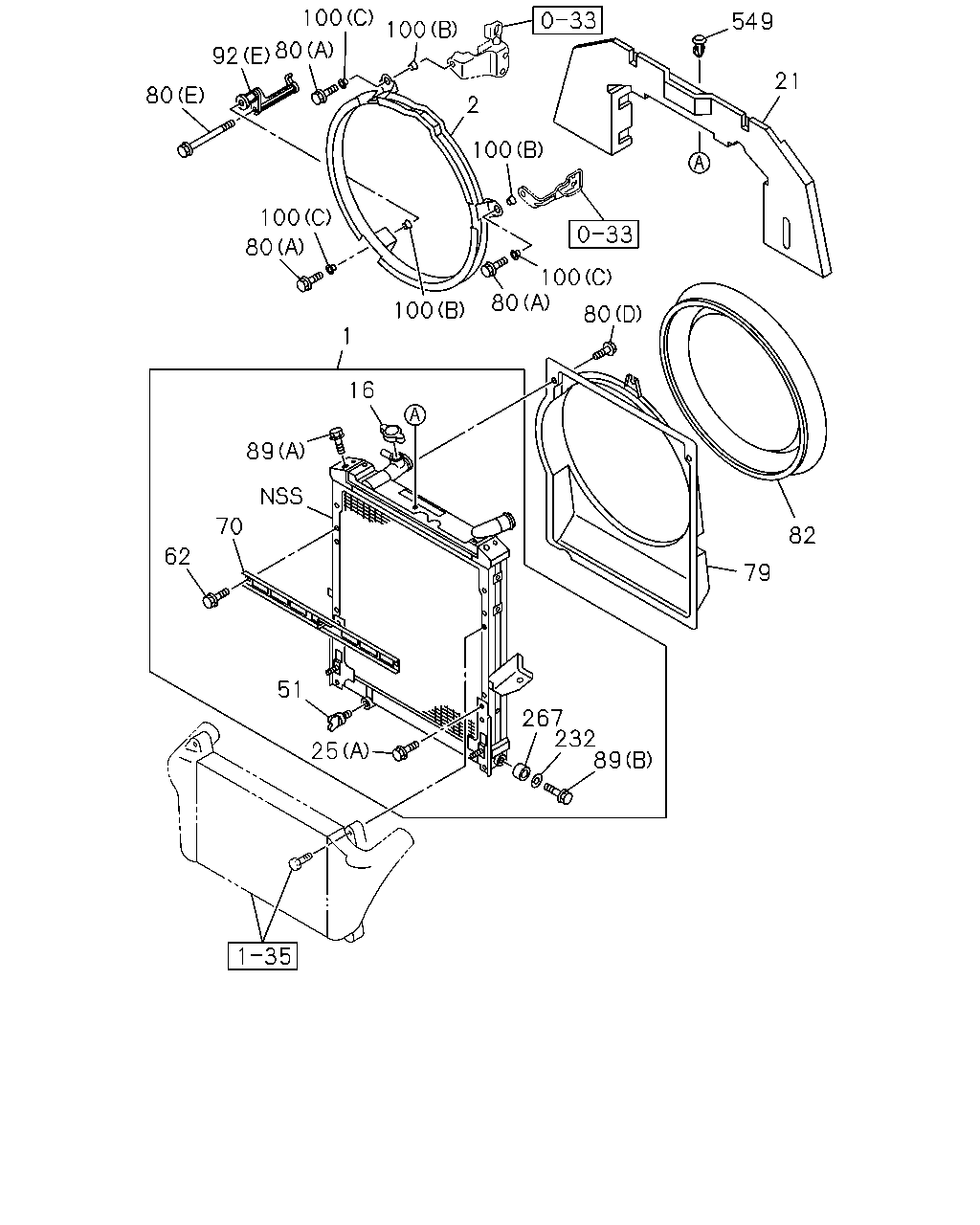

21 549 2 100 100 100 100 80 92 80 100 80 80 80 100 1 82 79 16 89 70 62 51 25 89 232 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98094-465-0	01	1	1209-1410	●
1	01.219 RADIATOR ASM 4JJ1-TCC ENG(RDU)	8-98259-933-0	01	1	1411-	●
1	01.219 RADIATOR ASM	8-98095-595-0	01	1	1010-1108	●	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98095-595-0	01	1	1109-	●	●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1209-	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	1010-	●	●
21	01.276 SEAL; RAD 4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1209-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1209-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1209-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1010-	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
70	01.271 STAY; RAD 4JJ1-TCC ENG(RDU)	8-98114-297-0	01	1	1209-	●
70	01.271 STAY; RAD	8-98018-941-0	01	1	1010-1108	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98018-941-0	01	1	1109-	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-081-1	01	1	1209-1410	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98234-712-0	01	1	1411-	●
79	01.277 GUIDE; FAN,RAD	8-98006-477-0	01	1	1010-1108	●	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-477-0	01	1	1109-	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) 01.428 (E) M8X130 FLANGE	0-28055-813-0	01	1	1209-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (D) M6X12	8-98039-672-0	02	1	1209-1410	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (D) M6X12	8-98039-672-0	04	1	1411-	●
80	01.277 BOLT; FAN GUIDE 03.403 (A) M8X30 FLANGE	0-28650-830-0	03	1	1010-	●	●
80	01.277 BOLT; FAN GUIDE (B) M6X16	1-21559-481-0	04	1	1010-1108	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M6X16	1-21559-481-0	04	1	1109-	●	●
80	01.277 BOLT; FAN GUIDE GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1010-1108	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1109-	●	●
80	01.277 BOLT; FAN GUIDE EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1010-1108	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1109-	●	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU)	8-97387-085-1	01	1	1209-	●
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	1010-1108	●	●
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98006-478-0	01	1	1109-	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1010-	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-97381-550-1	01	1	1209-1303	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) (E)	8-98237-770-0	01	1	1304-	●
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1010-1108	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97386-233-0	01	1	1109-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97382-827-2	01	1	1010-	●	●
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1010-1108	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1109-	●	●
92	01.277 BRACKET; FAN GUIDE EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1010-1108	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1109-	●	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1209-	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) (C) OD=32	8-98058-502-1	03	1	1209-	●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	1010-1108	●	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	1-09337-027-0	06	1	1109-	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1010-1410	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4)	1-87410-723-0	02	1	1411-	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1010-	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1209-	●
