◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#77800) — 34 parça

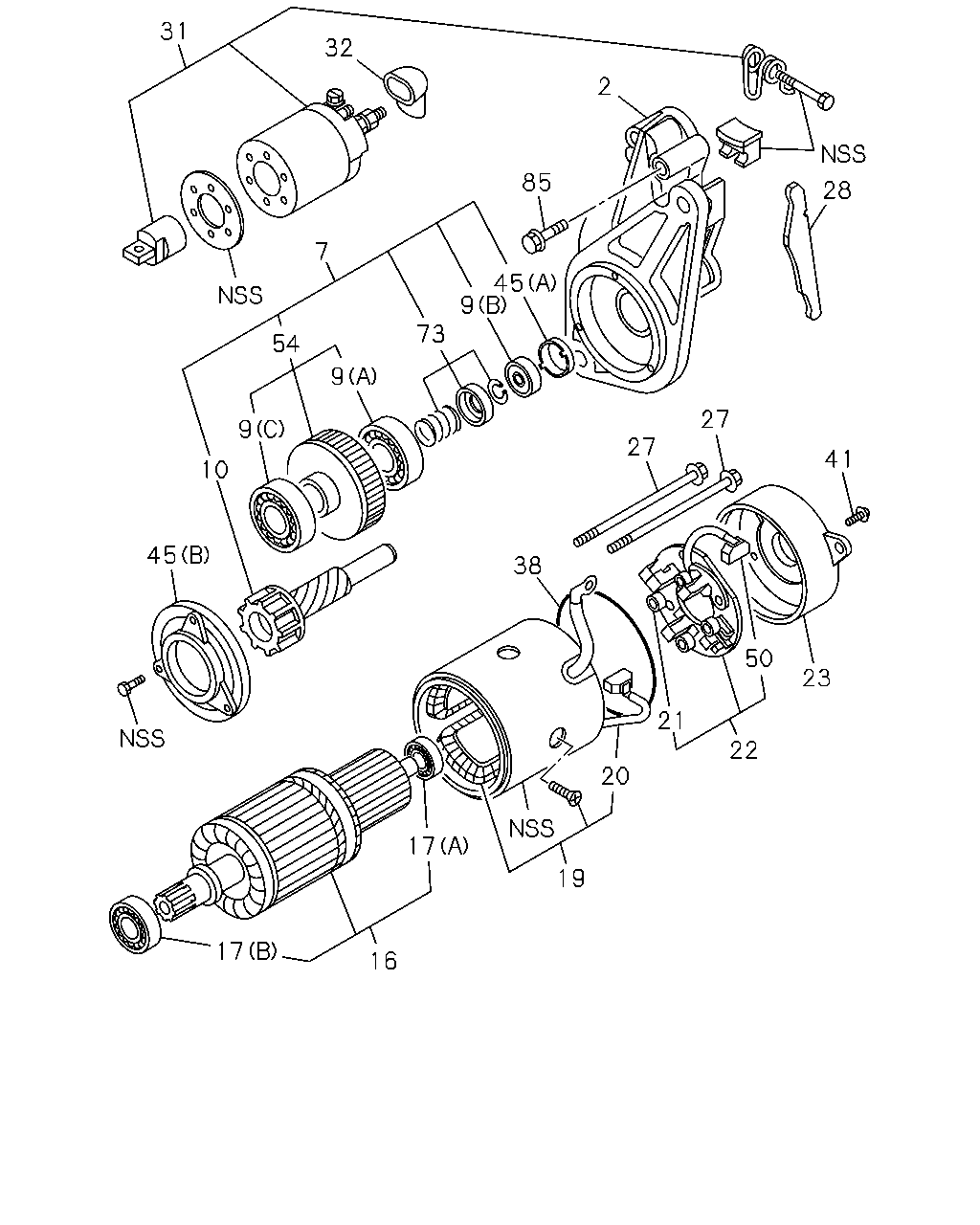

çizim 73710
41 27 27 38 21 22 23 50 20 19 17 16 17 45 10 9 54 7 9 73 9 45 85 2 32 31 28
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-98055-786-1 01 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98055-279-1, 98055279 		8-97179-770-0 01 1 -
7 02.086 CLUTCH ASM; PINION,STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-98222-100-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(A) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97025-673-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(C) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97025-674-0 01 1 -
9 02.083 BEARING; GEAR SHAFT STARTER
(B) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97025-676-0 01 1 -
10 02.086 SHAFT; GEAR STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97179-772-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97192-299-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-94228-436-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97030-387-0 01 1 -
19 02.049 COIL; FIELD,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-98055-295-0 01 1 -
20 02.051 BRUSH; (+),STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-98055-296-0 02 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-94152-972-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-98055-298-0 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: A = 8-98055-279-1, 98055279 		8-97227-901-0 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-97227-901-0 01 1 -1306
23 02.067 COVER; RR COVER STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-98246-185-0 01 1 1307-
27 02.077 BOLT; THROUGH,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97192-423-0 02 1 -
28 02.108 LEVER; SHIFT,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97179-776-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98055-279-1, 98055279 		8-97161-789-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-97161-789-0 01 1 -1507
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-98322-549-0 01 1 1508-
32 02.115 COVER; RUBBER,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		5-81129-069-0 01 1 -
38 02.070 GASKET; RR COVER,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97115-763-0 01 1 -
41 02.067 SCREW; RR COVER,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97117-107-0 02 1 -
45 02.042 RETAINER; BEARING,STARTER
(A) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-94435-567-0 01 1 -
45 02.042 RETAINER; BEARING,STARTER
(B) ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97179-774-0 01 1 -
50 02.051 BRUSH; (-),STARTER
ASM PART: A = 8-98055-279-1, 98055279 		8-98055-296-0 02 1 -
50 02.051 BRUSH; (-),STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-98055-297-0 02 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: A = 8-98055-279-1, 98055279 		8-97179-771-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: B = 8-98222-018-2, 98222018 		8-98222-101-0 01 1 -
73 02.063 STOPPER SET; PINION
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97030-396-0 01 1 -
85 02.102 BOLT; ENGAGE SW FIX,STARTER
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-94408-500-0 02 1 -
çizim 186951
51
BalonParca AdiParca NoAdetTipApplied Date
51 02.104 COVER SET; DUST ENGAGE SW STARTE
ASM PART: A = 8-98055-279-1, 98055279, B = 8-98222-018-2, 98222018 		8-97179-778-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
