8-75 — CONDENSER (#7780) — 120 parça

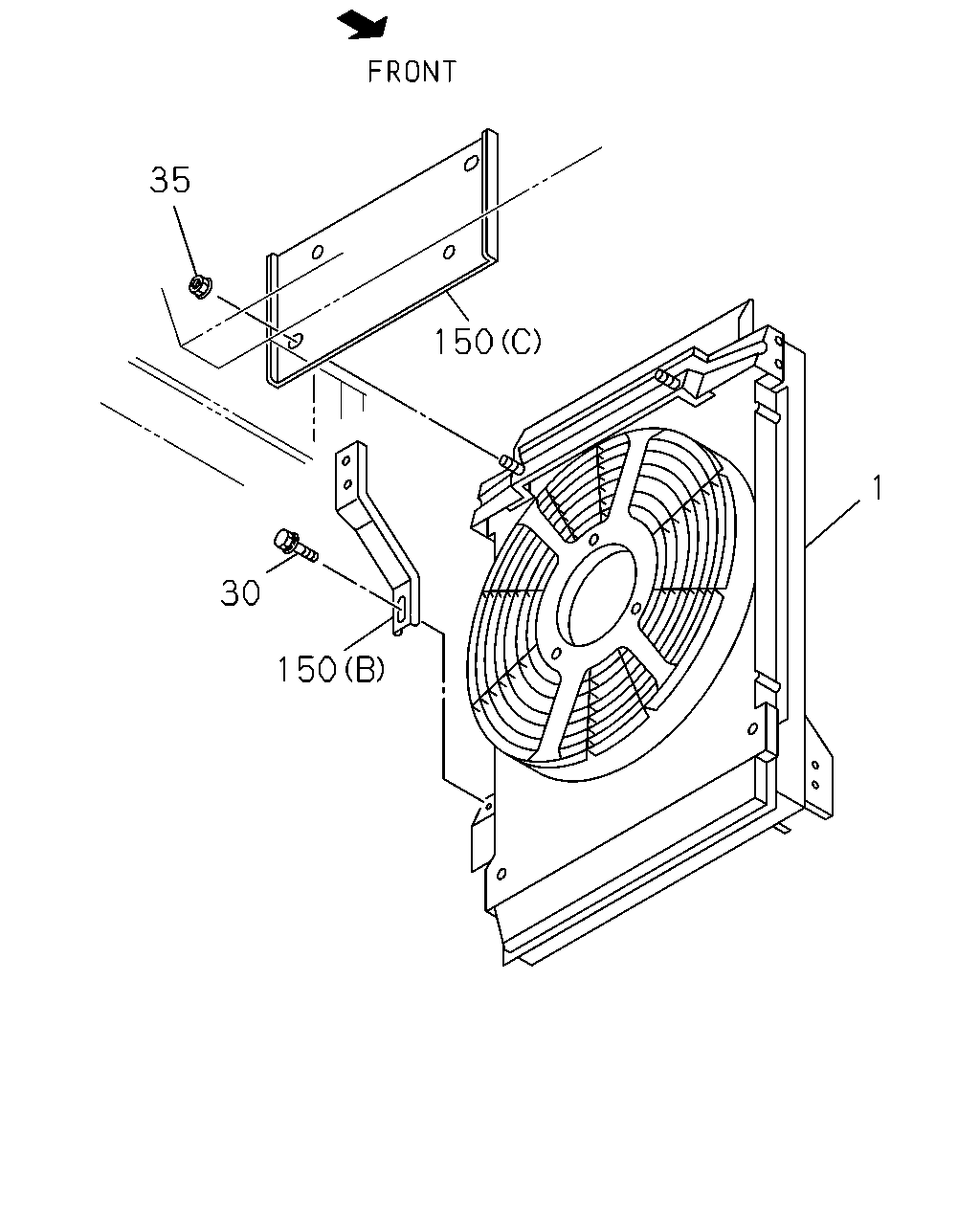

35 1 150 35 30 150 150 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-223-2	01	1	9902-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	0004-		●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9902-0003	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9902-0003	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0004-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-914-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-915-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-918-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-826-0	01	1	0004-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-827-1	01	1	0004-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	0004-		●

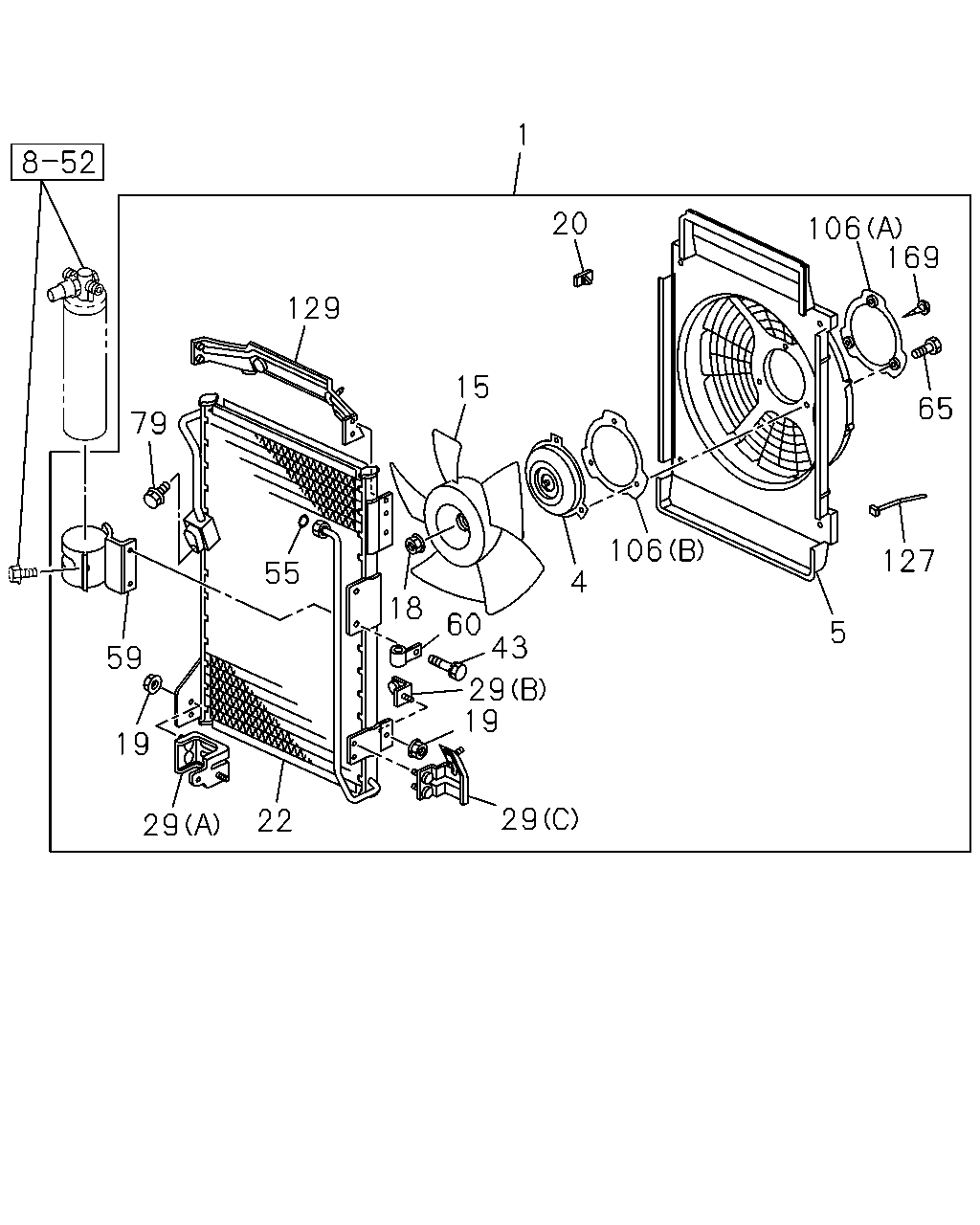

1 20 106 169 129 15 65 79 106 127 55 4 18 60 43 5 59 29 19 19 29 22 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-223-2	01	1	9902-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	0004-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9902-0003	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	0004-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9902-0003	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	0004-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9902-0003	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	0004-	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9902-0003	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0004-	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	12	1	9902-	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	0004-		●
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	9902-0003	●
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	0004-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-226-1	01	1	9902-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	0004-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-0	01	1	9902-0003	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0004-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9902-0003	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	0004-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-262-1	01	1	9902-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	0004-		●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE	1-83539-260-0	06	1	9902-0003	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE	1-83539-260-0	06	1	0004-	●	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9902-0003	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0004-	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-228-2	01	1	9902-0003	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-228-2	01	1	0004-	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9902-0003	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0004-	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9902-0003	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	0004-	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0003	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0004-	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9902-0003	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	0004-	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9902-0003	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	0004-	●	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9902-0003	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	0004-	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-0	01	1	9902-0003	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	0004-	●	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	9902-0003	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	0004-	●	●

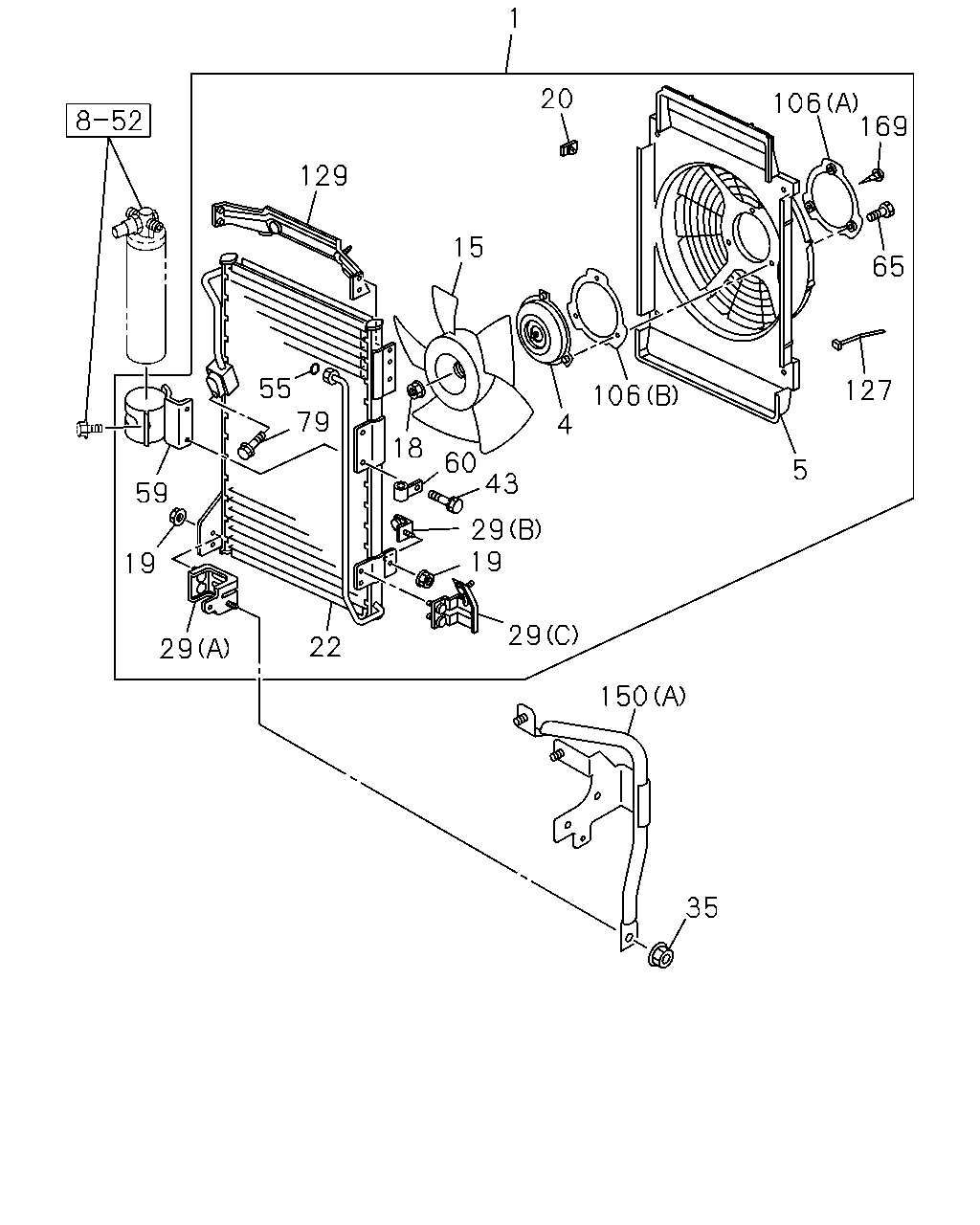

1 20 106 169 129 15 65 55 79 127 106 4 18 60 43 5 59 29 19 19 29 22 29 150 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-223-2	01	1	9902-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	0004-		●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	9902-0003	●
4	MOTOR ASM; FAN AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-231-0	01	1	0004-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	9902-0003	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-230-2	01	1	0004-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	9902-0003	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-232-0	01	1	0004-	●	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	9902-0003	●
18	NUT; FAN,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	8-97018-672-0	01	1	0004-	●	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	12	1	9902-	●
19	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-235-0	11	1	0004-		●
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	9902-0003	●
20	CLIP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-94364-751-0	01	1	0004-	●	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-226-1	01	1	9902-	●
22	CONDENSER ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-222-1	01	1	0004-		●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-0	01	1	9902-0003	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-227-1	01	1	0004-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	9902-0003	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-236-0	04	1	0004-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-262-1	01	1	9902-	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83539-311-1	01	1	0004-		●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9902-0003	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0004-	●	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE	1-83539-260-0	06	1	9902-0003	●
43	BOLT; BRKT,CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE	1-83539-260-0	06	1	0004-	●	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	9902-0003	●
55	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	01	1	0004-	●	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-228-2	01	1	9902-0003	●
59	BRACKET; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-228-2	01	1	0004-	●	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	9902-0003	●
60	CLIP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-234-0	01	1	0004-	●	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	9902-0003	●
65	BOLT; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-242-0	03	1	0004-	●	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0002-0003	●
79	BOLT; CONDENSER BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X35	8-97103-452-0	01	1	0004-	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	9902-0003	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-243-0	01	1	0004-	●	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	9902-0003	●
106	BRACKET; FAN MOTOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-244-0	01	1	0004-	●	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	9902-0003	●
127	CLIP; SHROUD AIR CONDITIONER MANUAL CONTROL(C60) L=140	5-09707-008-0	01	1	0004-	●	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-0	01	1	9902-0003	●
129	BRACKET; UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-237-1	01	1	0004-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-914-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-915-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-918-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-826-0	01	1	0004-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-827-1	01	1	0004-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	0004-		●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	9902-0003	●
169	SCREW; SHROUD AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-807-0	01	1	0004-	●	●

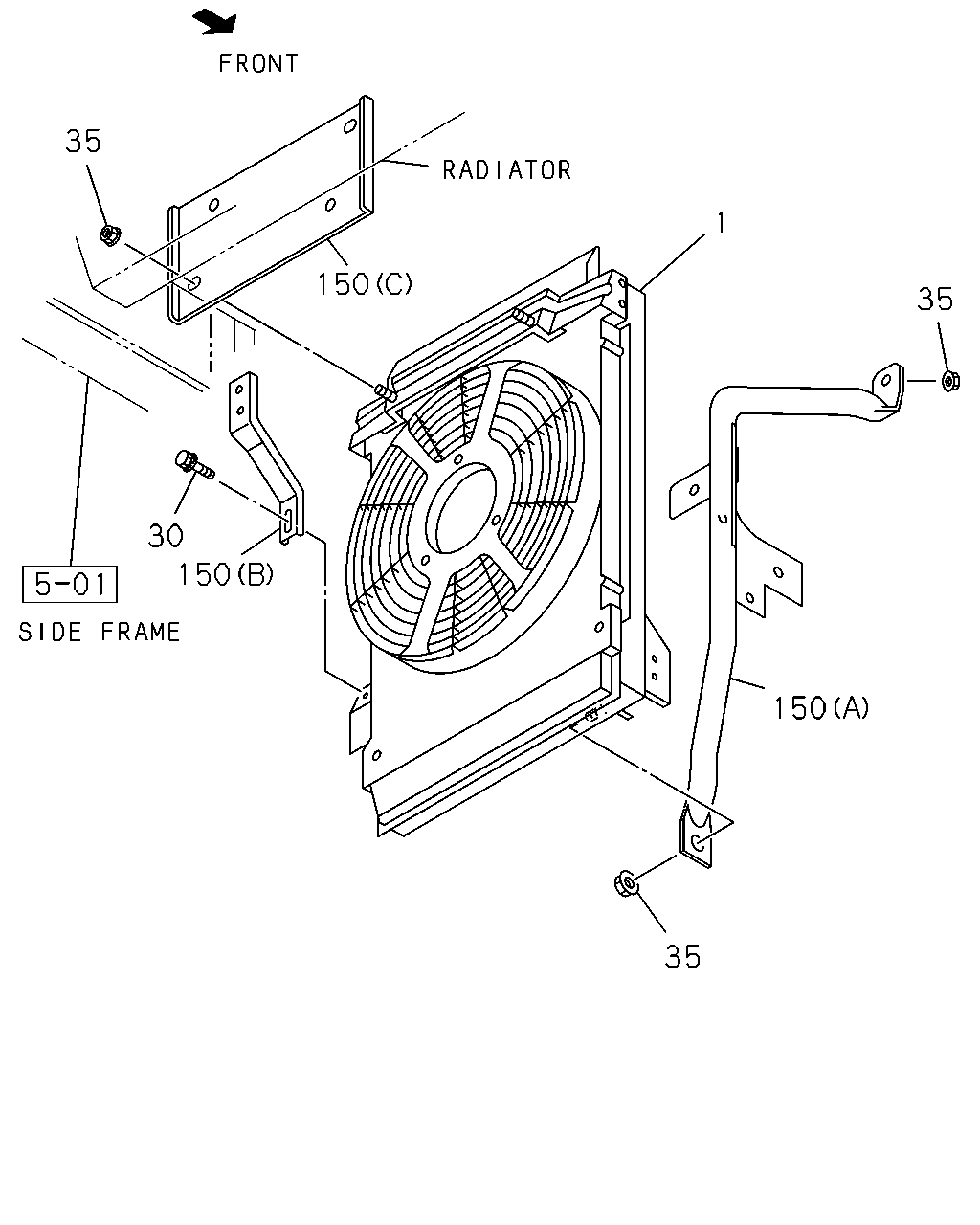

35 150 1 30 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-223-2	01	1	9902-	●
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83534-213-2	01	1	0004-		●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9902-0003	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0004-	●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	9902-0003	●
35	NUT; CONDENSER,A/C AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	05	1	0004-	●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-914-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-915-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-918-0	01	1	9902-	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-826-0	01	1	0004-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-827-1	01	1	0004-		●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-909-0	01	1	0004-		●
