0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#77799) — 450 parça

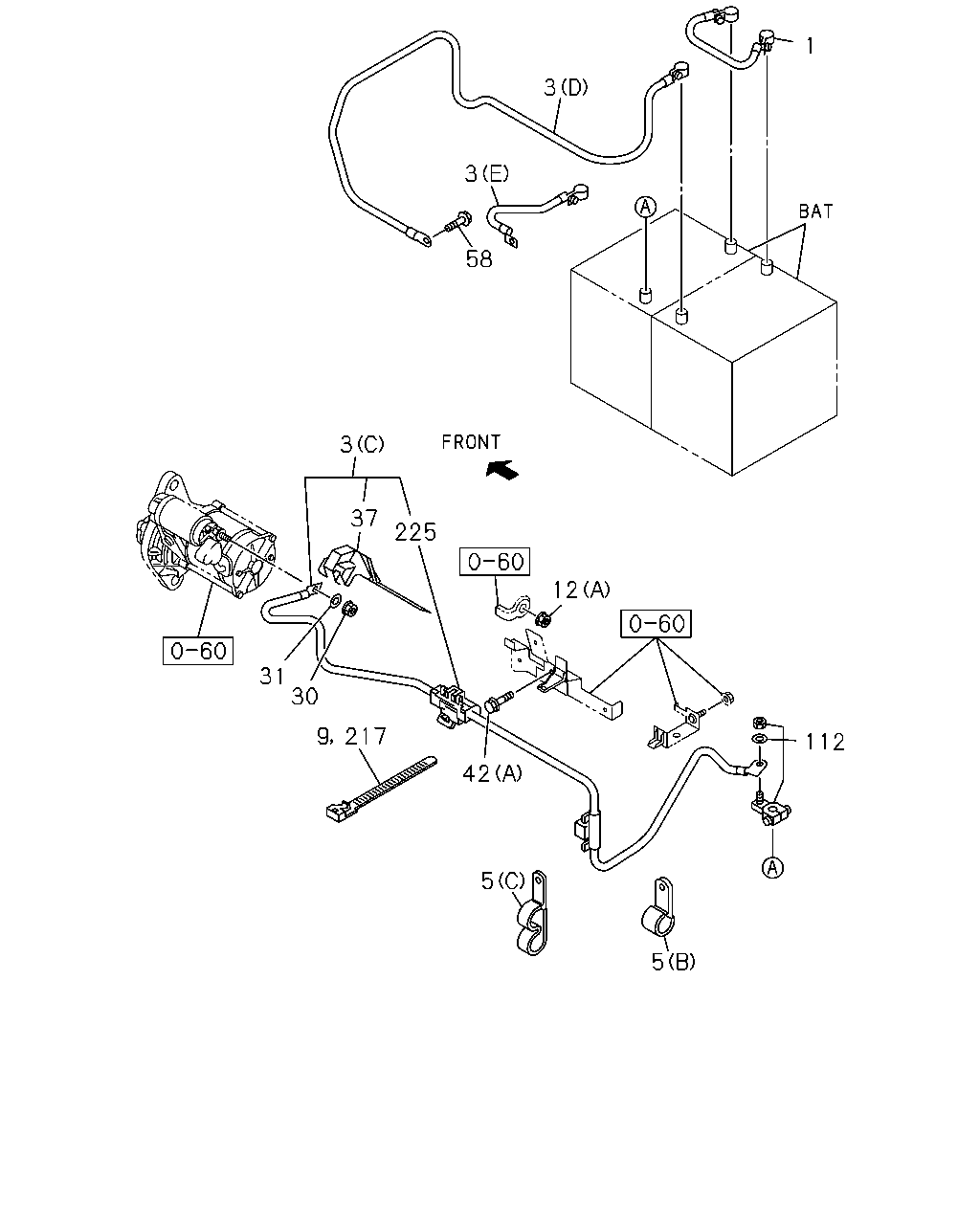

çizim 73590
1 3 3 58 3 37 225 12 112 5 5 42 217 9 30 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1010-1108 ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1109- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98070-228-2 01 1 1209-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98077-140-2 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98077-137-4 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1109-1204 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(E) L=200 		8-98056-337-1 01 1 1209- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1109-1203 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1204-1204 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (A) 		8-98294-751-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (C) 		8-98294-750-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1010-1011 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (F) L=400 		8-98056-339-1 01 1 1010-1011 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1010-1102 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1103-1108 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1109-1205 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1010-1102 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1103-1108 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1109-1205 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1010-1102 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1103-1108 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1109-1205 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1206- ● ●
9 02.343 CLIP; BATTERY CABLE
BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1010-1102 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1103-1108 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1109-1205 ● ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1206- ● ●
9 02.343 CLIP; BATTERY CABLE
EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1010-1102 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1103-1108 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1109-1205 ● ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1010-1102 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1103-1108 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1109-1205 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1010-1102 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1103-1108 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109-1205 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1010-1102 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1103-1108 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1109-1205 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1206- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1010-1108 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1109-1208 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1209- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1010-1108 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1109-1208 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1209- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1010-1108 ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1109-1208 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1209- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1010-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1109- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1010-1102 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109-1205 ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1206- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1010-1108 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1109- ● ● ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1103-1108 ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1109- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1010-1108 ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1109-1208 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1209-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●

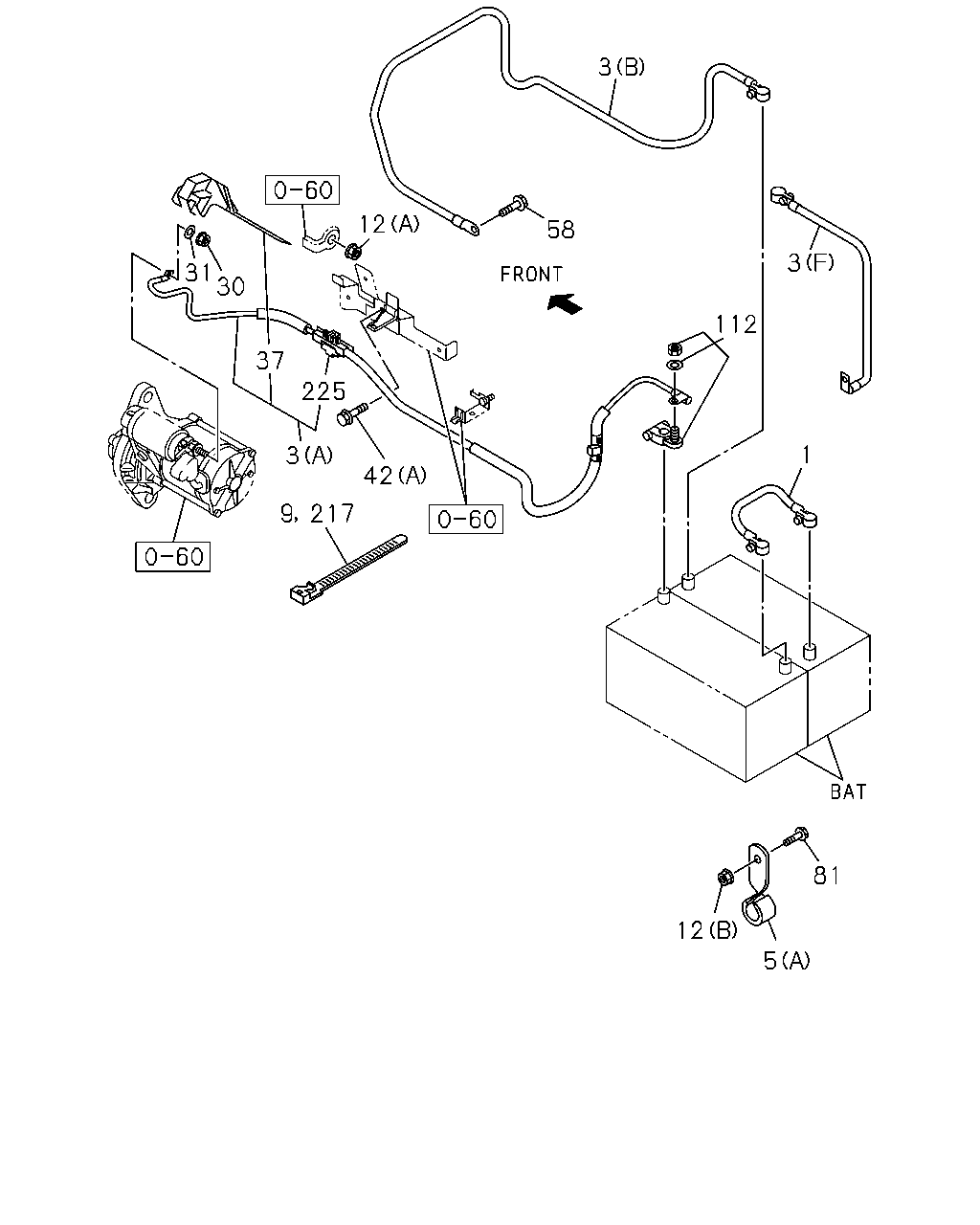

çizim 73697
5 12 112 1 3 3 58 12 225 37 30 31 217 9 81 42 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1010-1108 ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1109- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98070-228-2 01 1 1209-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98077-140-2 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98077-137-4 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1109-1204 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(E) L=200 		8-98056-337-1 01 1 1209- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1109-1203 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1204-1204 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (A) 		8-98294-751-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (C) 		8-98294-750-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1010-1011 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (F) L=400 		8-98056-339-1 01 1 1010-1011 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1010-1102 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1103-1108 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1109-1205 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (A) ID=19 L=58 		1-09700-733-1 02 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1010-1102 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1103-1108 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1109-1205 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) ID=16 L=60 		0-95235-596-0 02 1 1206- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1010-1102 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1103-1108 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1109-1205 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 04.686 (C) ID=19 & 19 L=53 		1-09700-681-0 01 1 1206- ● ●
9 02.343 CLIP; BATTERY CABLE
BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1010-1102 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1103-1108 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1109-1205 ● ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 08 1 1206- ● ●
9 02.343 CLIP; BATTERY CABLE
EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1010-1102 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1103-1108 ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1109-1205 ● ●
9 02.343 CLIP; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 02.559 L=250 		5-09707-030-1 10 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1010-1102 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1103-1108 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1109-1205 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1010-1102 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1103-1108 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109-1205 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1206- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1010-1102 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1103-1108 ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1109-1205 ● ●
12 02.343 NUT; BATTERY CABLE CLIP
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 1206- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1010-1108 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1109-1208 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1209- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1010-1108 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1109-1208 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1209- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1010-1108 ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1109-1208 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1209- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1010-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1109- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1010-1102 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109-1205 ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1206- ● ●
81 02.559 BOLT; BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1010-1102 ●
81 02.559 BOLT; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1103-1108 ●
81 02.559 BOLT; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1109-1205 ● ●
81 02.559 BOLT; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1206- ● ●
81 02.559 BOLT; BATTERY CABLE
EXC. BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1010-1102 ●
81 02.559 BOLT; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1103-1108 ●
81 02.559 BOLT; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1109-1205 ● ●
81 02.559 BOLT; BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1206- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1010-1108 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1109- ● ● ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1103-1108 ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1109- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1010-1108 ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1109-1208 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1209-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●

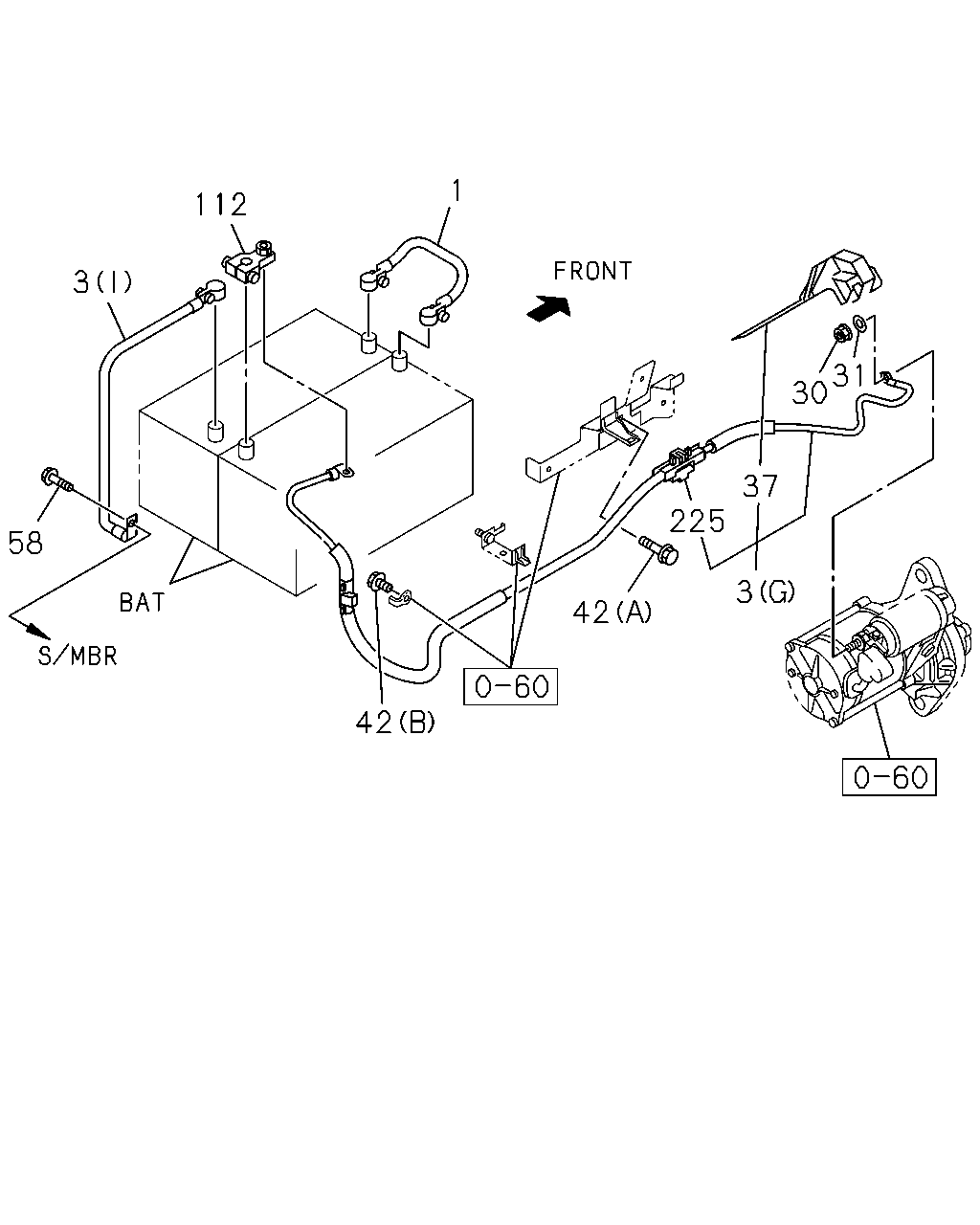

çizim 73757
31 30 37 225 3 42 42 1 112 3 58
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1010-1108 ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1109- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98070-228-2 01 1 1209-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98077-140-2 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98077-137-4 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1109-1204 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(E) L=200 		8-98056-337-1 01 1 1209- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1109-1203 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1204-1204 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (A) 		8-98294-751-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (C) 		8-98294-750-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1010-1011 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (F) L=400 		8-98056-339-1 01 1 1010-1011 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1010-1108 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1109-1208 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1209- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1010-1108 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1109-1208 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1209- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1010-1108 ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1109-1208 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1209- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1010-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1109- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1010-1102 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109-1205 ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1206- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1010-1108 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1109- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1010-1108 ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1109-1208 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1209-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●

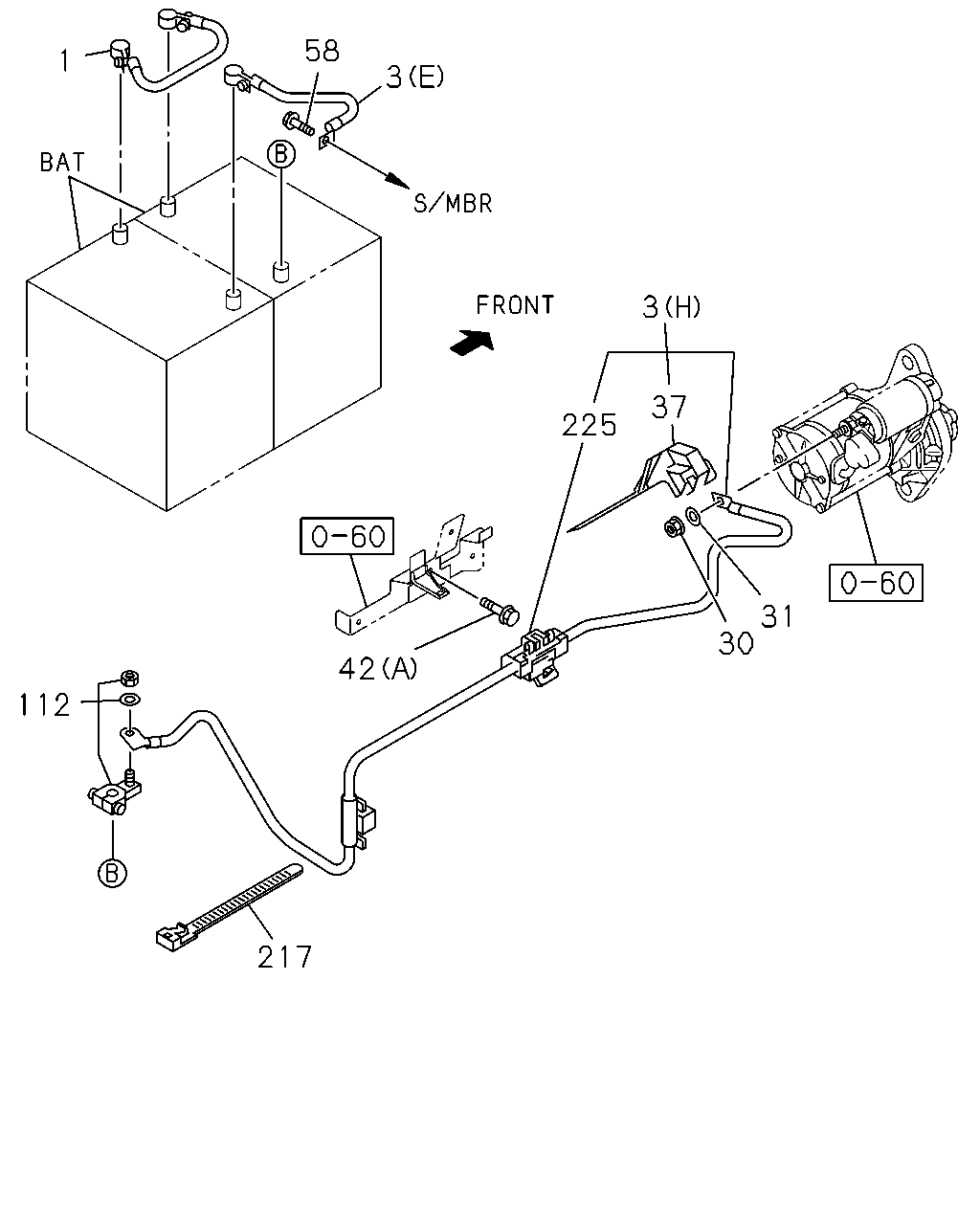

çizim 73778
31 30 225 37 3 42 217 112 1 58 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1010-1108 ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1109- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98070-228-2 01 1 1209-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-719-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98077-140-2 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (G) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98077-137-4 01 1 1109-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (H) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98070-230-2 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (G) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98067-966-4 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (H) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1109-1204 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1205-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1206-1208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. COLOMBIA EQUIPMENT(CB7),BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1209- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(E) L=200 		8-98056-337-1 01 1 1209- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98056-339-1 01 1 1109-1203 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1204-1204 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1205-1205 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (I) L=400 		8-98201-105-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (A) 		8-98163-934-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (A) 		8-98294-751-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (B) 		8-98163-936-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (C) 		8-98163-933-0 01 1 1206-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (C) 		8-98294-750-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1010-1102 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1103-1108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1109-1205 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6S(RST) COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (D) 		8-98163-935-0 01 1 1206- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (E) L=200 		8-98056-337-1 01 1 1010-1011 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (F) L=400 		8-98056-339-1 01 1 1010-1011 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1010-1108 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1109-1208 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1209- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1010-1108 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1109-1208 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1209- ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1010-1108 ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1109-1208 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1209- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1103-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1109-1205 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1206- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1010-1108 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 1109- ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1109-1205 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. COLOMBIA EQUIPMENT(CB7) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1206- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1010-1102 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1103-1108 ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1109-1205 ● ●
58 02.343 BOLT; CABLE,BATTERY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1206- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1010-1108 ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1109- ● ● ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1103-1108 ●
217 02.343 CLIP; BAND,CABLE
RUSSIA EQUIPMENT(B12) IDENTIFICATION LABEL FOR KD<6UT> 03.162 L=140 		5-09707-031-1 01 1 1109- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1010-1108 ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1109-1208 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1209-1409 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
