◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#77798) — 176 parça

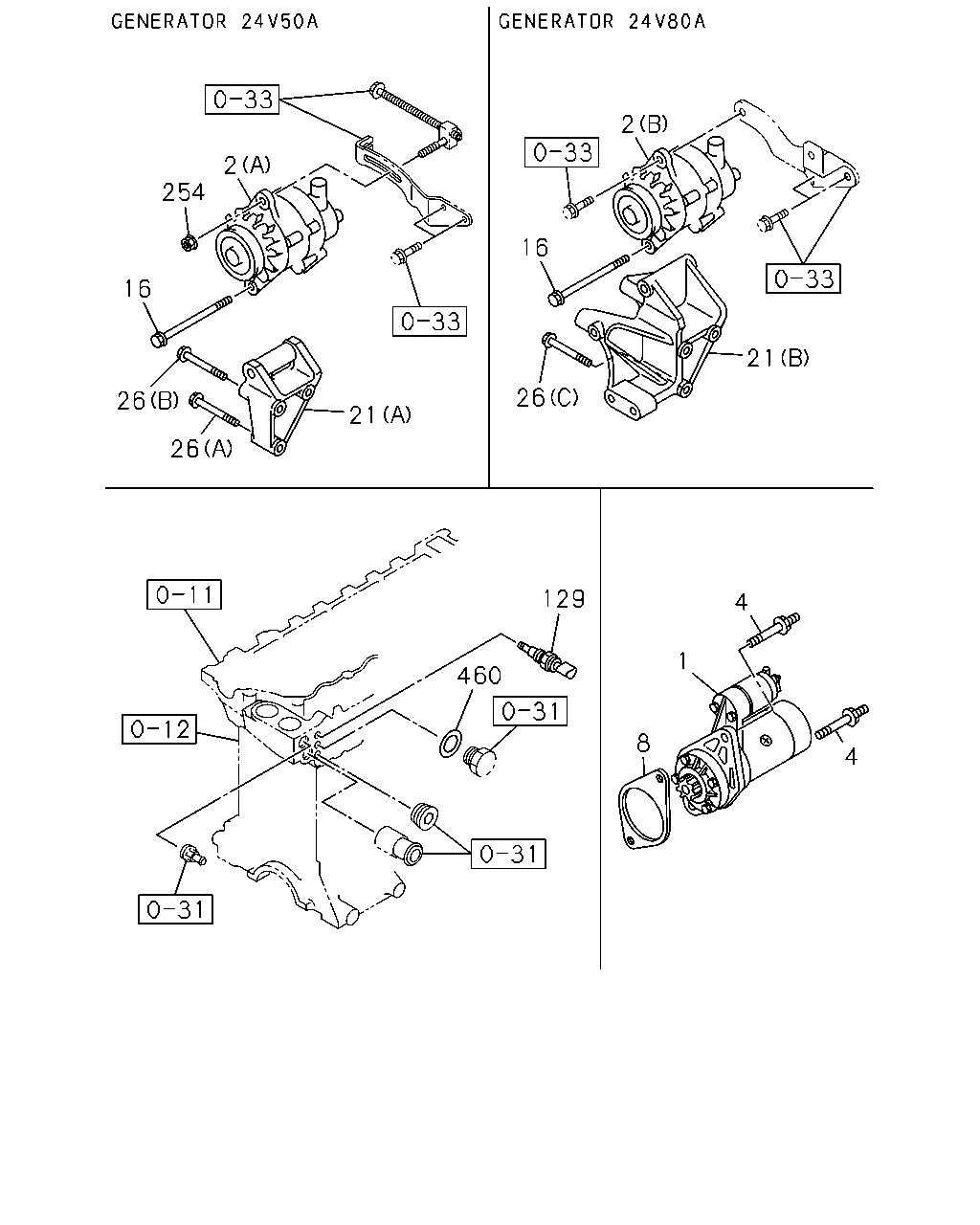

çizim 72632
2 254 16 26 21 26 16 26 21 2 129 1 4 4 8 460
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1010-1108 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1109-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208-1208 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1209- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1209- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1209- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1010-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1109- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1010-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1109- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1010-1108 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1109-1208 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1209- ● ● ●
8 02.042 SPACER; STARTER
M/T MYY6S(RST) 		8-97350-947-0 01 1 1010- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1010-1108 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1109-1208 ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1209- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1010-1108 ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1109- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1010-1108 ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1109- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1010-1108 ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1109- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1010-1108 ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1109- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1010-1108 ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1109- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1209- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1010-1108 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1109-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1010-1108 ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1109- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1010-1108 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1109- ● ●

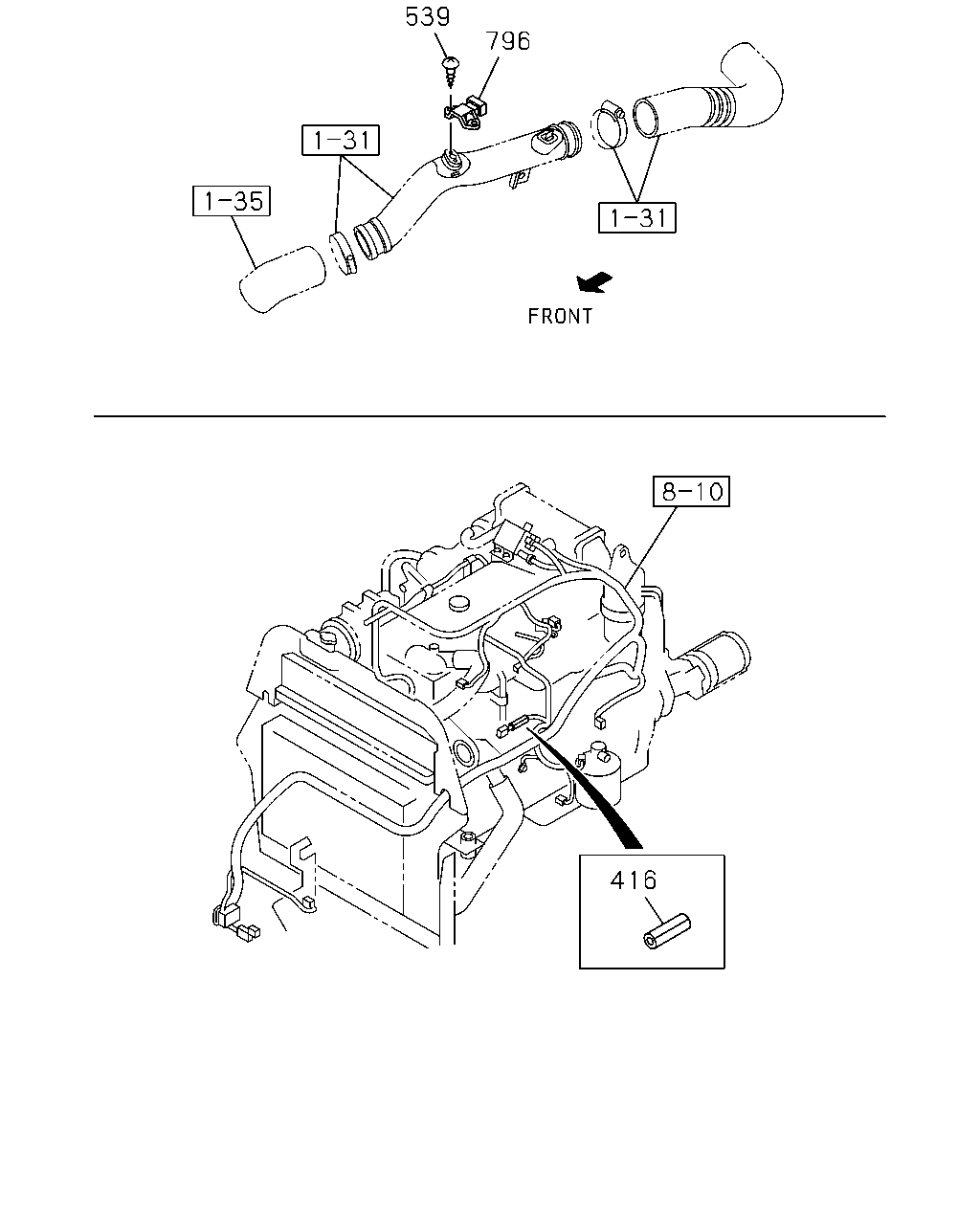

çizim 72773
796 539 416
BalonParca AdiParca NoAdetTipApplied Date A B C
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1010-1108 ●
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1109- ● ●
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 1010-1108 ●
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 1109- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1010-1108 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1109-1208 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1209- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1010-1108 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1109-1208 ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1209- ● ● ●

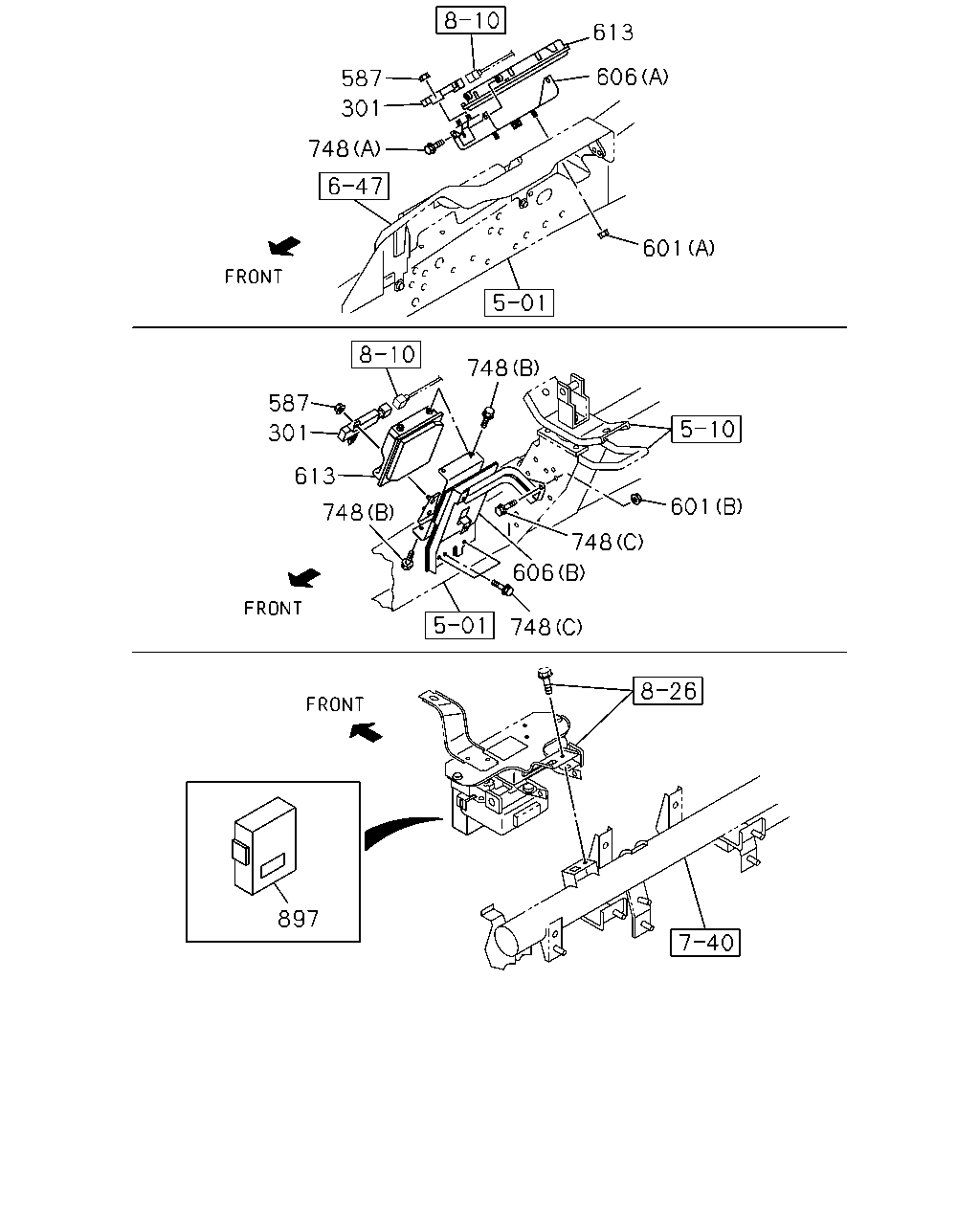

çizim 73498
613 606 601 748 301 587 587 613 301 748 601 748 606 748 748 897
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1010-1108 ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1109-1208 ● ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1209- ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1010-1108 ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109-1208 ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1209- ● ● ●
601 03.670 NUT; UNIT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1209- ●
601 03.670 NUT; UNIT
04.115 (A) M6 W/DISHED WASHER 		8-98029-921-0 04 1 1010-1108 ●
601 03.670 NUT; UNIT
04.115 (A) M6 W/DISHED WASHER 		8-98029-921-0 04 1 1109- ● ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-98212-503-0 01 1 1209- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98145-011-2 01 1 1010-1108 ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-98145-011-2 01 1 1109- ● ●
613 03.670 CONTROL UNIT; ENG
PERU EQUIPMENT(E07) EXC. SPEED LIMITER 90KM(NMJ) 		8-98332-694-0 01 1 1511- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98299-815-0 01 1 1411- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) FRIGID ZONE(YL3) 		8-98200-347-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) EXC. FRIGID ZONE(YL3) 		8-98199-526-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) FRIGID ZONE(YL3) 		8-98199-521-0 01 1 1412- ●
613 03.670 CONTROL UNIT; ENG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98212-525-1 01 1 1209-1408 ●
613 03.670 CONTROL UNIT; ENG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ) 		8-98212-525-1 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) IMMOBILIZER SYSTEM(7KC) 		8-98146-325-1 01 1 1109-1109 ●
613 03.670 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98164-506-0 01 1 1109-1109 ●
613 03.670 CONTROL UNIT; ENG
FRIGID ZONE(YL3) 		8-98164-506-0 01 1 1110-1312 ●
613 03.670 CONTROL UNIT; ENG
FRIGID ZONE(YL3) 		8-98257-294-0 01 1 1401-1408 ●
613 03.670 CONTROL UNIT; ENG
FRIGID ZONE(YL3) EXC. SPEED LIMITER 90KM(NMJ) 		8-98257-294-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) IMMOBILIZER SYSTEM(7KC) EXC. FRIGID ZONE(YL3) 		8-98164-507-0 01 1 1109-1109 ●
613 03.670 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. FRIGID ZONE(YL3),IMMOBILIZER SYSTEM(7KC) 		8-98146-327-1 01 1 1109-1109 ●
613 03.670 CONTROL UNIT; ENG
EXC. FRIGID ZONE(YL3) 		8-98146-327-1 01 1 1110-1312 ●
613 03.670 CONTROL UNIT; ENG
EXC. FRIGID ZONE(YL3) 		8-98257-293-0 01 1 1401-1408 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM(NMJ),FRIGID ZONE(YL3) 		8-98257-293-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) FRIGID ZONE(YL3) IMMOBILIZER SYSTEM(7KC) 		8-98146-326-0 01 1 1103-1109 ●
613 03.670 CONTROL UNIT; ENG
FRIGID ZONE(YL3) 		8-98164-510-0 01 1 1110-1312 ●
613 03.670 CONTROL UNIT; ENG
FRIGID ZONE(YL3) 		8-98257-295-0 01 1 1401-1408 ●
613 03.670 CONTROL UNIT; ENG
FRIGID ZONE(YL3) EXC. SPEED LIMITER 90KM(NMJ) 		8-98257-295-0 01 1 1409- ●
613 03.670 CONTROL UNIT; ENG
RUSSIA EQUIPMENT(B12) IMMOBILIZER SYSTEM(7KC) EXC. FRIGID ZONE(YL3) 		8-98146-324-1 01 1 1103-1109 ●
613 03.670 CONTROL UNIT; ENG 8-98164-189-1 01 1 1010-1102 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7) EXC. FRIGID ZONE(YL3),IMMOBILIZER SYSTEM(7KC) 		8-98164-189-1 01 1 1103-1108 ●
613 03.670 CONTROL UNIT; ENG
COLOMBIA EQUIPMENT(CB7),CHILE EQUIPMENT(KE1) EXC. FRIGID ZONE(YL3),IMMOBILIZER SYSTEM(7KC) 		8-98164-189-1 01 1 1109-1109 ●
613 03.670 CONTROL UNIT; ENG
EXC. FRIGID ZONE(YL3) 		8-98164-189-1 01 1 1110-1312 ●
613 03.670 CONTROL UNIT; ENG
EXC. FRIGID ZONE(YL3) 		8-98199-524-0 01 1 1401-1408 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM(NMJ),FRIGID ZONE(YL3) 		8-98199-524-0 01 1 1409- ●
748 02.500 BOLT; CONT UNIT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1209- ●
748 02.500 BOLT; CONT UNIT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 1209- ●
748 02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 03 1 1010-1108 ●
748 02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 03 1 1109- ● ●
897 02.510 DRM 8-98082-814-3 01 1 1010-1108 ●
897 02.510 DRM 8-98082-814-3 01 1 1109-1208 ● ●
897 02.510 DRM 8-98082-814-7 01 1 1209- ● ● ●

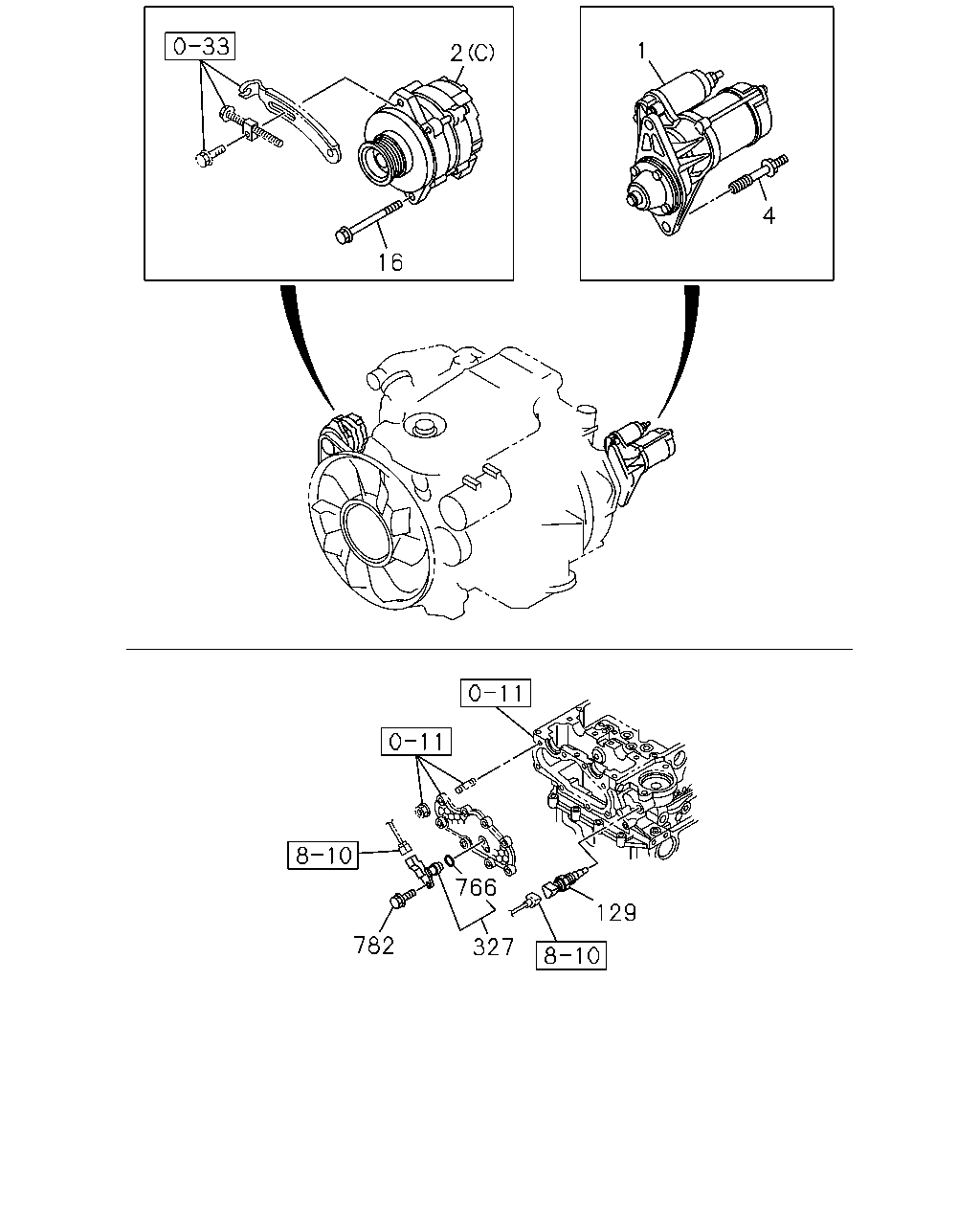

çizim 186949
4 1 2 16 129 327 766 782
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1010-1108 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1109-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208-1208 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1209- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 1209- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 1209- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1010-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1109- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1010-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1109- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1010-1108 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1109-1208 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1209- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1010-1108 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1109-1208 ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1209- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1209- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1010-1108 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1109-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1209- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1209- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1209- ●

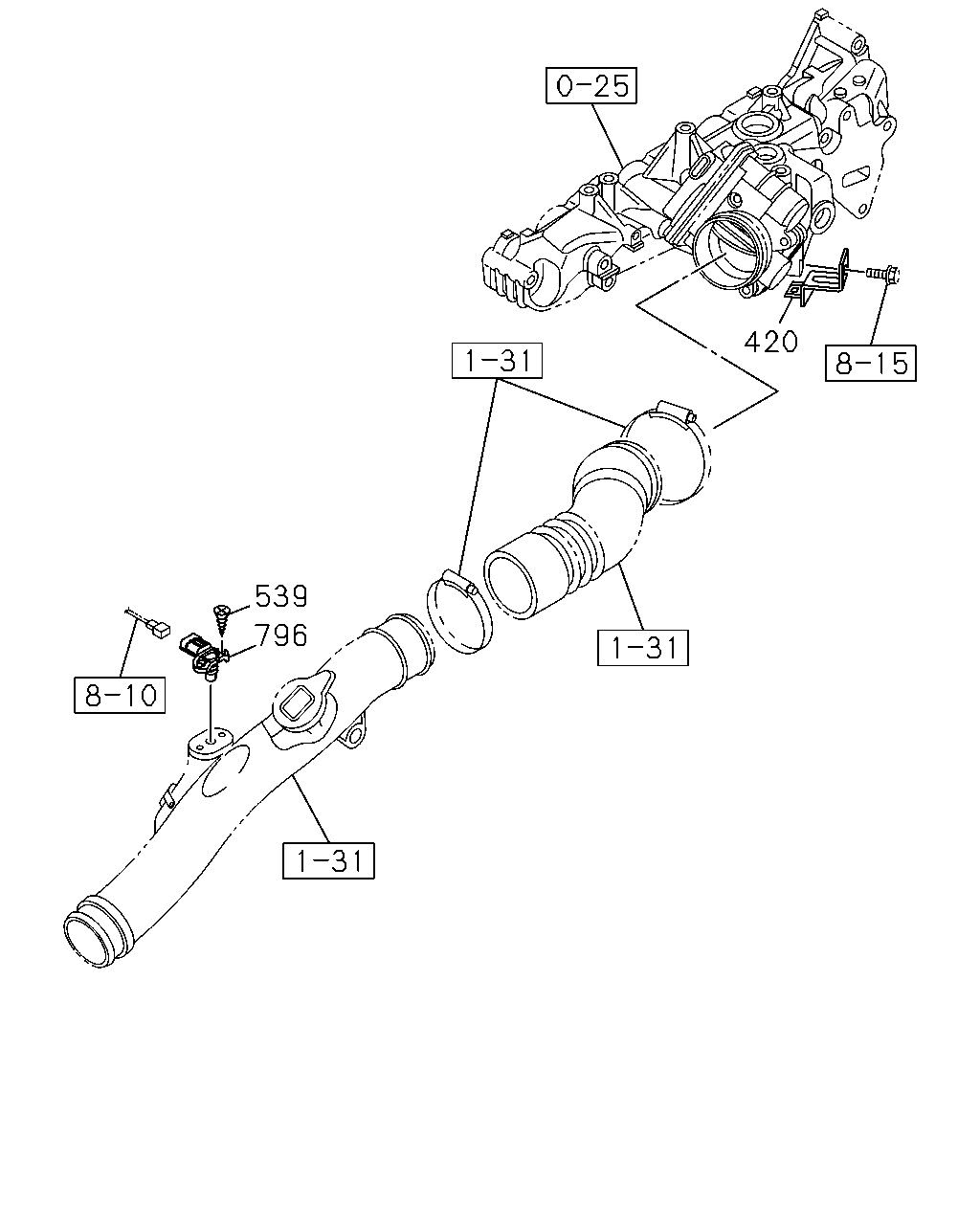

çizim 186950
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 1209- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1010-1108 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1109-1208 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1209- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1010-1108 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1109-1208 ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1209- ● ● ●

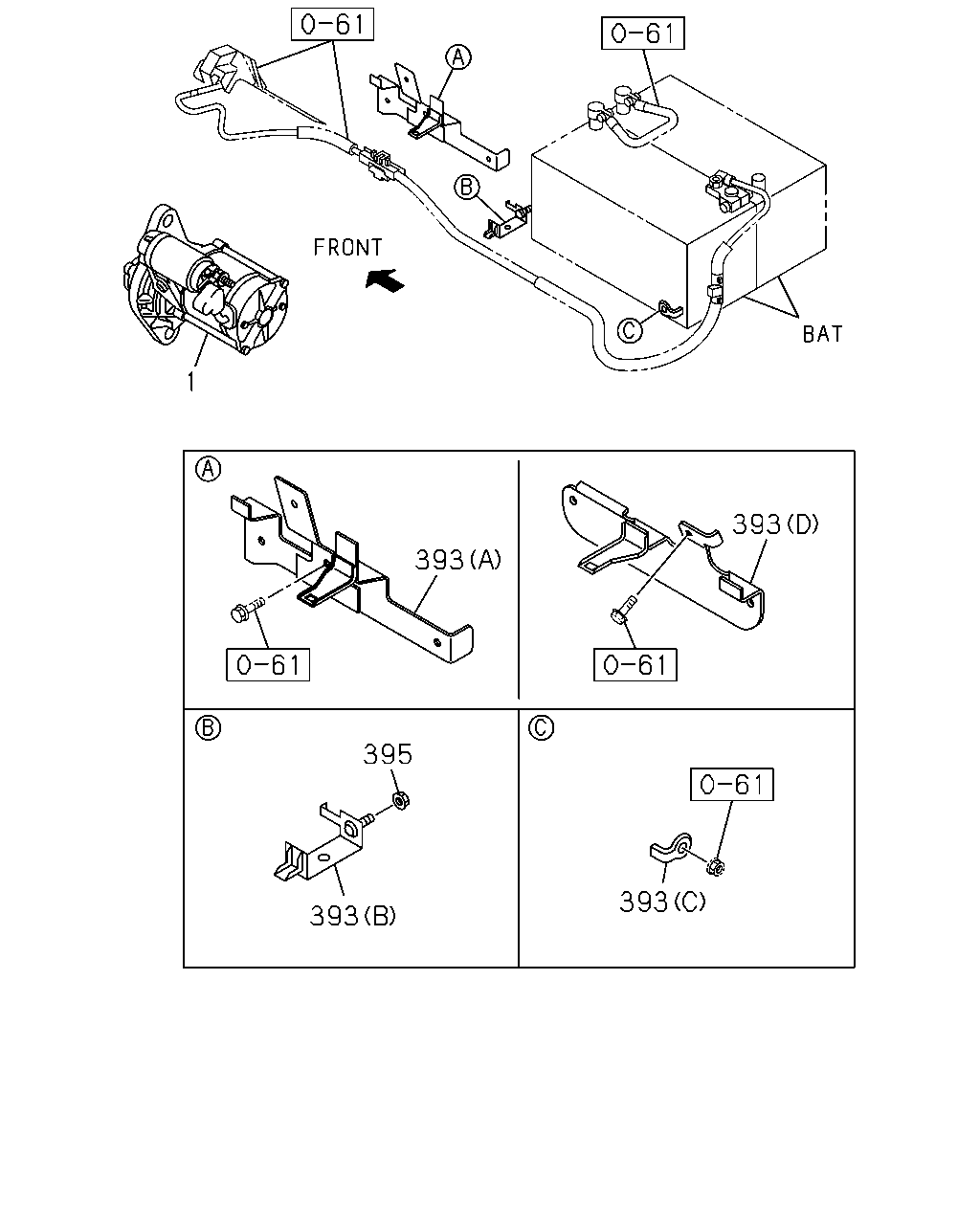

çizim 292039
393 393 395 393 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1010-1108 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1109-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208-1208 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1209- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (D) 		8-98030-138-2 01 1 1209- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 02.483 (B) 		8-98018-251-1 02 1 1103-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 02.483 (B) 		8-98018-251-1 02 1 1103-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 02.483 (B) 		8-98018-251-1 02 1 1109-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 02.483 (B) 		8-98018-251-1 02 1 1109-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 02.483 (B) 		8-98018-251-1 02 1 1206-1208 ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 02.483 (B) 		8-98018-251-1 02 1 1206-1208 ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 02.483 (B) 		8-98018-251-1 02 1 1209- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 02.483 (B) 		8-98018-251-1 02 1 1209- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 02 1 1209- ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (C) 		8-98018-894-1 01 1 1103-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98018-894-1 01 1 1103-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) (C) 		8-98018-894-1 01 1 1109-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98018-894-1 01 1 1109-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98018-894-1 01 1 1206- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98018-894-1 01 1 1206- ● ●
393 02.343 BRACKET; HARNESS TO BODY
02.483 (B) 		8-98018-251-1 01 1 1010-1101 ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 1102-1102 ●
393 02.343 BRACKET; HARNESS TO BODY
MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 1102-1102 ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 1103-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 1103-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 1206- ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 01 1 1206- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-894-1 02 1 1010-1102 ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) (C) 		8-98018-894-1 02 1 1103-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B) (C) 		8-98018-894-1 02 1 1109-1205 ● ●
393 02.343 BRACKET; HARNESS TO BODY
COLOMBIA EQUIPMENT(CB7) MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98018-894-1 02 1 1206- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98160-059-0 01 1 1010-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98160-059-0 01 1 1109-1208 ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98160-059-0 01 1 1209- ● ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1103-1108 ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1010-1101 ●
395 02.343 NUT; BRKT FIX
EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1102-1102 ●
395 02.343 NUT; BRKT FIX
MINI BUS CHASSIS(V4B) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1102-1102 ●
395 02.343 NUT; BRKT FIX
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1103-1108 ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1103-1108 ●
395 02.343 NUT; BRKT FIX
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109-1205 ● ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109-1205 ● ●
395 02.343 NUT; BRKT FIX
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1206-1208 ● ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1206-1208 ● ●
395 02.343 NUT; BRKT FIX
COLOMBIA EQUIPMENT(CB7) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ● ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> EXC. COLOMBIA EQUIPMENT(CB7) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1209- ●
çizim 292151
718 10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1010-1108 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1109- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1010-1108 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1109- ● ● ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1103-1402 ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
