0-50 — OIL COOLER AND OIL FILTER (#77794) — 85 parça

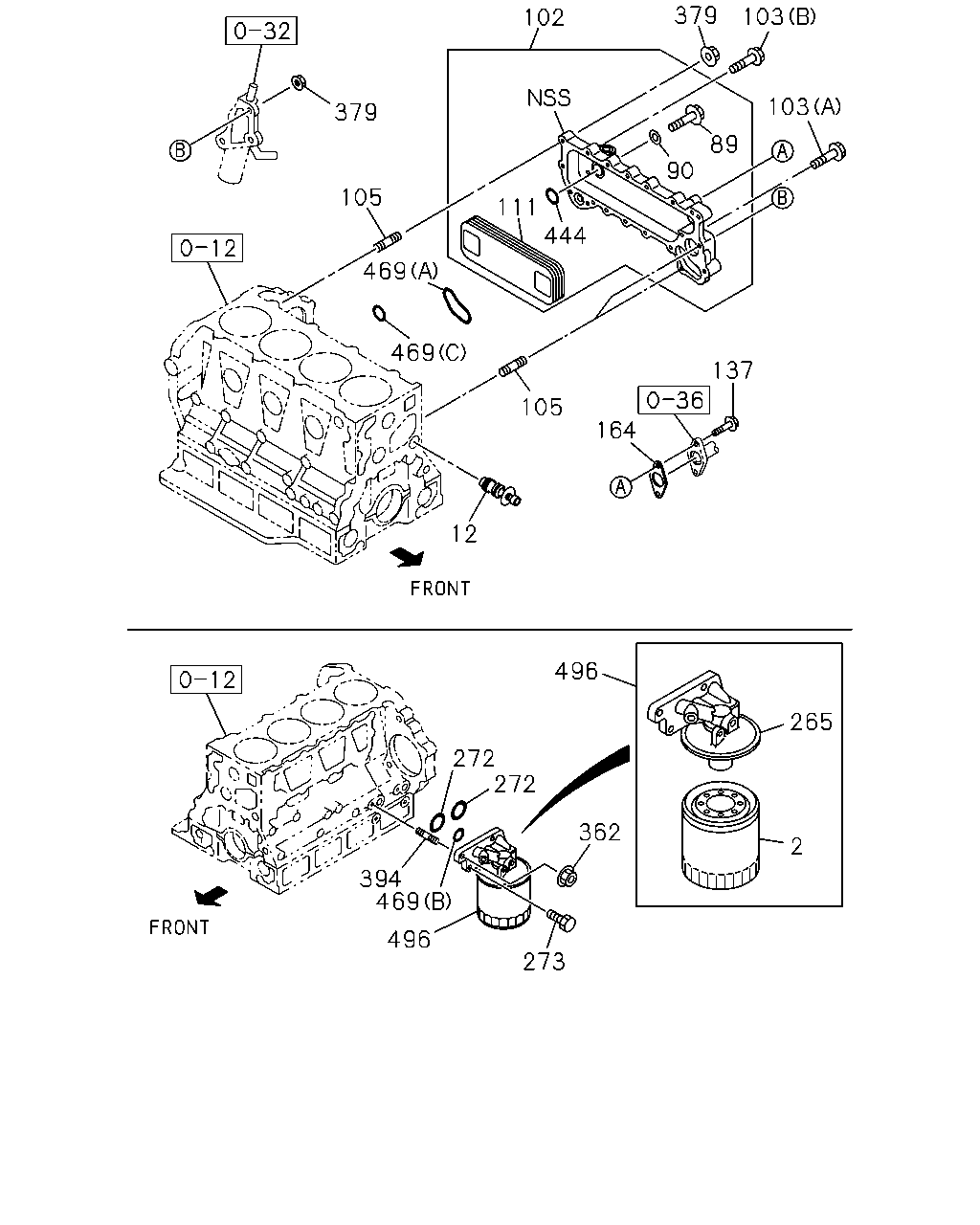

273 362 2 265 496 272 272 496 469 394 12 105 164 137 89 103 103 379 102 444 111 379 105 469 469 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	1010-1108	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	1109-1509	●	●
2	01.836 ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●	●
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	1209-			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-118-0	01	1	1209-			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1010-1108	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1109-1509	●	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	1010-1108	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	1109-	●	●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1010-1108	●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1109-	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	1010-1108	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	1109-	●	●
102	01.540 COOLER ASM; OIL	8-98085-312-2	01	1	1010-1108	●
102	01.540 COOLER ASM; OIL	8-98085-312-5	01	1	1109-	●	●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	1010-1108	●
103	01.540 BOLT; OIL COOLER 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	1109-	●	●
103	01.540 BOLT; OIL COOLER 03.162 (B) M8X35 FLANGE	0-28050-835-0	08	1	1010-1108	●
103	01.540 BOLT; OIL COOLER 03.162 (B) M8X35 FLANGE	0-28050-835-0	08	1	1109-	●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1010-1108	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1109-	●	●
111	01.540 CORE; OIL COOLER	8-97334-100-2	01	1	1010-1108	●
111	01.540 CORE; OIL COOLER	8-97334-100-2	01	1	1109-	●	●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1010-1108	●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1109-	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1010-1108	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1109-	●	●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	1010-1108	●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	1109-	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1010-1108	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1109-	●	●
273	01.840 BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1010-1108	●
273	01.840 BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1109-	●	●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1209-			●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	1010-1108	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	1010-1108	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	1109-	●	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1010-1108	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1109-	●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1010-1108	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1109-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1010-1108	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	1109-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	1010-1108	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	1109-	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1010-1108	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1109-	●	●
496	01.835 FILTER ASM; OIL	8-97148-268-3	01	1	1010-1108	●
496	01.835 FILTER ASM; OIL	8-97148-268-4	01	1	1109-1509	●	●
496	01.835 FILTER ASM; OIL	8-98328-202-0	01	1	1510-	●	●

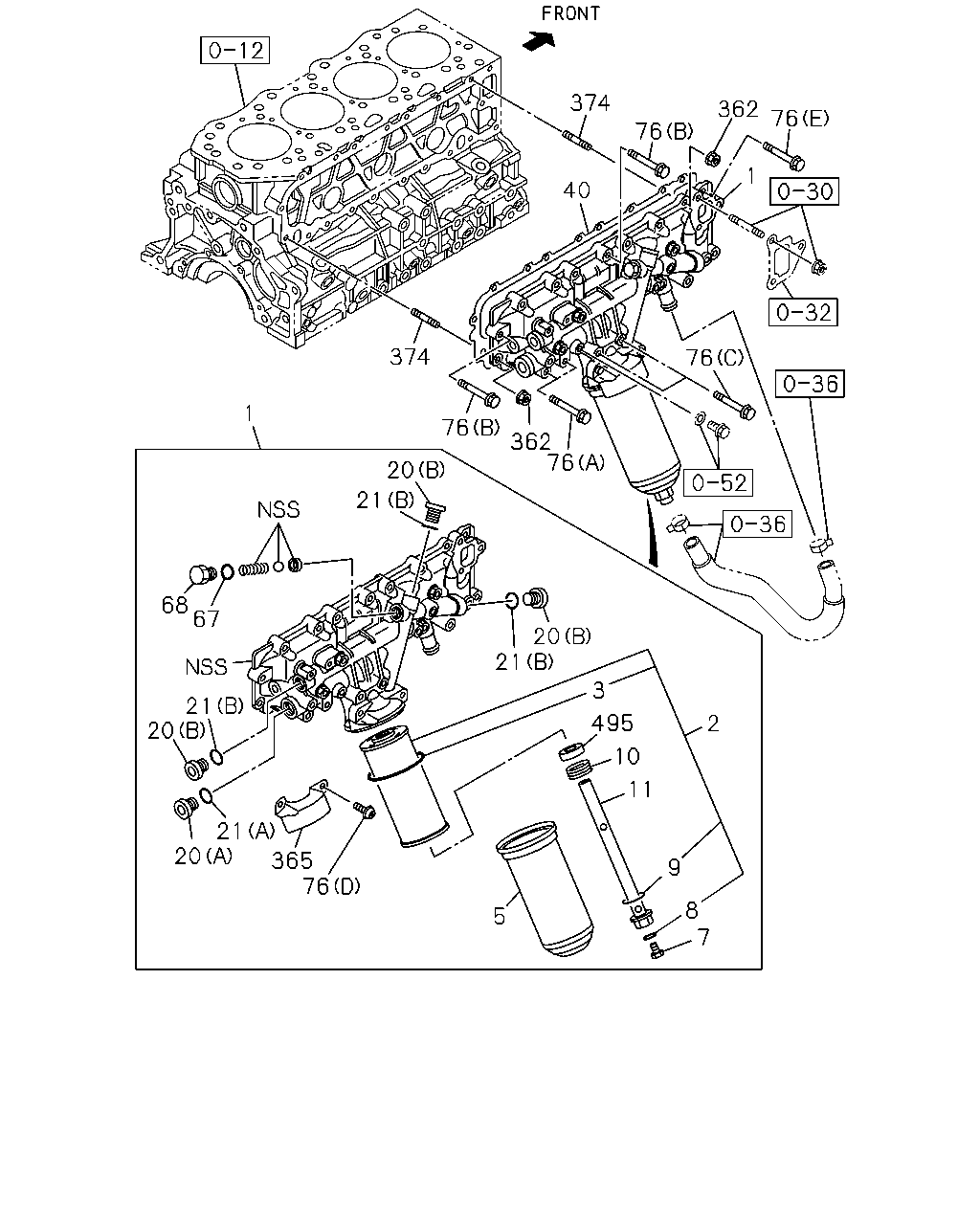

374 76 362 76 1 76 76 362 76 374 40 1 20 21 68 67 21 20 21 20 365 76 5 7 8 9 11 10 495 3 21 20 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.540 FILTER & COOLER ASM; OIL	8-98074-745-5	01	1	1209-1408			●
1	01.540 FILTER & COOLER ASM; OIL	8-98270-497-0	01	1	1409-			●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	1010-1108	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	1109-1509	●	●
2	01.836 ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-	●	●
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	1209-			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-118-0	01	1	1209-			●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1010-1108	●
2	01.836 ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1109-1509	●	●
3	01.540 GASKET	8-98024-708-0	01	1	1209-			●
5	01.837 CASE; OIL FILTER	8-98018-862-0	01	1	1209-			●
7	01.840 PLUG; CENTER BOLT	8-98018-846-0	01	1	1209-			●
8	01.840 GASKET; PLUG 03.417 ID=9.8	1-09623-055-0	01	1	1209-			●
9	01.840 GASKET; CENTER BOLT	1-09623-500-0	01	1	1209-			●
10	01.840 SPRING; ELEMENT	8-98018-850-0	01	1	1209-			●
11	01.840 BOLT; CENTER	8-98018-847-0	01	1	1209-			●
20	01.540 PLUG; COOLER BODY (A)	8-94396-753-0	01	1	1209-			●
20	01.540 PLUG; COOLER BODY (B)	8-98133-978-0	03	1	1209-			●
21	01.550 GASKET; PLUG (A)	8-98133-060-0	01	1	1209-			●
21	01.550 GASKET; PLUG (B)	8-98133-979-0	03	1	1209-			●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98074-746-0	01	1	1209-			●
67	01.550 GASKET; VLV	8-98133-059-0	01	1	1209-			●
68	01.837 PLUG; VLV 01.540	9-13263-010-0	01	1	1209-			●
76	01.840 BOLT; OIL FILTER 04.338 (E) M8X20 FLANGE	0-28050-820-0	01	1	1209-			●
76	01.840 BOLT; OIL FILTER 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	1209-			●
76	01.840 BOLT; OIL FILTER 02.100 (C) M8X90 FLANGE	0-28050-890-0	02	1	1209-			●
76	01.840 BOLT; OIL FILTER 01.060 (B) M8X35 FLANGE	0-28650-835-0	12	1	1209-			●
76	01.840 BOLT; OIL FILTER (D)	8-98041-912-0	02	1	1209-			●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	1209-			●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	1010-1108	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
365	01.840 PROTECTOR; OIL FILTER	8-98133-061-0	01	1	1209-			●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	1209-			●
495	03.680 PLATE; OIL FILTER	8-98018-853-0	01	1	1209-			●
