7-60 — SEAT BELT (#77790) — 53 parça

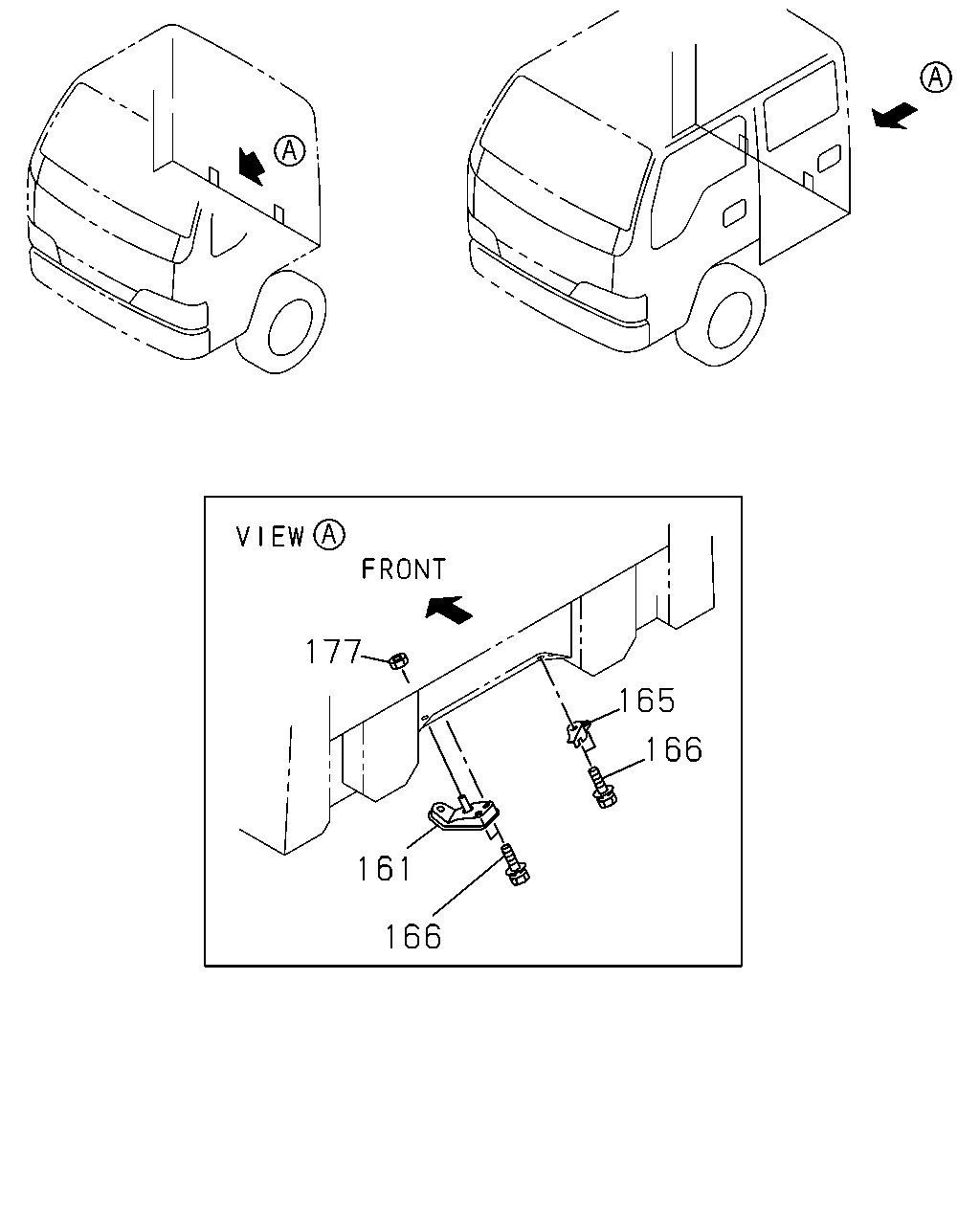

çizim 135377
177 165 166 161 166
BalonParca AdiParca NoAdetTipApplied Date A B C
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 0211- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0211- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 0211-0805 ● ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 01 1 0806- ● ● ●
çizim 135385
18 19 20 35 19 21 18 35
BalonParca AdiParca NoAdetTipApplied Date A B C
18 16.714 BELT; SEAT,RR
GRAY 		8-97400-353-1 02 1 0504- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97397-384-0 02 1 0504- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-027-1 01 1 0504- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-028-0 01 1 0504-0512 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-305-0 01 1 0601- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0211- ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 0211-0503 ●

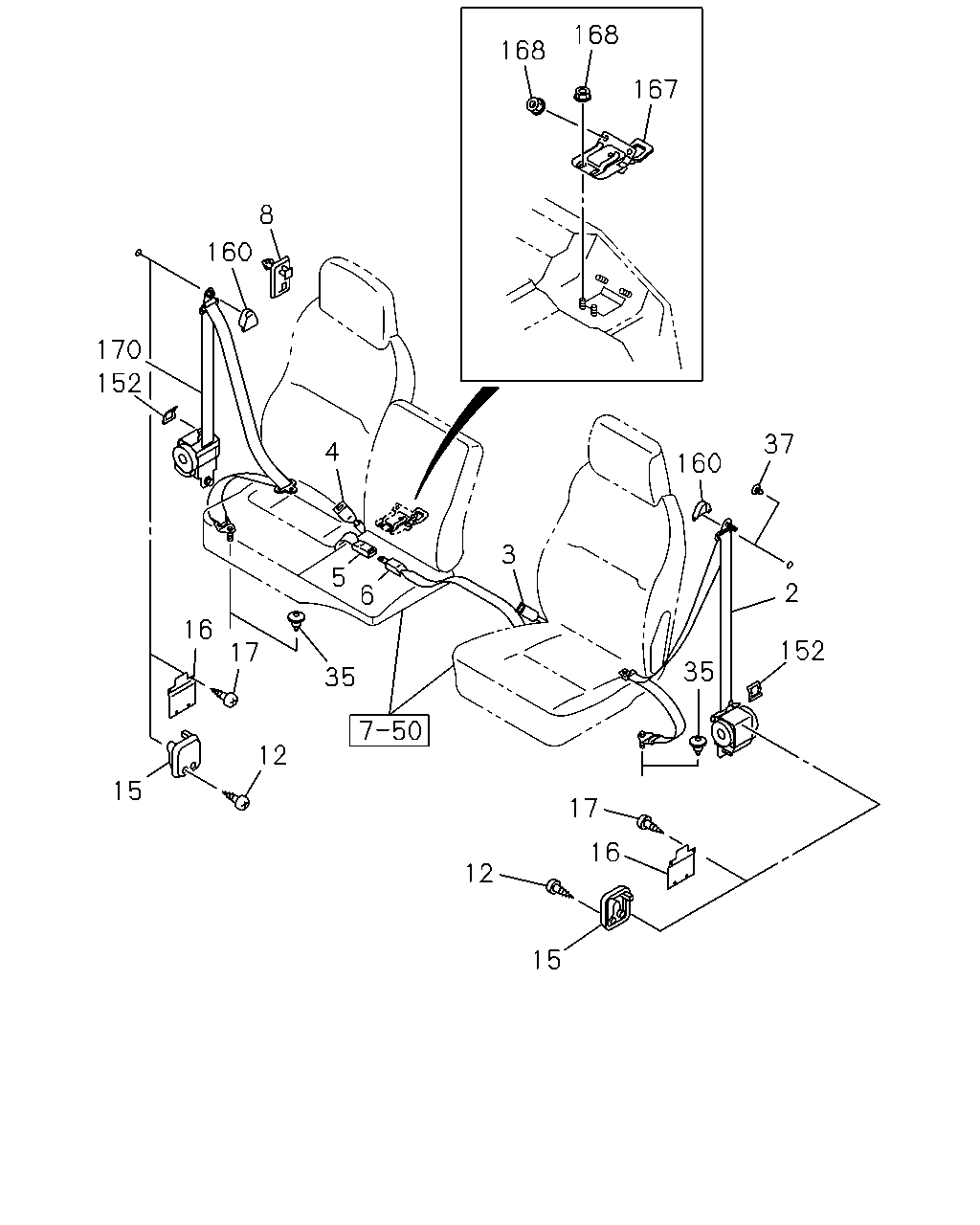

çizim 135386
168 168 167 8 160 170 152 37 4 160 3 5 2 6 16 152 17 35 35 12 15 17 16 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-703-0 01 1 0211-0501 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-352-0 01 1 0502- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0502- ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-221-0 01 1 0211-0409 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-281-0 01 1 0410-0501 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97401-516-0 01 1 0502-0512 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0601- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97326-224-0 01 1 0211-0501 ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97400-451-1 01 1 0502- ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0211-0503 ● ● ●
8 16.714 HOOK; SEAT BELT
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> 		8-94276-268-1 02 1 0504- ● ● ●
8 16.714 HOOK; SEAT BELT 8-94276-268-1 02 1 0504- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 04 1 0211-0611 ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M4X14 TAPPING 		0-74360-414-0 04 1 0612- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-94351-619-3 02 1 0211-0501 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-955-3 02 1 0502-0708 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.578 GRAY 		8-97405-192-3 02 1 0709- ●
16 16.714 COVER; HOLE,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97854-868-1 02 1 0211- ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.584 M6X13 		5-09981-074-0 08 1 0211-0611 ●
17 16.714 SCREW; HOLE COVER,SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M4X14 TAPPING 		0-74360-414-0 08 1 0612- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22 		9-61168-535-0 03 1 0211- ● ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 04 1 0211-0503 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0211-0503 ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 0211-0503 ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. SEAT BELT DRIVER & PASSENGER 2 POIN T<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5 		8-94279-726-0 02 1 0504- ● ● ●
152 16.714 PROTECTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 		8-97287-563-0 02 1 0211- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ●
160 16.714 COVER; THROUGH ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97396-954-0 02 1 0502- ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0211- ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0712 ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY 		8-97394-511-0 01 1 0211-0501 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY 		8-97400-353-1 01 1 0502- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97392-992-0 01 1 0211-0501 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97397-380-2 01 1 0502- ● ● ●
