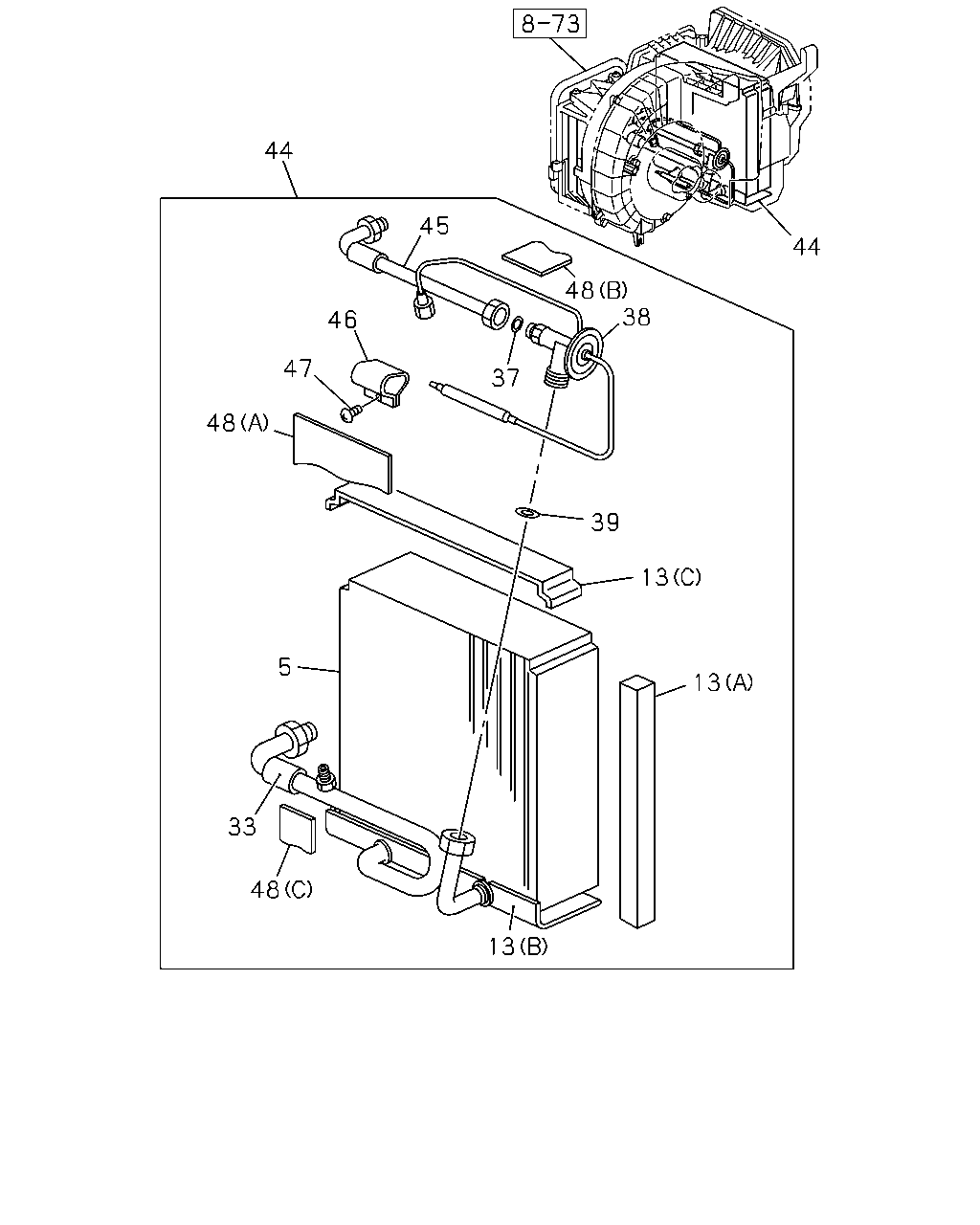

8-74 — EVAPORATOR (#7779) — 54 parça

44 45 44 48 38 46 47 37 48 39 13 5 13 33 48 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-098-0	01	1	9902-	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-095-0	01	1	0004-		●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	9902-0003	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	0004-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-816-0	01	1	9902-	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-938-0	01	1	0004-		●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-939-0	01	1	0004-		●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-817-0	01	1	9902-	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-653-0	01	1	0004-		●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	9902-0003	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	0004-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	9902-0003	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	0004-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	9902-0003	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	0004-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-142-0	01	1	9902-	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-094-1	01	1	0004-		●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-689-0	01	1	9902-	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-681-1	01	1	0004-		●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60) ID=8X2	8-94344-881-1	01	1	9902-	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-214-0	01	1	0004-		●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9902-0003	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0004-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	9902-0003	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	0004-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-969-0	01	1	0004-		●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-970-0	01	1	0004-		●

44 44 45 38 37 47 13 46 39 5 48 33 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-098-0	01	1	9902-	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-095-0	01	1	0004-		●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	9902-0003	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-669-1	01	1	0004-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-816-0	01	1	9902-	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-938-0	01	1	0004-		●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-939-0	01	1	0004-		●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-817-0	01	1	9902-	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-653-0	01	1	0004-		●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	9902-0003	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07	8-94461-902-0	01	1	0004-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	9902-0003	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	1-83569-158-0	01	1	0004-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	9902-0003	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-94481-717-0	01	1	0004-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83541-142-0	01	1	9902-	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-094-1	01	1	0004-		●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-689-0	01	1	9902-	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-681-1	01	1	0004-		●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60) ID=8X2	8-94344-881-1	01	1	9902-	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-214-0	01	1	0004-		●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	9902-0003	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0004-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	9902-0003	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-784-0	01	1	0004-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-969-0	01	1	0004-		●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-970-0	01	1	0004-		●
