Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#77782) — 232 parça

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-633-1	01	1	0211-0501	●	●	●
1	16.068 MIRROR; ROOM CAB-LOW ROOF<6XQ> DARK GRAY	8-97868-633-1	01	1	0211-0501	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-241-1	01	1	0502-0506	●	●
1	16.068 MIRROR; ROOM CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97582-241-1	01	1	0502-0506	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-241-1	01	1	0507-0610	●	●	●
1	16.068 MIRROR; ROOM CAB-LOW ROOF<6XQ> LIGHT GRAY	8-97582-241-1	01	1	0507-0610	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-215-1	01	1	0611-	●	●	●
1	16.068 MIRROR; ROOM CAB-LOW ROOF<6XQ> DARK GRAY	8-97406-215-1	01	1	0611-	●
1	16.068 MIRROR; ROOM EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0211-0501	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97868-351-2	01	1	0211-0501		●	●
1	16.068 MIRROR; ROOM EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0502-0506	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0502-0506		●
1	16.068 MIRROR; ROOM LIGHT GRAY	8-97582-242-2	01	1	0502-0506			●
1	16.068 MIRROR; ROOM EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0507-	●
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-242-2	01	1	0507-		●	●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	0211-0405	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0406-0501	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0502-0506	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0507-0612	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0702	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0703-	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0406-0501	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0502-0506	●	●
2	16.069 SCREW; MIRROR TO BODY 16.263 M5X16	8-94279-341-0	02	1	0502-0506			●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0507-0612	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0703-	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0211-	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	0211-	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588	8-94279-039-0	01	1	0211-0405	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0406-0501	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0502-0506	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0507-	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	0211-	●	●	●
159	08.991 BULB; ROOM LAMP 24V 10W	5-82194-030-0	01	1	0211-	●	●	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0211-0501	●	●	●
162	16.069 SEAL; ROOM LAMP CAB-LOW ROOF<6XQ>	8-97856-532-0	01	1	0211-0501	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0502-0506	●	●
162	16.069 SEAL; ROOM LAMP CAB-LOW ROOF<6XQ>	8-97856-532-0	01	1	0502-0506	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0507-	●	●	●
162	16.069 SEAL; ROOM LAMP CAB-LOW ROOF<6XQ>	8-97856-532-0	01	1	0507-	●

90 92 19 126 69 88 142 59 13 59 87 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>	8-97867-880-1	02	1	0211-0602	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW	8-97867-880-1	02	1	0211-0602		●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>	8-98037-583-1	02	1	0603-	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW	8-98037-583-1	02	1	0603-		●	●
19	10.186 GASKET; MIRROR DOOR MIRROR<6VE> 16.588	8-97857-925-0	02	1	0211-0501	●
19	10.186 GASKET; MIRROR 16.588	8-97857-925-0	02	1	0211-0501		●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE> M6X30	8-94279-327-0	08	1	0211-	●
51	16.069 SCREW; MIRROR M6X30	8-94279-327-0	08	1	0211-		●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE> T=2.6	8-94279-073-0	04	1	0211-	●
59	16.069 WASHER; LK T=2.6	8-94279-073-0	04	1	0211-		●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE> M10 CAP NUT	1-09984-134-0	02	1	0211-	●
69	16.069 NUT; CAP M10 CAP NUT	1-09984-134-0	02	1	0211-		●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	0211-	●
87	16.069 SPACER	8-94272-677-0	02	1	0211-		●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0211-	●
88	16.069 WASHER; PL,SUPPORT STAY 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0211-		●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588	8-97868-527-0	01	1	0211-0501	●
90	16.069 BRACKET; MIRROR STAY 16.588	8-97868-527-0	01	1	0211-0501		●	●
90	16.069 BRACKET; MIRROR STAY DOOR MIRROR<6VE> 16.588	8-97868-528-0	01	1	0211-0501	●
90	16.069 BRACKET; MIRROR STAY 16.588	8-97868-528-0	01	1	0211-0501		●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0211-0501	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-94279-183-1	10	1	0502-0611	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-938-4	01	1	0211-	●
126	16.069 STAY ASM; MIRROR	8-97856-938-4	01	1	0211-		●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-939-4	01	1	0211-	●
126	16.069 STAY ASM; MIRROR	8-97856-939-4	01	1	0211-		●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>	8-97856-622-2	02	1	0211-	●
142	16.069 STAY ASM; SUB	8-97856-622-2	02	1	0211-		●	●

185 185 71 126 69 88 142 59 13 59 87 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>	8-97867-880-1	02	1	0211-0602	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW	8-97867-880-1	02	1	0211-0602		●	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<6VE>	8-98037-583-1	02	1	0603-	●
13	16.068 MIRROR ASM; OUTSIDE RR VIEW	8-98037-583-1	02	1	0603-		●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE> M6X30	8-94279-327-0	08	1	0211-	●
51	16.069 SCREW; MIRROR M6X30	8-94279-327-0	08	1	0211-		●	●
59	16.069 WASHER; LK DOOR MIRROR<6VE> T=2.6	8-94279-073-0	04	1	0211-	●
59	16.069 WASHER; LK T=2.6	8-94279-073-0	04	1	0211-		●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE> M10 CAP NUT	1-09984-134-0	02	1	0211-	●
69	16.069 NUT; CAP M10 CAP NUT	1-09984-134-0	02	1	0211-		●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>	8-97581-620-2	01	1	0502-	●
71	16.069 BRACKET; OUTSIDE MIRROR	8-97581-620-2	01	1	0502-		●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>	8-97581-621-2	01	1	0502-	●
71	16.069 BRACKET; OUTSIDE MIRROR	8-97581-621-2	01	1	0502-		●	●
87	16.069 SPACER DOOR MIRROR<6VE>	8-94272-677-0	02	1	0211-	●
87	16.069 SPACER	8-94272-677-0	02	1	0211-		●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE> 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0211-	●
88	16.069 WASHER; PL,SUPPORT STAY 03.417 ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0211-		●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-938-4	01	1	0211-	●
126	16.069 STAY ASM; MIRROR	8-97856-938-4	01	1	0211-		●	●
126	16.069 STAY ASM; MIRROR DOOR MIRROR<6VE>	8-97856-939-4	01	1	0211-	●
126	16.069 STAY ASM; MIRROR	8-97856-939-4	01	1	0211-		●	●
142	16.069 STAY ASM; SUB DOOR MIRROR<6VE>	8-97856-622-2	02	1	0211-	●
142	16.069 STAY ASM; SUB	8-97856-622-2	02	1	0211-		●	●
185	16.069 BOLT; BRKT DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-94279-183-1	06	1	0502-0504	●
185	16.069 BOLT; BRKT M8X30 W/LK WASHER	8-94279-183-1	06	1	0502-0504		●	●
185	16.069 BOLT; BRKT DOOR MIRROR<6VE> M8X12.5 HEX SOCKET W/LK WASHER	8-97232-181-0	06	1	0505-0610	●
185	16.069 BOLT; BRKT M8X12.5 HEX SOCKET W/LK WASHER	8-97232-181-0	06	1	0505-0610		●	●
185	16.069 BOLT; BRKT DOOR MIRROR<6VE> M8X12.5 W/LK WASHER	8-98020-348-0	06	1	0611-	●
185	16.069 BOLT; BRKT M8X12.5 W/LK WASHER	8-98020-348-0	06	1	0611-		●	●

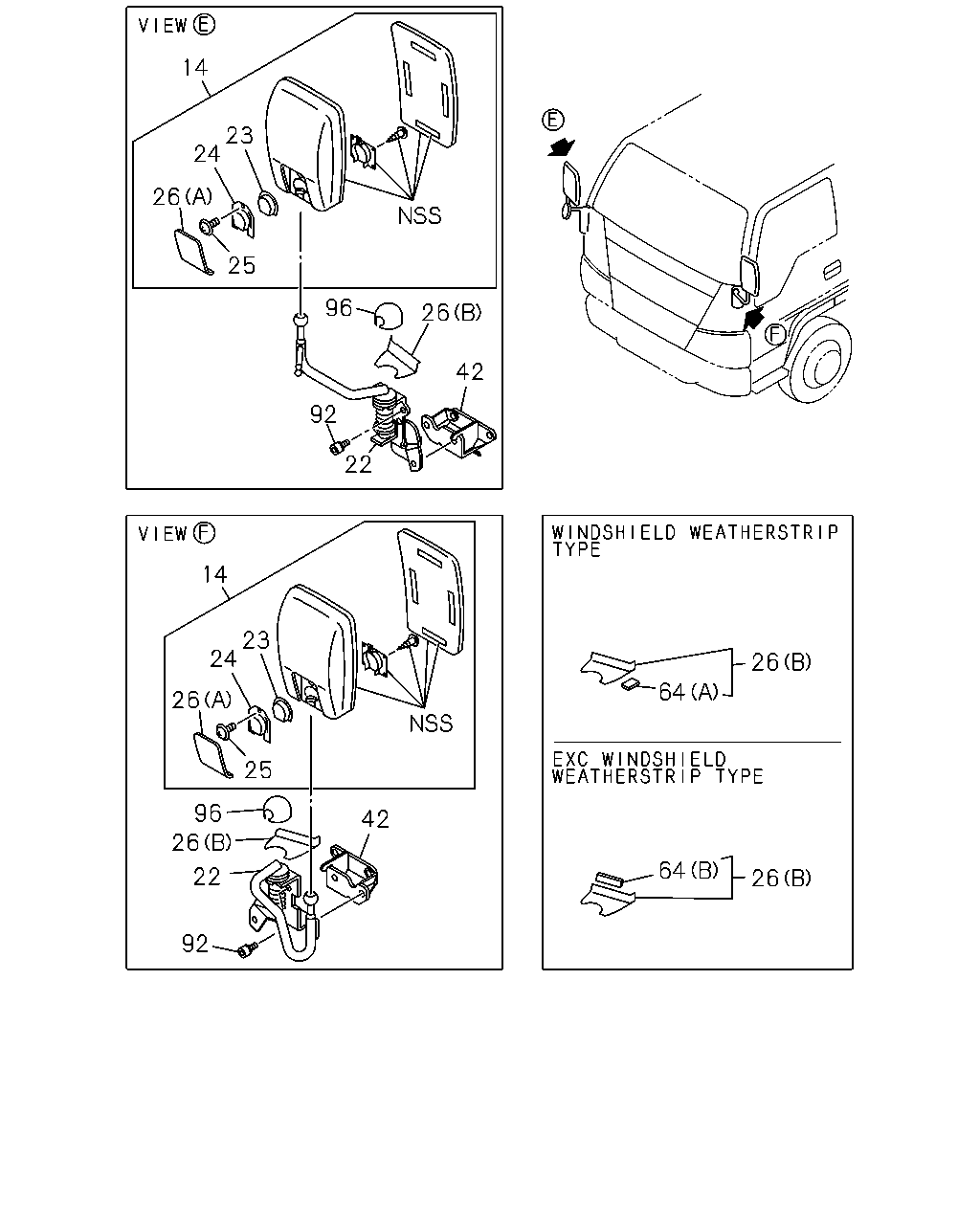

14 23 24 26 25 96 26 42 92 22 14 23 24 26 64 26 25 96 26 42 64 22 26 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-94262-542-3	01	1	0211-	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	01	1	0211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97993-070-0	01	1	0211-0501	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97582-992-3	01	1	0502-0701	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-98039-577-1	01	1	0702-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97993-072-0	01	1	0211-0501	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97582-989-3	01	1	0502-0701	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-98039-574-1	01	1	0702-	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>	8-97856-269-7	01	1	0211-0501	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>	8-97582-991-3	01	1	0502-0701	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>	8-98039-576-1	01	1	0702-	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> T=2.0	8-94262-545-0	01	1	0211-	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	01	1	0211-	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> T=1.6	8-94262-546-1	01	1	0211-	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	01	1	0211-	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> M6X30	8-94279-365-0	01	1	0211-	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	01	1	0211-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) WHITE	8-97589-159-1	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) WHITE	8-97589-166-0	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) SILVER	8-97589-160-1	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) SILVER	8-97589-167-0	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) BLUE	8-97589-161-1	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) BLUE	8-97589-168-0	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) WHITE	8-97582-831-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) WHITE	8-97582-831-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) WHITE	8-97582-840-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) WHITE	8-97582-840-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) SILVER	8-97582-833-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) SILVER	8-97582-833-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) SILVER	8-97582-842-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) SILVER	8-97582-842-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) BLUE	8-97582-835-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) BLUE	8-97582-835-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) BLUE	8-97582-844-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) BLUE	8-97582-844-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> (A) T=2.3	8-94262-547-2	01	1	0211-	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> (A) T=2.3	8-94262-547-2	01	1	0211-	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97581-625-2	01	1	0502-	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97581-755-2	01	1	0502-	●
64	16.069 SEAL; MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (A)	8-98015-058-0	02	1	0504-	●
64	16.069 SEAL; MIRROR EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0504-0807	●
64	16.069 SEAL; MIRROR EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B)	8-98015-057-0	02	1	0808-0809	●
64	16.069 SEAL; MIRROR IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0808-0809	●
64	16.069 SEAL; MIRROR EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B)	8-98015-057-0	02	1	0810-	●
64	16.069 SEAL; MIRROR KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0810-	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0211-0501	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-94279-183-1	10	1	0502-0611	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> OD=40	8-97853-206-2	01	1	0211-0501	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0211-0501	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>	8-97581-631-2	02	1	0502-	●

23 14 25 24 26 96 22 183 92 14 23 24 26 25 96 22 92 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-94262-542-3	01	1	0211-	●
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	01	1	0211-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97993-070-0	01	1	0211-0501	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97582-992-3	01	1	0502-0701	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-98039-577-1	01	1	0702-	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97993-072-0	01	1	0211-0501	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-97582-989-3	01	1	0502-0701	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB>	8-98039-574-1	01	1	0702-	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>	8-97856-269-7	01	1	0211-0501	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>	8-97582-991-3	01	1	0502-0701	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB>	8-98039-576-1	01	1	0702-	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> T=2.0	8-94262-545-0	01	1	0211-	●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	01	1	0211-	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> T=1.6	8-94262-546-1	01	1	0211-	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	01	1	0211-	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> M6X30	8-94279-365-0	01	1	0211-	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	01	1	0211-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) WHITE	8-97589-159-1	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) WHITE	8-97589-166-0	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) SILVER	8-97589-160-1	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) SILVER	8-97589-167-0	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) BLUE	8-97589-161-1	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) BLUE	8-97589-168-0	01	1	0502-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) WHITE	8-97582-831-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) WHITE	8-97582-831-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) WHITE	8-97582-840-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) WHITE	8-97582-840-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) SILVER	8-97582-833-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) SILVER	8-97582-833-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-833-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) SILVER	8-97582-842-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) SILVER	8-97582-842-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER	8-97582-842-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) BLUE	8-97582-835-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) BLUE	8-97582-835-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-835-5	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0502-0807	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) BLUE	8-97582-844-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0808-0809	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) BLUE	8-97582-844-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE	8-97582-844-4	01	1	0810-	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> (A) T=2.3	8-94262-547-2	01	1	0211-	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> (A) T=2.3	8-94262-547-2	01	1	0211-	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0211-0501	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-94279-183-1	10	1	0502-0611	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> OD=40	8-97853-206-2	01	1	0211-0501	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE> OD=40	8-97853-206-2	01	1	0211-0501	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>	8-97581-631-2	02	1	0502-	●
183	16.069 FINISHER; MIRROR O/SIDE MIRROR ASSIST SIDE EXTEND LONG ST AY<8EB> 16.588	8-97857-925-0	01	1	0211-0501	●
183	16.069 FINISHER; MIRROR EXC. DOOR MIRROR<6VE> 16.588	8-97857-925-0	01	1	0211-0501	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
