Sayfa 8-73 - Isuzu EPC

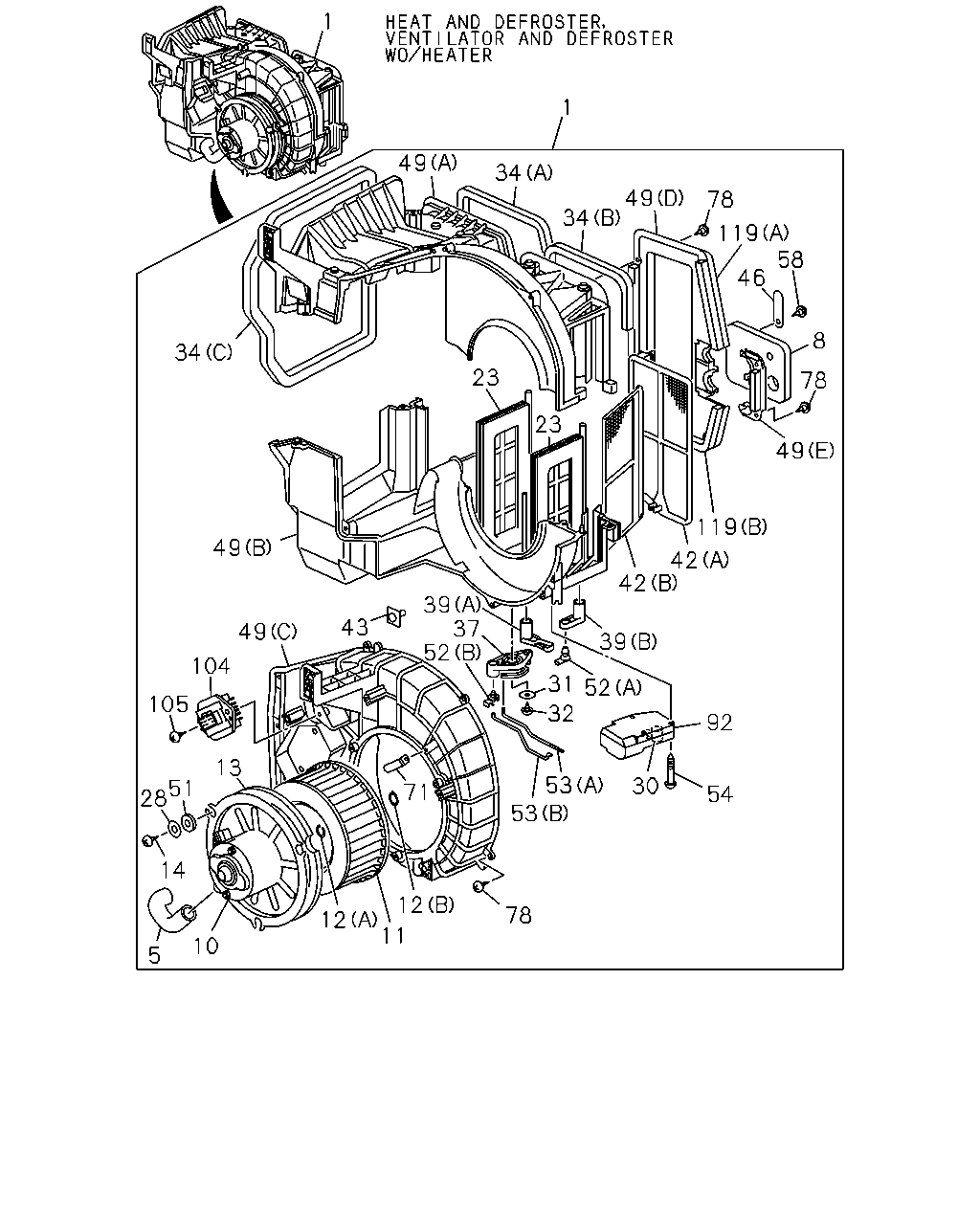

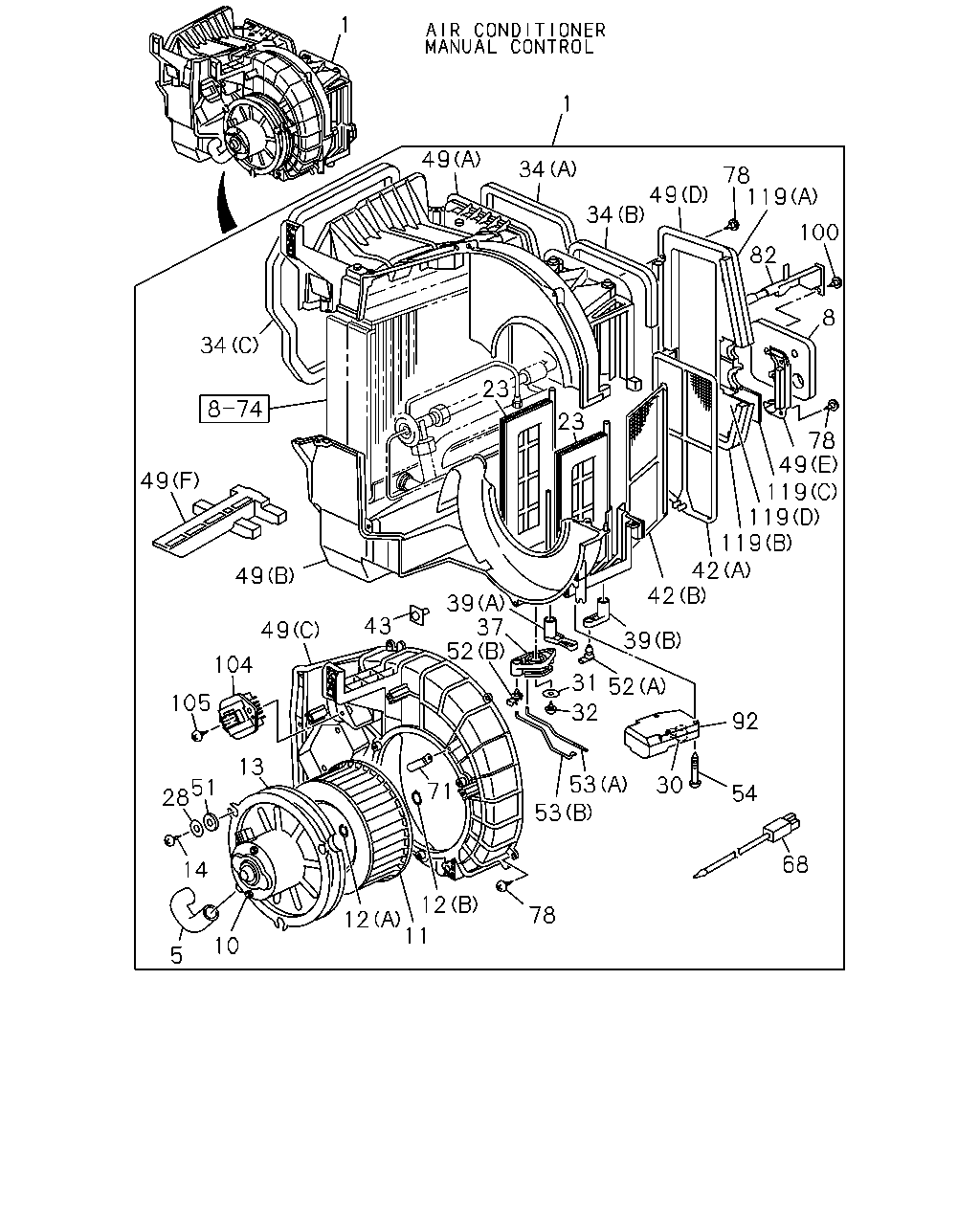

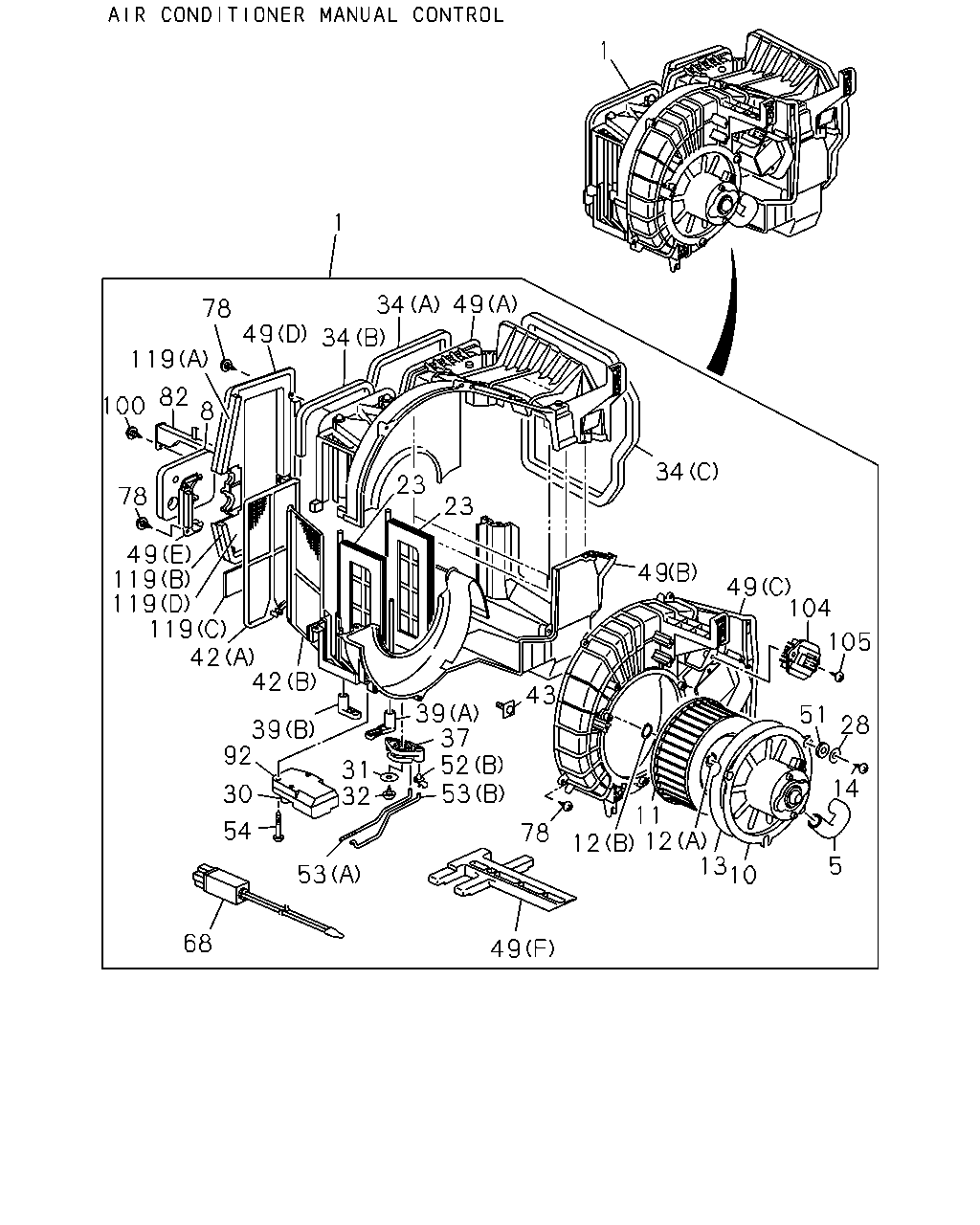

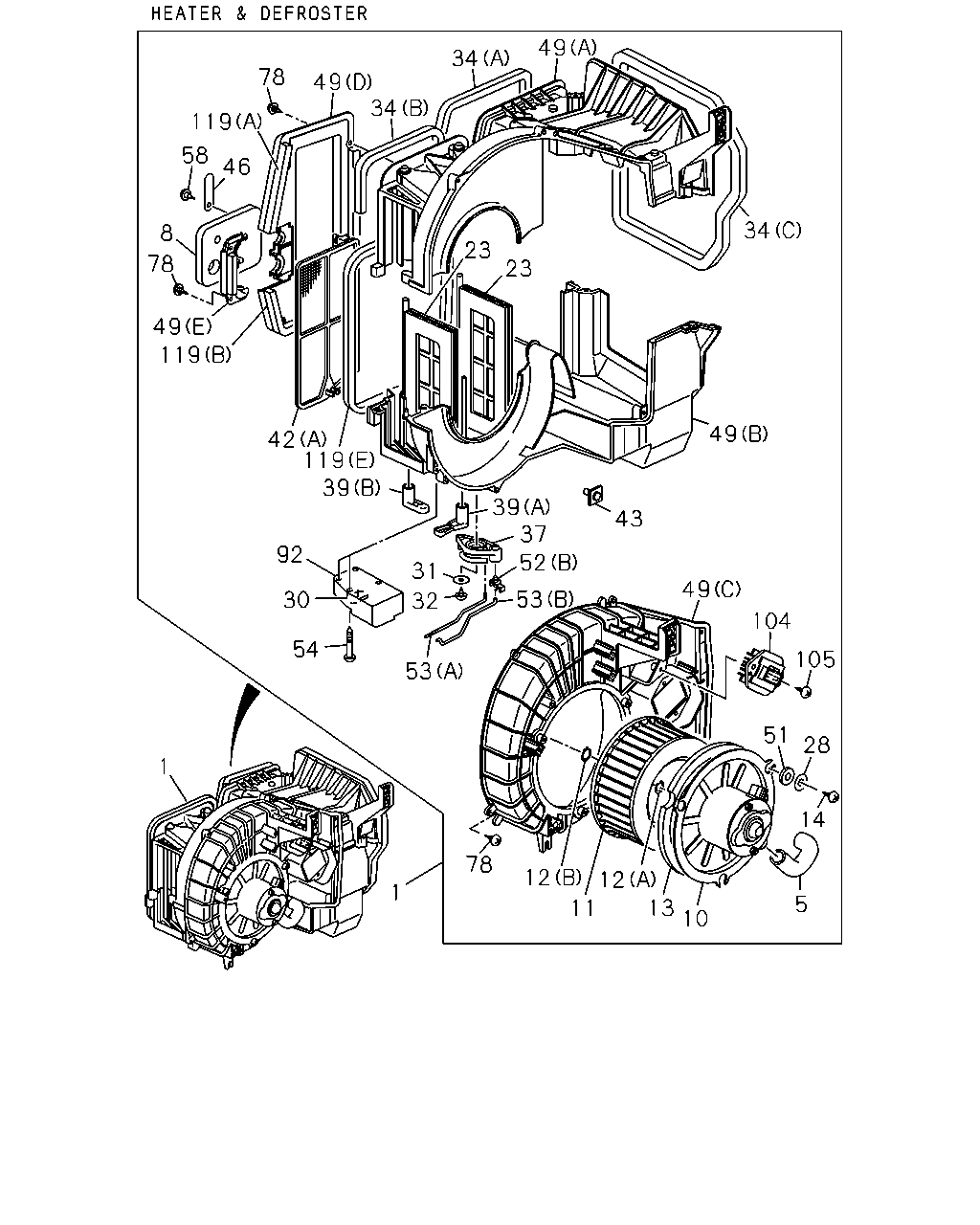

8-73 — BLOWER UNIT (#7778) — 446 parça

1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 92 13 53 53 30 51 28 71 54 68 14 12 78 12 11 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-155-2	01	1	9902-	●
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-110-4	01	1	9902-	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-150-3	01	1	0004-		●
1	BLOWER ASM HEATER & DEFROSTER(C41)	1-83561-105-8	01	1	0004-		●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-147-0	01	1	9902-	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	0004-		●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	0004-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	0004-	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	0004-		●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	9902-0007	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	0004-		●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-796-0	01	1	9902-	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	0004-		●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	0004-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	0004-	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9902-0003	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	0004-	●	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	9902-0003	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0004-	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	0004-		●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9902-0003	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	0004-	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	0004-		●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-797-0	02	1	9902-	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	0004-		●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9902-0003	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	0004-	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9902-0003	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	0004-	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9902-0003	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	0004-	●	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	9902-0003	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0004-	●
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	0004-		●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9902-0003	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	0004-	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0004-		●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	0004-	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-375-0	01	1	9902-	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-373-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-374-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	0004-		●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	9902-0003	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	0004-	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-800-0	01	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-933-0	02	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-643-2	01	1	0004-		●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9902-0003	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	0004-	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-378-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-368-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-370-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-371-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-372-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-369-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	0004-		●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-352-5	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	0004-		●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9902-0003	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	0004-	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83574-136-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94248-794-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	02	1	0004-		●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	9902-0003	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	0004-	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-799-0	01	1	9902-	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-638-0	01	1	0004-		●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9902-0003	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0004-	●	●
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-0	01	1	9902-0003	●
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	0004-	●	●
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97096-145-0	01	1	9902-	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	18	1	9902-	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	0004-		●
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-932-0	01	1	9902-	●
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	0004-		●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-798-1	01	1	9902-	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	0004-		●
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	9902-0003	●
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	0004-	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9902-0003	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	0004-	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9902-0003	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0003	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0004-0007	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0008-	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-795-0	01	1	9902-	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	0004-	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	0004-		●
119	LINING; CASE HEATER & DEFROSTER(C41) (E)	1-83579-839-0	02	1	0004-		●

1 1 49 34 49 34 78 119 58 46 8 34 23 78 23 49 119 49 42 42 39 37 52 43 49 39 104 31 52 105 32 92 13 53 53 30 51 28 71 54 14 12 78 12 11 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-155-2	01	1	9902-	●
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-110-4	01	1	9902-	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-150-3	01	1	0004-		●
1	BLOWER ASM HEATER & DEFROSTER(C41)	1-83561-105-8	01	1	0004-		●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-147-0	01	1	9902-	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	0004-		●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	0004-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	0004-	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	0004-		●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	9902-0007	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	0004-		●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-796-0	01	1	9902-	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	0004-		●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	0004-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	0004-	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9902-0003	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	0004-	●	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	9902-0003	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0004-	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	0004-		●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9902-0003	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	0004-	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	0004-		●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-797-0	02	1	9902-	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	0004-		●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9902-0003	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	0004-	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9902-0003	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	0004-	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9902-0003	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	0004-	●	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	9902-0003	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0004-	●
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	0004-		●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9902-0003	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	0004-	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0004-		●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	0004-	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-375-0	01	1	9902-	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-373-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-374-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	0004-		●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	9902-0003	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	0004-	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-800-0	01	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-933-0	02	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-643-2	01	1	0004-		●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9902-0003	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	0004-	●	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	9902-0003	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	0004-	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	0004-		●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-378-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-368-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-370-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-371-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-372-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-369-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	0004-		●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-352-5	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	0004-		●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9902-0003	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	0004-	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83574-136-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94248-794-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	02	1	0004-		●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	9902-0003	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	0004-	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-799-0	01	1	9902-	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-638-0	01	1	0004-		●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9902-0003	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0004-	●	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	9902-0003	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	0004-	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	0004-		●
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97096-145-0	01	1	9902-	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	18	1	9902-	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	0004-		●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-798-1	01	1	9902-	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	0004-		●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9902-0003	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	0004-	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9902-0003	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0003	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0004-0007	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0008-	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-795-0	01	1	9902-	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	0004-	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	0004-		●
119	LINING; CASE HEATER & DEFROSTER(C41) (E)	1-83579-839-0	02	1	0004-		●

1 1 49 34 78 49 34 119 82 100 8 34 23 78 23 49 119 119 119 42 49 49 104 43 105 42 39 37 52 53 11 12 12 51 28 39 92 31 32 14 30 54 78 13 10 5 53 68 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-155-2	01	1	9902-	●
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-110-4	01	1	9902-	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-150-3	01	1	0004-		●
1	BLOWER ASM HEATER & DEFROSTER(C41)	1-83561-105-8	01	1	0004-		●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-147-0	01	1	9902-	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	0004-		●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	0004-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	0004-	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	0004-		●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	9902-0007	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	0004-		●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-796-0	01	1	9902-	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	0004-		●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	0004-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	0004-	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9902-0003	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	0004-	●	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	9902-0003	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0004-	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	0004-		●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9902-0003	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	0004-	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	0004-		●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-797-0	02	1	9902-	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	0004-		●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9902-0003	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	0004-	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9902-0003	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	0004-	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9902-0003	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	0004-	●	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	9902-0003	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0004-	●
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	0004-		●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9902-0003	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	0004-	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0004-		●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	0004-	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-375-0	01	1	9902-	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-373-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-374-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	0004-		●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	9902-0003	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	0004-	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-800-0	01	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-933-0	02	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-643-2	01	1	0004-		●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9902-0003	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	0004-	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-378-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-368-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-370-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-371-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-372-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-369-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	0004-		●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-352-5	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	0004-		●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9902-0003	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	0004-	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83574-136-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94248-794-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	02	1	0004-		●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	9902-0003	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	0004-	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-799-0	01	1	9902-	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-638-0	01	1	0004-		●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9902-0003	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0004-	●	●
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-0	01	1	9902-0003	●
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	0004-	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	18	1	9902-	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	0004-		●
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-932-0	01	1	9902-	●
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-871-1	01	1	0004-		●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-798-1	01	1	9902-	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	0004-		●
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	9902-0003	●
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	0004-	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9902-0003	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	0004-	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9902-0003	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0003	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0004-0007	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0008-	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-795-0	01	1	9902-	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	0004-	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	0004-		●
119	LINING; CASE HEATER & DEFROSTER(C41) (E)	1-83579-839-0	02	1	0004-		●

49 34 78 49 34 119 58 46 34 8 23 78 23 49 119 49 42 119 39 39 37 43 92 52 31 49 53 30 32 104 54 105 53 51 28 1 14 78 12 12 1 5 13 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-155-2	01	1	9902-	●
1	BLOWER ASM HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-110-4	01	1	9902-	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-150-3	01	1	0004-		●
1	BLOWER ASM HEATER & DEFROSTER(C41)	1-83561-105-8	01	1	0004-		●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-147-0	01	1	9902-	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-140-0	01	1	0004-		●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83539-261-1	01	1	0004-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	9902-0003	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-801-1	01	1	0004-	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83579-801-1	01	1	0004-		●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	9902-0007	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-121-0	01	1	0008-	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-161-0	01	1	0004-		●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-796-0	01	1	9902-	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-635-0	01	1	0004-		●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	0004-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9902-0003	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	0004-	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	9902-0003	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-636-0	01	1	0004-	●	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	9902-0003	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0004-	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	03	1	0004-		●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	9902-0003	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	03	1	0004-	●
14	SCREW; COVER TO CASE AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	03	1	0004-		●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-797-0	02	1	9902-	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-637-0	02	1	0004-		●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	9902-0003	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-170-0	03	1	0004-	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	9902-0003	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-345-1	01	1	0004-	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9902-0003	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	0004-	●	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	9902-0003	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0004-	●
32	SCREW; LEVER HEATER & DEFROSTER(C41) M5X20	9-09829-324-1	01	1	0004-		●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	9902-0003	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-97130-601-0	01	1	0004-	●
32	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-97130-601-0	01	1	0004-		●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-633-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-634-2	01	1	0004-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	9902-0003	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83579-644-0	01	1	0004-	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-375-0	01	1	9902-	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-344-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-373-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-374-0	01	1	9902-	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-342-0	01	1	0004-		●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-343-0	01	1	0004-		●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	9902-0003	●
42	FILTER; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-993-0	02	1	0004-	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-800-0	01	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-933-0	02	1	9902-	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-643-2	01	1	0004-		●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	9902-0003	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-657-2	04	1	0004-	●	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	9902-0003	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83571-870-1	01	1	0004-	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	0004-		●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-378-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83564-368-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83564-370-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	1-83564-371-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E)	1-83564-372-0	01	1	9902-	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83564-369-0	01	1	9902-	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-336-6	01	1	0004-		●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	1-83564-340-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (B)	1-83564-352-5	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-337-4	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-339-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-351-1	01	1	0004-		●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-353-1	01	1	0004-		●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	9902-0003	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-496-0	03	1	0004-	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83574-136-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94248-794-0	01	1	9902-	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	02	1	0004-		●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	9902-0003	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-639-0	01	1	0004-	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-799-0	01	1	9902-	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-638-0	01	1	0004-		●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	9902-0003	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94348-809-0	02	1	0004-	●	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	9902-0003	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	01	1	0004-	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	0004-		●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	18	1	9902-	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	17	1	0004-		●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-798-1	01	1	9902-	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-640-1	01	1	0004-		●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	9902-0003	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-073-1	01	1	0004-	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	9902-0003	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-94324-850-0	02	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	9902-0003	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0004-0007	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-672-0	01	1	0008-	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-795-0	01	1	9902-	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-670-1	01	1	0004-	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	9902-0003	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-671-1	01	1	0004-	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-673-2	01	1	0004-		●
119	LINING; CASE HEATER & DEFROSTER(C41) (E)	1-83579-839-0	02	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
