Sayfa 6-90 - Isuzu EPC

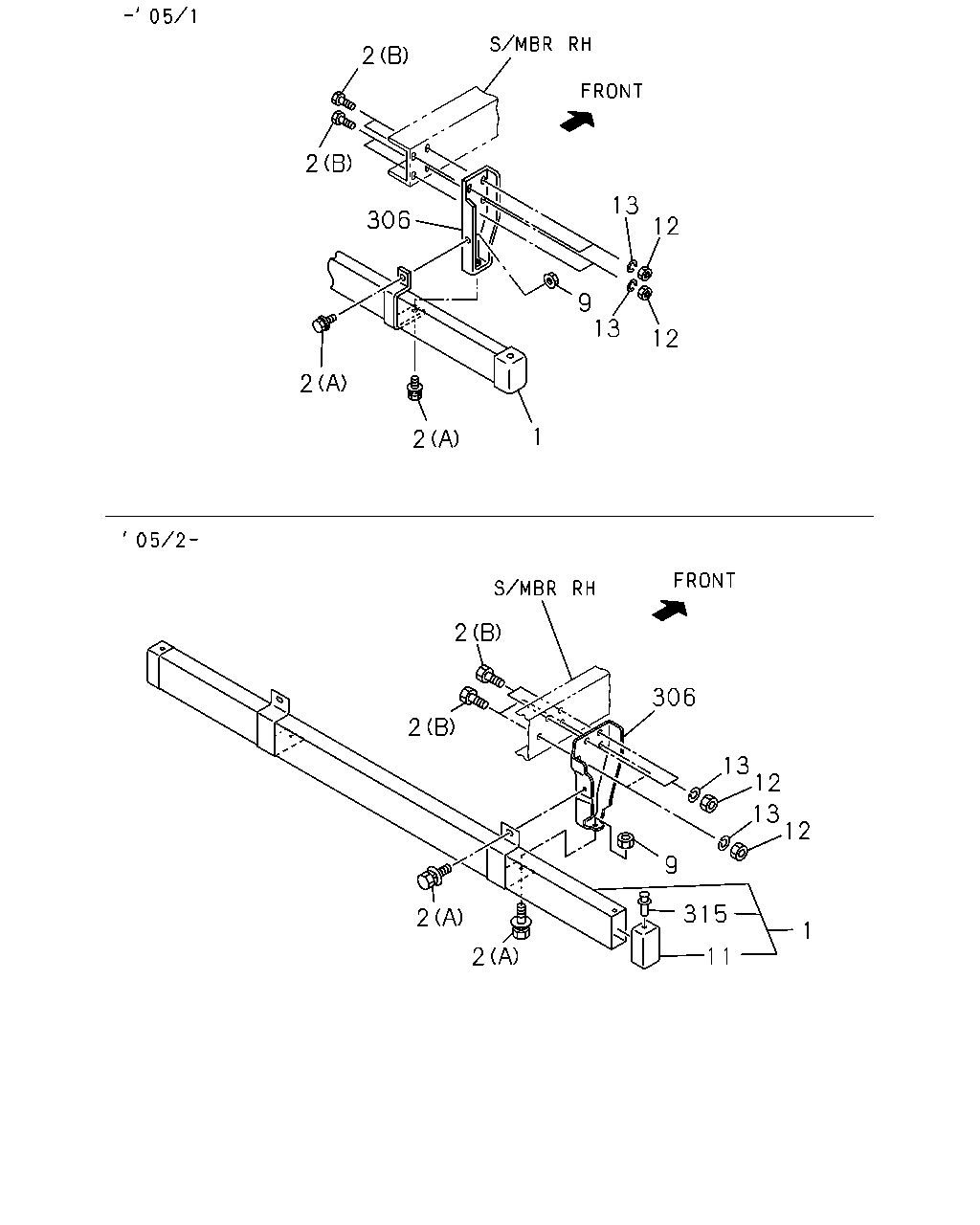

6-90 — REAR BUMPER (#77779) — 186 parça

2 2 13 306 12 9 13 12 2 1 2 2 306 2 13 12 13 12 9 315 2 1 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ>	8-97174-005-1	01	1	0211-0501	●
1	07.070 BUMPER; RR BUMPER REAR<7HZ>	8-97174-005-1	01	1	0211-0501		●	●
1	07.070 BUMPER; RR REAR WIDE TREAD(V4T) STAMP IJ2H	8-98000-145-1	01	1	0502-	●
1	07.070 BUMPER; RR STAMP IJ2H	8-98000-145-1	01	1	0502-		●	●
2	07.874 BOLT; BACK BAR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	0211-0501	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 01.271 (A) M10X30	8-94324-205-0	04	1	0211-0501		●	●
2	07.874 BOLT; BACK BAR REAR WIDE TREAD(V4T) 01.271 (A) M10X30	8-94324-205-0	04	1	0502-	●
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	0502-		●	●
2	07.874 BOLT; BACK BAR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	08	1	0211-0501	●
2	07.874 BOLT; BACK BAR REAR WIDE TREAD(V4T) 07.347 (B) M14X30	0-20801-430-0	08	1	0502-0512	●
2	07.874 BOLT; BACK BAR REAR WIDE TREAD(V4T) (B) M14X30	0-20851-430-0	08	1	0601-	●
2	07.874 BOLT; BACK BAR BUMPER REAR<7HZ> 07.347 (B) M14X30	0-20801-430-0	06	1	0211-0501		●	●
2	07.874 BOLT; BACK BAR 07.347 (B) M14X30	0-20801-430-0	06	1	0502-0512		●	●
2	07.874 BOLT; BACK BAR (B) M14X30	0-20851-430-0	06	1	0601-		●	●
9	07.070 NUT; BUMPER REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501	●
9	07.070 NUT; BUMPER BUMPER REAR<7HZ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501		●	●
9	07.070 NUT; BUMPER REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
9	07.070 NUT; BUMPER 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602		●	●
9	07.070 NUT; BUMPER REAR WIDE TREAD(V4T) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-	●
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
11	07.829 CAP; RR BUMPER REAR WIDE TREAD(V4T)	8-97174-008-0	02	1	0502-	●
11	07.829 CAP; RR BUMPER	8-97174-008-0	02	1	0502-		●	●
12	07.833 NUT; BRKT REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	0211-0501	●
12	07.833 NUT; BRKT BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	08	1	0211-0501		●	●
12	07.833 NUT; BRKT REAR WIDE TREAD(V4T) 07.529 M14	9-99110-514-0	08	1	0502-0512	●
12	07.833 NUT; BRKT 07.529 M14	9-99110-514-0	08	1	0502-0512		●	●
12	07.833 NUT; BRKT REAR WIDE TREAD(V4T) M14	0-91110-514-0	08	1	0601-0610	●
12	07.833 NUT; BRKT M14	0-91110-514-0	08	1	0601-0610		●	●
12	07.833 NUT; BRKT REAR WIDE TREAD(V4T) 00.429 M14 FLANGE	0-91180-214-0	08	1	0611-	●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	0611-		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	08	1	0211-0501	●
13	07.833 WASHER; LK,BACK BAR TO FRAME REAR WIDE TREAD(V4T) 05.422 ID=14.2	9-09150-814-0	08	1	0502-0603	●
13	07.833 WASHER; LK,BACK BAR TO FRAME REAR WIDE TREAD(V4T) 06.174 ID=14.2	0-91510-814-0	08	1	0604-0610	●
13	07.833 WASHER; LK,BACK BAR TO FRAME BUMPER REAR<7HZ> 05.422 ID=14.2	9-09150-814-0	06	1	0211-0501		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME 05.422 ID=14.2	9-09150-814-0	06	1	0502-0603		●	●
13	07.833 WASHER; LK,BACK BAR TO FRAME 06.174 ID=14.2	0-91510-814-0	06	1	0604-0610		●	●
306	07.836 BAR; BACK,RR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	0211-0501	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BL	8-97128-333-0	01	1	0211-0501		●	●
306	07.836 BAR; BACK,RR REAR WIDE TREAD(V4T) STAMP IA2	8-98000-171-0	01	1	0502-	●
306	07.836 BAR; BACK,RR STAMP IA2	8-98000-171-0	01	1	0502-		●	●
306	07.836 BAR; BACK,RR REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	0211-0501	●
306	07.836 BAR; BACK,RR BUMPER REAR<7HZ> STAMP BR	8-97128-334-0	01	1	0211-0501		●	●
306	07.836 BAR; BACK,RR REAR WIDE TREAD(V4T) STAMP IA2	8-98000-172-0	01	1	0502-	●
306	07.836 BAR; BACK,RR STAMP IA2	8-98000-172-0	01	1	0502-		●	●
315	07.829 RIVET; CAP REAR WIDE TREAD(V4T) 08.155 D8X13.5	1-09987-248-1	04	1	0502-	●
315	07.829 RIVET; CAP 08.155 D8X13.5	1-09987-248-1	04	1	0502-		●	●

305 304 133 134 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	0211-	●	●	●
113	07.800 BRACKET; LICENSE PLATE 4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 07.039 (C)	8-97033-248-2	01	1	0211-0501	●
113	07.800 BRACKET; LICENSE PLATE 4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 07.039 (C)	8-97033-248-2	01	1	0502-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-3	01	1	0211-0806	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-3	01	1	0211-0806		●	●
113	07.800 BRACKET; LICENSE PLATE REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A)	8-98029-390-3	01	1	0807-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-98029-390-3	01	1	0807-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> (A)	8-98029-390-3	01	1	0807-		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	0211-	●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0211-0211	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0211-0211	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0211-0211		●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0212-0212	●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0212-0212	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0212-0212		●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0212-0501	●		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0212-0501	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0212-0501		●
133	07.112 HOOK BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0212-0501			●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0212-0501			●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0502-	●		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0502-	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0502-		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> M14X60	0-10861-460-0	02	1	1409-	●	●	●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) M14X60	0-10861-460-0	02	1	1409-	●
134	07.068 BOLT; HOOK M14X60	0-10861-460-0	02	1	1409-			●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0211-0211	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0211-0211	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0211-0211		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0212-0212	●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0212-0212	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0212-0212		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0212-0501	●		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0212-0501	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0212-0501		●
134	07.068 BOLT; HOOK BUMPER REAR<7HZ> 07.039 M14X50	0-10806-450-0	02	1	0212-0501			●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.039 M14X50	0-10806-450-0	02	1	0212-0501			●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0502-0512	●		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0502-0512	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0502-0512		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10856-450-0	02	1	0601-1408	●		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10856-450-0	02	1	0601-1408	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	0601-1408		●	●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6> 07.039 M14X50	0-10856-450-0	02	1	1409-		●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0211-0909	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) M10X45 W/LK WASHER	0-50541-045-0	02	1	0910-	●
304	02.664 GUARD; RR COMB LAMP FRAME-KICK UP<7EW> BUMPER REAR<7HZ>	8-97033-250-2	01	1	0211-0501	●
304	02.664 GUARD; RR COMB LAMP FRAME-KICK UP<7EW>	8-97033-250-2	01	1	0502-	●
305	02.664 BOLT; GUARD FRAME-KICK UP<7EW> BUMPER REAR<7HZ>	8-97102-887-0	04	1	0211-0501	●
305	02.664 BOLT; GUARD FRAME-KICK UP<7EW>	8-97102-887-0	04	1	0502-	●

113 127 127 134 135 133 136 128 128 134 133 136 135 114 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED<RS6> (B)	8-97077-573-2	01	1	0211-	●	●	●
113	07.800 BRACKET; LICENSE PLATE 4HF1-S ENG(RLS) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 07.039 (C)	8-97033-248-2	01	1	0211-0501	●
113	07.800 BRACKET; LICENSE PLATE 4HF1-N ENG(RJZ) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 07.039 (C)	8-97033-248-2	01	1	0502-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.662 (A)	8-97096-644-3	01	1	0211-0806	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> 02.662 (A)	8-97096-644-3	01	1	0211-0806		●	●
113	07.800 BRACKET; LICENSE PLATE REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) (A)	8-98029-390-3	01	1	0807-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-98029-390-3	01	1	0807-	●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED<RS6> (A)	8-98029-390-3	01	1	0807-		●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0211-0512	●	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED<RS6> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-	●	●	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0211-0403	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.483 M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0211-0403		●	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0404-0512	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 03.704 M8X40 FLANGE	0-28680-840-0	02	1	0404-0512		●	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 00.685 M8X40 FLANGE	0-28650-840-0	02	1	0601-	●
127	02.662 BOLT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 00.685 M8X40 FLANGE	0-28650-840-0	02	1	0601-		●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.559 M8	9-09110-408-0	02	1	0211-0512	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.559 M8	9-09110-408-0	02	1	0211-0512		●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 02.334 M8	0-91110-508-0	02	1	0601-0709	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 02.334 M8	0-91110-508-0	02	1	0601-0709		●	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED<RS6> 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-		●	●
133	07.112 HOOK DUMP CHASSIS(V4D) 07.330	8-94183-262-0	01	1	0211-	●
133	07.112 HOOK EXC. DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0211-0211	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0211-0211	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0211-0211		●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0212-0212	●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0212-0212	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0212-0212		●	●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0212-0501	●		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0212-0501	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0212-0501		●
133	07.112 HOOK BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0212-0501			●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.068	8-94249-270-2	01	1	0212-0501			●
133	07.112 HOOK RR BODY FLAT BED<RS6> 07.068	8-94249-270-2	01	1	0502-	●		●
133	07.112 HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.068	8-94249-270-2	01	1	0502-	●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	0502-		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> M14X60	0-10861-460-0	02	1	1409-	●	●	●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) M14X60	0-10861-460-0	02	1	1409-	●
134	07.068 BOLT; HOOK M14X60	0-10861-460-0	02	1	1409-			●
134	07.068 BOLT; HOOK EXC. DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0211-0211	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0211-0211	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0211-0211		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0212-0212	●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0212-0212	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0212-0212		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0212-0501	●		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0212-0501	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0212-0501		●
134	07.068 BOLT; HOOK BUMPER REAR<7HZ> 07.039 M14X50	0-10806-450-0	02	1	0212-0501			●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.039 M14X50	0-10806-450-0	02	1	0212-0501			●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10806-450-0	02	1	0502-0512	●		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10806-450-0	02	1	0502-0512	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10806-450-0	02	1	0502-0512		●	●
134	07.068 BOLT; HOOK RR BODY FLAT BED<RS6> 07.039 M14X50	0-10856-450-0	02	1	0601-1408	●		●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.039 M14X50	0-10856-450-0	02	1	0601-1408	●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	0601-1408		●	●
134	07.068 BOLT; HOOK EXC. RR BODY FLAT BED<RS6> 07.039 M14X50	0-10856-450-0	02	1	1409-		●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) 00.004 M10X45 W/LK WASHER	0-50041-045-0	02	1	0211-0909	●
134	07.068 BOLT; HOOK DUMP CHASSIS(V4D) M10X45 W/LK WASHER	0-50541-045-0	02	1	0910-	●
135	07.068 WASHER; LK,HOOK EXC. DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	0211-0211	●
135	07.068 WASHER; LK,HOOK RR BODY FLAT BED<RS6> 05.422 ID=14.2	9-09150-814-0	02	1	0211-0211	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0211-0211		●	●
135	07.068 WASHER; LK,HOOK RR BODY FLAT BED<RS6> 05.422 ID=14.2	9-09150-814-0	02	1	0212-0603	●
135	07.068 WASHER; LK,HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 05.422 ID=14.2	9-09150-814-0	02	1	0212-0603	●
135	07.068 WASHER; LK,HOOK 05.422 ID=14.2	9-09150-814-0	02	1	0212-0603		●	●
135	07.068 WASHER; LK,HOOK RR BODY FLAT BED<RS6> 06.174 ID=14.2	0-91510-814-0	02	1	0604-0610	●
135	07.068 WASHER; LK,HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 06.174 ID=14.2	0-91510-814-0	02	1	0604-0610	●
135	07.068 WASHER; LK,HOOK 06.174 ID=14.2	0-91510-814-0	02	1	0604-0610		●	●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.529 M14	9-99110-514-0	02	1	0211-0211	●	●
136	07.068 NUT; HOOK EXC. DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0211-0211	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	02	1	0211-0211		●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0211-0211			●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.529 M14	9-99110-514-0	02	1	0212-0212	●	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0212-0212	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	02	1	0212-0212		●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0212-0212			●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.529 M14	9-99110-514-0	02	1	0212-0501	●	●	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0212-0501	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	02	1	0212-0501		●	●
136	07.068 NUT; HOOK BUMPER REAR<7HZ> 07.529 M14	9-99110-514-0	02	1	0212-0501			●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.529 M14	9-99110-514-0	02	1	0502-0512	●	●	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.529 M14	9-99110-514-0	02	1	0502-0512	●
136	07.068 NUT; HOOK 07.529 M14	9-99110-514-0	02	1	0502-0512			●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 07.833 M14	0-91110-514-0	02	1	0601-0610	●	●	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 07.833 M14	0-91110-514-0	02	1	0601-0610	●
136	07.068 NUT; HOOK 07.833 M14	0-91110-514-0	02	1	0601-0610			●
136	07.068 NUT; HOOK RR BODY FLAT BED<RS6> 00.429 M14 FLANGE	0-91180-214-0	02	1	0611-	●	●	●
136	07.068 NUT; HOOK EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D) 00.429 M14 FLANGE	0-91180-214-0	02	1	0611-	●
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	0611-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
