6-80 — BACK PANEL (#77777) — 43 parça

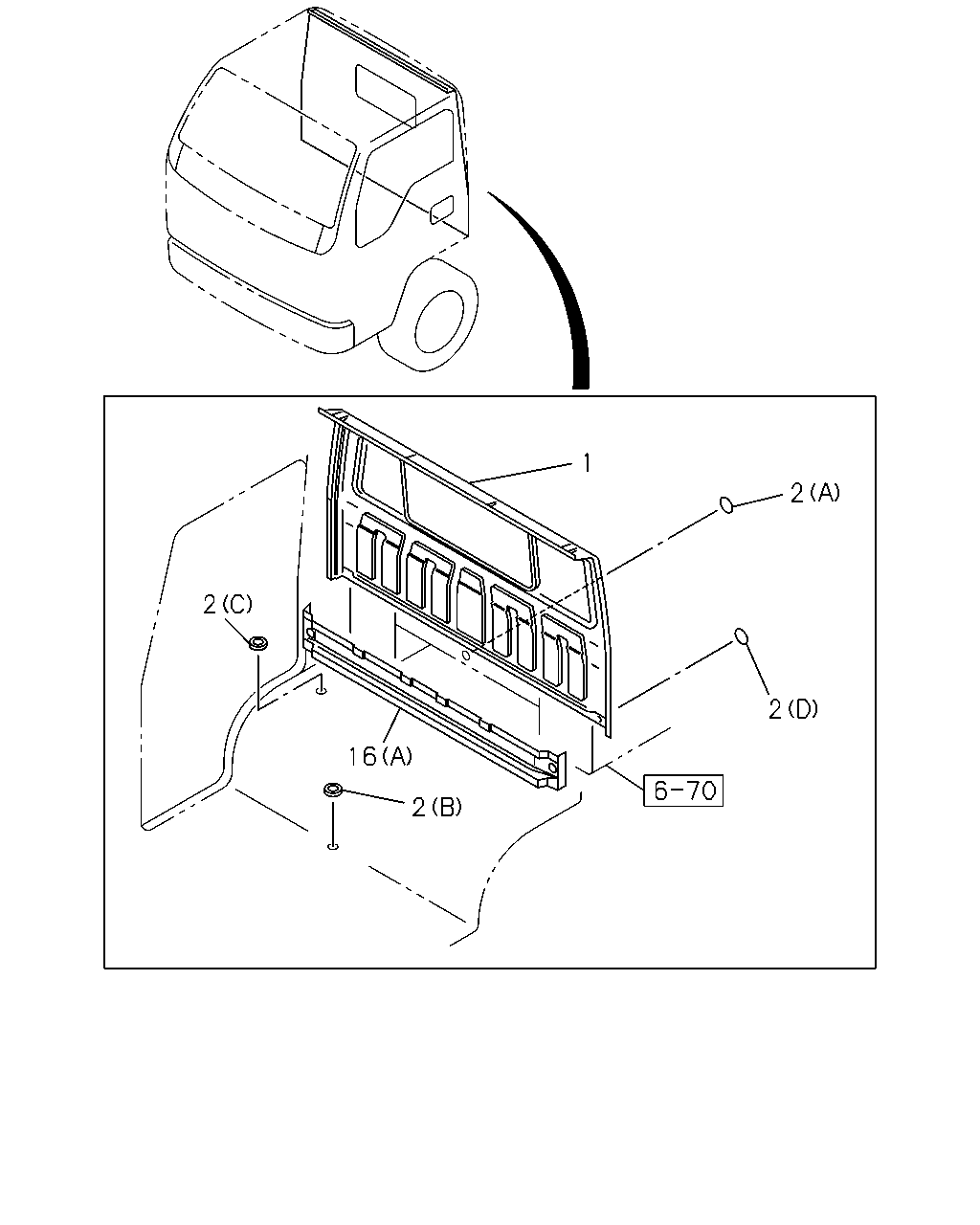

çizim 135381
1 2 2 2 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-97851-544-2 01 1 0502-1105 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-98182-755-0 01 1 1106- ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) 		8-97851-352-2 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0502- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502- ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 0211- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0211- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0211- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0211-0512 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1-S ENG(RLS) (A) 		8-97867-215-0 01 1 0211-0501 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0211-0501 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1-N ENG(RJZ) (A) 		8-97867-215-0 01 1 0502- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0502- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0211- ●

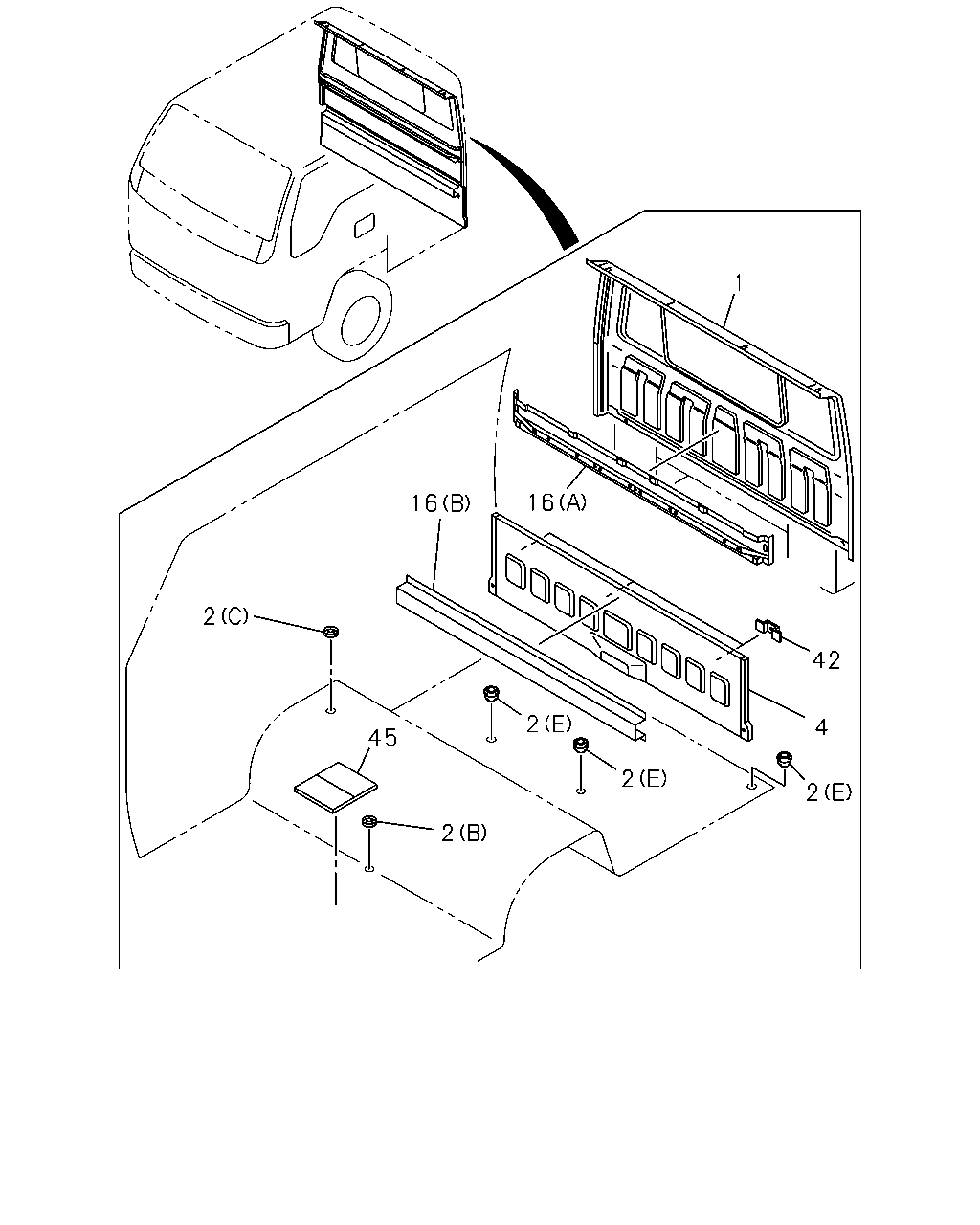

çizim 135383
1 16 16 2 42 2 4 45 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) CAB-LOW ROOF<6XQ> 		8-97851-544-1 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-97851-544-2 01 1 0502-1105 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) CAB-LOW ROOF<6XQ> 		8-98182-755-0 01 1 1106- ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-S ENG(RLS) 		8-97851-352-2 01 1 0211-0501 ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) EXC. CAB-LOW ROOF<6XQ> 		8-97851-352-2 01 1 0502- ●
1 16.587 PANEL; BACK OUTER
4HF1-N ENG(RJZ) 		8-97851-352-2 01 1 0502- ●
1 16.587 PANEL; BACK OUTER 8-97851-273-5 01 1 0211- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5 		8-94279-711-0 02 1 0211- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0211- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2 		8-94492-493-0 02 1 0211-0512 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211-0710 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (D) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ●
4 16.575 PANEL; CAB BACK LWR 8-97851-145-6 01 1 0211- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1-S ENG(RLS) (A) 		8-97867-215-0 01 1 0211-0501 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0211-0501 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HF1-N ENG(RJZ) (A) 		8-97867-215-0 01 1 0502- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97867-215-0 01 1 0502- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-300-1 01 1 0211- ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 03 1 0211- ●
45 16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 02 1 0211- ●
