1 |

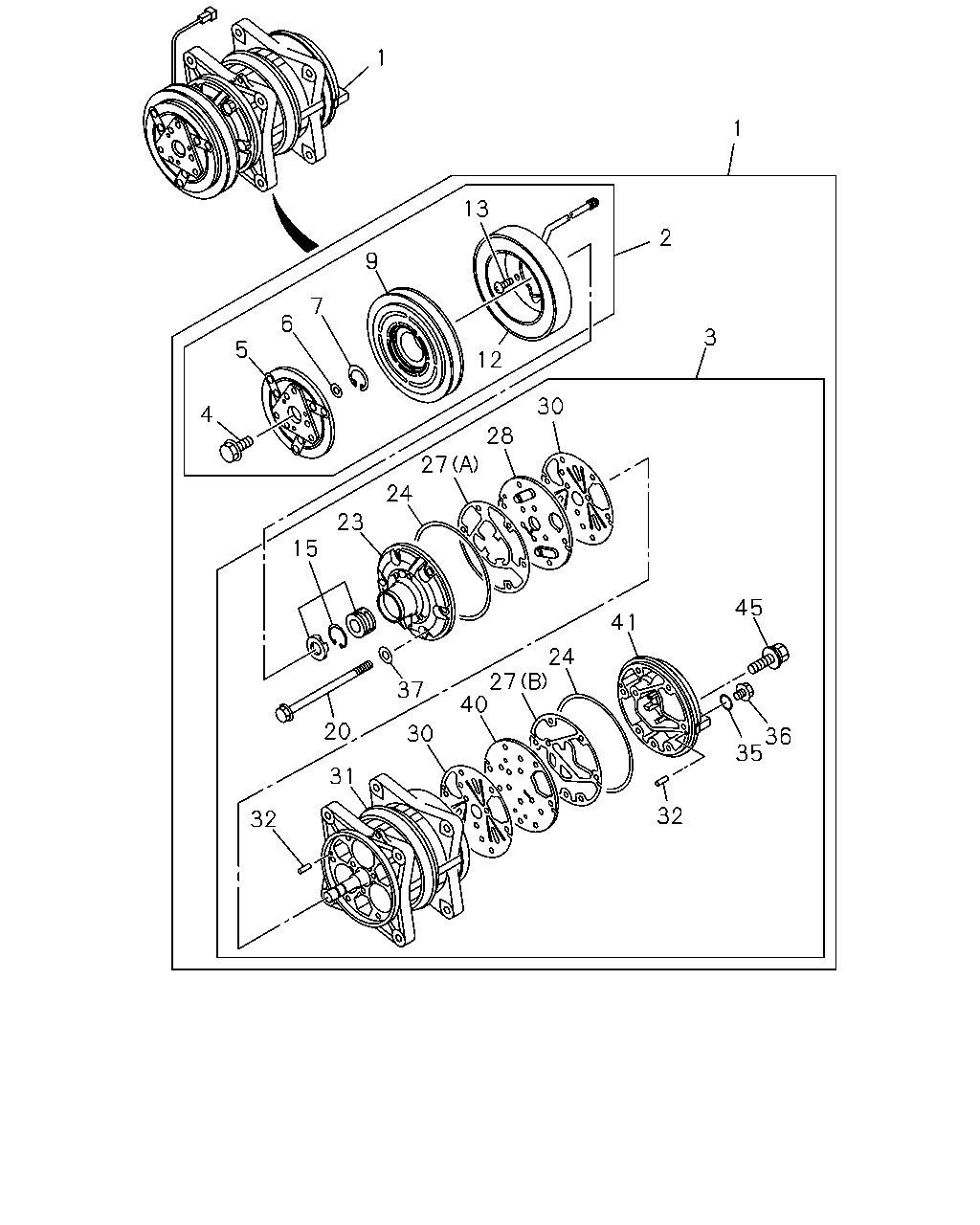

COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83532-278-0 |
01 |
1 |
9902-0003 |
● |
|
| |
1 |
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83532-278-1 |
01 |
1 |
0004- |
● |
● |
| |
2 |
CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83533-041-0 |
01 |
1 |
9902-0003 |
● |
|
| |
2 |
CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83533-041-0 |
01 |
1 |
0004- |
● |
● |
| |
3 |
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83532-292-0 |
01 |
1 |
9902-0003 |
● |
|
| |
3 |
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83532-292-0 |
01 |
1 |
0004- |
● |
● |
| |
4 |
BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94164-439-0 |
01 |
1 |
9902-0003 |
● |
|
| |
4 |
BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94164-439-0 |
01 |
1 |
0004- |
● |
● |
| |
5 |
ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97034-788-0 |
01 |
1 |
9902-0003 |
● |
|
| |
5 |
ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97034-788-0 |
01 |
1 |
0004- |
● |
● |
| |
6 |
SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
T=0.1
|
8-94120-721-0 |
AR |
1 |
9902-0003 |
● |
|
| |
6 |
SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
T=0.1
|
8-94120-721-0 |
AR |
1 |
0004- |
● |
● |
| |
6 |
SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
T=0.3
|
8-94120-722-0 |
AR |
1 |
9902-0003 |
● |
|
| |
6 |
SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
T=0.3
|
8-94120-722-0 |
AR |
1 |
0004- |
● |
● |
| |
6 |
SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
T=0.5
|
8-94120-723-0 |
AR |
1 |
9902-0003 |
● |
|
| |
6 |
SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
T=0.5
|
8-94120-723-0 |
AR |
1 |
0004- |
● |
● |
| |
7 |
RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94120-724-0 |
01 |
1 |
9902-0003 |
● |
|
| |
7 |
RING; SNAP,PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94120-724-0 |
01 |
1 |
0004- |
● |
● |
| |
9 |
PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-616-1 |
01 |
1 |
9902-0003 |
● |
|
| |
9 |
PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-616-1 |
01 |
1 |
0004- |
● |
● |
| |
12 |
COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83578-093-0 |
01 |
1 |
9902-0003 |
● |
|
| |
12 |
COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83578-093-0 |
01 |
1 |
0004- |
● |
● |
| |
13 |
SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94120-727-0 |
03 |
1 |
9902-0003 |
● |
|
| |
13 |
SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94120-727-0 |
03 |
1 |
0004- |
● |
● |
| |
15 |
SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83578-090-0 |
01 |
1 |
9902-0003 |
● |
|
| |
15 |
SEAL; SHAFT
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83578-090-0 |
01 |
1 |
0004- |
● |
● |
| |
20 |
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97233-738-0 |
06 |
1 |
9902-0003 |
● |
|
| |
20 |
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97233-738-0 |
06 |
1 |
0004- |
● |
● |
| |
23 |
HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97178-401-0 |
01 |
1 |
9902-0003 |
● |
|
| |
23 |
HEAD; CYL,FRT
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97178-401-0 |
01 |
1 |
0004- |
● |
● |
| |
24 |
GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-953-0 |
02 |
1 |
9902-0003 |
● |
|
| |
24 |
GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83579-953-0 |
02 |
1 |
0004- |
● |
● |
| |
27 |
GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
8-97170-930-0 |
01 |
1 |
9902-0003 |
● |
|
| |
27 |
GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
8-97170-930-0 |
01 |
1 |
0004- |
● |
● |
| |
27 |
GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
8-97170-933-0 |
01 |
1 |
9902-0003 |
● |
|
| |
27 |
GASKET; CYL HD
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
8-97170-933-0 |
01 |
1 |
0004- |
● |
● |
| |
28 |
PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97170-932-1 |
01 |
1 |
9902-0003 |
● |
|
| |
28 |
PLATE; VLV,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97170-932-1 |
01 |
1 |
0004- |
● |
● |
| |
30 |
VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97134-755-0 |
02 |
1 |
9902-0003 |
● |
|
| |
30 |
VALVE; SUCTION
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97134-755-0 |
02 |
1 |
0004- |
● |
● |
| |
31 |
CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97138-177-0 |
01 |
1 |
9902-0003 |
● |
|
| |
31 |
CYLINDER & SHAFT ASM; AIR CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97138-177-0 |
01 |
1 |
0004- |
● |
● |
| |
32 |
PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94154-711-0 |
04 |
1 |
9902-0003 |
● |
|
| |
32 |
PIN; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94154-711-0 |
04 |
1 |
0004- |
● |
● |
| |
35 |
GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60)
"R-134A"
|
8-97081-395-0 |
01 |
1 |
9902-0003 |
● |
|
| |
35 |
GASKET; PLUG,CYL
AIR CONDITIONER MANUAL CONTROL(C60)
"R-134A"
|
8-97081-395-0 |
01 |
1 |
0004- |
● |
● |
| |
36 |
PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94164-473-0 |
01 |
1 |
9902-0003 |
● |
|
| |
36 |
PLUG; CYL
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-94164-473-0 |
01 |
1 |
0004- |
● |
● |
| |
37 |
GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97233-739-0 |
06 |
1 |
9902-0003 |
● |
|
| |
37 |
GASKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97233-739-0 |
06 |
1 |
0004- |
● |
● |
| |
40 |
PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97170-931-1 |
01 |
1 |
9902-0003 |
● |
|
| |
40 |
PLATE; VLV,RR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97170-931-1 |
01 |
1 |
0004- |
● |
● |
| |
41 |
HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97170-929-1 |
01 |
1 |
9902-0003 |
● |
|
| |
41 |
HEAD; CYL,RR
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97170-929-1 |
01 |
1 |
0004- |
● |
● |
| |
45 |
BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60)
M10X35 W/LK&PL WASHER
|
9-01971-035-0 |
01 |
1 |
9902-0003 |
● |
|
| |
45 |
BOLT; PLATE TO CYL HD
AIR CONDITIONER MANUAL CONTROL(C60)
M10X35 W/LK&PL WASHER
|
9-01971-035-0 |
01 |
1 |
0004- |
● |
● |
