6-31 — FRONT DOOR GLASS AND REGULATOR (#77761) — 85 parça

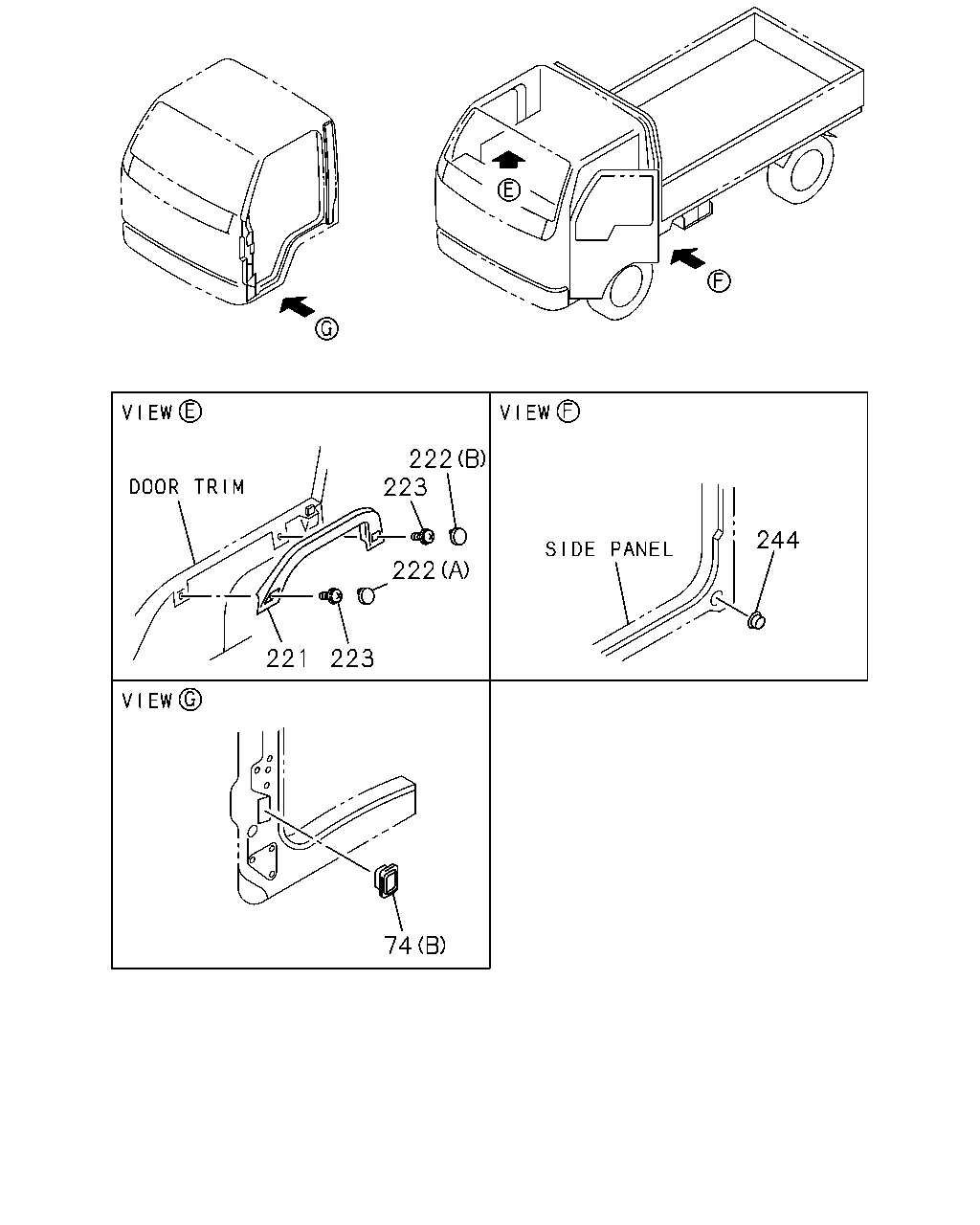

222 223 222 223 221 74 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSET TE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	0211-1003	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS (6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	1004-	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSET TE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	0211-1003	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS (6VL) 09.775 (B)	8-94279-736-0	02	1	1004-	●	●	●
221	16.320 BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97995-850-0	01	1	0211-0501	●
221	16.320 BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97995-850-0	01	1	0211-0501		●	●
221	16.320 BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> GRAY	8-97582-309-1	01	1	0502-	●
221	16.320 BAR ASM; DOOR GLASS GUARD GRAY	8-97582-309-1	01	1	0502-		●	●
221	16.320 BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> DARK GRAY	8-97995-853-0	01	1	0211-0501	●
221	16.320 BAR ASM; DOOR GLASS GUARD DARK GRAY	8-97995-853-0	01	1	0211-0501		●	●
221	16.320 BAR ASM; DOOR GLASS GUARD EXC. CAB-LOW ROOF<6XQ> GRAY	8-97582-310-1	01	1	0502-	●
221	16.320 BAR ASM; DOOR GLASS GUARD GRAY	8-97582-310-1	01	1	0502-		●	●
222	16.320 CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (A) FRONT DARK GRAY	8-97995-856-0	02	1	0211-0501	●
222	16.320 CAP; GUARD BAR (A) FRONT DARK GRAY	8-97995-856-0	02	1	0211-0501		●	●
222	16.320 CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (A) FRONT GRAY	8-97582-312-0	02	1	0502-	●
222	16.320 CAP; GUARD BAR (A) FRONT GRAY	8-97582-312-0	02	1	0502-		●	●
222	16.320 CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (B) REAR DARK GRAY	8-97995-859-0	02	1	0211-0501	●
222	16.320 CAP; GUARD BAR (B) REAR DARK GRAY	8-97995-859-0	02	1	0211-0501		●	●
222	16.320 CAP; GUARD BAR EXC. CAB-LOW ROOF<6XQ> (B) REAR GRAY	8-97582-313-0	02	1	0502-	●
222	16.320 CAP; GUARD BAR (B) REAR GRAY	8-97582-313-0	02	1	0502-		●	●
223	16.320 SCREW; GUARD BAR EXC. CAB-LOW ROOF<6XQ> 16.650 M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0211-0612	●
223	16.320 SCREW; GUARD BAR 16.650 M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0211-0612		●	●
223	16.320 SCREW; GUARD BAR EXC. CAB-LOW ROOF<6XQ> M6X18 W/TORQUES	8-98064-277-0	04	1	0701-	●
223	16.320 SCREW; GUARD BAR M6X18 W/TORQUES	8-98064-277-0	04	1	0701-		●	●
244	16.155 STOPPER; DOOR	8-97890-484-0	02	1	0211-	●	●	●

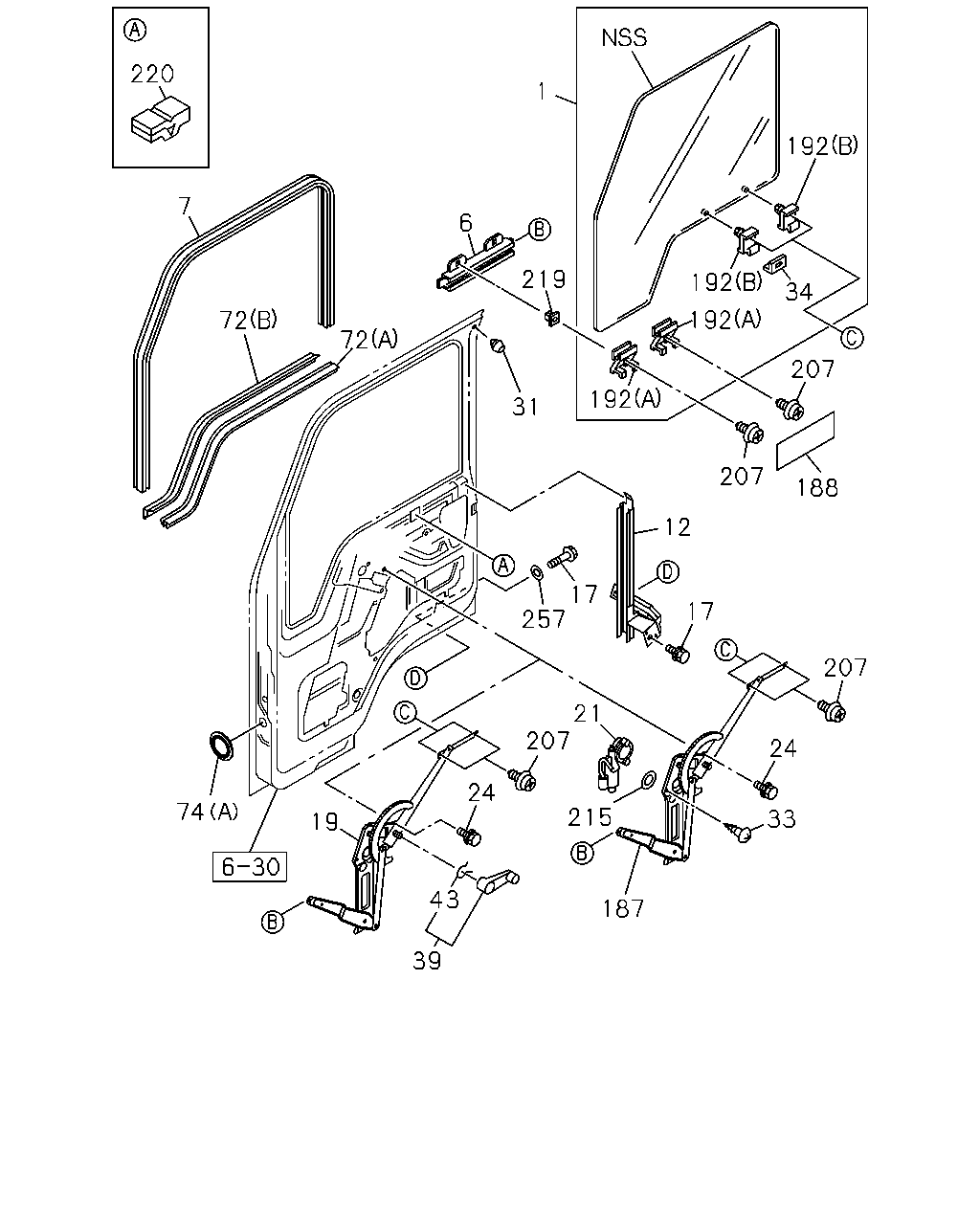

192 192 192 34 192 207 188 207 12 17 207 24 33 187 215 21 207 24 43 39 19 74 257 17 31 219 6 1 7 72 72 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.180 GLASS; FRT DOOR CAB-LOW ROOF<6XQ> ASAHI	8-97867-415-1	01	1	0211-	●
1	16.180 GLASS; FRT DOOR CAB-LOW ROOF<6XQ> ASAHI	8-97867-416-1	01	1	0211-	●
1	16.180 GLASS; FRT DOOR EXC. CAB-LOW ROOF<6XQ> ASAHI	8-97867-417-1	01	1	0211-	●
1	16.180 GLASS; FRT DOOR ASAHI	8-97867-417-1	01	1	0211-		●	●
1	16.180 GLASS; FRT DOOR EXC. CAB-LOW ROOF<6XQ> ASAHI	8-97867-418-1	01	1	0211-	●
1	16.180 GLASS; FRT DOOR ASAHI	8-97867-418-1	01	1	0211-		●	●
6	10.685 CHANNEL; DOOR GLASS W/ROLLER&PROTECTOR	8-97898-425-1	02	1	0211-	●	●	●
7	16.190 GLASS RUN; FRT DOOR CAB-LOW ROOF<6XQ>	8-97852-113-4	01	1	0211-	●
7	16.190 GLASS RUN; FRT DOOR CAB-LOW ROOF<6XQ>	8-97852-114-4	01	1	0211-	●
7	16.190 GLASS RUN; FRT DOOR EXC. CAB-LOW ROOF<6XQ>	8-97852-142-4	01	1	0211-	●
7	16.190 GLASS RUN; FRT DOOR	8-97852-142-4	01	1	0211-		●	●
7	16.190 GLASS RUN; FRT DOOR EXC. CAB-LOW ROOF<6XQ>	8-97852-143-4	01	1	0211-	●
7	16.190 GLASS RUN; FRT DOOR	8-97852-143-4	01	1	0211-		●	●
12	16.190 CHANNEL; GLASS RUN,FRT	8-97852-111-5	01	1	0211-1212	●	●	●
12	16.190 CHANNEL; GLASS RUN,FRT	8-97867-650-0	01	1	1301-	●	●	●
12	16.190 CHANNEL; GLASS RUN,FRT	8-97852-112-5	01	1	0211-1212	●	●	●
12	16.190 CHANNEL; GLASS RUN,FRT	8-97996-046-0	01	1	1301-	●	●	●
17	16.183 SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	0211-0305	●	●	●
17	16.183 SCREW; RR CHANNEL M6X16 W/LK&PL WASHER	8-97582-826-0	04	1	0306-0612	●	●	●
17	16.183 SCREW; RR CHANNEL 16.650 T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	04	1	0701-1101	●	●	●
17	16.183 SCREW; RR CHANNEL 16.585 T25 M6X12 HEXALOBULAR SOCKET	8-98177-720-0	04	1	1102-1212	●	●	●
17	16.183 SCREW; RR CHANNEL 16.650 T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	04	1	1301-	●	●	●
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-115-8	01	1	0211-	●	●	●
19	16.260 REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-97852-116-8	01	1	0211-	●	●	●
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-479-0	01	1	0211-	●	●	●
21	16.263 MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW FRT DOOR<A32>	8-97898-480-0	01	1	0211-	●	●	●
24	16.230 SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	20	1	0211-0610	●	●	●
24	16.230 SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	10	1	0611-0612	●	●	●
24	16.230 SCREW; WINDOW REG M8X6.5 W/TORQUES	8-98064-275-2	10	1	0701-0710	●	●	●
24	16.230 SCREW; WINDOW REG M6X8 W/LK&PL WASHER	8-94279-401-0	10	1	0711-0802	●	●	●
24	16.230 SCREW; WINDOW REG M6X9 LK+W/PL WASHER&TORQUES	8-98108-677-0	10	1	0803-	●	●	●
31	16.225 STOPPER; RUBBER,DOOR INNER	8-97852-022-1	02	1	0211-	●	●	●
33	16.230 SCREW; REG MOTOR POWER WINDOW FRT DOOR<A32>	8-98097-389-0	06	1	0211-	●	●	●
34	16.270 STOPPER; WINDOW REG	8-97852-012-0	02	1	0211-	●	●	●
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY	8-97098-453-0	02	1	0211-0501	●	●	●
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-97582-306-0	02	1	0502-0709	●	●	●
39	16.270 HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32> GRAY	8-98090-302-0	02	1	0710-	●	●	●
43	16.270 CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-94220-591-0	02	1	0211-	●	●	●
72	16.183 SEAL; WAIST,FRT DOOR (A) INNER	8-97852-117-6	01	1	0211-	●	●	●
72	16.183 SEAL; WAIST,FRT DOOR (A) INNER	8-97852-118-6	01	1	0211-	●	●	●
72	16.183 SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-292-6	01	1	0211-	●	●	●
72	16.183 SEAL; WAIST,FRT DOOR (B) OUTER	8-97855-293-6	01	1	0211-	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSET TE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	0211-1003	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS (6VL) 09.656 (A) OD=48 T=9.1	8-94279-053-0	02	1	1004-	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSET TE 2 SPEAKERS(6VL) 09.775 (B)	8-94279-736-0	02	1	0211-1003	●	●	●
74	16.263 GROMMET; DOOR OUTER WAIST EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS (6VL) 09.775 (B)	8-94279-736-0	02	1	1004-	●	●	●
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-113-3	01	1	0211-	●	●	●
187	16.260 REGULATOR ASM; DOOR POWER WINDOW FRT DOOR<A32>	8-97868-114-3	01	1	0211-	●	●	●
188	16.225 PROTECTOR; DOOR SEAL	8-97994-698-1	02	1	0211-	●	●	●
192	16.183 HOLDER; DOOR GLASS (A)	8-97852-076-1	04	1	0211-	●	●	●
192	16.183 HOLDER; DOOR GLASS (B)	8-97852-077-1	04	1	0211-	●	●	●
207	16.183 SCREW; DOOR GLASS 16.445 REAR M6X16 TAPPING W/PL WASHER	1-09981-452-0	08	1	0211-0610	●	●	●
207	16.183 SCREW; DOOR GLASS 16.445 REAR M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	0611-0612	●	●	●
207	16.183 SCREW; DOOR GLASS FRONT & REAR M4X14.5 TAPPING	8-98020-522-2	08	1	0701-	●	●	●
207	16.183 SCREW; DOOR GLASS FRONT M6X14.5 W/PL WASHER TAPPING	8-94279-014-0	08	1	0211-0610	●	●	●
207	16.183 SCREW; DOOR GLASS FRONT M6X14.5 W/PL WASHER TAPPING	8-94279-014-0	04	1	0611-0612	●	●	●
215	63.121 SPACER; WINDOW REG POWER WINDOW FRT DOOR<A32> 16.230	8-97388-942-0	02	1	0211-	●	●	●
219	16.175 GROMMET; SCREW,CHANNEL,REG	8-94326-756-0	04	1	0211-	●	●	●
220	16.332 SEAL; LINK ROD	8-97852-321-0	02	1	0211-	●	●	●
257	03.162 WASHER; G/RUN CHANNEL ID=6.5 OD=30	9-09851-911-0	02	1	1301-	●	●	●
