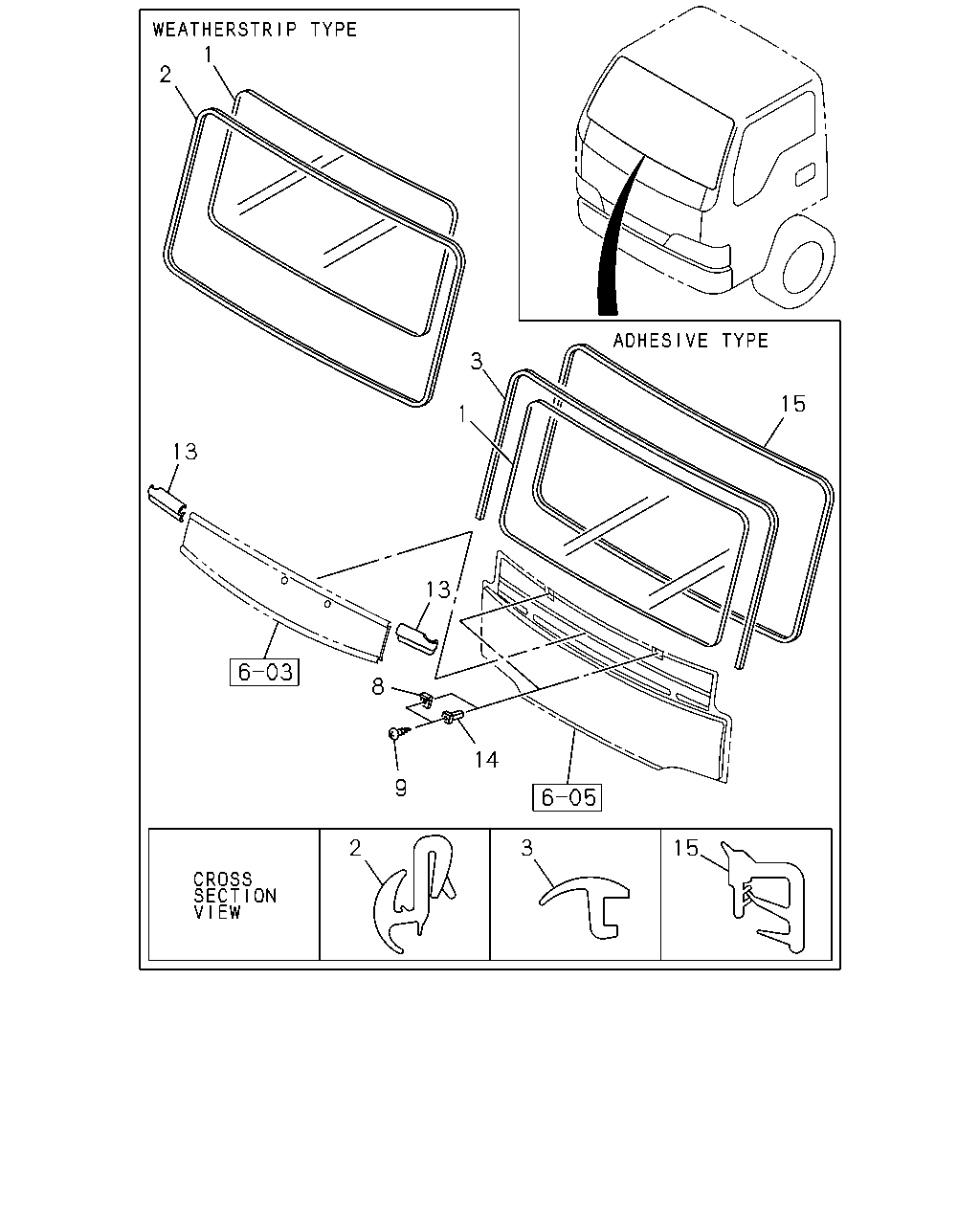

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#77758) — 70 parça

1 2 3 15 1 13 13 8 14 9 2 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.005 GLASS; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97869-121-1	01	1	0211-	●
1	16.005 GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>	8-97869-124-0	01	1	0211-0805	●
1	16.005 GLASS; WINDSHIELD	8-97869-124-0	01	1	0211-0805		●	●
1	16.005 GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>	8-97997-944-1	01	1	0806-	●
1	16.005 GLASS; WINDSHIELD	8-97997-944-1	01	1	0806-		●	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS CAB-LOW ROOF<6XQ> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-349-4	01	1	0211-	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. CAB-LOW ROOF<6XQ>	8-97856-351-4	01	1	0211-	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0211-		●	●
3	16.470 MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97890-213-2	01	1	0211-0501	●
3	16.470 MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-623-3	01	1	0502-	●
3	16.470 MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0211-0501	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0211-0501		●	●
3	16.470 MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0502-	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0502-		●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	0211-0305	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	0211-0305			●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-1304	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1305-	●	●	●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	0211-1304	●	●	●
9	16.041 SCREW; STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	1305-	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0211-0501	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0502-	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0211-0501	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0502-	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>, KD PREPARATORY PACK VAR.4<7TV> 12.182 D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	1305-	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK	8-94279-714-0	04	1	0211-	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0211-0305			●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-1304	●	●	●
14	16.041 GROMMET; SCREW,STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1305-	●	●	●
15	16.041 FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> DARK GRAY	8-97859-855-5	01	1	0211-0501	●
15	16.041 FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> GRAY	8-97582-227-7	01	1	0502-	●
15	16.041 FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-5	01	1	0211-0501	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-5	01	1	0211-0501		●	●
15	16.041 FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-226-7	01	1	0502-	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-226-7	01	1	0502-		●	●

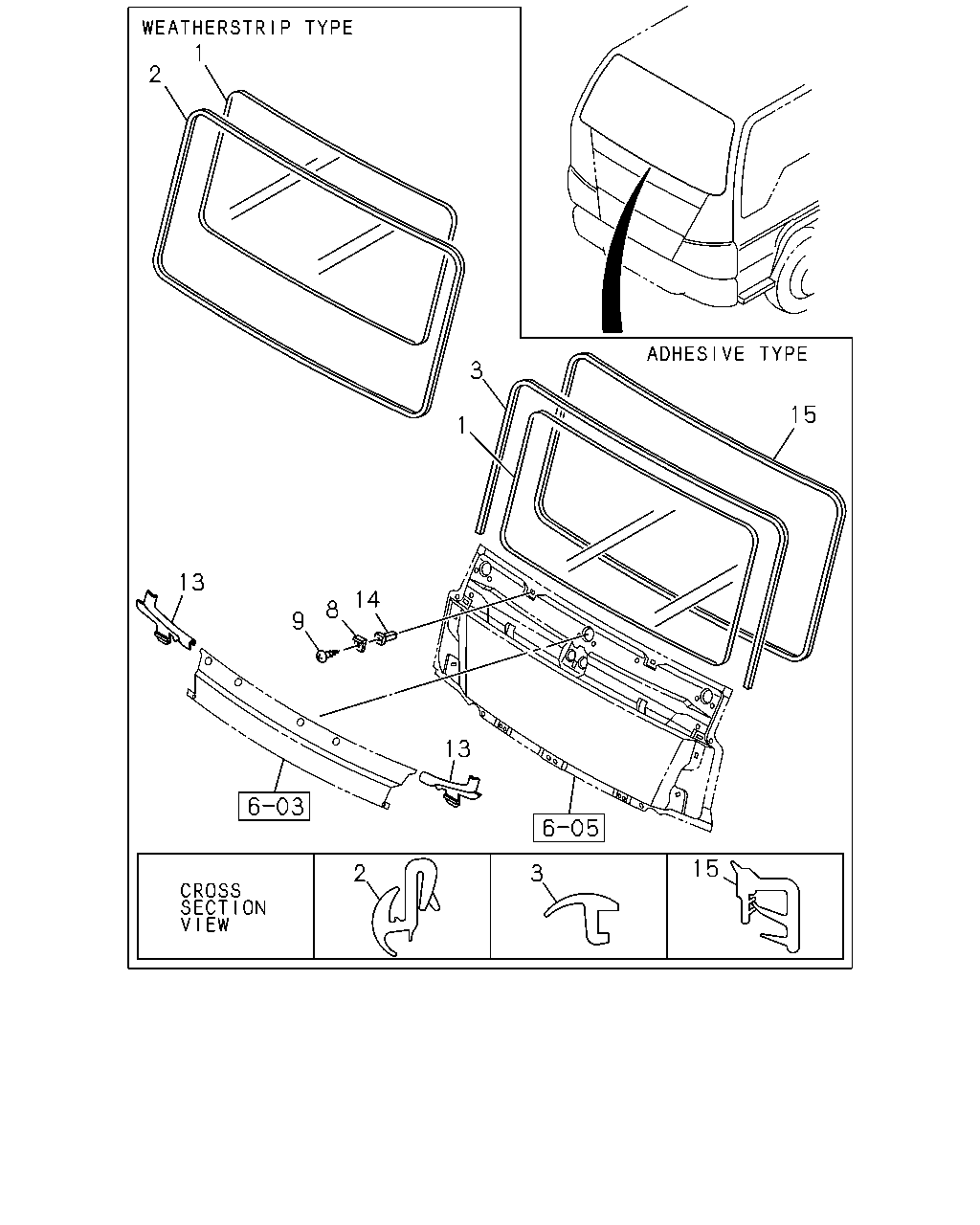

1 2 3 1 15 13 9 8 14 13 2 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.005 GLASS; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97869-121-1	01	1	0211-	●
1	16.005 GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>	8-97869-124-0	01	1	0211-0805	●
1	16.005 GLASS; WINDSHIELD	8-97869-124-0	01	1	0211-0805		●	●
1	16.005 GLASS; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>	8-97997-944-1	01	1	0806-	●
1	16.005 GLASS; WINDSHIELD	8-97997-944-1	01	1	0806-		●	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS CAB-LOW ROOF<6XQ> WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-349-4	01	1	0211-	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. CAB-LOW ROOF<6XQ>	8-97856-351-4	01	1	0211-	●
2	16.040 WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0211-		●	●
3	16.470 MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ>	8-97890-213-2	01	1	0211-0501	●
3	16.470 MOLDING; WINDSHIELD CAB-LOW ROOF<6XQ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-623-3	01	1	0502-	●
3	16.470 MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0211-0501	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-2	01	1	0211-0501		●	●
3	16.470 MOLDING; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0502-	●
3	16.470 MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	0502-		●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	0211-0305	●	●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	0211-0305			●
8	16.041 STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-1304	●	●	●
8	16.041 STOPPER; WINDSHIELD GLASS KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1305-	●	●	●
9	16.041 SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	0211-1304	●	●	●
9	16.041 SCREW; STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14	8-94279-325-0	02	1	1305-	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0211-0501	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	0502-	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0211-0501	●	●	●
13	16.041 MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	0502-	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>, KD PREPARATORY PACK VAR.4<7TV> 12.182 D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	1305-	●	●	●
14	16.041 GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK	8-94279-714-0	04	1	0211-	●	●	●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0211-0305			●
14	16.041 GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-1304	●	●	●
14	16.041 GROMMET; SCREW,STOPPER KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1305-	●	●	●
15	16.041 FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> DARK GRAY	8-97859-855-5	01	1	0211-0501	●
15	16.041 FINISHER; WINDSHIELD CAB-LOW ROOF<6XQ> GRAY	8-97582-227-7	01	1	0502-	●
15	16.041 FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-5	01	1	0211-0501	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-5	01	1	0211-0501		●	●
15	16.041 FINISHER; WINDSHIELD EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-226-7	01	1	0502-	●
15	16.041 FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY	8-97582-226-7	01	1	0502-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
