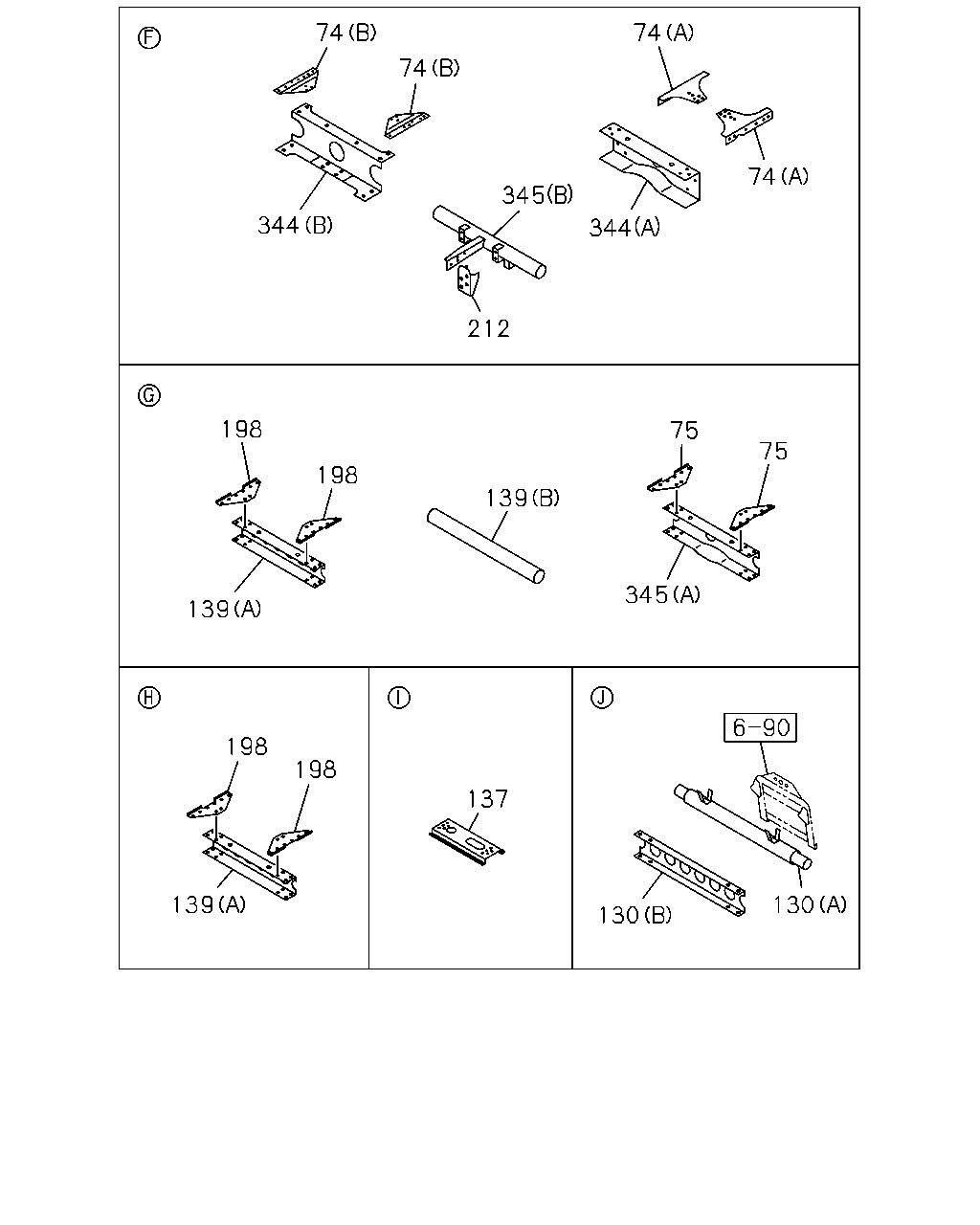

5-01 — FRAME AND OTHER PARTS (#77750) — 151 parça

74 74 74 74 345 344 344 212 198 75 75 198 139 345 139 198 198 137 139 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
74	07.039 GUSSET; 4TH C/MBR (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0211-	●
74	07.039 GUSSET; 4TH C/MBR (B)	8-97101-839-0	01	1	0211-		●
74	07.039 GUSSET; 4TH C/MBR (B)	8-97101-840-0	01	1	0211-		●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER	8-97062-499-0	02	1	0211-			●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER	8-97062-499-0	02	1	0211-	●	●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER	8-97062-500-0	02	1	0211-			●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER	8-97062-500-0	02	1	0211-	●	●
130	07.014 MEMBER; CROSS,END DUMP CHASSIS(V4D) (A)	8-94388-995-3	01	1	0211-			●
130	07.014 MEMBER; CROSS,END (B)	8-94257-620-2	01	1	0211-	●	●
137	07.629 BRACKET; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T)	8-97224-384-1	01	1	0211-0506			●
137	07.629 BRACKET; SPARE TIRE RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T)	8-97224-383-1	01	1	0211-0501			●
137	07.629 BRACKET; SPARE TIRE REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6>	8-97224-383-1	01	1	0211-0501			●
137	07.629 BRACKET; SPARE TIRE REAR WIDE TREAD(V4T)	8-97224-383-1	01	1	0502-			●
137	07.629 BRACKET; SPARE TIRE	8-97076-885-1	01	1	0211-	●	●
139	07.012 MEMBER; CROSS,6TH DUMP CHASSIS(V4D) (B)	8-97033-229-1	01	1	0211-			●
139	07.012 MEMBER; CROSS,6TH REAR WIDE TREAD(V4T) (A)	8-97062-498-1	01	1	0211-			●
139	07.012 MEMBER; CROSS,6TH (A)	8-97062-498-1	01	1	0211-	●	●
198	07.039 GUSSET; 6TH C/MBR REAR WIDE TREAD(V4T) RH-LOWER,LH-UPPER	8-97062-499-0	02	1	0211-			●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER,LH-UPPER	8-97062-499-0	02	1	0211-	●	●
198	07.039 GUSSET; 6TH C/MBR REAR WIDE TREAD(V4T) RH-UPPER,LH-LOWER	8-97062-500-0	02	1	0211-			●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER,LH-LOWER	8-97062-500-0	02	1	0211-	●	●
212	03.704 BRACKET; EXH SILENCER DUMP CHASSIS(V4D)	8-97034-037-2	01	1	0211-			●
344	07.012 MEMBER; CROSS,4TH (A)	8-97078-707-3	01	1	0211-	●
344	07.012 MEMBER; CROSS,4TH (B)	8-97101-836-0	01	1	0211-		●
345	07.012 MEMBER; CROSS,5TH DUMP CHASSIS(V4D) (B)	8-97086-151-1	01	1	0211-			●
345	07.012 MEMBER; CROSS,5TH REAR WIDE TREAD(V4T) (A)	8-97062-497-3	01	1	0211-			●
345	07.012 MEMBER; CROSS,5TH (A)	8-97062-497-3	01	1	0211-	●	●

142 142 43 365 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.003 BRACKET; CAB MTG,RR	8-94126-889-0	01	1	0211-		●
43	09.003 BRACKET; CAB MTG,RR	8-97232-931-0	01	1	0211-		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1406-	●
101	07.112 BRACKET; RR SPR,FRT DUMP CHASSIS(V4D) (B)	8-97034-223-1	02	1	0211-			●
101	07.112 BRACKET; RR SPR,FRT REAR WIDE TREAD(V4T) (A)	8-97034-156-1	02	1	0211-1405			●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	0211-1405	●	●
101	07.112 BRACKET; RR SPR,FRT REAR WIDE TREAD(V4T) (A)	8-97034-156-1	02	1	1406-			●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	1406-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE DUMP CHASSIS(V4D) (B)	8-97259-035-0	01	1	0211-			●
142	04.845 BRACKET; FLEX HOSE,BRAKE REAR WIDE TREAD(V4T) (A)	8-97035-308-0	01	1	0211-			●
142	04.845 BRACKET; FLEX HOSE,BRAKE (A)	8-97035-308-0	01	1	0211-	●	●
365	07.039 REINFORCEMENT; TRUNNION DUMP CHASSIS(V4D)	8-97033-251-2	01	1	0211-			●
365	07.039 REINFORCEMENT; TRUNNION DUMP CHASSIS(V4D)	8-97185-188-1	01	1	0211-			●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

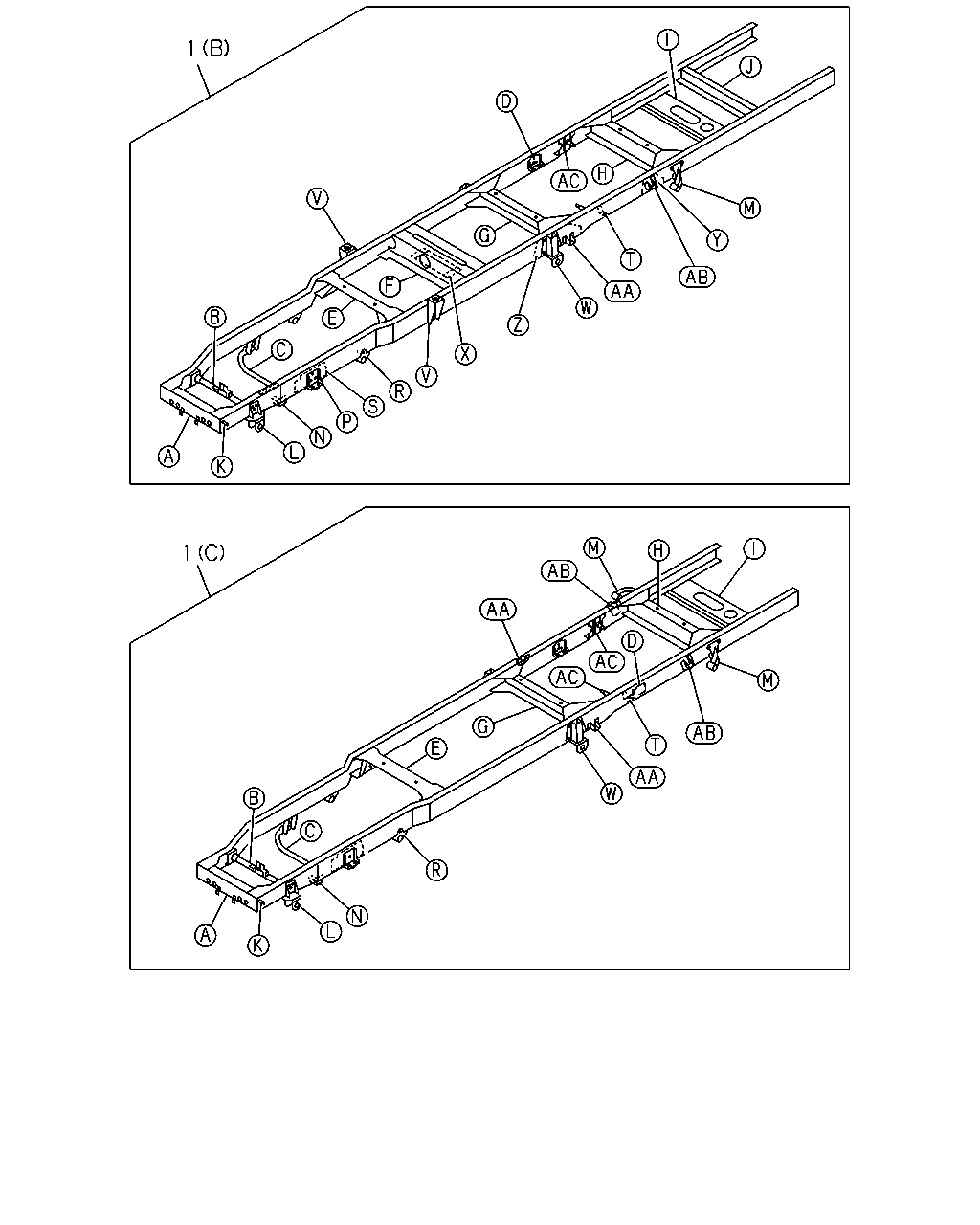

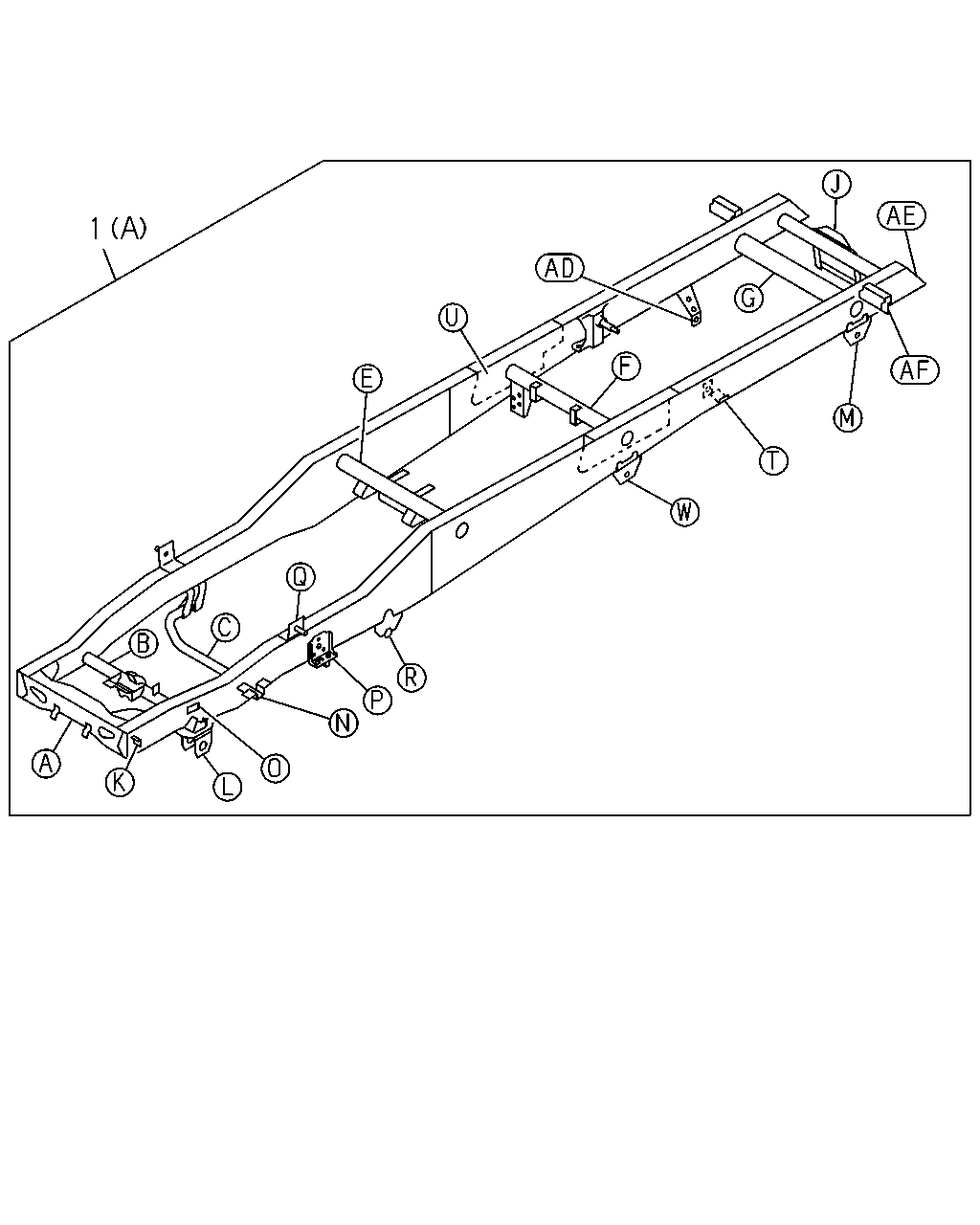

1	07.003 FRAME ASM RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) (C)	8-97352-169-1	01	1	0211-			●
1	07.003 FRAME ASM DUMP CHASSIS(V4D) (A)	8-97352-173-1	01	1	0211-			●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> (C)	8-97352-171-1	01	1	0211-0501			●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> (C)	8-97352-171-1	01	1	0502-			●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> (C)	8-97352-170-1	01	1	0211-0501			●
1	07.003 FRAME ASM (B)	8-97352-176-1	01	1	0211-1405	●
1	07.003 FRAME ASM (B)	8-98281-092-0	01	1	1406-	●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> (B)	8-97352-178-1	01	1	0211-		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6> (B)	8-97352-177-1	01	1	0211-		●

188 173 173 103 103 147 147 140 140 234 150 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (A)	8-97223-748-0	02	1	0211-			●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	02	1	0211-	●	●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (B)	8-97223-750-0	02	1	0211-			●
103	07.420 STOPPER; SUB SPR (B)	8-97223-750-0	02	1	0211-	●	●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) 07.395 (A)	8-94101-303-0	01	1	0211-			●
140	07.112 BRACKET; S/ABS,RR 07.395 (A)	8-94101-303-0	01	1	0211-	●	●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) (B)	8-97012-285-0	01	1	0211-			●
140	07.112 BRACKET; S/ABS,RR (B)	8-97012-285-0	01	1	0211-	●	●
147	07.535 RUBBER; SUB SPRING REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	0211-			●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0211-	●	●
150	03.616 BRACKET; EXH PIPE DUMP CHASSIS(V4D)	8-94388-181-0	01	1	0211-			●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (B)	8-94403-508-2	01	1	0211-0211			●
173	07.112 STIFFENER; RR SPRING (B)	8-94403-508-2	01	1	0211-0211	●	●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (A)	8-94372-324-1	02	1	0211-			●
173	07.112 STIFFENER; RR SPRING (A)	8-94372-324-1	02	1	0211-	●	●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (B)	8-94408-191-2	01	1	0211-0211			●
173	07.112 STIFFENER; RR SPRING (B)	8-94408-191-2	01	1	0211-0211	●	●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (B)	8-94408-191-2	02	1	0212-0502			●
173	07.112 STIFFENER; RR SPRING (B)	8-94408-191-2	02	1	0212-0502	●	●
173	07.112 STIFFENER; RR SPRING REAR WIDE TREAD(V4T) (B)	8-97213-460-4	02	1	0503-			●
173	07.112 STIFFENER; RR SPRING (B)	8-97213-460-4	02	1	0503-	●	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97078-869-1	01	1	0211-	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97035-996-0	01	1	0211-		●
234	07.006 COVER; END,S/MBR DUMP CHASSIS(V4D)	8-97033-249-0	02	1	0211-			●
235	07.039 BRACKET; COMB LAMP DUMP CHASSIS(V4D)	8-94115-653-4	02	1	0211-			●

376 376 376 376 376 376 376 376 376 376 376 176 221 106 286 118 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
106	07.529 BOLT; BRKT RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0501			●
106	07.529 BOLT; BRKT REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0501			●
106	07.529 BOLT; BRKT REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512			●
106	07.529 BOLT; BRKT REAR WIDE TREAD(V4T) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0601-			●
118	07.529 NUT; STOPPER REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0211-0603			●
118	07.529 NUT; STOPPER 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0211-0603	●	●
118	07.529 NUT; STOPPER REAR WIDE TREAD(V4T) M8 LOCK NUT	0-91370-008-0	04	1	0604-			●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	04	1	0604-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.417 M10X25 FLANGE	0-28081-025-0	08	1	0211-0512	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0211-0512			●
221	01.270 BOLT; RAD MTG BRKT,FRAME DUMP CHASSIS(V4D) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-			●
286	07.632 BOLT; SPARE TIRE BRKT SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE	0-28691-030-0	06	1	0211-0506			●
288	07.632 NUT; SPARE TIRE BRKT SPARE TIRE CARRIER INSIDE MOUNTED<P15> REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	06	1	0211-0506			●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X28 TAPER END	9-06750-828-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME (F) D10X32 TAPER END	9-06751-032-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME (G) D10X36 TAPER END	9-06751-036-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME (H) D11X26 TAPER END	9-06751-126-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME 07.535 (J) D12X34 TAPER END	9-06751-234-0	AR	1	0211-	●	●	●
376	07.039 RIVET; FRAME 07.112 (K) D12X38 TAPER END	9-06751-238-0	AR	1	0211-	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> REAR WIDE TREAD(V4T) (C)	8-97352-169-1	01	1	0211-			●
1	07.003 FRAME ASM DUMP CHASSIS(V4D) (A)	8-97352-173-1	01	1	0211-			●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> (C)	8-97352-171-1	01	1	0211-0501			●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6> (C)	8-97352-171-1	01	1	0502-			●
1	07.003 FRAME ASM REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> (C)	8-97352-170-1	01	1	0211-0501			●
1	07.003 FRAME ASM (B)	8-97352-176-1	01	1	0211-1405	●
1	07.003 FRAME ASM (B)	8-98281-092-0	01	1	1406-	●
1	07.003 FRAME ASM RR BODY FLAT BED<RS6> (B)	8-97352-178-1	01	1	0211-		●
1	07.003 FRAME ASM EXC. RR BODY FLAT BED<RS6> (B)	8-97352-177-1	01	1	0211-		●

24 358 24 105 215 105 215 63 63 51 256 366 39 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	07.105 BRACKET; FRT SPR,FRT DUMP CHASSIS(V4D) (B)	8-97033-231-1	01	1	0211-			●
24	07.105 BRACKET; FRT SPR,FRT DUMP CHASSIS(V4D) (B)	8-97033-232-1	01	1	0211-			●
24	07.105 BRACKET; FRT SPR,FRT REAR WIDE TREAD(V4T) (A)	8-94366-816-1	01	1	0211-			●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-94366-816-1	01	1	0211-	●	●
24	07.105 BRACKET; FRT SPR,FRT REAR WIDE TREAD(V4T) (A)	8-97065-788-1	01	1	0211-			●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-97065-788-1	01	1	0211-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0211-	●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029	8-94258-086-1	02	1	0211-	●	●	●
63	01.270 BRACKET; RAD MTG DUMP CHASSIS(V4D) (B)	8-97072-648-1	01	1	0211-			●
63	01.270 BRACKET; RAD MTG REAR WIDE TREAD(V4T) (A)	8-94257-950-1	01	1	0211-			●
63	01.270 BRACKET; RAD MTG (A)	8-94257-950-1	01	1	0211-	●	●
105	07.112 BRACKET; RR SPR,RR DUMP CHASSIS(V4D) (B)	8-97184-907-0	02	1	0211-			●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T) (A)	8-94459-511-1	01	1	0211-			●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-511-1	01	1	0211-	●	●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T) (A)	8-94459-512-1	01	1	0211-			●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-512-1	01	1	0211-	●	●
136	07.006 REINFORCEMENT; ENG SUPPORT (A)	8-94370-228-1	01	1	0211-		●
136	07.006 REINFORCEMENT; ENG SUPPORT (B)	8-97083-311-2	01	1	0211-		●
215	07.524 BUSHING; BRKT,RR SPRING REAR WIDE TREAD(V4T)	8-97184-699-1	04	1	0211-			●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0211-	●	●
256	07.395 BRACKET; S/ABS DUMP CHASSIS(V4D)	8-97041-076-0	02	1	0211-			●
358	07.039 BRACKET; CAB EARTH	8-97065-790-3	01	1	0211-0310	●	●	●
358	07.039 BRACKET; CAB EARTH	8-97210-488-0	01	1	0311-	●	●	●
366	07.039 SPACER; BRKT DUMP CHASSIS(V4D)	8-97034-222-0	02	1	0211-			●

2 17 17 17 17 2 20 20 217 42 34 34 415 415

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.010 MEMBER; CROSS,1ST DUMP CHASSIS(V4D) (B)	8-97113-625-2	01	1	0211-0501			●
2	07.010 MEMBER; CROSS,1ST REAR WIDE TREAD(V4T) (A)	8-97034-332-2	01	1	0211-			●
2	07.010 MEMBER; CROSS,1ST (A)	8-97034-332-2	01	1	0211-	●	●
17	07.039 GUSSET; 1ST C/MBR DUMP CHASSIS(V4D) (B)	8-97035-998-2	01	1	0211-			●
17	07.039 GUSSET; 1ST C/MBR DUMP CHASSIS(V4D) (B)	8-97039-568-2	01	1	0211-			●
17	07.039 GUSSET; 1ST C/MBR REAR WIDE TREAD(V4T) (A)	8-97088-205-1	02	1	0211-			●
17	07.039 GUSSET; 1ST C/MBR (A)	8-97088-205-1	02	1	0211-	●	●
20	07.012 MEMBER; CROSS,2ND DUMP CHASSIS(V4D) (A)	8-97101-835-1	01	1	0211-			●
20	07.012 MEMBER; CROSS,2ND REAR WIDE TREAD(V4T) (B)	8-97078-581-1	01	1	0211-			●
20	07.012 MEMBER; CROSS,2ND (B)	8-97078-581-1	01	1	0211-	●	●
34	07.012 MEMBER; CROSS,3RD DUMP CHASSIS(V4D) (A)	8-97256-169-0	01	1	0211-			●
34	07.012 MEMBER; CROSS,3RD REAR WIDE TREAD(V4T) (B)	8-97047-768-2	01	1	0211-			●
34	07.012 MEMBER; CROSS,3RD (B)	8-97047-768-2	01	1	0211-		●
34	07.012 MEMBER; CROSS,3RD (B)	8-97039-671-1	01	1	0211-	●
42	07.011 MEMBER; CROSS,ENG MTG	8-97165-923-1	01	1	0211-	●	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING REAR WIDE TREAD(V4T)	8-94258-963-0	02	1	0211-			●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-94258-963-0	02	1	0211-	●	●
415	07.039 BRACKET; FUEL PIPE DUMP CHASSIS(V4D)	8-97076-569-1	02	1	0211-			●
