Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#7775) — 161 parça

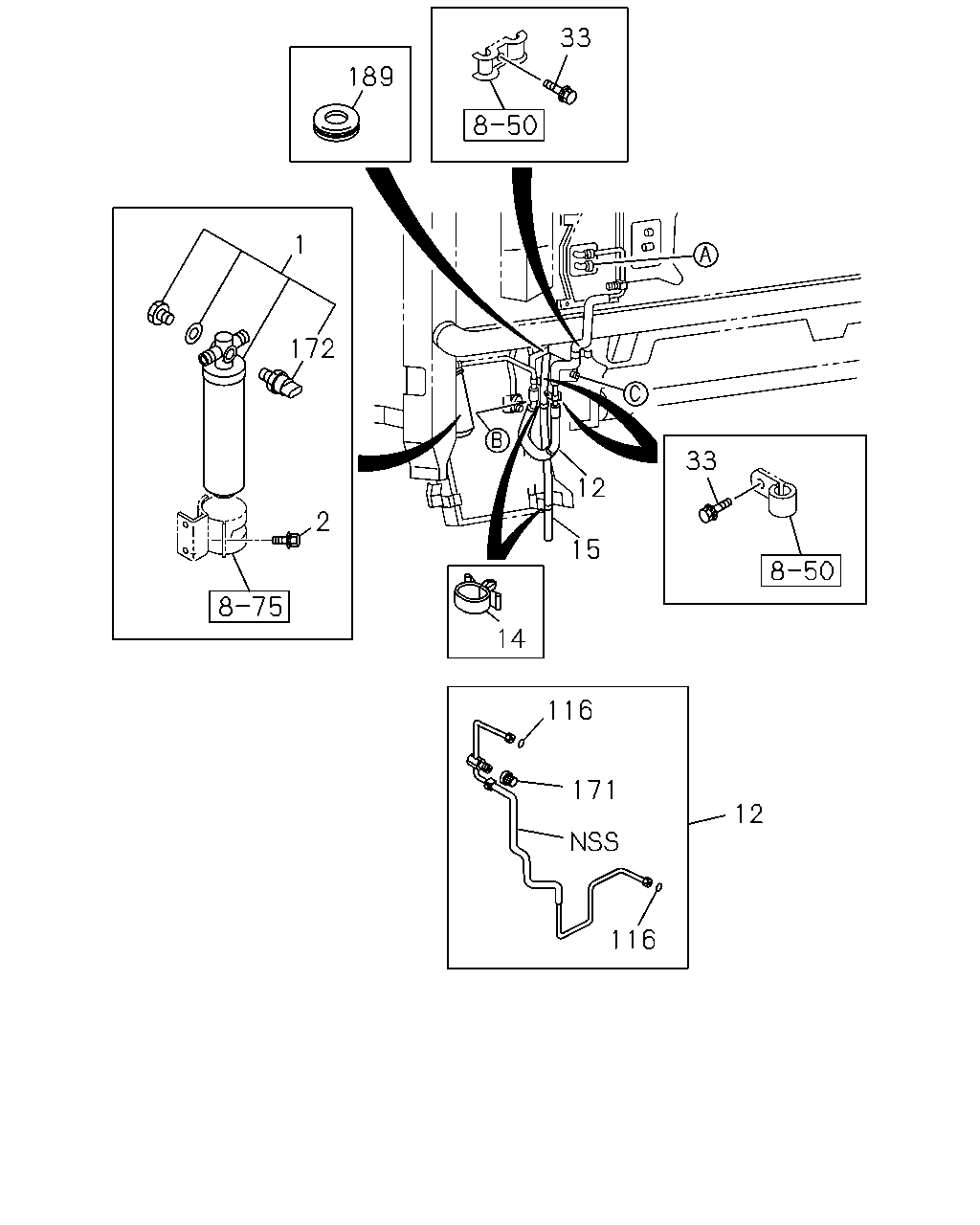

116 156 171 12 116 189 14 12 33 1 26 33 172 15 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-087-0	01	1	9902-	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-085-0	01	1	0004-		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-0003	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0004-	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9902-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-668-0	01	1	0004-		●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9902-9904	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-0003	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0004-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9902-9904	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-0003	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	0004-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9902-0003	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	0004-	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	0004-		●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0004-	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0004-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-0003	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0004-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9902-0003	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	0004-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0004-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	9902-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0004-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	9902-0003	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	0004-	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9902-0003	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0004-	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09575-397-0	01	1	0004-		●

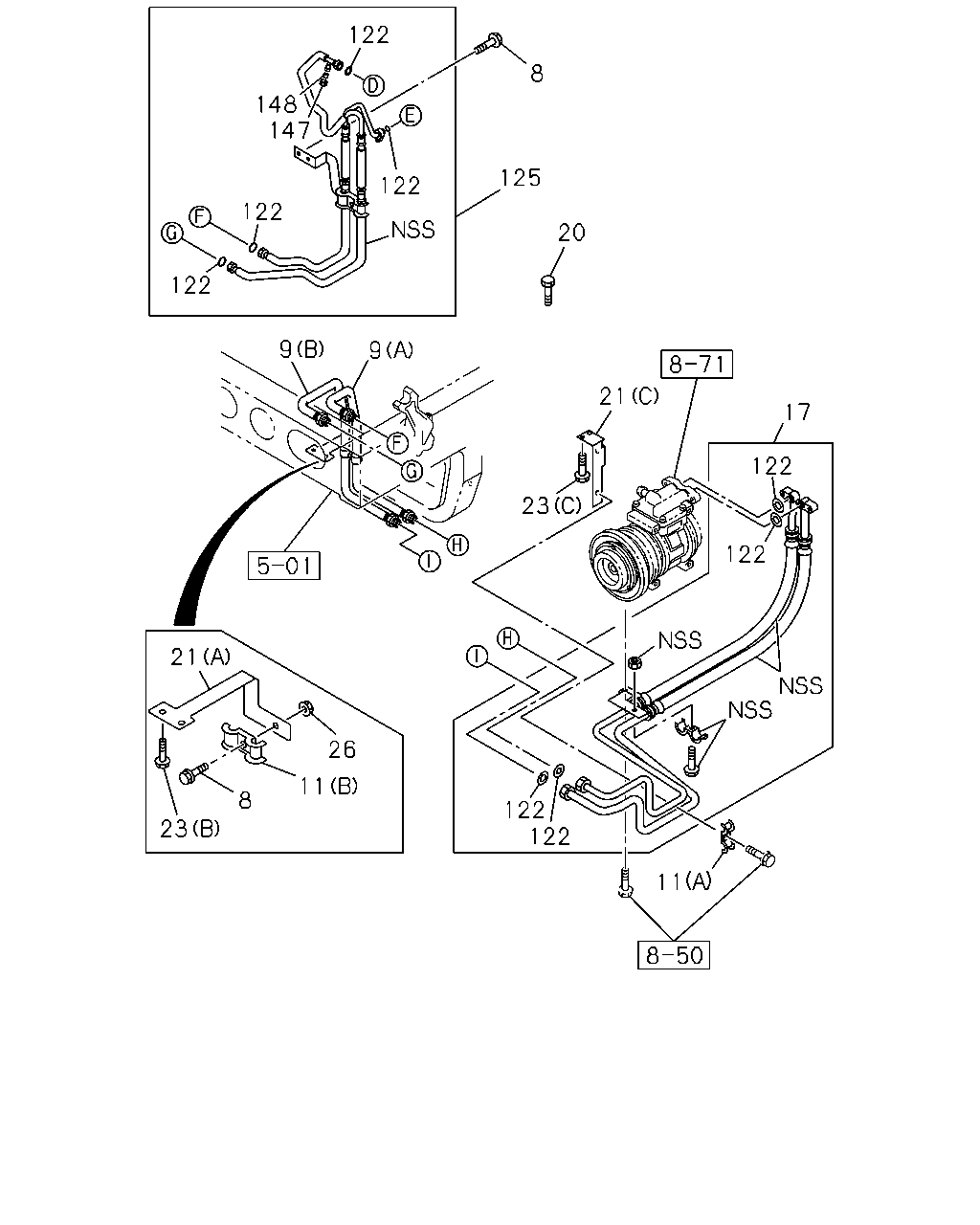

122 8 148 147 125 122 122 20 122 9 9 21 17 122 23 122 21 26 11 8 122 122 23 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9902-9908	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9902-9908	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9909-	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	9909-0003	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83572-539-1	01	1	9902-	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83572-540-0	01	1	9902-	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-669-0	01	1	0004-		●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-670-0	01	1	0004-		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9902-0003	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0004-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	9902-9908	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	02	1	9902-	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	0004-		●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-581-0	01	1	9902-0003	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-581-1	01	1	0004-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-581-1	01	1	0004-		●
20	BOLT; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	9902-0003	●
20	BOLT; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	0004-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-777-1	01	1	9902-0003	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-777-1	01	1	0004-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-930-1	01	1	9902-9908	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-998-0	01	1	9902-0003	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-998-0	01	1	0004-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE	0-28080-816-0	02	1	9902-9908	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0004-	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0004-		●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	0004-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	0004-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	0004-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	0004-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-541-1	01	1	9902-	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-465-1	01	1	0004-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> CAP MARK L	8-97083-102-0	01	1	9902-0003	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> CAP MARK L	8-97083-102-0	01	1	0004-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0004-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	8-97083-100-0	01	1	9902-0003	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	8-97083-100-0	01	1	0004-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0004-		●

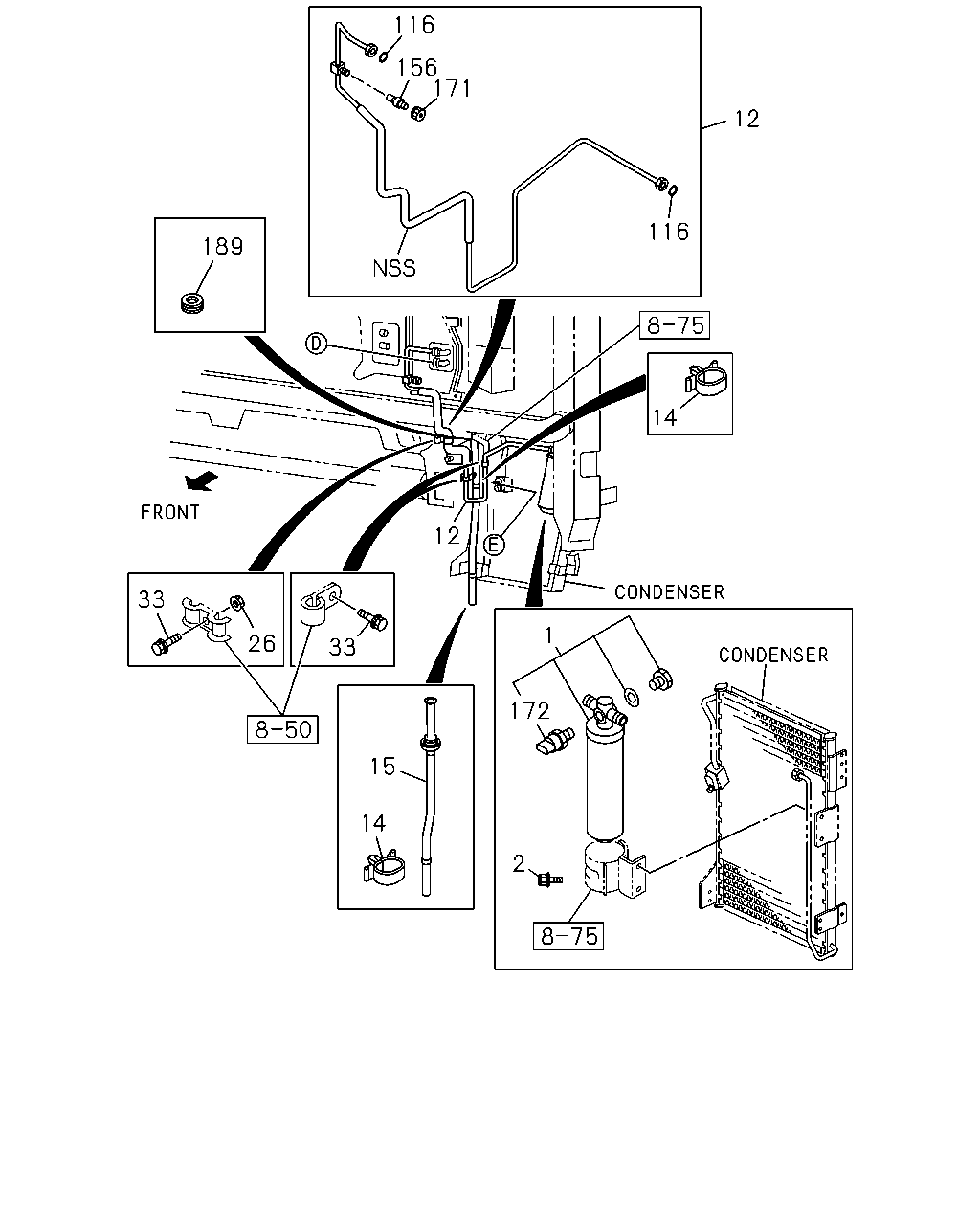

33 189 1 172 33 12 2 15 14 116 171 12 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-087-0	01	1	9902-	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-085-0	01	1	0004-		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-0003	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0004-	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	9902-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-668-0	01	1	0004-		●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9902-9904	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	9905-0003	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0004-	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9902-9904	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	9905-0003	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	0004-	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9902-0003	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	0004-	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41)	1-83572-412-0	01	1	0004-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9902-0003	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0004-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	9902-0003	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97161-776-0	02	1	0004-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	9902-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0004-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	9902-0003	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	0004-	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9902-0003	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0004-	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09575-397-0	01	1	0004-		●

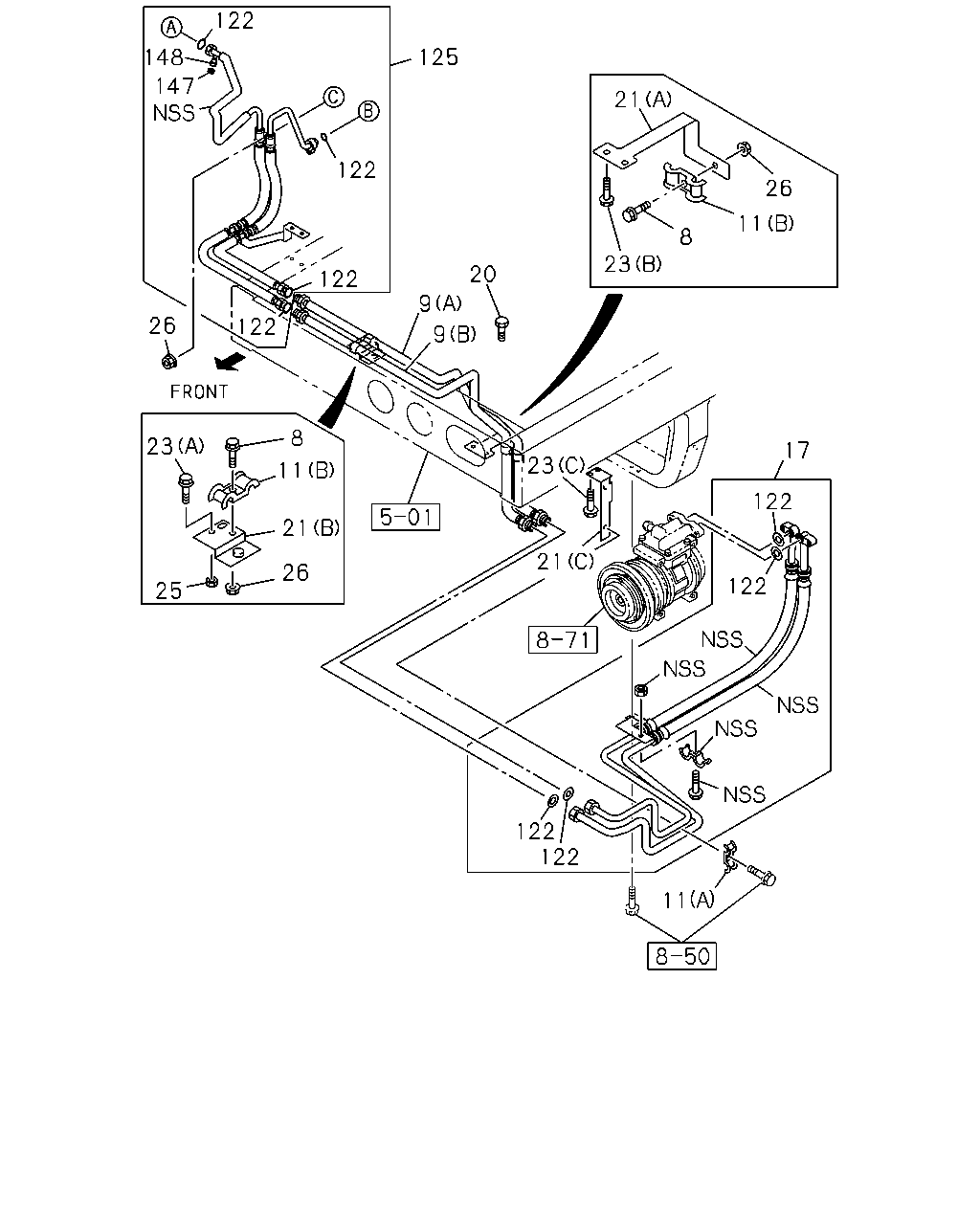

122 125 148 147 21 122 26 11 8 122 23 20 122 9 26 9 8 23 23 17 11 122 21 21 26 122 25 122 122 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9902-9908	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9902-9908	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9909-	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	9909-0003	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (A)	1-83572-539-1	01	1	9902-	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> (B)	1-83572-540-0	01	1	9902-	●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-669-0	01	1	0004-		●
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-670-0	01	1	0004-		●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9902-0003	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0004-	●	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	9902-9908	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	02	1	9902-	●
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20	1-83574-195-1	01	1	0004-		●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-581-0	01	1	9902-0003	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-581-1	01	1	0004-	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-581-1	01	1	0004-		●
20	BOLT; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	9902-0003	●
20	BOLT; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	01	1	0004-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-777-1	01	1	9902-0003	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-777-1	01	1	0004-	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-930-1	01	1	9902-9908	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-998-0	01	1	9902-0003	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-998-0	01	1	0004-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 FLANGE	0-28080-816-0	02	1	9902-9908	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9902-9908	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9902-9908	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9909-9909	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0004-	●
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0004-		●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	0004-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=15.5	8-97161-777-0	02	1	0004-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	9902-0003	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	0004-	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> ID=18.3	8-97161-778-0	02	1	0004-	●	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83572-541-1	01	1	9902-	●
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-465-1	01	1	0004-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> CAP MARK L	8-97083-102-0	01	1	9902-0003	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG> CAP MARK L	8-97083-102-0	01	1	0004-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0004-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	8-97083-100-0	01	1	9902-0003	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	8-97083-100-0	01	1	0004-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
