◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#77744) — 52 parça

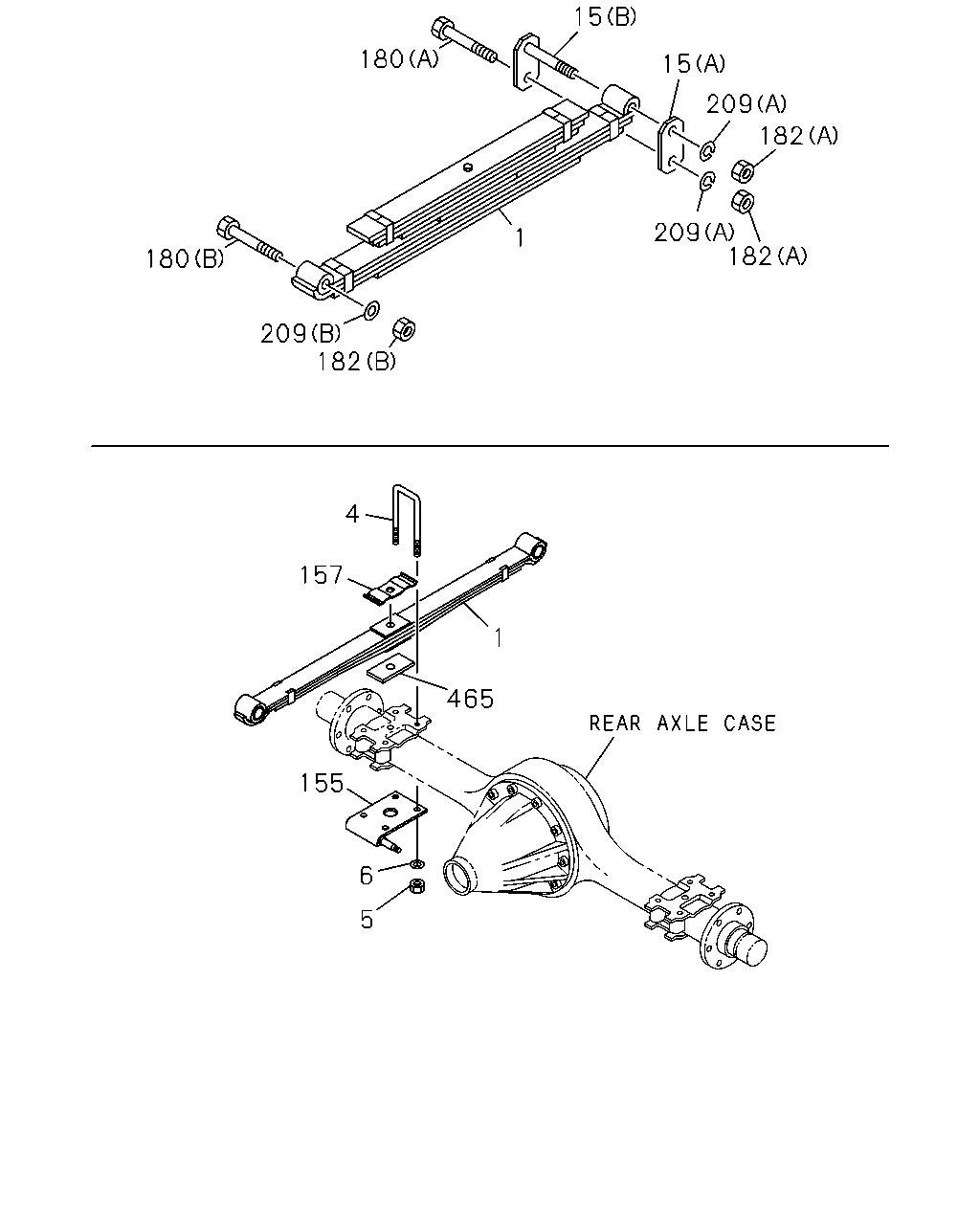

çizim 135293
15 180 15 209 182 209 182 1 180 209 182 4 157 1 465 155 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97183-796-0 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 4-LEAF 		8-97374-857-0 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. DUMP CHASSIS(V4D) 10-LEAF 		8-97073-224-1 02 1 0211-0501 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-97073-224-1 02 1 0211-0501 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. DUMP CHASSIS(V4D) 6-LEAF 		8-97033-562-3 02 1 0502- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF 		8-97033-562-3 02 1 0502- ● ●
4 07.516 U-BOLT; RR SPR
EXC. DUMP CHASSIS(V4D) L=265 		8-94127-923-2 04 1 0211-0501 ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-2 04 1 0211-0501 ● ●
4 07.516 U-BOLT; RR SPR
EXC. DUMP CHASSIS(V4D) L=245 		8-94127-921-3 04 1 0502- ●
4 07.516 U-BOLT; RR SPR
L=245 		8-94127-921-3 04 1 0502- ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-3 04 1 0211- ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0211-0611 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
DELETION TURKEY TRUCK<46D> 07.417 M16 		8-97360-121-0 08 1 0612- ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0612- ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0211-0610 ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0611- ● ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0211- ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-94118-512-4 02 1 0211-0611 ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0612- ● ● ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94128-362-3 01 1 0211- ●
155 07.380 BRACKET; S/ABS
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-94128-363-3 01 1 0211- ●
157 07.518 CLAMP; UPR,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> L=168 T=8 		8-94118-111-3 02 1 0211- ●
157 07.518 CLAMP; UPR,RR SPR
EXC. DUMP CHASSIS(V4D) L=130 T=4.5 		8-94119-069-2 02 1 0211- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0211- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0211-0610 ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0611- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0211-0610 ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0611- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0211-0611 ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0612- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0211-0611 ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0612- ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 04 1 0211-0512 ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0601- ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 0211-0512 ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0601- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 04 1 0211-0610 ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0611- ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 04 1 0211-0611 ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0612- ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 0211-0611 ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97360-119-0 02 1 0612- ● ● ●
465 07.518 SHIM; ADJ
RR BODY FLAT BED<RS6> 		8-97072-589-0 AR 1 0211- ● ● ●
çizim 135308
227 225 264 225
BalonParca AdiParca NoAdetTipApplied Date A B C
225 07.535 RUBBER; CUSHION,RR SPR
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) 		8-97035-815-1 02 1 0211- ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. DUMP CHASSIS(V4D) (A) 		8-94118-510-5 02 1 0211- ●
225 07.535 RUBBER; CUSHION,RR SPR
(A) 		8-94118-510-5 02 1 0211- ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0602 ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0211-0602 ● ●
227 07.535 NUT; CUSHION RUBBER
EXC. DUMP CHASSIS(V4D) 02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ● ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0211-0512 ●
264 07.529 BOLT; CUSHION RUBBER TO BRKT
DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
