◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#7774) — 44 parça

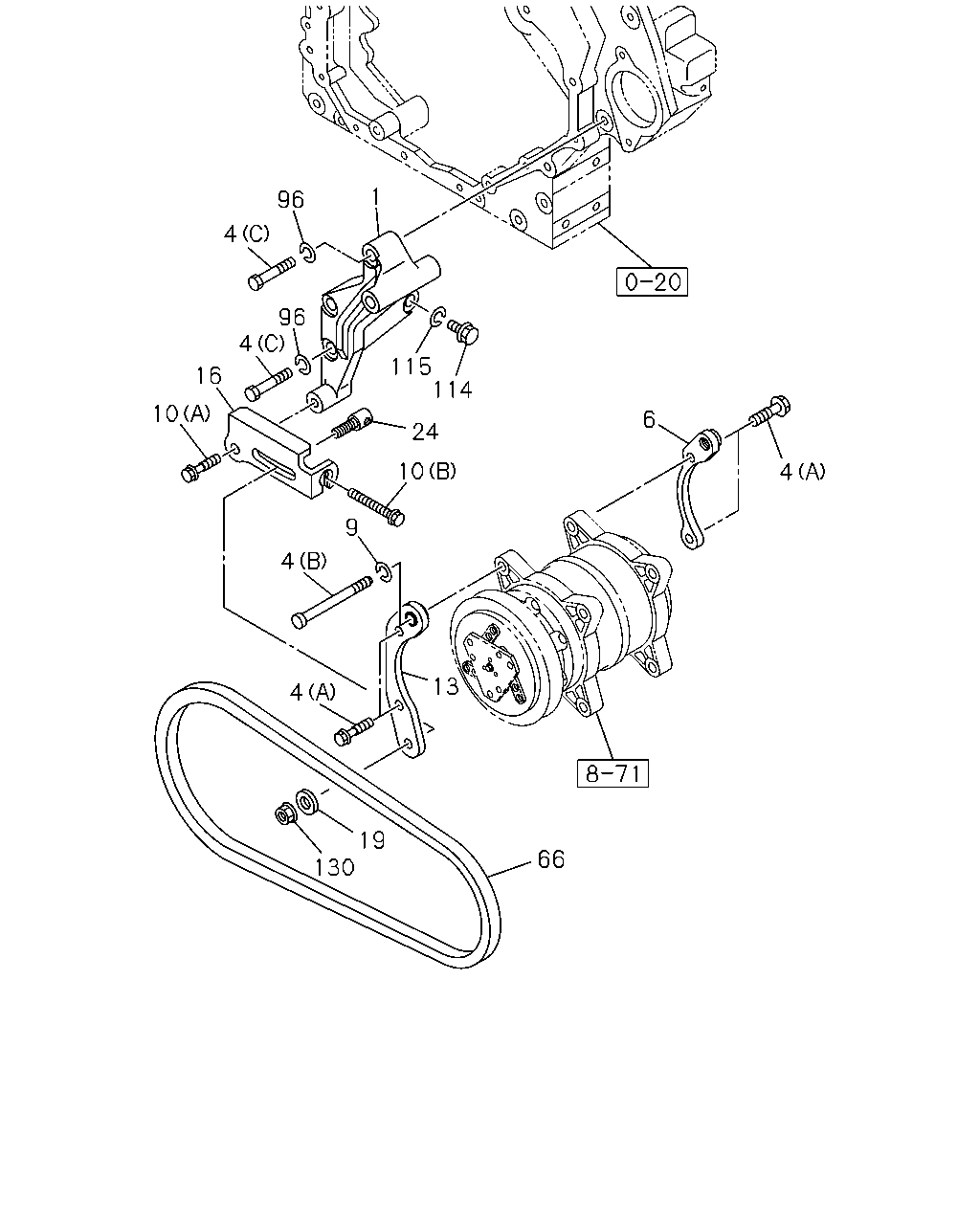

çizim 42743
1 96 4 96 4 115 114 16 10 6 24 10 4 9 4 13 4 19 130 66
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-842-0 01 1 9902-0003 ●
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-842-0 01 1 0004- ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE 		0-28081-025-0 04 1 9902-0003 ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X25 FLANGE 		0-28081-025-0 04 1 0004- ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130 		9-09804-177-2 01 1 9902-0003 ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M12X130 		9-09804-177-2 01 1 0004- ● ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130 		9-09804-194-1 02 1 9902-0003 ●
4 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X130 		9-09804-194-1 02 1 0004- ● ●
6 BRACKET; CMPR,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-707-0 01 1 9902-0003 ●
6 BRACKET; CMPR,RR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-707-0 01 1 0004- ● ●
9 WASHER; LK,A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 		9-09150-512-0 01 1 9902-0003 ●
9 WASHER; LK,A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 		9-09150-512-0 01 1 0004- ● ●
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 9902-0003 ●
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M12X25 FLANGE 		0-28181-225-0 01 1 0004- ● ●
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 9902-0003 ●
10 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X90 		1-09009-151-0 01 1 0004- ● ●
13 BRACKET; CMPR,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-843-1 01 1 9902-0003 ●
13 BRACKET; CMPR,FRT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-843-1 01 1 0004- ● ●
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-210-1 01 1 9902-0003 ●
16 PLATE; ADJ,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-13674-210-1 01 1 0004- ● ●
19 WASHER; PL,ADJ PLATE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 9902-0003 ●
19 WASHER; PL,ADJ PLATE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.5 OD=32 		9-09160-712-0 01 1 0004- ● ●
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 9902-0003 ●
24 PIECE; SLIDING
AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		1-13674-160-0 01 1 0004- ● ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 9902-0003 ●
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1131 		1-13671-436-0 01 1 0004- ● ●
96 WASHER; LK
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 02 1 9902-0003 ●
96 WASHER; LK
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 02 1 0004- ● ●
114 BOLT; BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) M14X35 		0-23801-435-0 01 1 9902-0003 ●
114 BOLT; BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) M14X35 		0-23801-435-0 01 1 0004- ● ●
115 WASHER; LK,BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 01 1 9902-0003 ●
115 WASHER; LK,BRKT TO GEAR CASE
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.2 		9-09150-514-0 01 1 0004- ● ●
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 9902-0003 ●
130 NUT; ADJ BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M12 FLANGE 		0-91150-112-0 01 1 0004- ● ●

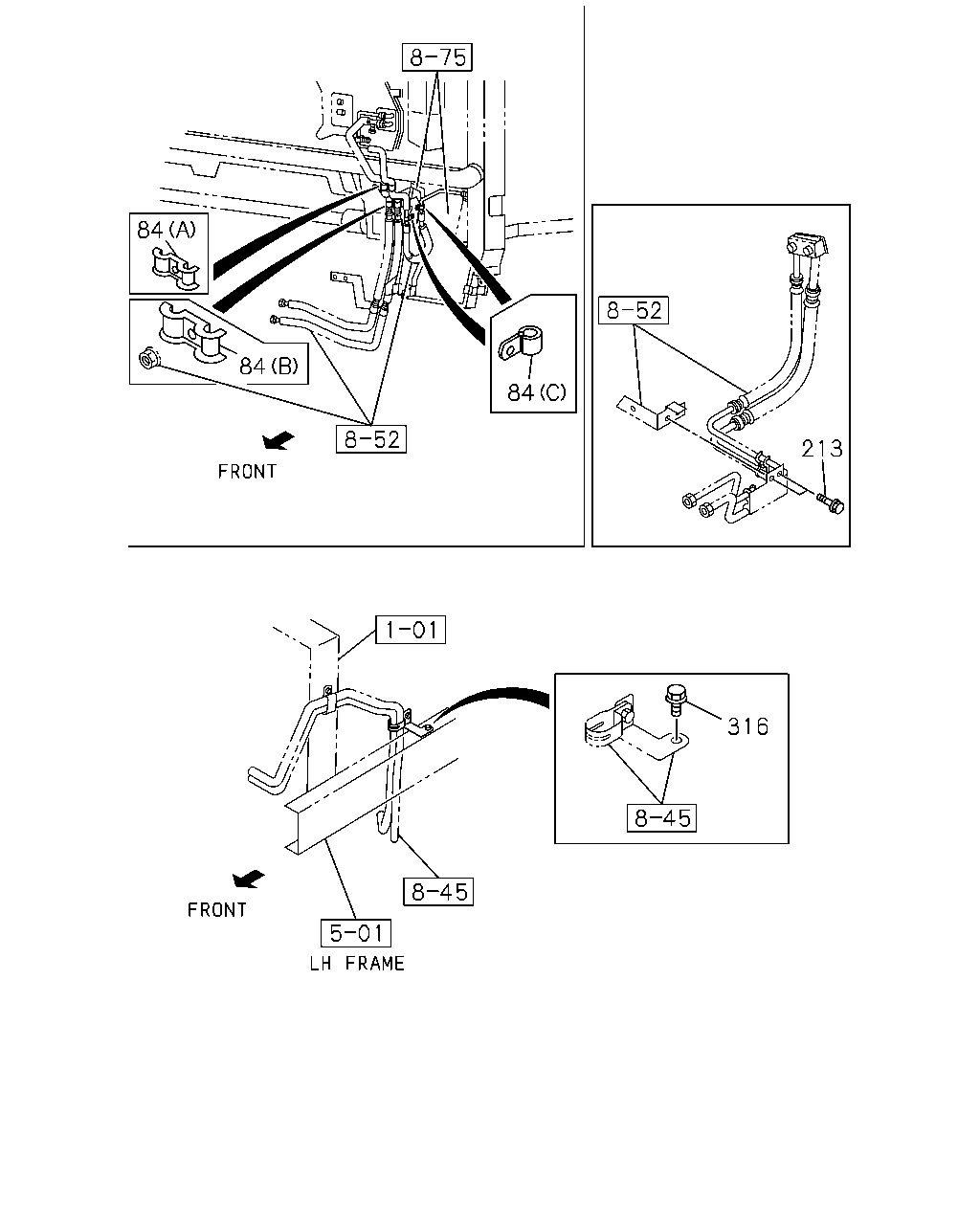

çizim 44486
84 84 84 213 316
BalonParca AdiParca NoAdetTipApplied Date A B
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9902-0003 ●
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0004- ● ●
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 9902-0003 ●
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20 		1-83574-195-1 01 1 0004- ● ●
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 9902-0003 ●
84 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=9 L=20 		9-09524-835-0 02 1 0004- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9902-0003 ●
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 0004- ● ●
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 01 1 9902-0003 ●
316 BOLT; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 01 1 0004- ● ●
