◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#77738) — 79 parça

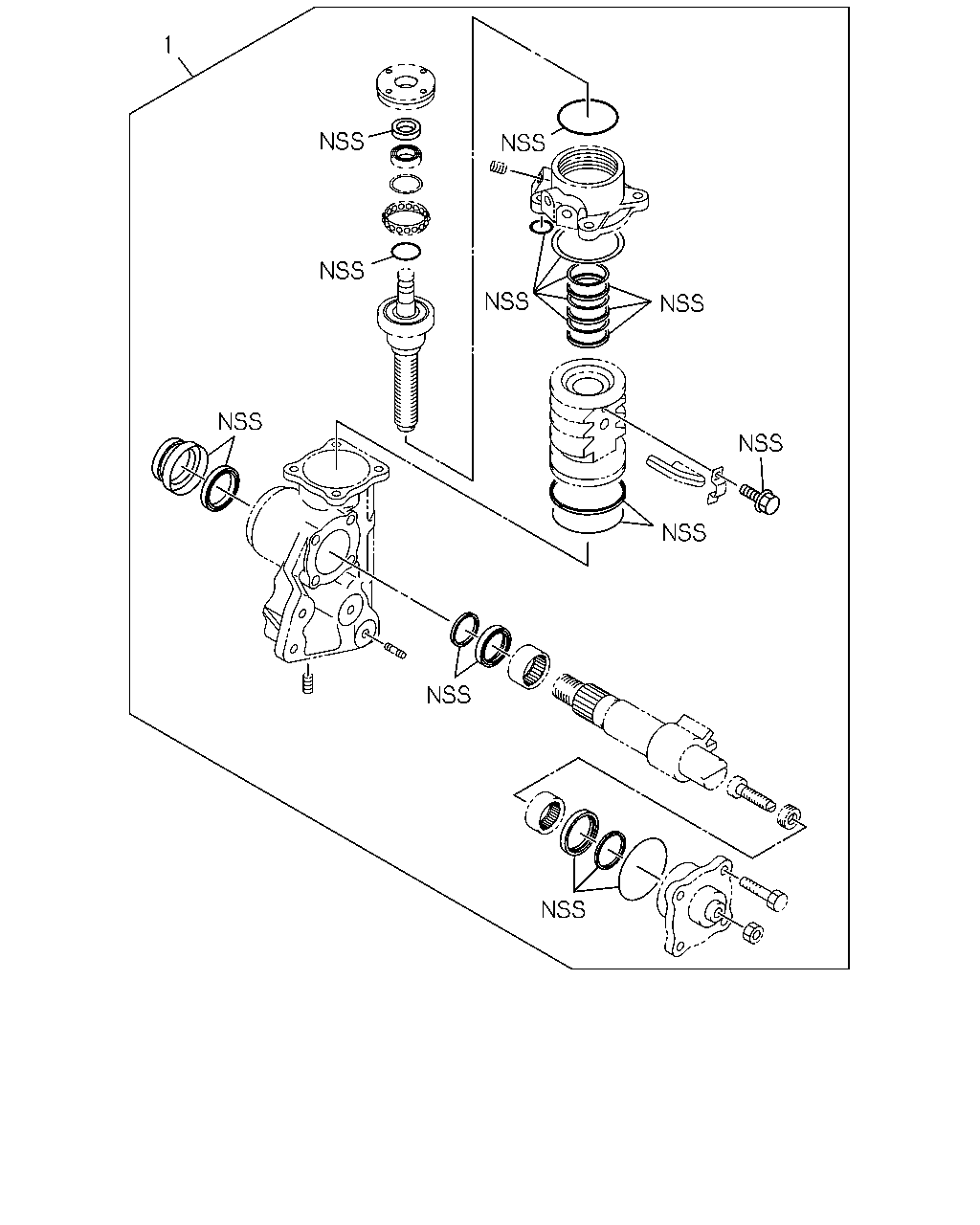

çizim 135634
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-046-0, 97305046 		8-97218-602-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97356-105-8, 97356105 		8-97356-138-0 01 1 -0501
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97356-105-8, 97356105 		8-98171-736-0 01 1 0502-

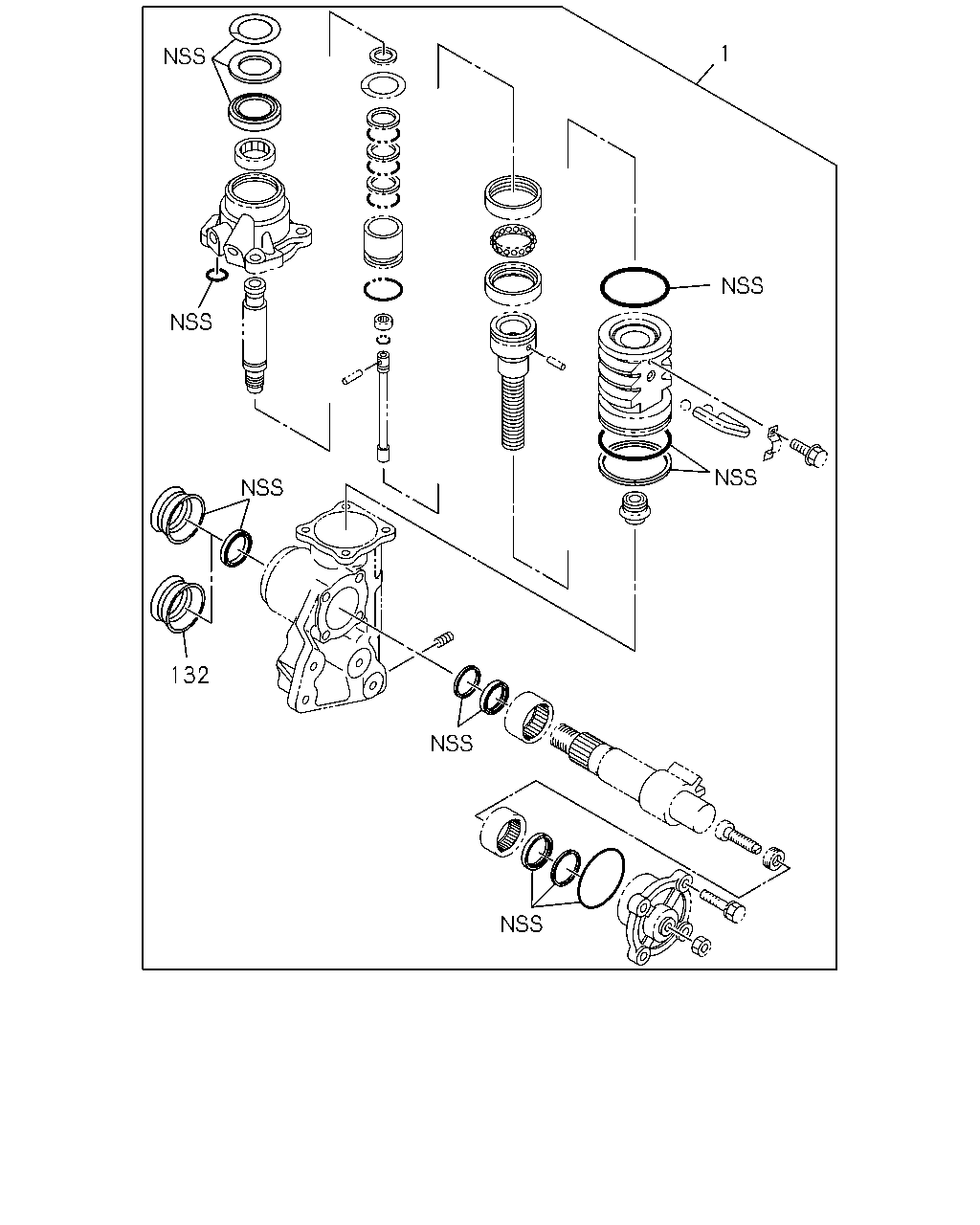

çizim 135637
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-046-0, 97305046 		8-97218-602-1 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97356-105-8, 97356105 		8-97356-138-0 01 1 -0501
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-98251-947-0, 98251947 		8-98171-736-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97356-105-8, 97356105 		8-98171-736-0 01 1 0502-
132 06.822 COVER; DUST,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -

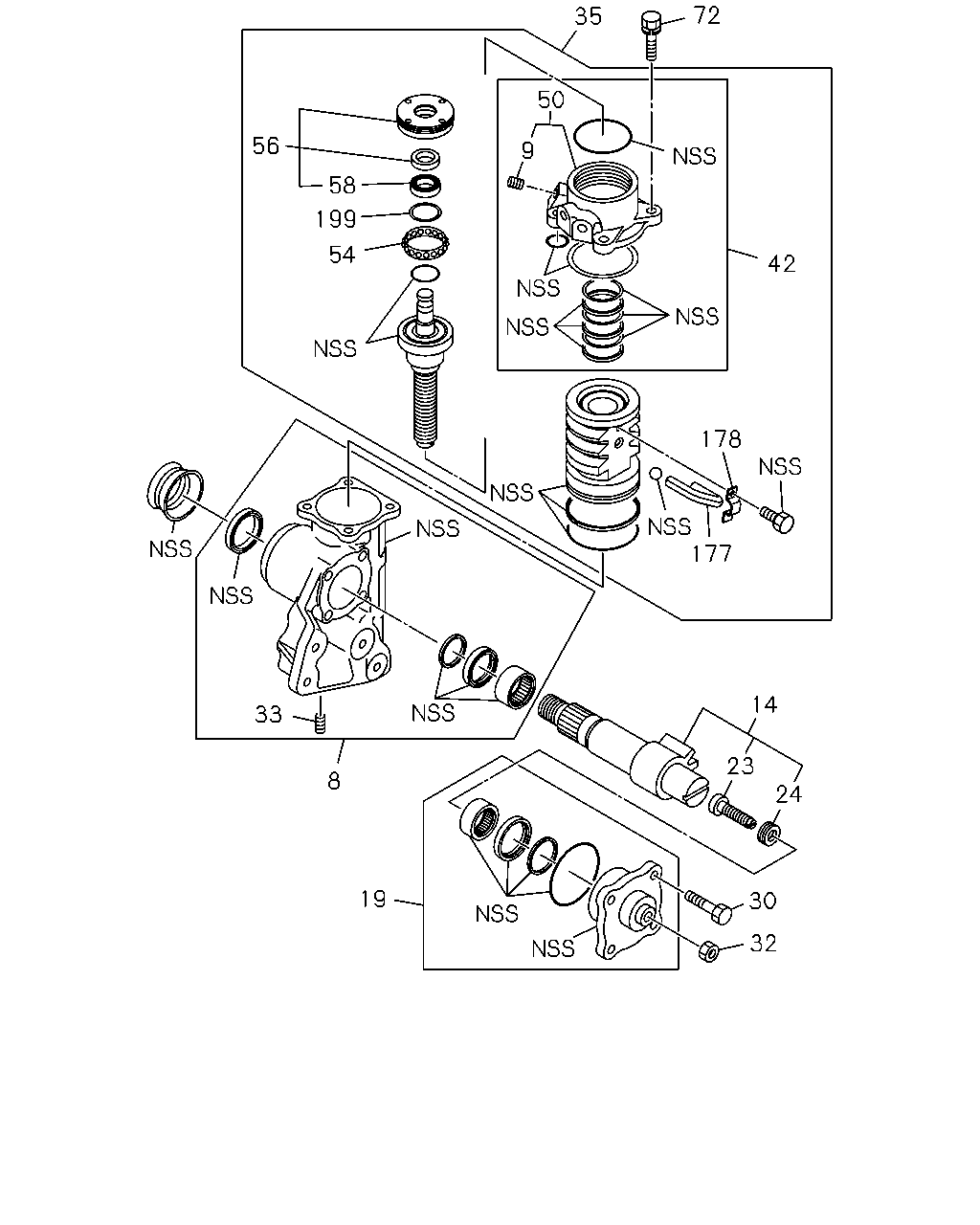

çizim 135642
177 24 23 30 32 19 14 8 33 54 199 58 56 9 50 35 72 42 178
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97305-046-0, 97305046, B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046, B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
33 06.806 PLUG; DRAIN,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-820-0 02 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97306-554-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97356-135-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98112-932-3 01 1 0502-
42 06.586 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-822-0 01 1 -
50 06.586 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-821-0 01 1 -
54 06.835 CASE; BEARING STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-810-0 01 1 -
56 06.560 PLUG & SEAL ASM; STRG UNIT
06.850 ASM PART: A = 8-97305-046-0, 97305046 		8-97076-364-1 01 1 -
58 06.835 BEARING; HSG STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-812-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		1-44519-110-0 04 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: B = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
177 06.822 TUBE; BALL BRG STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-809-0 02 1 -
178 06.822 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-808-0 01 1 -
199 06.521 WASHER; WAVE,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97201-812-0 01 1 -

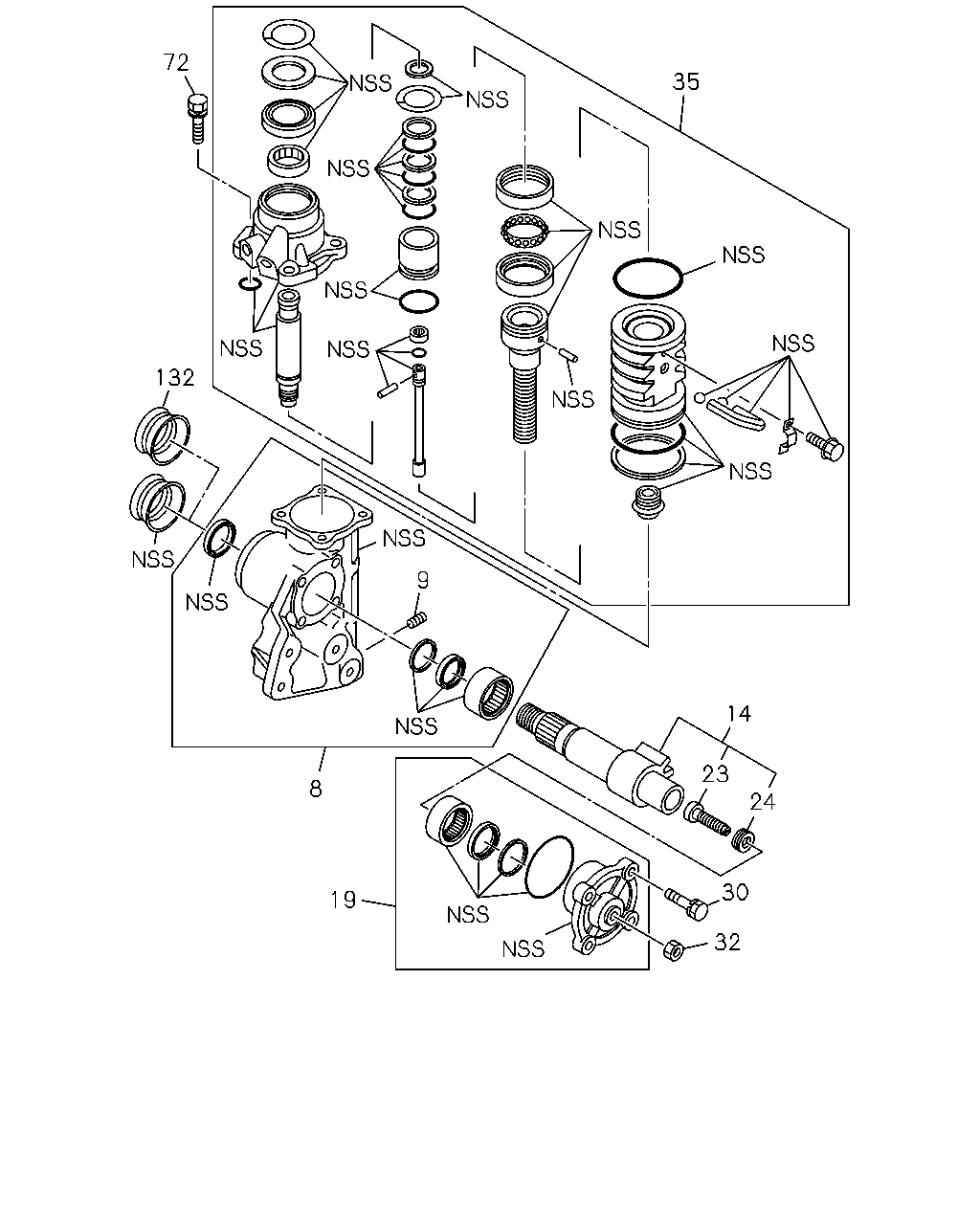

çizim 135645
14 23 24 30 32 19 8 9 132 72 35
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97202-838-2 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97356-126-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-820-0 01 1 -0501
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-97014-820-0 02 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-820-0 02 1 0502-
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-820-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97306-555-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97356-137-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-933-1 01 1 -0501
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-933-1 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98036-333-0 01 1 0502-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97305-046-0, 97305046, B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046, B = 8-97356-105-8, 97356105, C = 8-98251-947-0, 98251947 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-836-0 04 1 -0501
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
30 06.809 BOLT; COVER STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97014-834-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97014-834-0 01 1 -0501
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98036-337-0 01 1 0502-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-046-0, 97305046 		8-97306-554-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-97356-135-1 01 1 -0501
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-98112-932-3 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		8-98112-932-3 01 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: B = 8-97356-105-8, 97356105 		1-44519-110-0 04 1 -0501
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97305-046-0, 97305046 		8-97014-836-0 04 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: B = 8-97356-105-8, 97356105 		8-98036-336-0 04 1 0502-
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: C = 8-98251-947-0, 98251947 		8-98036-336-0 04 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: C = 8-98251-947-0, 98251947 		8-97076-372-0 01 1 -
