◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#77730) — 22 parça

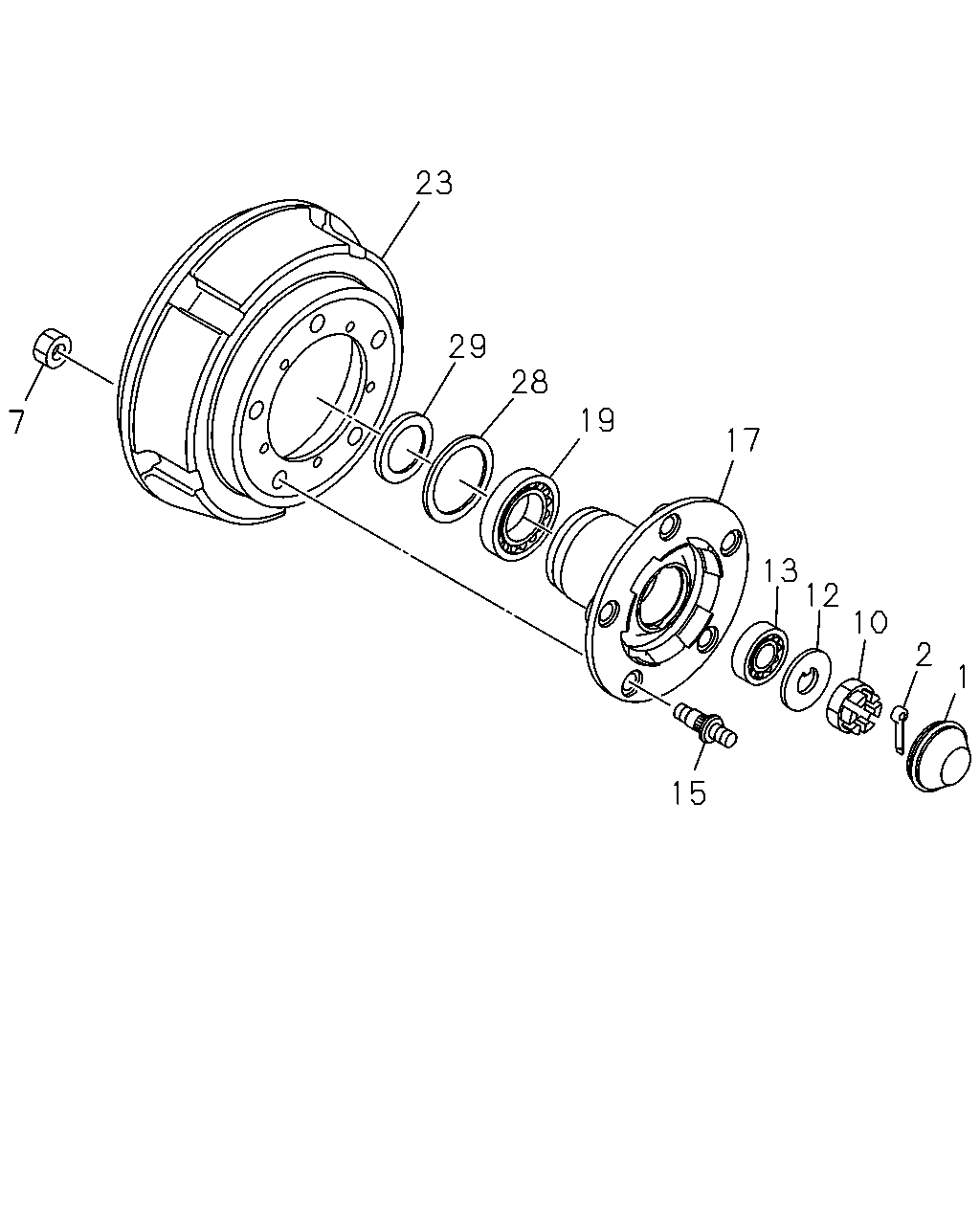

çizim 135624
23 29 28 19 7 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0611 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0606 ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ●
7 05.812 NUT; FRT HUB
00.050 M20 		9-99110-520-0 10 1 0211-0512 ● ● ●
7 05.812 NUT; FRT HUB
M20 		0-91110-520-0 10 1 0601- ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211- ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-1502 ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0211- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0211- ● ● ●
17 06.307 HUB; FRT AXLE 8-94365-459-0 02 1 0211- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
23 05.809 DRUM; BRK,FRT 8-97094-434-2 02 1 0211- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211- ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
