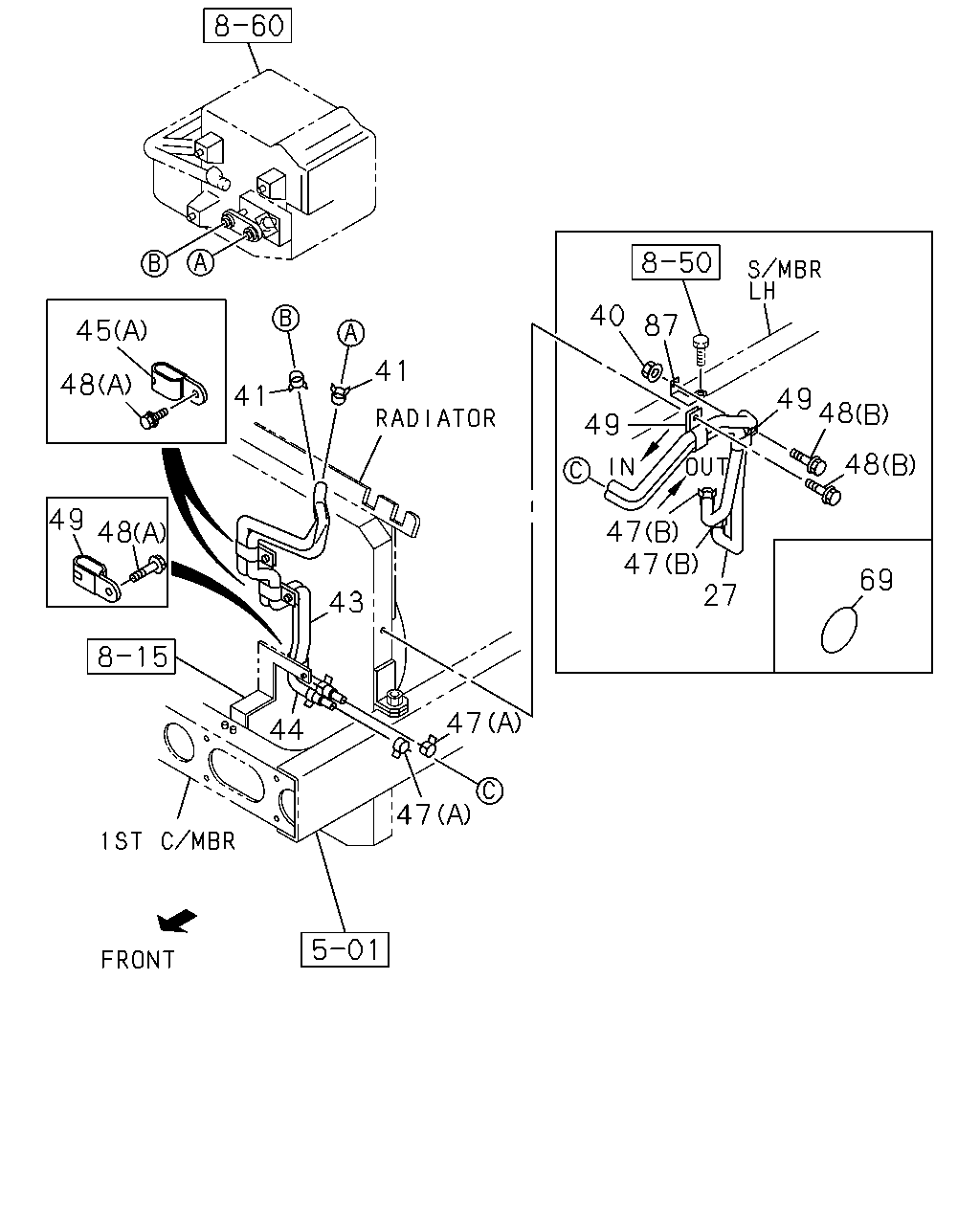

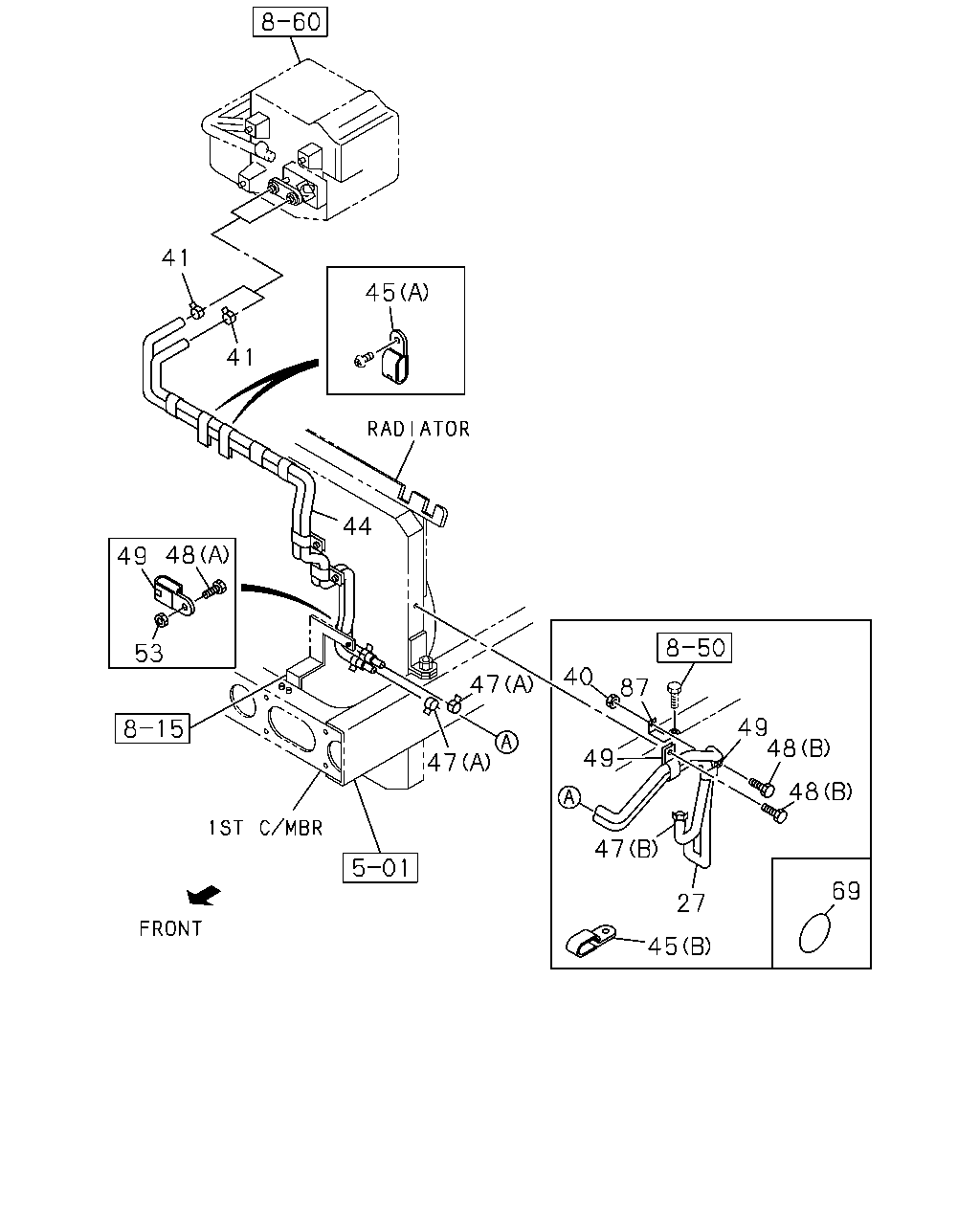

8-45 — HEATER PIPING (#7773) — 56 parça

41 45 41 44 48 49 53 47 40 87 49 48 49 47 48 47 69 27 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-693-0	01	1	9902-9904	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-R(75L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-9905	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-0003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	0004-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-618-1	01	1	0004-		●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	9902-0003	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	0004-	●	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-663-0	01	1	9902-	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-569-4	01	1	0004-		●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	02	1	9902-	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	9902-0003	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	0004-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	9902-0003	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	0004-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	9902-0003	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	0004-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	03	1	9902-0003	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	03	1	0004-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-0003	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0004-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9902-0003	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	0004-	●	●
53	NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9902-	●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	03	1	9902-	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9902-0003	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	0004-	●	●

40 87 41 41 49 49 49 47 27 69 43 47 44 47 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-C(55L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-693-0	01	1	9902-9904	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-R(75L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-9905	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-0003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	0004-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-618-1	01	1	0004-		●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	9902-0003	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	0004-	●	●
43	HOSE; WATER,OUTLET,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-570-3	01	1	0004-		●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-663-0	01	1	9902-	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-569-4	01	1	0004-		●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	02	1	9902-	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	9902-0003	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	0004-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	9902-0003	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	0004-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	9902-0003	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	0004-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	03	1	9902-0003	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	03	1	0004-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-0003	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0004-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9902-0003	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	0004-	●	●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	03	1	9902-	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9902-0003	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	0004-	●	●
