4-01 — PROPELLER SHAFT (#77728) — 101 parça

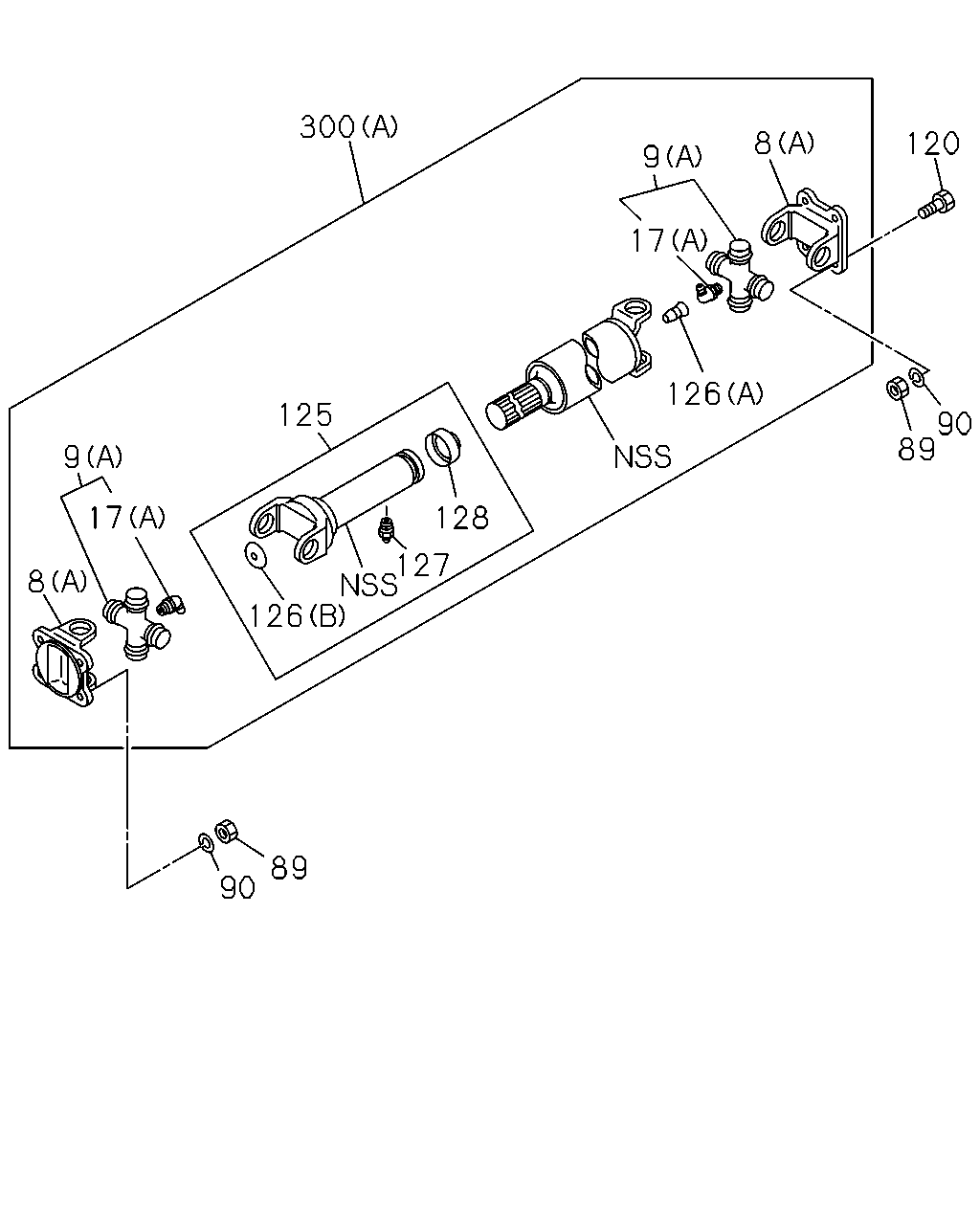

300 8 120 9 17 126 125 90 89 9 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97225-254-0	02	1	0211-0302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97322-663-0	01	1	0211-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97322-663-0	02	1	0211-0302			●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97322-663-0	02	1	0303-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97080-505-0	02	1	0211-0302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97322-749-0	02	1	0211-0302			●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97322-749-0	02	1	0303-0612	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98033-605-1	02	1	0701-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97322-749-0	01	1	0211-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-98033-605-1	01	1	0701-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0211-0512	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0211-0512	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0211-0607	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0211-0610			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0611-			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0211-0610	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	0611-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	08	1	0211-0603			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0604-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0211-0603	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0604-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0211-0610			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0611-			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0211-0610	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	0611-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=191	8-97036-126-1	01	1	0211-0302	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-0	01	1	0211-0302			●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0303-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0211-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0607	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-	●	●	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0211-	●	●	●
300	05.544 SHAFT ASM; PROP,RR REAR WIDE TREAD(V4T) (A) L=988	8-97327-870-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR FRAME-KICK UP<7EW> (A) L=979	8-97308-054-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (A) L=984	8-97308-055-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR (B) L=802	8-97308-048-4	01	1	0211-	●	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050	8-97206-688-0	01	1	0211-0301	●	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1090	8-97364-108-3	01	1	0302-	●	●

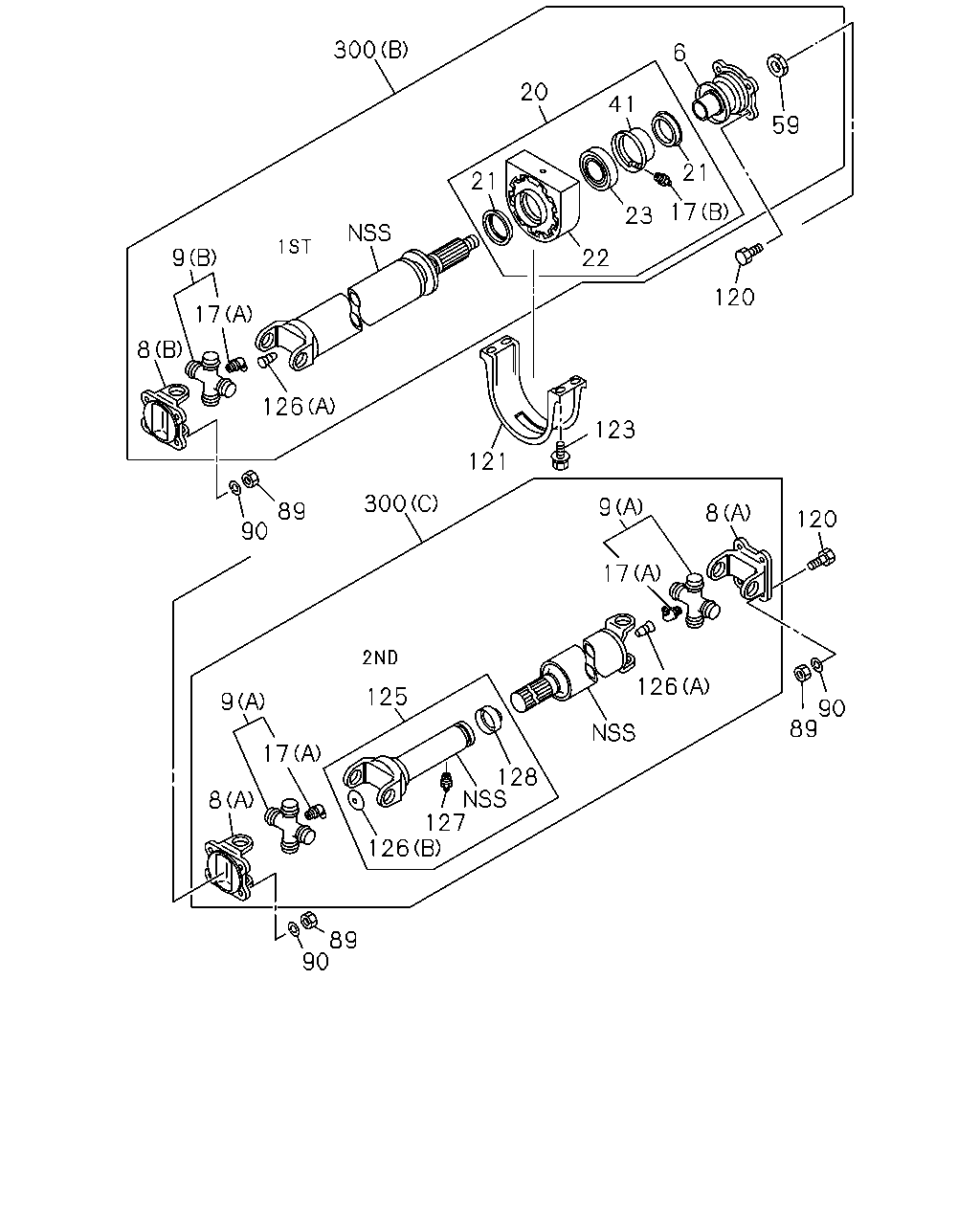

300 6 20 41 59 21 21 17 23 9 22 120 17 8 126 123 121 300 9 89 90 8 120 17 126 125 9 90 89 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0211-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97225-254-0	02	1	0211-0302	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97322-663-0	01	1	0211-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97322-663-0	02	1	0211-0302			●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97322-663-0	02	1	0303-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97080-505-0	02	1	0211-0302	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97322-749-0	02	1	0211-0302			●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97322-749-0	02	1	0303-0612	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98033-605-1	02	1	0701-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97322-749-0	01	1	0211-0612	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-98033-605-1	01	1	0701-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0211-0512	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0211-0512	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0211-0607	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0211-0702	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0703-	●	●
21	05.590 SEAL; OIL,CENTER BRG 05.601 ID=49	5-09625-067-1	02	1	0211-	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	5-37516-005-2	01	1	0211-0612	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	8-98020-875-0	01	1	0701-	●	●
23	05.600 BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	0211-	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT	5-37512-004-0	01	1	0211-0612	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT	8-98020-795-0	01	1	0701-	●	●
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0211-0303	●	●
59	05.586 NUT; RET TO SUPPORT 04.412 M27 H=25	8-97253-126-0	01	1	0304-0612	●	●
59	05.586 NUT; RET TO SUPPORT 04.525 M27 H=25	8-97360-410-0	01	1	0701-	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	08	1	0211-0610			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0611-			●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0211-0610	●	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	0611-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	08	1	0211-0603			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0604-			●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0211-0603	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0604-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	04	1	0211-0610			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0611-			●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0211-0610	●	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	0611-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0211-	●	●
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0211-0512	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=191	8-97036-126-1	01	1	0211-0302	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-0	01	1	0211-0302			●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0303-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0211-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0211-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0607	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-	●	●	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0211-	●	●	●
300	05.544 SHAFT ASM; PROP,RR REAR WIDE TREAD(V4T) (A) L=988	8-97327-870-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR FRAME-KICK UP<7EW> (A) L=979	8-97308-054-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (A) L=984	8-97308-055-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR (B) L=802	8-97308-048-4	01	1	0211-	●	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050	8-97206-688-0	01	1	0211-0301	●	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1090	8-97364-108-3	01	1	0302-	●	●
