Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#77727) — 188 parça

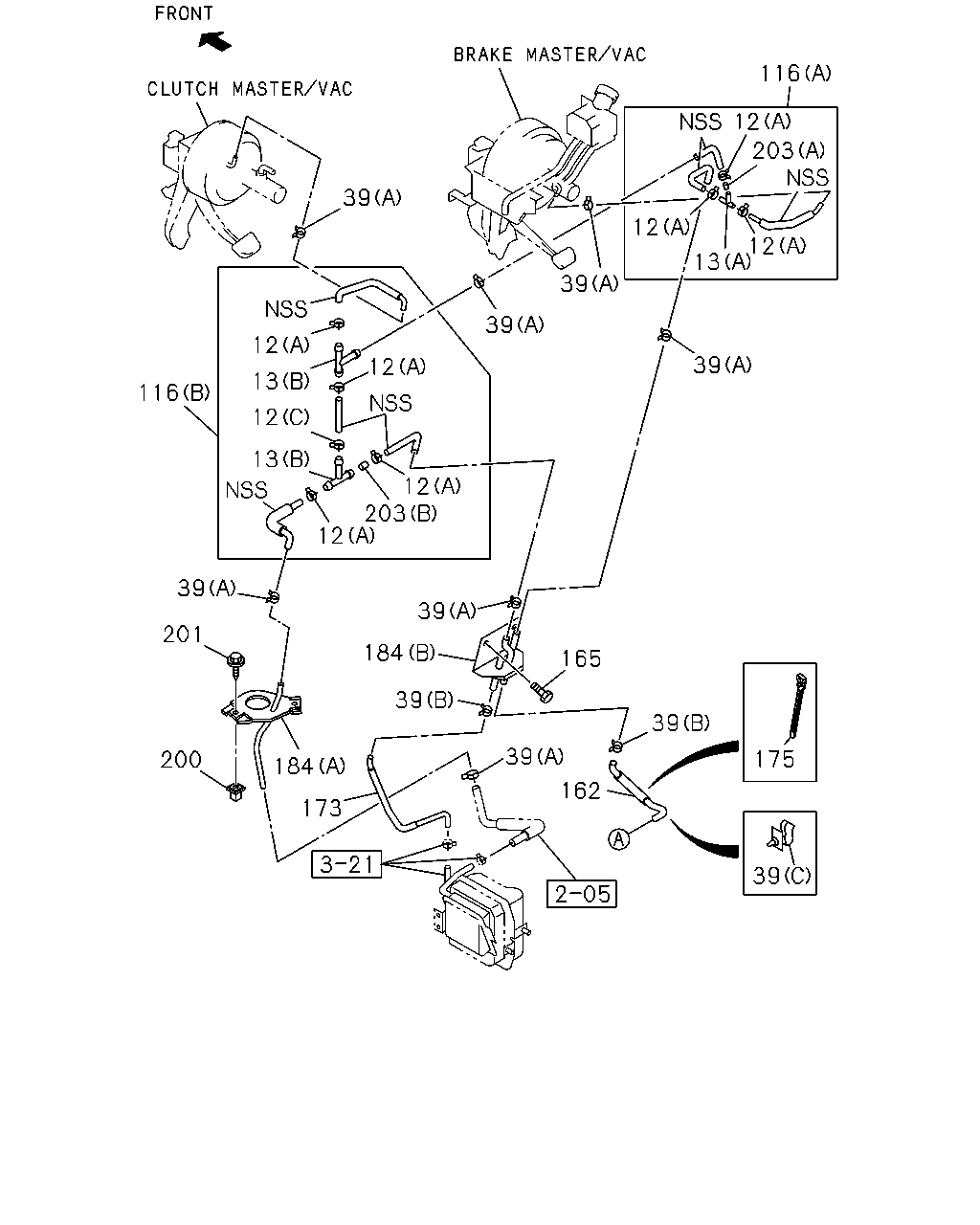

116 12 203 13 12 39 12 39 39 184 165 39 39 39 175 162 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	04	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> (C) ID=15.5	8-94367-944-0	01	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911		●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.931 (B) 3WAY	8-94167-478-0	02	1	0211-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=16	8-94238-568-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=16	8-94238-568-0	03	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97178-726-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0211-	●	●	●
162	04.931 HOSE; VAC FRAME-KICK UP<7EW>	8-97102-999-0	01	1	0211-	●
162	04.931 HOSE; VAC EXC. FRAME-KICK UP<7EW>	8-97078-785-0	01	1	0211-	●
162	04.931 HOSE; VAC	8-97078-785-0	01	1	0211-		●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0211-	●	●	●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH<S2T> (A)	8-97094-011-3	01	1	0211-0501	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH<S2T> (A)	8-98009-402-1	01	1	0502-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97094-014-4	01	1	0211-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94386-540-0	01	1	0211-0412	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94104-021-0	01	1	0501-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0501-	●	●	●

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH<S2T> (A)	8-97094-011-3	01	1	0211-0501	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH<S2T> (A)	8-98009-402-1	01	1	0502-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97094-014-4	01	1	0211-	●	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0211-	●	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0211-0604	●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-	●	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH<S2T> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0211-	●	●	●

116 12 203 39 12 12 13 39 39 12 39 12 13 116 12 13 12 203 12 39 39 201 184 165 39 39 39 175 200 184 162 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	04	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> (C) ID=15.5	8-94367-944-0	01	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911		●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.931 (B) 3WAY	8-94167-478-0	02	1	0211-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=16	8-94238-568-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=16	8-94238-568-0	03	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97178-726-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97314-597-1	01	1	0211-	●	●	●
162	04.931 HOSE; VAC FRAME-KICK UP<7EW>	8-97102-999-0	01	1	0211-	●
162	04.931 HOSE; VAC EXC. FRAME-KICK UP<7EW>	8-97078-785-0	01	1	0211-	●
162	04.931 HOSE; VAC	8-97078-785-0	01	1	0211-		●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0211-	●	●	●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH<S2T> (A)	8-97094-011-3	01	1	0211-0501	●	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH<S2T> (A)	8-98009-402-1	01	1	0502-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97094-014-4	01	1	0211-	●	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0211-	●	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0211-0604	●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94386-540-0	01	1	0211-0412	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94104-021-0	01	1	0501-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0501-	●	●	●

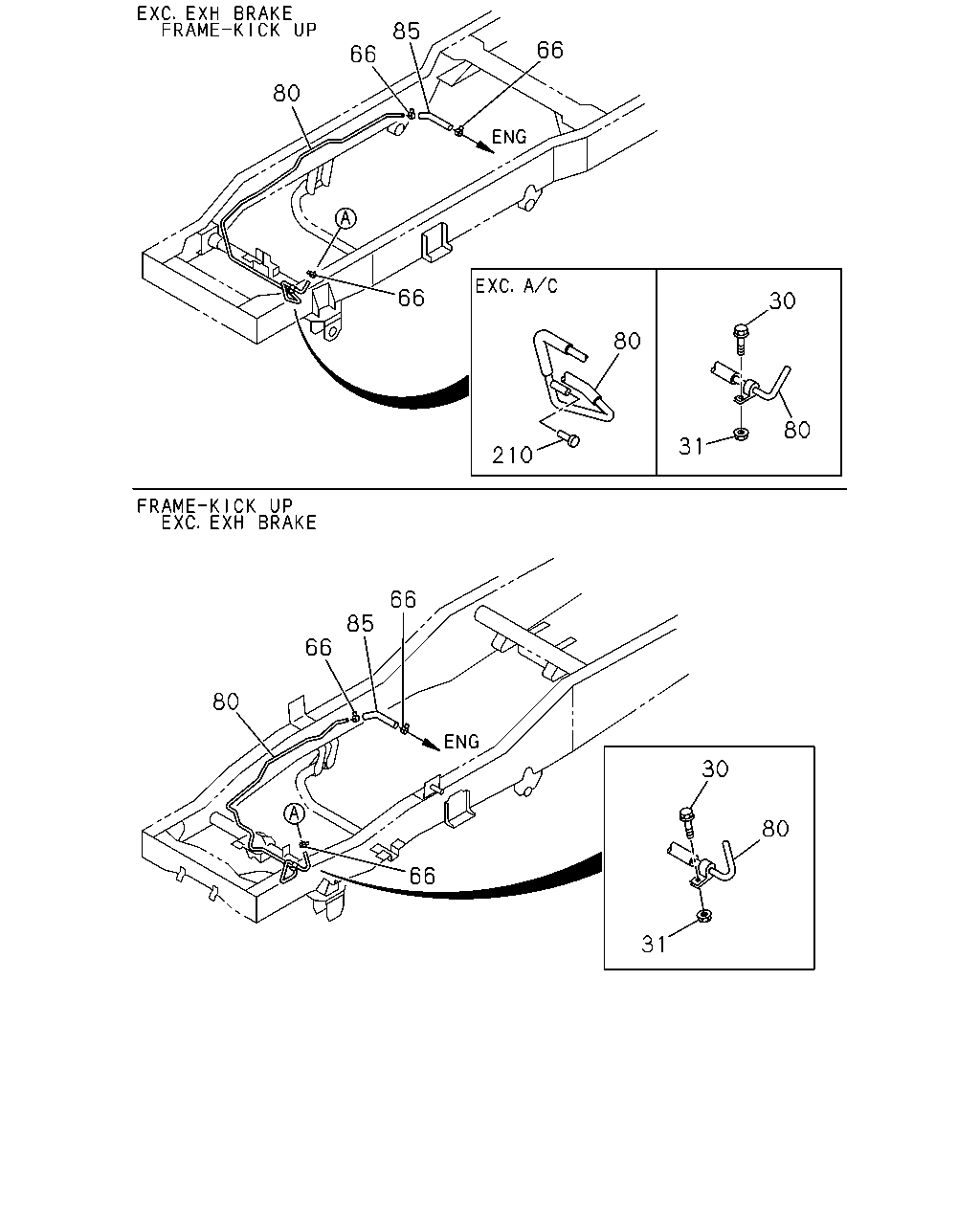

85 66 66 80 66 30 80 80 31 210 66 85 66 80 30 80 66 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97325-986-1	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW>	8-97325-984-0	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-984-0	01	1	0211-		●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8>	8-97325-985-1	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW>	8-97325-982-0	01	1	0211-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE FRAME-KICK UP<7EW>	8-97179-983-2	01	1	0211-	●
85	04.931 HOSE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW>	8-97315-080-1	01	1	0211-	●
85	04.931 HOSE; VAC,ENG SIDE	8-97315-080-1	01	1	0211-		●	●
210	04.931 RUBBER; CAP EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>	8-97108-680-0	01	1	0211-	●	●	●

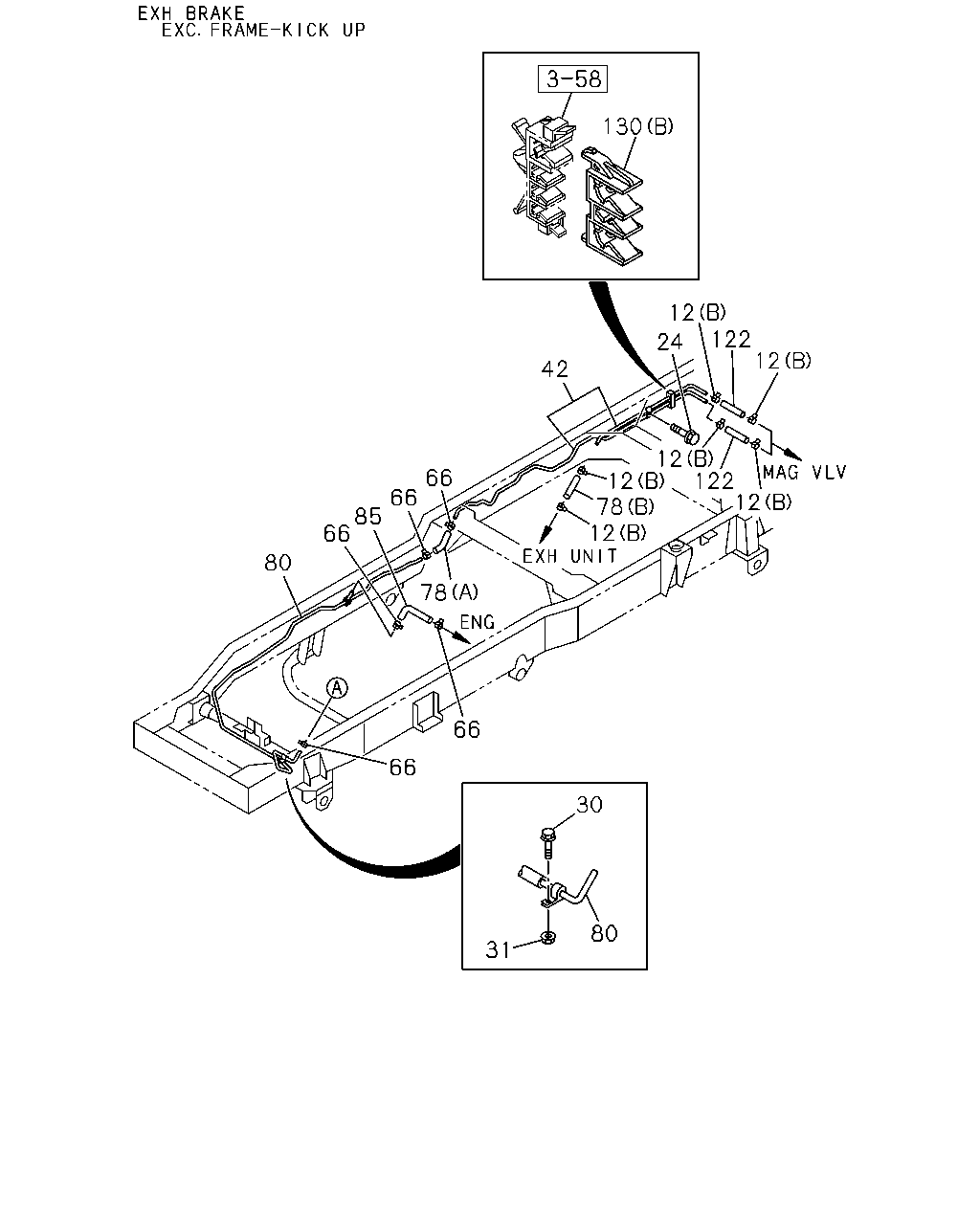

130 12 122 12 24 42 12 12 122 12 78 12 66 66 85 66 80 78 66 66 30 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	04	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> (C) ID=15.5	8-94367-944-0	01	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911		●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512		●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW>	8-97325-999-1	01	1	0211-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0211-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) L=90 SERVICED BY L=230 L=90 L=230	8-94402-302-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-		●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97325-986-1	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW>	8-97325-984-0	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-984-0	01	1	0211-		●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8>	8-97325-985-1	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW>	8-97325-982-0	01	1	0211-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE FRAME-KICK UP<7EW>	8-97179-983-2	01	1	0211-	●
85	04.931 HOSE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW>	8-97315-080-1	01	1	0211-	●
85	04.931 HOSE; VAC,ENG SIDE	8-97315-080-1	01	1	0211-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0211-		●	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) ID=11	8-94101-779-0	01	1	0211-	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-		●	●

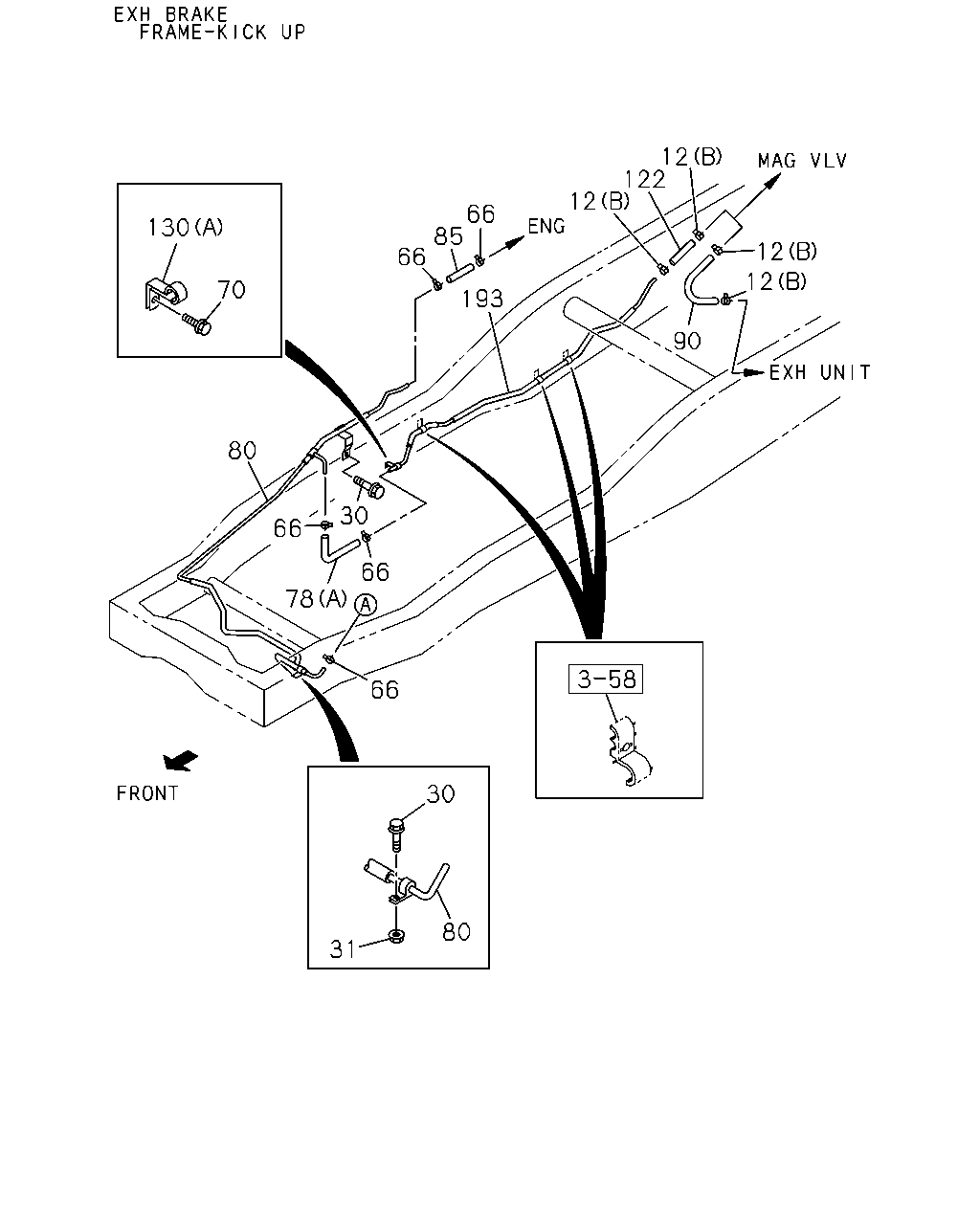

12 122 12 66 85 66 130 12 12 70 193 90 80 30 66 66 78 66 30 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	04	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> (C) ID=15.5	8-94367-944-0	01	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911		●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-		●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
70	04.930 BOLT; CLIP FIX EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●
70	04.930 BOLT; CLIP FIX EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) L=90 SERVICED BY L=230 L=90 L=230	8-94402-302-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0211-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-		●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97325-986-1	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW>	8-97325-984-0	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-984-0	01	1	0211-		●	●
80	04.930 PIPE; VAC,ENG SIDE FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8>	8-97325-985-1	01	1	0211-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW>	8-97325-982-0	01	1	0211-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE FRAME-KICK UP<7EW>	8-97179-983-2	01	1	0211-	●
85	04.931 HOSE; VAC,ENG SIDE EXC. FRAME-KICK UP<7EW>	8-97315-080-1	01	1	0211-	●
85	04.931 HOSE; VAC,ENG SIDE	8-97315-080-1	01	1	0211-		●	●
90	04.931 HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.630 L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.630 L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0211-		●	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A) ID=11	8-94101-779-0	01	1	0211-	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-		●	●
193	04.685 PIPE; VAC,3 WAY TO MAG VLV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97326-002-0	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
