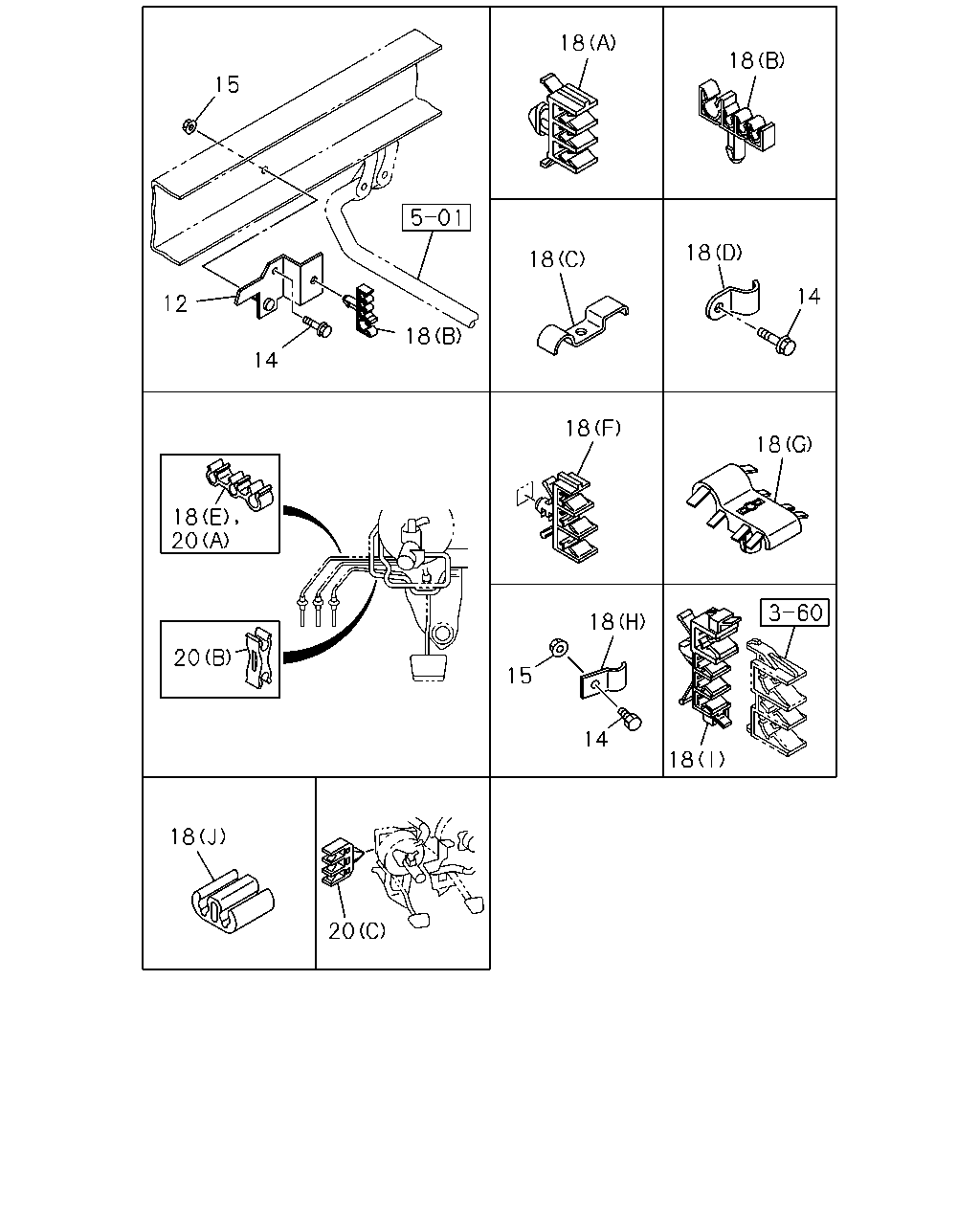

3-58 — FIXING PARTS; OIL PIPING (#77726) — 51 parça

18 18 15 18 18 14 12 18 14 18 18 18 20 18 20 15 14 18 18 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.686 BRACKET; OIL PIPE EXC. FRAME-KICK UP<7EW>	8-97349-917-1	01	1	0211-	●
12	04.686 BRACKET; OIL PIPE	8-97349-917-1	01	1	0211-		●	●
14	04.686 BOLT; CLIP,OIL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0211-0512	●
14	04.686 BOLT; CLIP,OIL PIPE FRAME-KICK UP<7EW> 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-	●
14	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
14	04.686 BOLT; CLIP,OIL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0512		●	●
14	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME-KICK UP<7EW> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
14	04.686 BOLT; CLIP,OIL PIPE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●	●
15	04.686 NUT; CLIP,OIL PIPE EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
15	04.686 NUT; CLIP,OIL PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
15	04.686 NUT; CLIP,OIL PIPE EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (B) ID=10 & 4.76X3	8-97168-819-0	01	1	0211-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (B) ID=10 & 4.76X3	8-97168-819-0	01	1	0211-	●
18	04.686 CLIP; BRK PIPE BRK WHL LK CONT DSPV<JL8> (B) ID=10 & 4.76X3	8-97168-819-0	01	1	0211-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (C)	8-97038-627-0	01	1	0211-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (G)	8-97074-319-1	01	1	0211-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> (G)	8-97074-319-1	02	1	0211-	●
18	04.686 CLIP; BRK PIPE FRAME-KICK UP<7EW> 00.785 (D) B=14 L=16	9-09916-996-0	02	1	0211-	●
18	04.686 CLIP; BRK PIPE (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE BRK WHL LK CONT DSPV<JL8> (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-	●
18	04.686 CLIP; BRK PIPE (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-		●	●
18	04.686 CLIP; BRK PIPE (E) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-			●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (H) B=18 L=20	1-09700-372-0	02	1	0211-	●
18	04.686 CLIP; BRK PIPE (H) B=18 L=20	1-09700-372-0	02	1	0211-		●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0211-	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0211-		●	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-1	03	1	0211-		●	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-0	02	1	0211-0211	●	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (I) ID=10 & 4.76X3	8-97326-158-1	02	1	0212-	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-1	02	1	0212-		●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0211-0211	●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0211-0211		●	●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0212-	●	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (I) ID=10 & 4.76X3	8-97326-158-0	01	1	0211-0301	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (I) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-	●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (I) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-		●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (I) ID=10 & 4.76X3	8-97326-158-0	05	1	0211-0301	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-0	05	1	0211-0301		●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (I) ID=10 & 4.76X3	8-97326-158-1	05	1	0302-	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-1	05	1	0302-		●	●
18	04.686 CLIP; BRK PIPE (I) ID=10 & 4.76X3	8-97326-158-0	04	1	0211-0301			●
18	04.686 CLIP; BRK PIPE EXC. FRAME-KICK UP<7EW> (J) ID=4.8X2	8-94389-060-0	01	1	0302-	●
18	04.686 CLIP; BRK PIPE (J) ID=4.8X2	8-94389-060-0	01	1	0302-		●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0211-	●	●	●
