Isuzu WW
▶
TRUCKS
▶
NKR
▶
51278 - NKR MIDDLE EAST
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

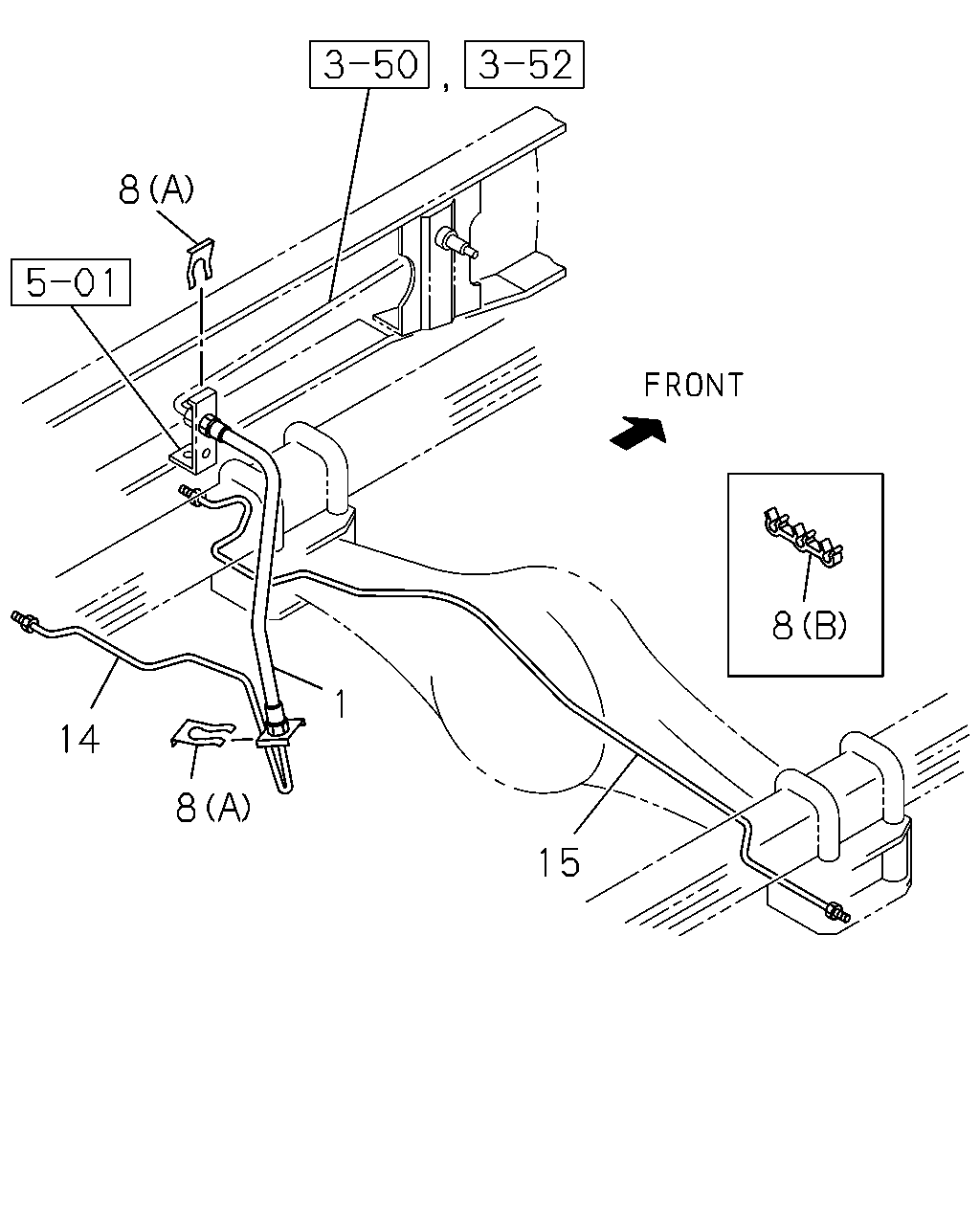

3-55 — BRAKE PIPING; OIL,REAR
(#77725) — 12 parça
Tümü
A - NKC6SC
B - NKC6SF
C - NKC6WF
8
8
1
14
8
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.680 HOSE; FLEX,RR BRK
L=370
8-97035-574-0
01
1
0211-
●
●
●
8
04.686 CLIP; RR BRK
(B)
8-97076-471-0
01
1
0211-
●
●
●
8
04.686 CLIP; RR BRK
04.681 (A)
8-94137-662-0
02
1
0211-0610
●
●
●
8
04.686 CLIP; RR BRK
(A)
8-97360-054-0
02
1
0611-
●
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T)
8-97070-590-0
01
1
0211-
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
8-97070-590-0
01
1
0211-
●
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T)
8-97258-297-0
01
1
0211-0805
●
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T)
8-98021-867-0
01
1
0806-
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR WIDE TREAD(V4T)
8-97034-530-0
01
1
0211-
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
8-97034-530-0
01
1
0211-
●
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T)
8-97034-531-0
01
1
0211-0805
●
15
04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T)
8-98021-868-0
01
1
0806-
●
