◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#77724) — 45 parça

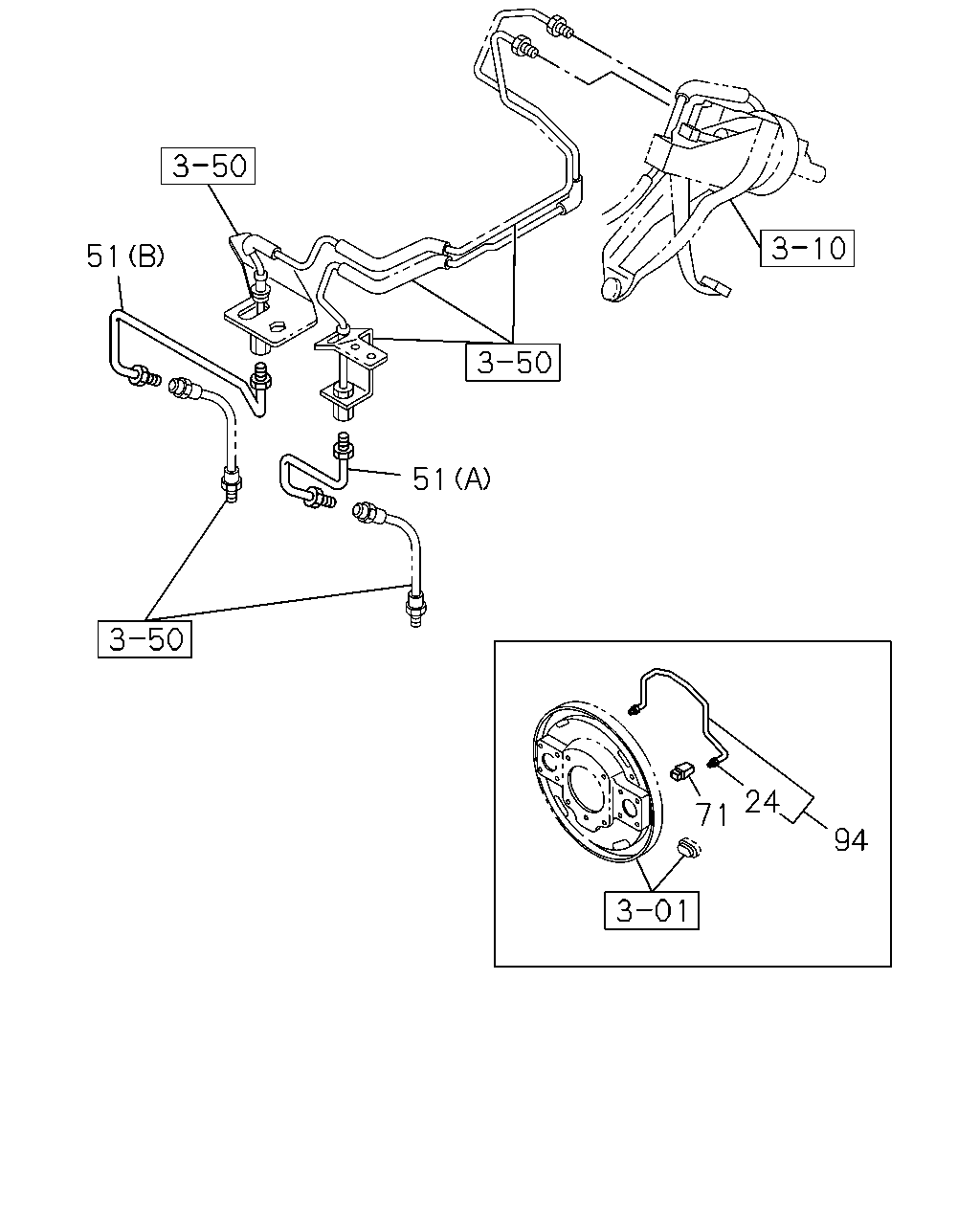

çizim 135608
51 51 24 71 94
BalonParca AdiParca NoAdetTipApplied Date A B C
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0211-0607 ● ● ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608- ● ● ●
51 04.685 PIPE; BRK
(A) REAR 		8-97070-296-2 01 1 0211- ● ● ●
51 04.685 PIPE; BRK
(B) FRONT 		5-47411-763-0 01 1 0211- ● ● ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0211- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0211- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0211- ● ● ●
çizim 135611
13
BalonParca AdiParca NoAdetTipApplied Date A B C
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8> 		8-97325-936-0 01 1 0211- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW> 		8-97325-934-0 01 1 0211- ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97325-935-0 01 1 0211-1007 ● ●
13 04.685 PIPE; OIL,UNION TO UNION 8-98167-275-0 01 1 1008- ● ●
çizim 135613
9 1 99 9 1 96 96 29 28 27 27 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0211- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610 ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0211-0610 ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ● ●
27 04.686 UNION; BRK PIPE
EXC. FRAME-KICK UP<7EW> (B) 		8-97287-444-1 01 1 0211-1007 ●
27 04.686 UNION; BRK PIPE
(B) 		8-97287-444-1 01 1 0211-1007 ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0211-0607 ●
27 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 01 1 0608- ● ● ●
27 04.686 UNION; BRK PIPE
FRAME-KICK UP<7EW> (A) M10 STRAIGHT 		0-92107-005-0 01 1 0608- ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ●
28 04.686 BOLT; UNION CLIP
FRAME-KICK UP<7EW> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 02.343 ID=16 H=24 L=20 		9-09527-015-0 01 1 0211-0606 ●
29 04.686 CLIP; UNION
FRAME-KICK UP<7EW> 03.162 ID=16 H=24 L=20 		0-95207-315-0 01 1 0607- ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ●
31 04.686 NUT; UNION CLIP
EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ●
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-1007 ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-917-0 01 1 0211- ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME-KICK UP<7EW> 		8-97325-915-1 01 1 0211-1007 ●
96 04.686 PIPE ASM; 6 WAY 8-97325-915-1 01 1 0211-1007 ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME-KICK UP<7EW> 		8-98167-272-0 01 1 1008- ●
96 04.686 PIPE ASM; 6 WAY 8-98167-272-0 01 1 1008- ● ●
96 04.686 PIPE ASM; 6 WAY
EXC. FRAME-KICK UP<7EW> 		8-97325-919-1 01 1 0211- ●
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0211- ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97325-921-0 01 1 0211-0304 ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 		8-97367-554-0 01 1 0305- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 		8-97325-932-1 01 1 0211- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW> 		8-97325-929-1 01 1 0211-0301 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97325-929-1 01 1 0211-0301 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW> 		8-97363-974-0 01 1 0302-1007 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97363-974-0 01 1 0302-1007 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW> 		8-97363-966-0 01 1 1008- ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-97363-966-0 01 1 1008- ● ●
