2-85 — POWER TAKE OFF CONTROL (#77714) — 96 parça

70 15 71 79 245 256 79 121 18 19 83 16 21 222 256 192 24 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0211-
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0211-
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0211-
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-
21	04.439 WASHER; PL,CONT LEVER 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0211-0501
21	04.439 WASHER; PL,CONT LEVER 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0502-0605
21	04.439 WASHER; PL,CONT LEVER 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-
24	04.439 CABLE; PTO CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-0	01	1	0211-0501
24	04.439 CABLE; PTO CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0502-
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	0211-
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0211-
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0211-
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0211-
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0211-
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	0211-0604
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 04.008 ID=10	0-91805-510-0	01	1	0605-
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0211-0512
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0211-
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0211-0604
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0211-
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0211-

24 195 173 172 172 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-0	01	1	0211-0501
24	04.439 CABLE; PTO CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0502-
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0407
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0408-0512
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
173	04.439 NUT; BRKT SHORT(NK***C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
173	04.439 NUT; BRKT SGL CAB&MIDDLE(NK**SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602
173	04.439 NUT; BRKT SHORT(NK***C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
173	04.439 NUT; BRKT SGL CAB&MIDDLE(NK**SF) PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
195	04.439 BRACKET; CONT CABLE SHORT(NK***C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0211-
195	04.439 BRACKET; CONT CABLE SGL CAB&MIDDLE(NK**SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0211-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	0211-0407
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97085-695-3	01	1	0408-
195	04.439 BRACKET; CONT CABLE SHORT(NK***C) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	0211-0407
195	04.439 BRACKET; CONT CABLE SHORT(NK***C) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	0408-

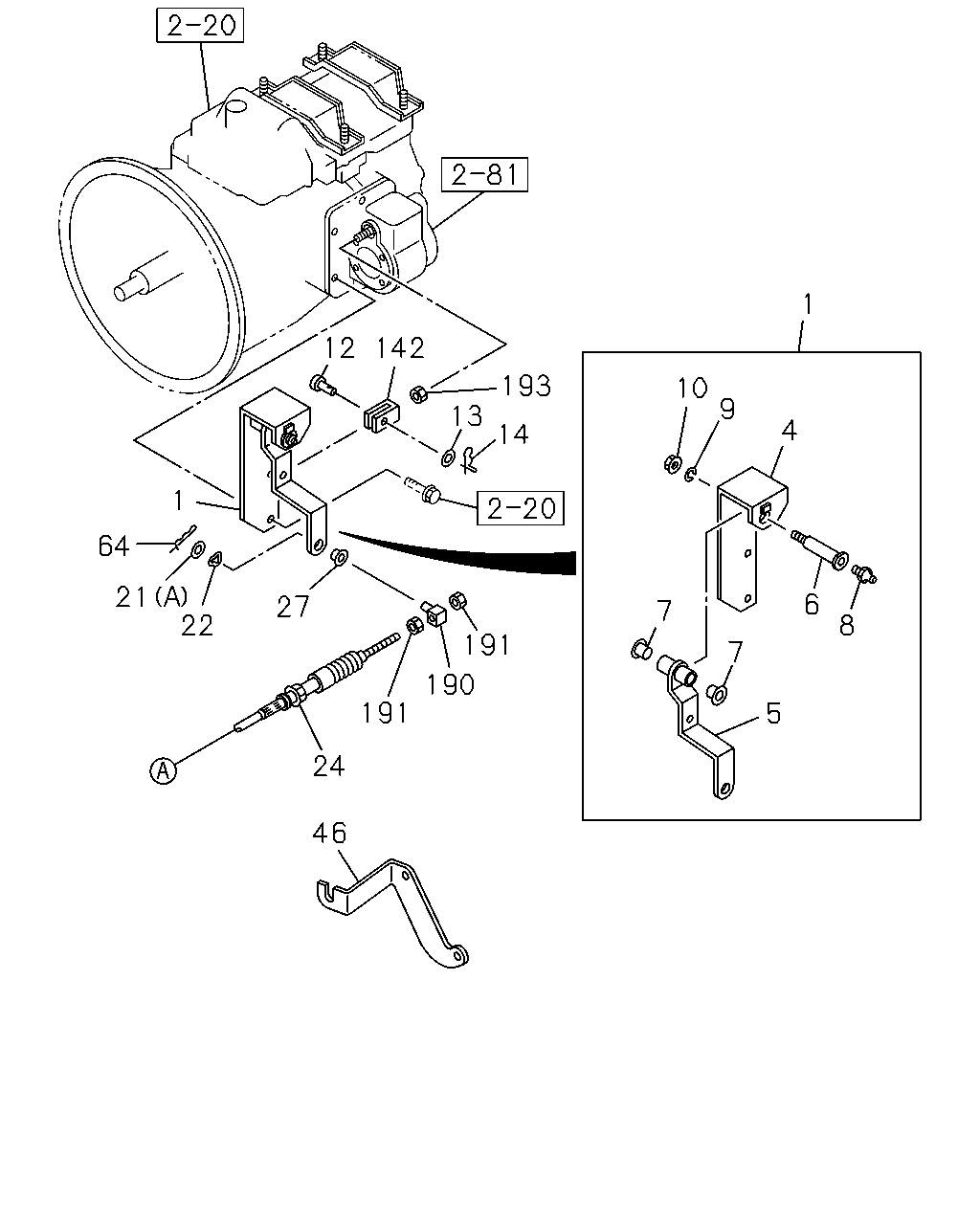

1 12 142 193 10 9 13 4 14 1 64 21 22 6 27 7 8 191 7 190 191 5 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0211-0501
1	04.439 LEVER ASM; PTO & DUMP CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0502-
4	04.439 BRACKET; PTO CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0211-0501
4	04.439 BRACKET; PTO CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0502-
5	04.439 LEVER; PTO SHIFT CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0211-0501
5	04.439 LEVER; PTO SHIFT CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0502-
6	04.439 SHAFT; PTO CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0211-0501
6	04.439 SHAFT; PTO CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0502-
7	04.439 BUSHING; LEVER,PTO 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0211-0501
7	04.439 BUSHING; LEVER,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0502-
8	04.439 NIPPLE; GREASE 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0501
8	04.439 NIPPLE; GREASE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0502-0607
8	04.439 NIPPLE; GREASE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-
9	04.439 WASHER; LK,SHAFT,PTO 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0211-0501
9	04.439 WASHER; LK,SHAFT,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0502-0603
9	04.439 WASHER; LK,SHAFT,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0604-
10	04.439 NUT; SHAFT,PTO 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0211-0501
10	04.439 NUT; SHAFT,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0502-0512
10	04.439 NUT; SHAFT,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0601-
12	04.439 JOINT; PIN,YOKE 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0211-0501
12	04.439 JOINT; PIN,YOKE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0502-0610
12	04.439 JOINT; PIN,YOKE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-
13	04.439 WASHER; PL,YOKE 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0211-0501
13	04.439 WASHER; PL,YOKE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0502-0605
13	04.439 WASHER; PL,YOKE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-
14	04.439 PIN; SPLIT,YOKE 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0211-0501
14	04.439 PIN; SPLIT,YOKE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0502-0805
14	04.439 PIN; SPLIT,YOKE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0806-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-
21	04.439 WASHER; PL,CONT LEVER 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0211-0501
21	04.439 WASHER; PL,CONT LEVER 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0502-0605
21	04.439 WASHER; PL,CONT LEVER 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-
22	04.439 WASHER; LK,LEVER 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0211-0501
22	04.439 WASHER; LK,LEVER 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0502-
24	04.439 CABLE; PTO CONT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-0	01	1	0211-0501
24	04.439 CABLE; PTO CONT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-942-1	01	1	0502-
27	04.439 BUSHING; LEVER,PTO 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0211-0501
27	04.439 BUSHING; LEVER,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0502-
46	04.439 BRACKET; PTO,TRANS SIDE 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0211-0501
46	04.439 BRACKET; PTO,TRANS SIDE 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0502-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0211-
142	04.439 CLEVIS; CONT BOX 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0211-0501
142	04.439 CLEVIS; CONT BOX 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0502-
190	04.439 BOSS; LEVER,PTO 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0211-0501
190	04.439 BOSS; LEVER,PTO 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0502-
191	04.439 NUT; BOSS 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0211-0501
191	04.439 NUT; BOSS 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0502-0512
191	04.439 NUT; BOSS 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0601-
193	04.439 NUT 4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0211-0501
193	04.439 NUT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0502-0512
193	04.439 NUT 4HF1-N ENG(RJZ) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-
