◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#77711) — 90 parça
çizim 135578
6 300 201 300 6 279 52 303 6 203 279 201
BalonParca AdiParca NoAdetTipApplied Date
6 04.047 CLIP; CABLE
00.854 (F) ID=22.2 		1-09701-209-1 01 1 0211-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211-
6 04.047 CLIP; CABLE
4HF1-S ENG(RLS) (D) 		8-97036-331-1 01 1 0211-0501
6 04.047 CLIP; CABLE
4HF1-N ENG(RJZ) (D) 		8-97036-331-1 01 1 0502-
6 04.047 CLIP; CABLE
4HF1-S ENG(RLS) (E) 		8-97039-295-0 01 1 0211-0501
6 04.047 CLIP; CABLE
4HF1-N ENG(RJZ) (E) 		8-97039-295-0 01 1 0502-
6 04.047 CLIP; CABLE
(C) 		8-97137-589-0 01 1 0211-
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0211-
52 04.047 NUT; BRKT
SHORT(NK***C) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0602
52 04.047 NUT; BRKT
SGL CAB&MIDDLE(NK**SF) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0602
52 04.047 NUT; BRKT
SHORT(NK***C) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-
52 04.047 NUT; BRKT
SGL CAB&MIDDLE(NK**SF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-
201 04.032 BOLT; BRKT
SGL CAB(NK**S*) 03.405 (B) M10X25 FLANGE 		0-28681-025-0 02 1 0211-0512
201 04.032 BOLT; BRKT
SGL CAB(NK**S*) 00.029 (B) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
201 04.032 BOLT; BRKT
4HF1-S ENG(RLS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501
201 04.032 BOLT; BRKT
4HF1-N ENG(RJZ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512
201 04.032 BOLT; BRKT
4HF1-N ENG(RJZ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
203 04.032 NUT; BRKT FIX
4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501
203 04.032 NUT; BRKT FIX
4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602
203 04.032 NUT; BRKT FIX
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
279 04.047 BRACKET; CABLE TO FRAME
SHORT(NK***C) 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (B) 		8-97106-662-0 01 1 0211-0501
279 04.047 BRACKET; CABLE TO FRAME
SHORT(NK***C) 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) 		8-97106-662-0 01 1 0502-
279 04.047 BRACKET; CABLE TO FRAME
4HF1-S ENG(RLS) (A) 		8-97028-496-1 01 1 0211-0501
279 04.047 BRACKET; CABLE TO FRAME
4HF1-N ENG(RJZ) (A) 		8-97028-496-1 01 1 0502-
279 04.047 BRACKET; CABLE TO FRAME
SHORT(NK***C) 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (B) 		8-97101-709-1 01 1 0211-0501
279 04.047 BRACKET; CABLE TO FRAME
MIDDLE(NK***F) 4HF1-S ENG(RLS) (B) 		8-97101-709-1 01 1 0211-0501
279 04.047 BRACKET; CABLE TO FRAME
SHORT(NK***C) 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) 		8-97101-709-1 01 1 0502-
279 04.047 BRACKET; CABLE TO FRAME
MIDDLE(NK***F) 4HF1-N ENG(RJZ) (B) 		8-97101-709-1 01 1 0502-
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0211-0512
300 00.854 BOLT; CLIP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-
300 00.854 BOLT; CLIP
4HF1-S ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501
300 00.854 BOLT; CLIP
4HF1-N ENG(RJZ) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512
300 00.854 BOLT; CLIP
4HF1-N ENG(RJZ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606
303 00.855 NUT; CLIP
4HF1-N ENG(RJZ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-

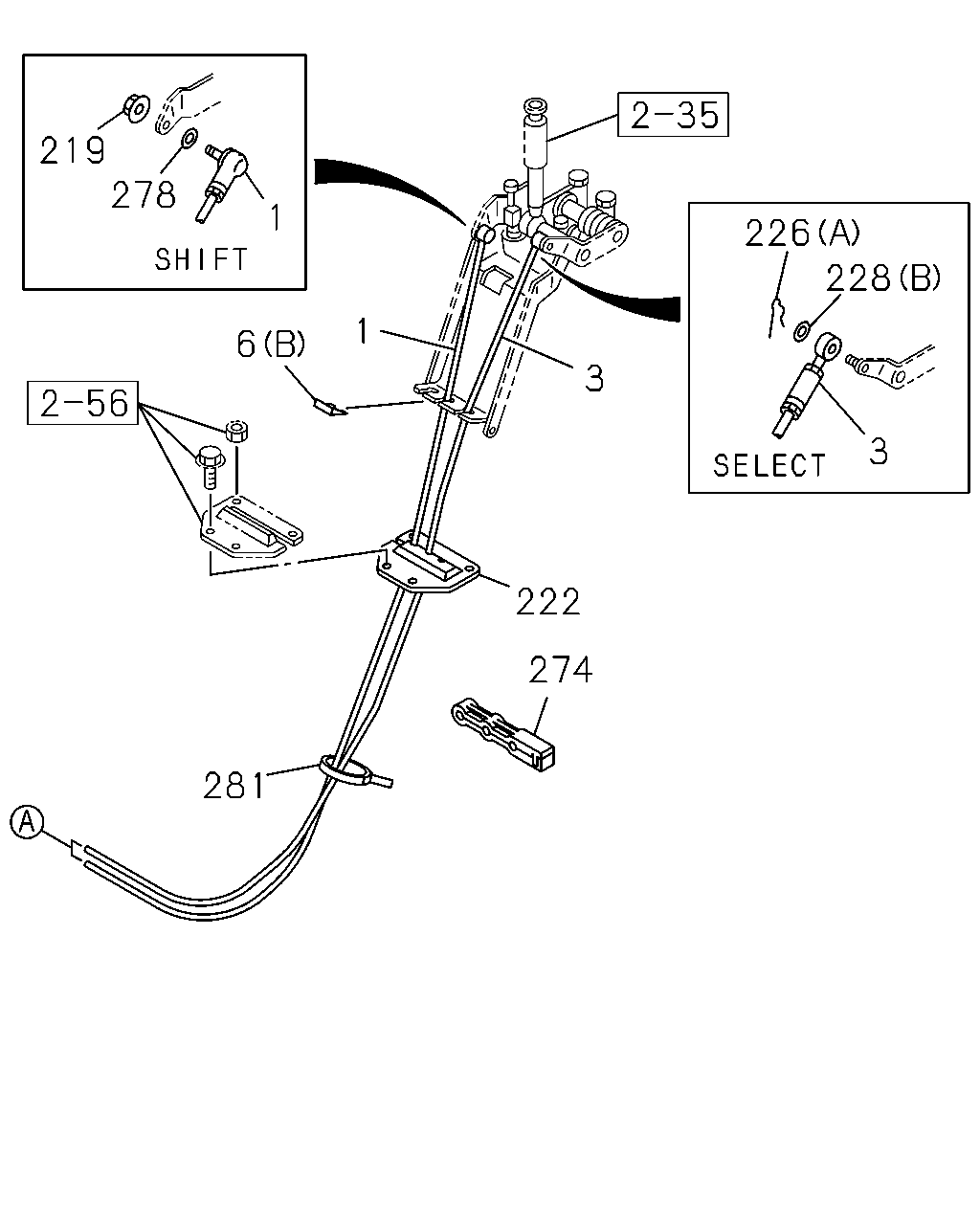

çizim 135587
1 278 219 6 1 3 222 274 281 3 228 226
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1-S ENG(RLS) L=2714 		8-97351-823-1 01 1 0211-0501
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1-N ENG(RJZ) L=2714 		8-97351-823-1 01 1 0502-0911
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1-N ENG(RJZ) L=2714 		8-98146-822-0 01 1 0912-
3 00.852 CABLE; SELECT,TRANS CONT
4HF1-S ENG(RLS) L=2748 		8-97351-824-0 01 1 0211-0501
3 00.852 CABLE; SELECT,TRANS CONT
4HF1-N ENG(RJZ) L=2748 		8-97351-824-0 01 1 0502-
6 04.047 CLIP; CABLE
00.854 (F) ID=22.2 		1-09701-209-1 01 1 0211-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211-
6 04.047 CLIP; CABLE
4HF1-S ENG(RLS) (D) 		8-97036-331-1 01 1 0211-0501
6 04.047 CLIP; CABLE
4HF1-N ENG(RJZ) (D) 		8-97036-331-1 01 1 0502-
6 04.047 CLIP; CABLE
4HF1-S ENG(RLS) (E) 		8-97039-295-0 01 1 0211-0501
6 04.047 CLIP; CABLE
4HF1-N ENG(RJZ) (E) 		8-97039-295-0 01 1 0502-
6 04.047 CLIP; CABLE
(C) 		8-97137-589-0 01 1 0211-
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0211-
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0211-
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 0211-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0605
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 0211-
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0211-0604
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605-
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0211-
281 04.042 CLIP; BAND
DBL CAB(NK**W*) 4HF1-S ENG(RLS) 03.008 L=330 		5-09709-118-0 01 1 0211-0501
281 04.042 CLIP; BAND
DBL CAB(NK**W*) 4HF1-N ENG(RJZ) 03.008 L=330 		5-09709-118-0 01 1 0502-

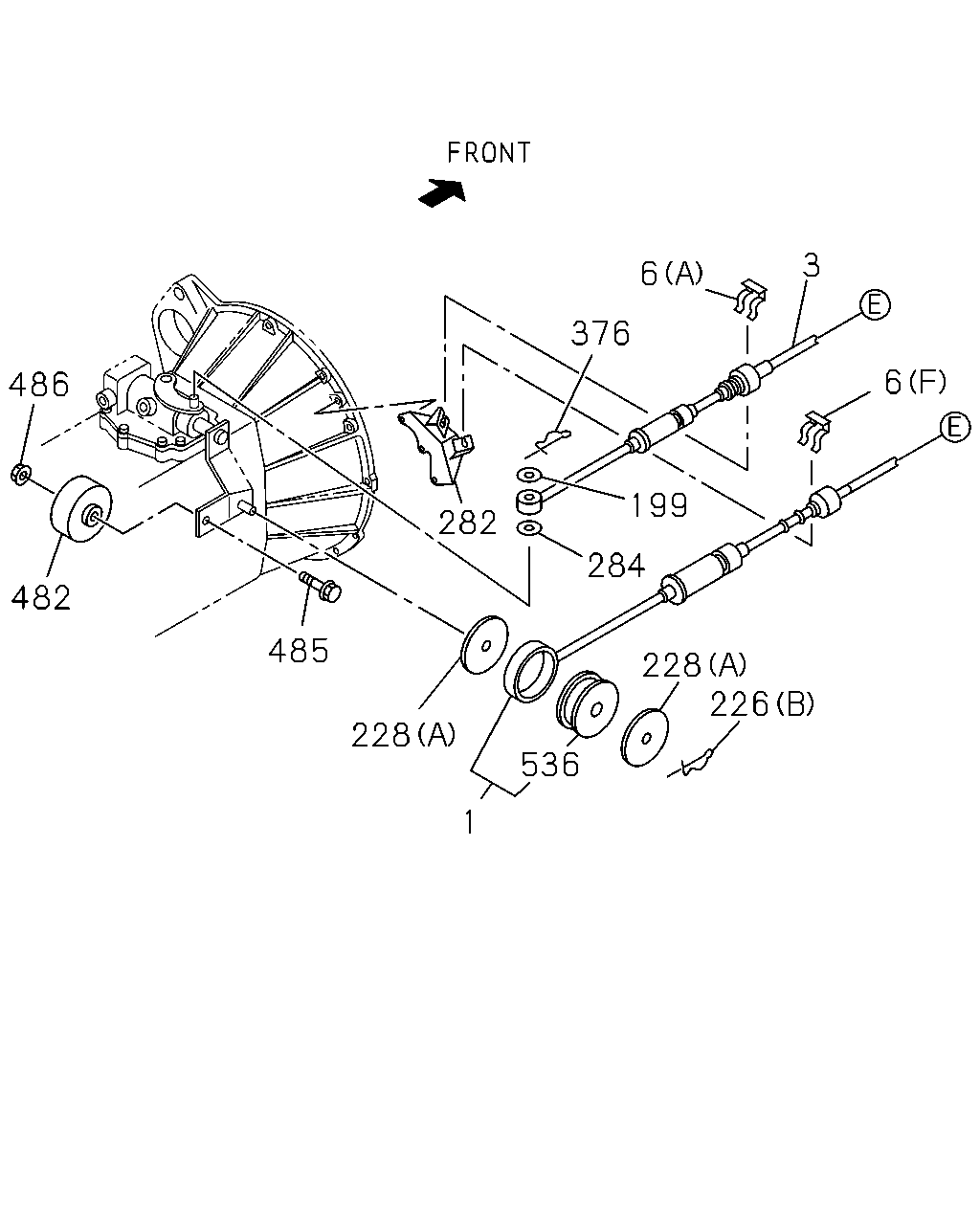

çizim 135588
3 6 376 6 486 199 282 284 482 485 228 226 228 536 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1-S ENG(RLS) L=2714 		8-97351-823-1 01 1 0211-0501
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1-N ENG(RJZ) L=2714 		8-97351-823-1 01 1 0502-0911
1 00.854 CABLE; SHIFT,TRANS CONT
4HF1-N ENG(RJZ) L=2714 		8-98146-822-0 01 1 0912-
3 00.852 CABLE; SELECT,TRANS CONT
4HF1-S ENG(RLS) L=2748 		8-97351-824-0 01 1 0211-0501
3 00.852 CABLE; SELECT,TRANS CONT
4HF1-N ENG(RJZ) L=2748 		8-97351-824-0 01 1 0502-
6 04.047 CLIP; CABLE
00.854 (F) ID=22.2 		1-09701-209-1 01 1 0211-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0211-
6 04.047 CLIP; CABLE
4HF1-S ENG(RLS) (D) 		8-97036-331-1 01 1 0211-0501
6 04.047 CLIP; CABLE
4HF1-N ENG(RJZ) (D) 		8-97036-331-1 01 1 0502-
6 04.047 CLIP; CABLE
4HF1-S ENG(RLS) (E) 		8-97039-295-0 01 1 0211-0501
6 04.047 CLIP; CABLE
4HF1-N ENG(RJZ) (E) 		8-97039-295-0 01 1 0502-
6 04.047 CLIP; CABLE
(C) 		8-97137-589-0 01 1 0211-
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0211-
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0211-0605
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0606-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0211-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0211-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0211-0605
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-
282 04.010 BRACKET; TRANS SIDE
4HF1-S ENG(RLS) 		8-97311-441-1 01 1 0211-0501
282 04.010 BRACKET; TRANS SIDE
4HF1-N ENG(RJZ) 		8-97311-441-1 01 1 0502-
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0211-
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0211-
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-2 01 1 0211-0305
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 0211-0305
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 0211-0305
536 00.854 DAMPER; CABLE
4HF1-N ENG(RJZ) 		8-98097-681-0 01 1 0711-
