Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#7771) — 490 parça

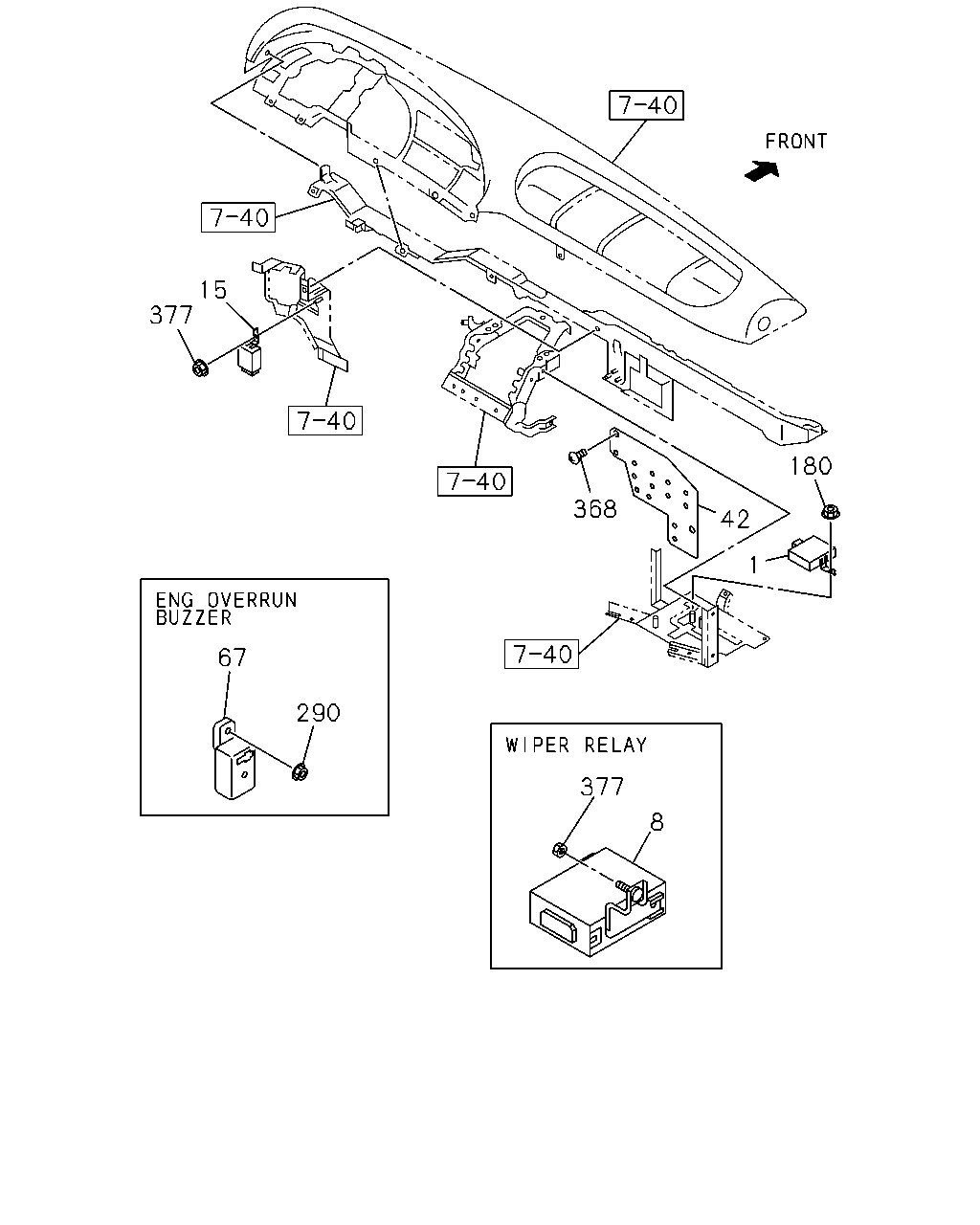

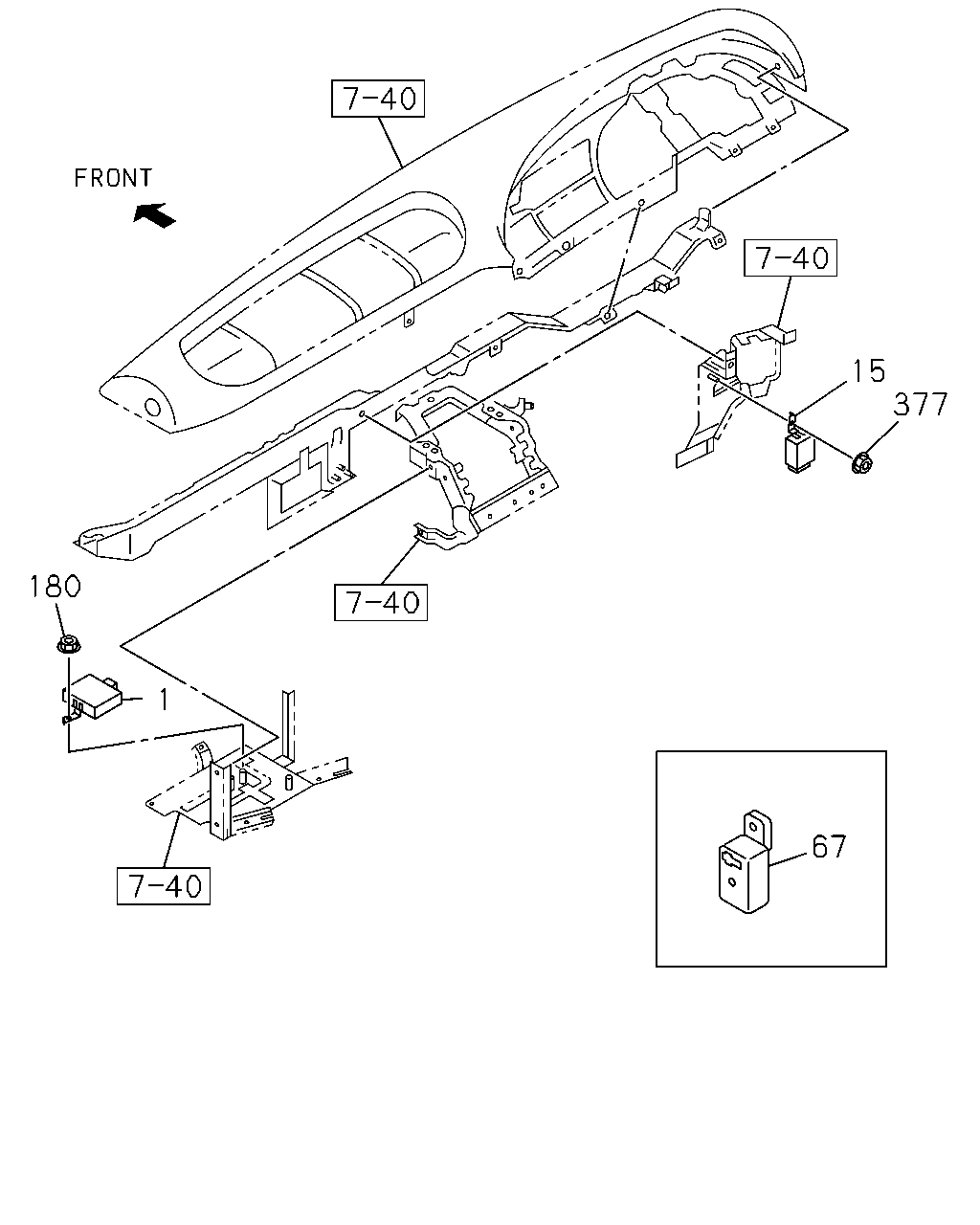

15 377 180 1 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-062-0	01	1	9902-0003	●
1	UNIT; FLASHER	1-83470-062-0	01	1	0004-	●	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9902-0003	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0004-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9902-0003	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	0004-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9902-0003	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0004-	●	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9902-9904	●
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	9905-0003	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9905-0003	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0004-	●	●
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	0004-	●

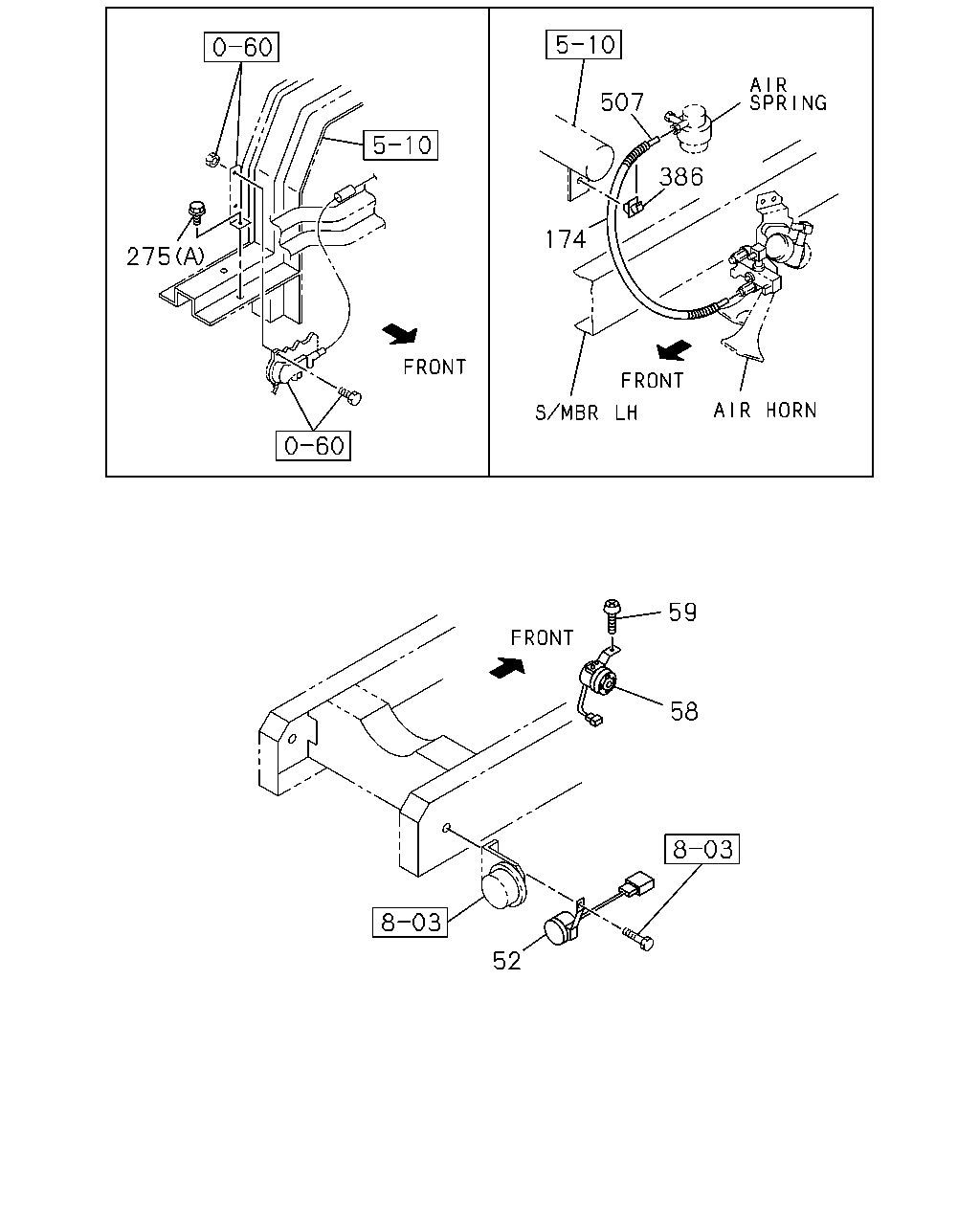

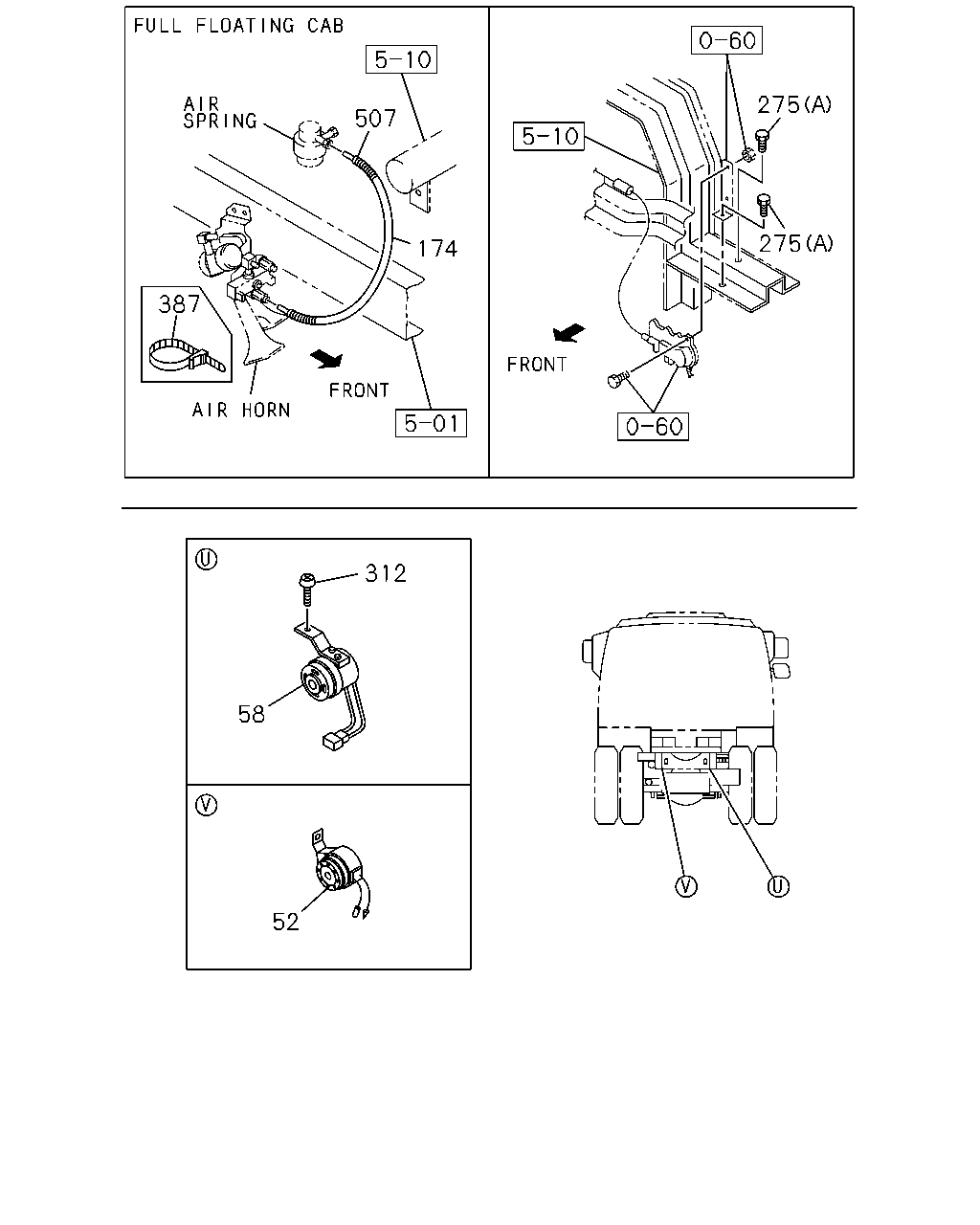

507 386 174 275 59 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) NIKKO	1-83460-052-0	01	1	9902-0003	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) NIKKO	1-83460-052-0	01	1	0004-	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	0004-		●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) METRO	1-83460-088-0	01	1	9904-9907	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) METRO	1-83460-088-1	01	1	9908-	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9902-0003	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0004-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-0	01	1	9904-9907	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	1-83460-074-1	01	1	9908-	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0004-		●
174	COVER CAB UP +110MM<TGG> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9902-0003	●
174	COVER CAB UP +110MM<TGG> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-	●
174	COVER SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-		●
174	COVER FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> L=800	1-83129-031-1	01	1	9902-	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-9902	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9903-0003	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	9902-0003	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	0004-	●	●
386	CLIP; HARNESS FULL FLOATING CAB<W16> ID=9.5	5-09709-020-0	01	1	0004-		●
507	TUBE; NYLON CAB UP +110MM<TGG> L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-0003	●
507	TUBE; NYLON CAB UP +110MM<TGG> L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-	●
507	TUBE; NYLON L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
507	TUBE; NYLON FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-	●

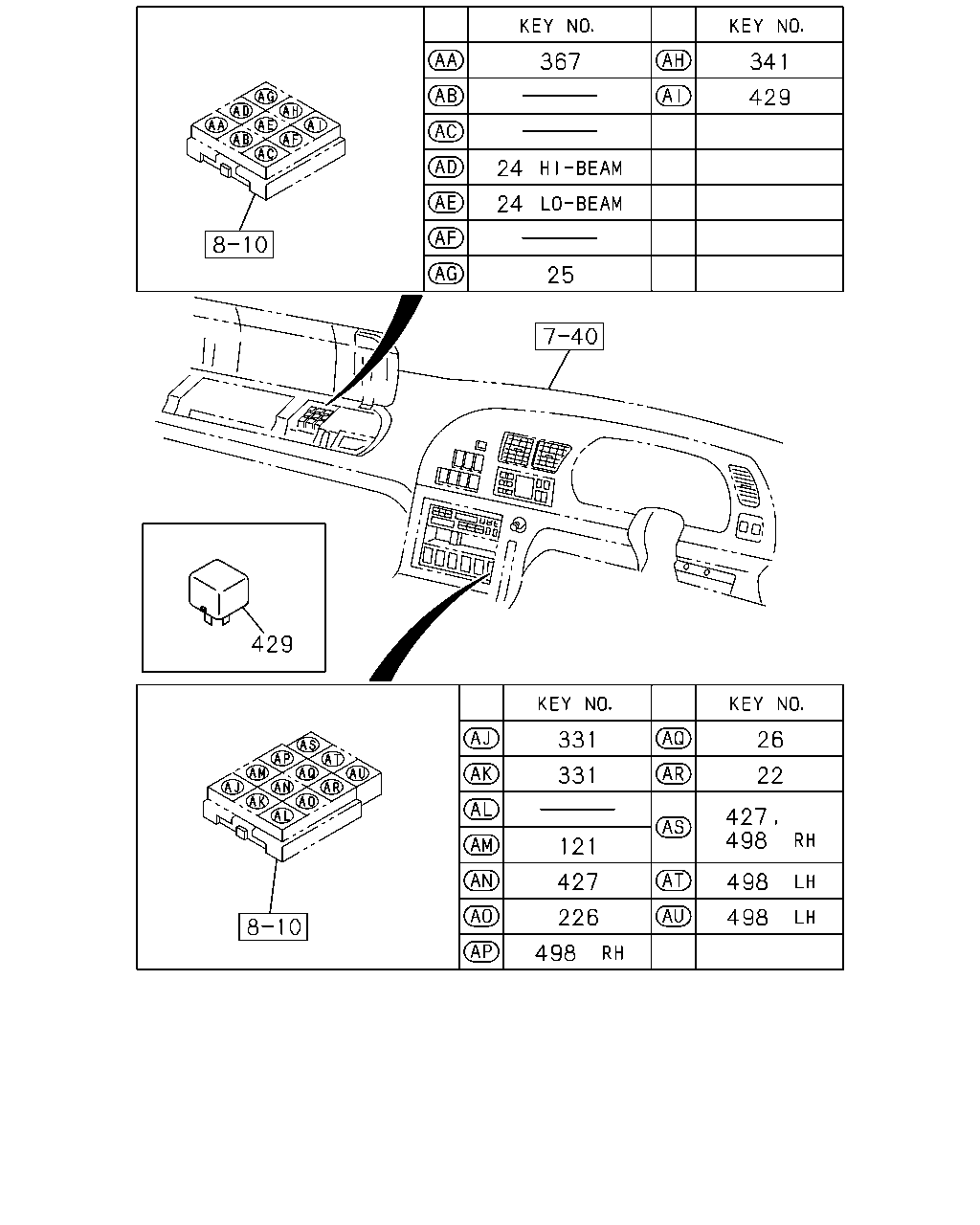

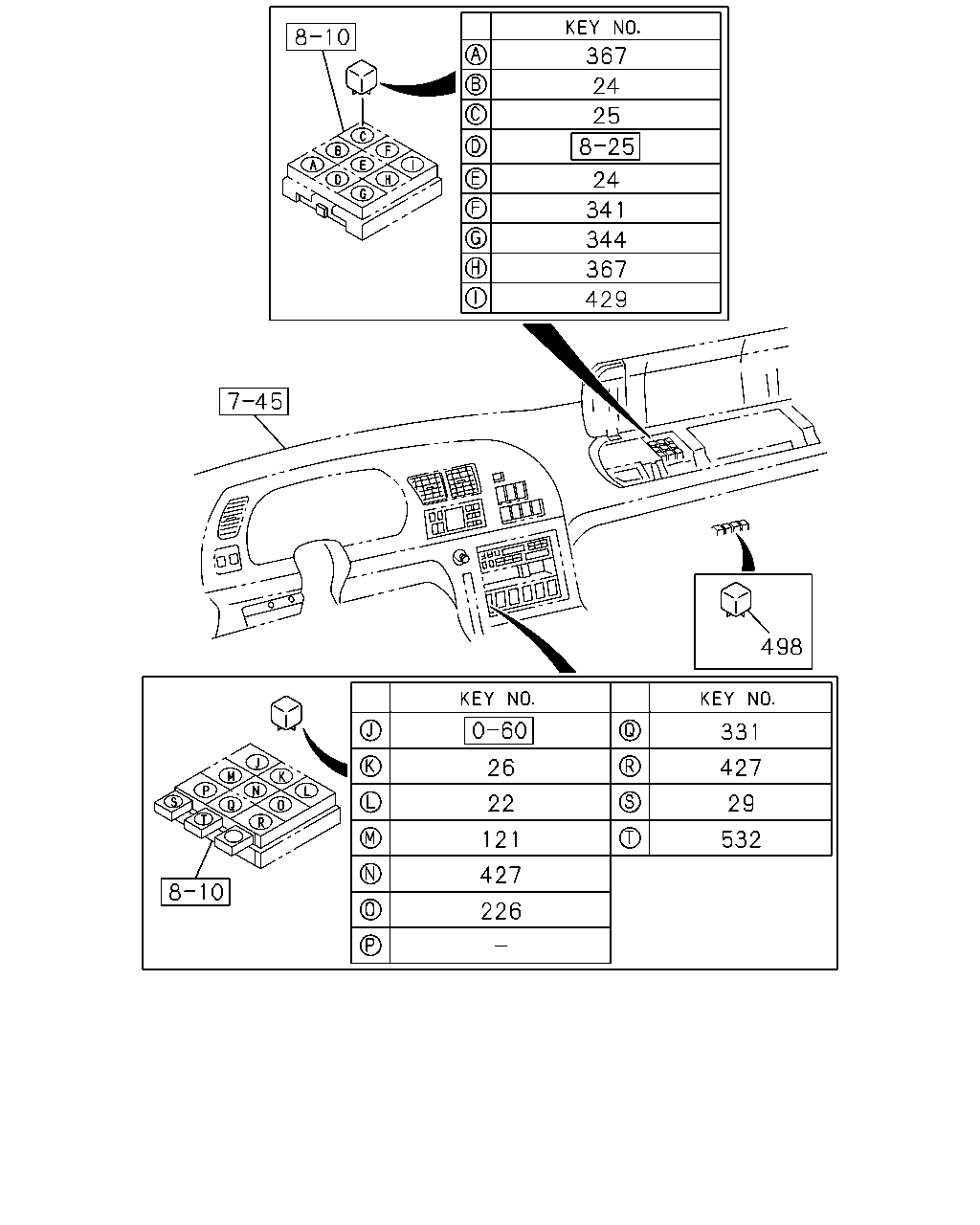

367 341 429 24 24 25 429 26 331 331 22 427 498 121 498 427 226 498 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
341	RELAY FULL FLOATING CAB<W16> 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
341	RELAY FULL FLOATING CAB<W16> 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
367	RELAY; NEUTRAL 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
367	RELAY; NEUTRAL 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A JIDECO	8-97062-815-1	04	1	9902-0003	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A JIDECO	8-97062-815-1	04	1	0004-	●	●

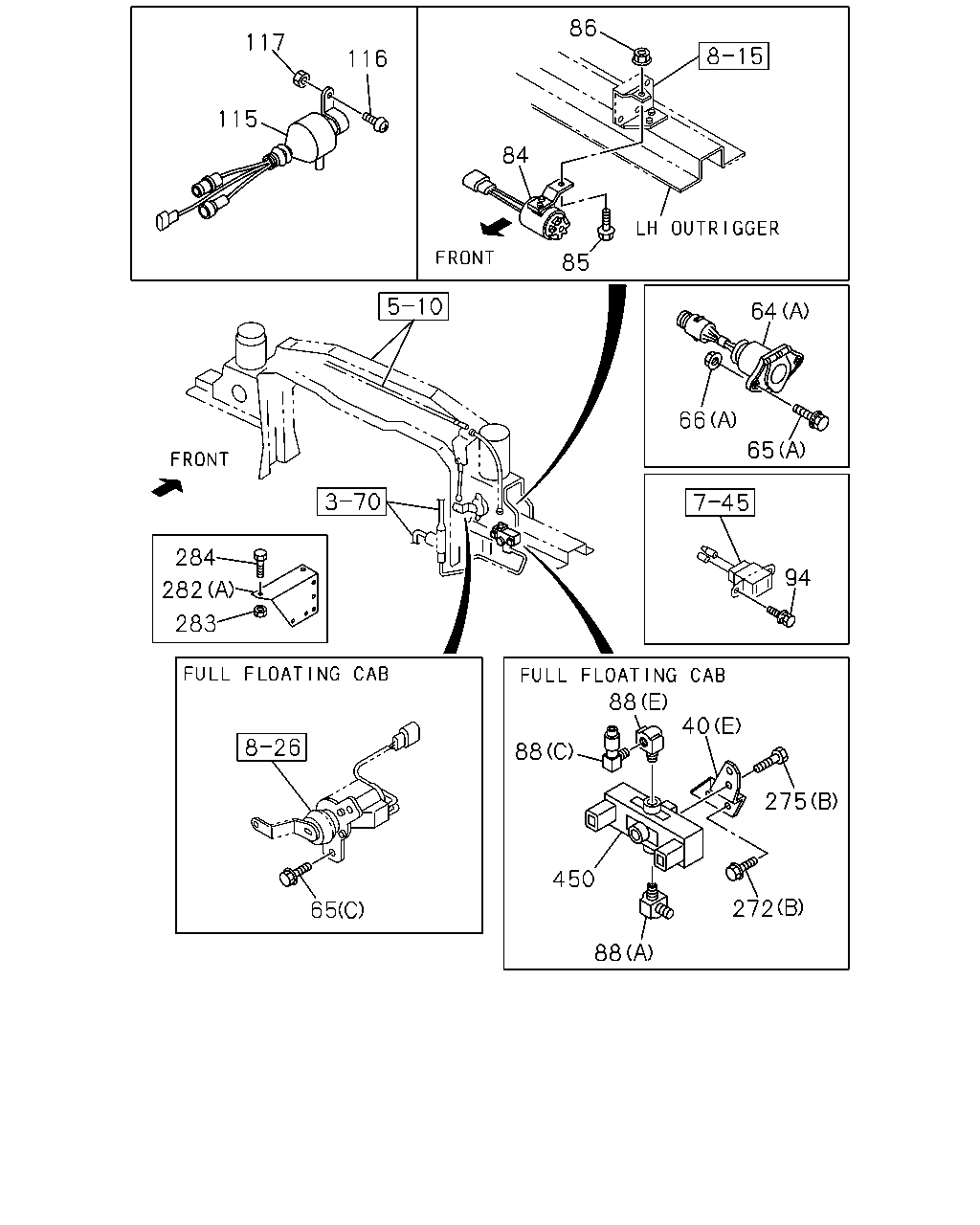

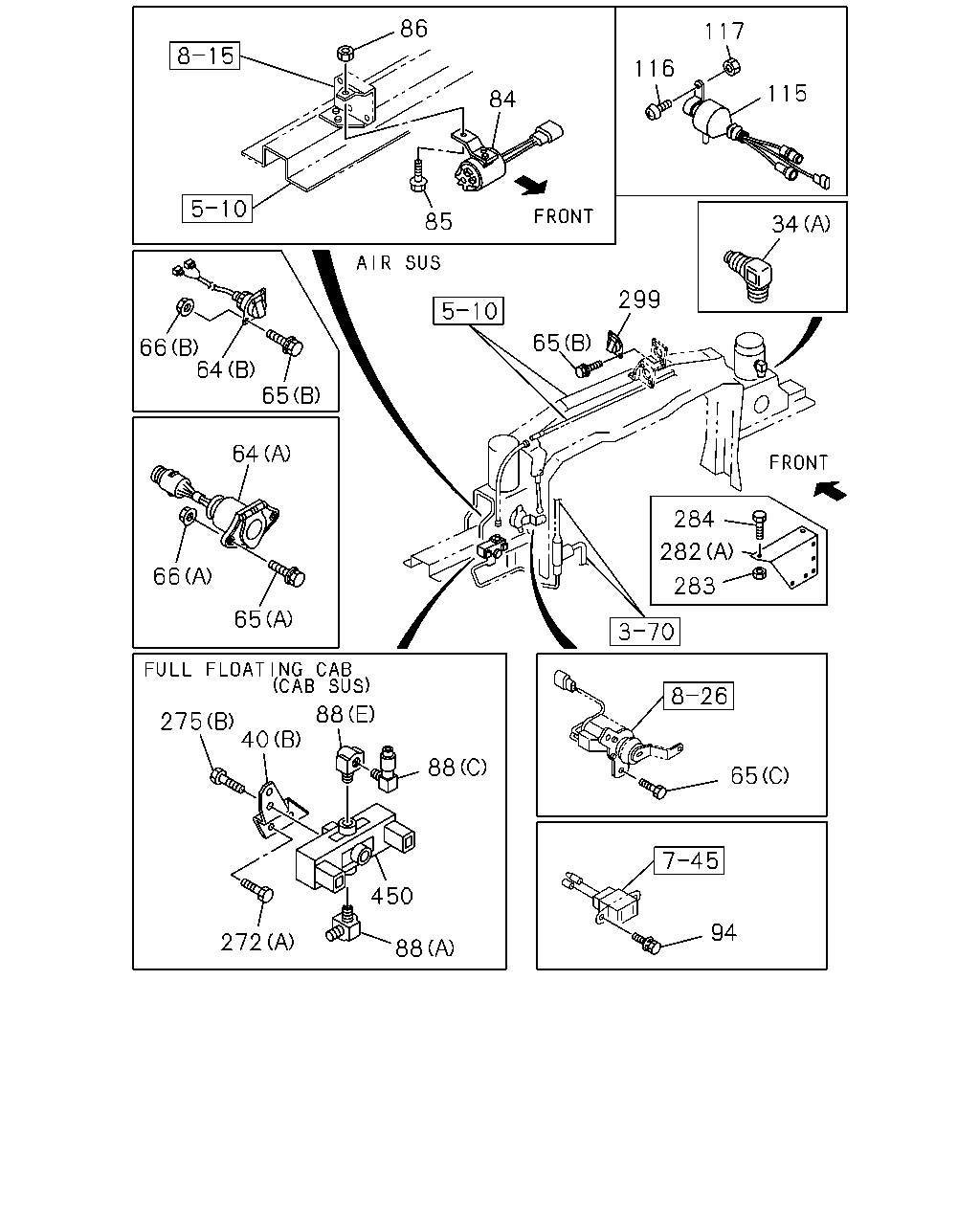

86 117 116 115 84 85 34 299 65 66 64 65 64 284 282 66 283 65 88 275 40 88 65 450 94 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

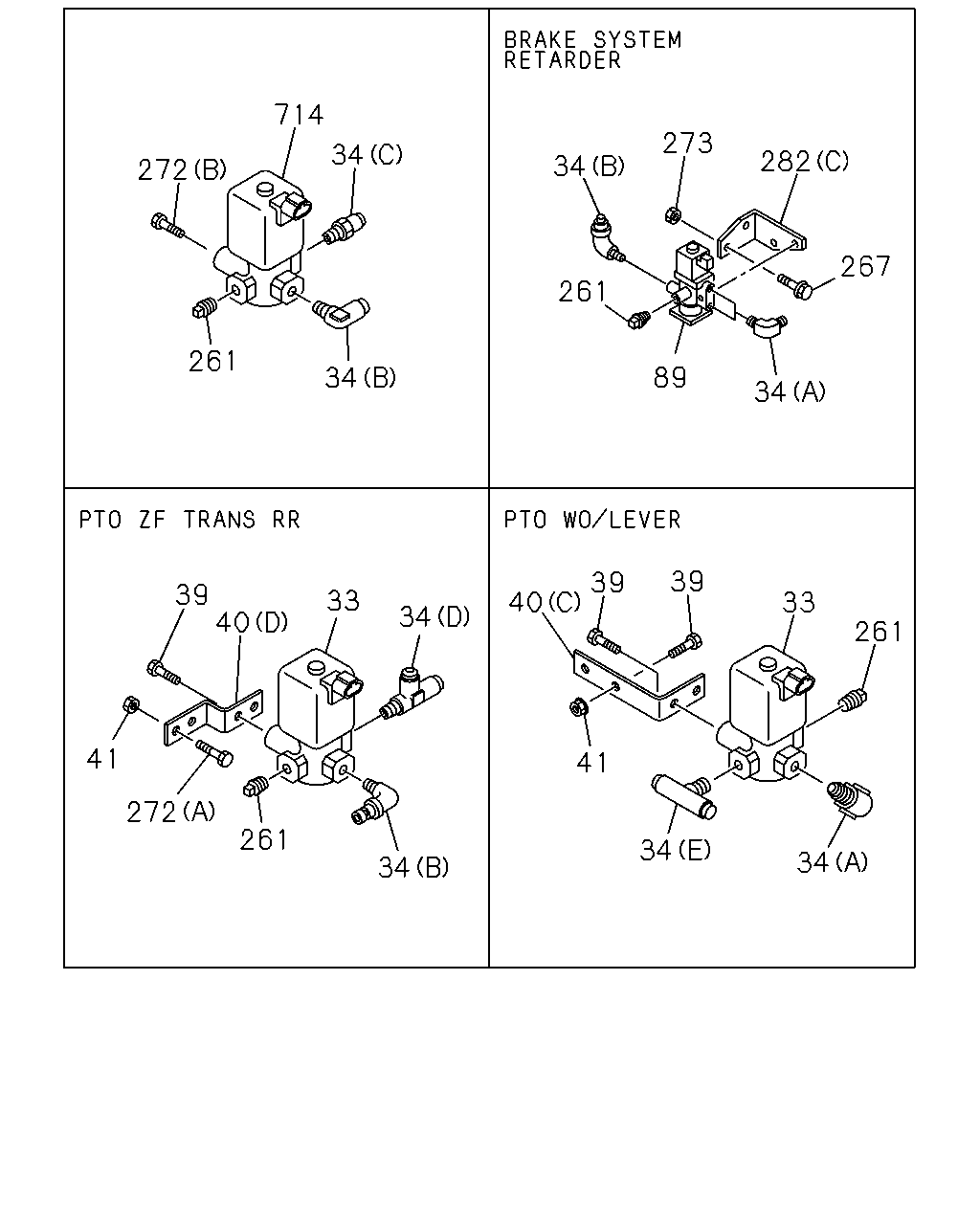

34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-0003	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9902-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9902-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9902-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9902-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9902-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-		●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-888-0	01	1	9902-	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9902-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9902-	●
40	BRACKET; MAG VLV WHEEL BASE 3500MM(35W) PTO ZF TRANS RR(BDM) (D)	1-82569-278-0	01	1	9902-	●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (E)	1-53458-380-0	01	1	0004-		●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (F)	1-53458-741-2	01	1	0004-		●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	9902-0003	●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	0004-	●	●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	1-82699-449-2	01	1	9905-	●
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9905-	●
65	BOLT; SOCKET FIX FULL FLOATING CAB<W16> (C) M6X16 FLANGE	0-28080-616-0	02	1	9902-0003	●
65	BOLT; SOCKET FIX FULL FLOATING CAB<W16> (C) M6X16 FLANGE	0-28080-616-0	02	1	0004-	●	●
66	NUT; SOCKET FIX (A) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
66	NUT; SOCKET FIX (A) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	03	1	9905-	●
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9902-0003	●
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	0004-	●	●
84	BUZZER; POWER CAB TILT METRO	1-83460-096-1	01	1	9904-9907	●
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO	1-83460-096-2	01	1	9908-	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9902-0003	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0004-	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9902-	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (F) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0004-		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9902-0003	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0004-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-0	01	1	9902-0003	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0004-	●	●
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907	●
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9902-0003	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M10X30 FLANGE	0-28681-030-0	02	1	9902-0003	●
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M10X30 FLANGE	0-28681-030-0	02	1	0004-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9909	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9910-0003	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-		●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-9902	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9903-0003	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	9902-0003	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	0004-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9902-0003	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0004-	●	●
282	BRACKET; MAG VLV CAB UP +110MM<TGG> (A)	1-82569-277-1	01	1	9902-9902	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	9903-0003	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0004-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9902-	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-741-2	01	1	0004-		●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-9902	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9903-0003	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
284	BOLT; MAG VLV CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-9902	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	9903-0003	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-1	01	1	9905-	●
450	VALVE; MAG FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9902-0003	●
450	VALVE; MAG FULL FLOATING CAB<W16>	1-53458-378-2	01	1	0004-	●	●

86 117 116 115 84 85 64 66 65 284 94 282 283 88 40 88 275 450 65 88 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-888-0	01	1	9902-	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9902-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9902-	●
40	BRACKET; MAG VLV WHEEL BASE 3500MM(35W) PTO ZF TRANS RR(BDM) (D)	1-82569-278-0	01	1	9902-	●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (E)	1-53458-380-0	01	1	0004-		●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (F)	1-53458-741-2	01	1	0004-		●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	9902-0003	●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	0004-	●	●
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	1-82699-449-2	01	1	9905-	●
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-0003	●
65	BOLT; SOCKET FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9905-	●
65	BOLT; SOCKET FIX FULL FLOATING CAB<W16> (C) M6X16 FLANGE	0-28080-616-0	02	1	9902-0003	●
65	BOLT; SOCKET FIX FULL FLOATING CAB<W16> (C) M6X16 FLANGE	0-28080-616-0	02	1	0004-	●	●
66	NUT; SOCKET FIX (A) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
66	NUT; SOCKET FIX (A) M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8 FLANGE	0-91150-108-0	03	1	9905-	●
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9902-0003	●
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	0004-	●	●
84	BUZZER; POWER CAB TILT METRO	1-83460-096-1	01	1	9904-9907	●
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO	1-83460-096-2	01	1	9908-	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9902-0003	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0004-	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9902-0003	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9902-	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (F) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0004-		●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9902-0003	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0004-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-0	01	1	9902-0003	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0004-	●	●
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907	●
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9902-0003	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0004-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M10X30 FLANGE	0-28681-030-0	02	1	9902-0003	●
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M10X30 FLANGE	0-28681-030-0	02	1	0004-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9909	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9910-0003	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-		●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-9902	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9903-0003	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	9902-0003	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	0004-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9902-0003	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0004-	●	●
282	BRACKET; MAG VLV CAB UP +110MM<TGG> (A)	1-82569-277-1	01	1	9902-9902	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	9903-0003	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0004-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9902-	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-741-2	01	1	0004-		●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-9902	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9903-0003	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
284	BOLT; MAG VLV CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-9902	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	9903-0003	●
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
450	VALVE; MAG FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9902-0003	●
450	VALVE; MAG FULL FLOATING CAB<W16>	1-53458-378-2	01	1	0004-	●	●

714 273 34 282 34 272 267 261 261 89 34 34 39 39 40 39 40 33 33 34 261 41 41 272 261 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-1	01	1	9902-0003	●
33	VALVE; MAG,PTO CONT BRAKE SYSTEM RETARDER<RE2>	1-82563-871-2	01	1	0004-	●	●
33	VALVE; MAG,PTO CONT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0004-	●	●
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9902-0003	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9902-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9902-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9902-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0004-0005		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9902-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9902-0005	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (E) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9909	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9910-0003	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-	●
34	CONNECTOR; MAG VLV,INL PORT (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0004-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	02	1	0004-	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28680-830-0	02	1	0004-	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8X30 FLANGE	0-28680-830-0	02	1	0004-		●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-888-0	01	1	9902-	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9902-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9902-	●
40	BRACKET; MAG VLV WHEEL BASE 3500MM(35W) PTO ZF TRANS RR(BDM) (D)	1-82569-278-0	01	1	9902-	●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (E)	1-53458-380-0	01	1	0004-		●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (F)	1-53458-741-2	01	1	0004-		●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0004-	●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) M8 FLANGE	0-91150-108-0	02	1	0004-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2>	1-82563-597-5	01	1	9902-0003	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2>	1-82563-597-5	01	1	0004-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9902-9909	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9902-9909	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9902-9909	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9910-0003	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9910-0003	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-0003	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	0004-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0004-	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0004-	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0004-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	0004-		●
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	02	1	0004-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M10X30 FLANGE	0-28681-030-0	02	1	9902-0003	●
272	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M10X30 FLANGE	0-28681-030-0	02	1	0004-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9902-9909	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	9910-0003	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●
272	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0004-		●
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9902-0003	●
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9902-0003	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0004-	●	●
282	BRACKET; MAG VLV CAB UP +110MM<TGG> (A)	1-82569-277-1	01	1	9902-9902	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	9903-0003	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0004-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9902-	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-741-2	01	1	0004-		●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-1	01	1	9902-9909	●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-1	01	1	9910-0003	●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0004-	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	01	1	0004-		●

367 24 25 24 341 344 367 429 498 331 26 427 22 29 121 532 427 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-	●
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
341	RELAY FULL FLOATING CAB<W16> 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
341	RELAY FULL FLOATING CAB<W16> 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
344	RELAY; LAMP CORNARING LAMP<TDS> 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-	●
367	RELAY; NEUTRAL 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
367	RELAY; NEUTRAL 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A JIDECO	8-97062-815-1	02	1	9902-0003	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A JIDECO	8-97062-815-1	02	1	0004-	●	●
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-0003	●
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	0004-	●	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A JIDECO	8-97062-815-1	04	1	9902-0003	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A JIDECO	8-97062-815-1	04	1	0004-	●	●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-	●

15 377 180 368 42 1 67 290 377 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-062-0	01	1	9902-0003	●
1	UNIT; FLASHER	1-83470-062-0	01	1	0004-	●	●
8	RELAY; WIPER DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)	1-83316-002-4	01	1	9905-	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9902-0003	●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0004-	●	●
42	BRACKET; RELAY DELUXE CAB(W14)	1-82698-054-0	01	1	9902-	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9902-0003	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	0004-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9902-0003	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0004-	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9902-9904	●
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9905-	●
290	NUT SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) M6 FLANGE	0-91150-106-0	01	1	9905-	●
368	SCREW; RELAY FIX DELUXE CAB(W14) M5X14	8-94279-325-0	03	1	9902-	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9902-9904	●
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	9905-0003	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9905-0003	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0004-	●	●
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	0004-	●

275 507 275 174 387 312 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) NIKKO	1-83460-052-0	01	1	9902-0003	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) NIKKO	1-83460-052-0	01	1	0004-	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	0004-		●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) METRO	1-83460-088-0	01	1	9904-9907	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK) METRO	1-83460-088-1	01	1	9908-	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9902-0003	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	0004-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-0	01	1	9904-9907	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	1-83460-074-1	01	1	9908-	●
174	COVER CAB UP +110MM<TGG> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9902-0003	●
174	COVER CAB UP +110MM<TGG> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-	●
174	COVER SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0004-		●
174	COVER FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> L=800	1-83129-031-1	01	1	9902-	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9902-9902	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9903-0003	●
275	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	9902-0003	●
275	BOLT; BRKT FULL FLOATING CAB<W16> (B) M8X14 FLANGE	0-28080-814-0	01	1	0004-	●	●
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9902-	●
387	CLIP; BAND CAB UP +110MM<TGG> FULL FLOATING CAB<W16> L=250	5-09707-030-1	01	1	9902-	●
507	TUBE; NYLON CAB UP +110MM<TGG> L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-0003	●
507	TUBE; NYLON CAB UP +110MM<TGG> L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-	●
507	TUBE; NYLON L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0004-		●
507	TUBE; NYLON FULL FLOATING CAB<W16> EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9902-	●

77 81 88 505 88 88 282 424 88 78 79 456 505 77 40 78 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-888-0	01	1	9902-	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9902-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9902-	●
40	BRACKET; MAG VLV WHEEL BASE 3500MM(35W) PTO ZF TRANS RR(BDM) (D)	1-82569-278-0	01	1	9902-	●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (E)	1-53458-380-0	01	1	0004-		●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (F)	1-53458-741-2	01	1	0004-		●
77	HORN ASM ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-83430-039-2	01	1	9902-	●
77	HORN ASM EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-83430-041-1	01	1	9902-0003	●
77	HORN ASM EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-83430-041-1	01	1	0004-	●
77	HORN ASM	1-83430-041-1	01	1	0004-		●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9902-0003	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	0004-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-0003	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9902-0003	●
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9902-	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (F) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0004-		●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9902-0003	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0004-	●	●
282	BRACKET; MAG VLV CAB UP +110MM<TGG> (A)	1-82569-277-1	01	1	9902-9902	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	9903-0003	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0004-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9902-	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-741-2	01	1	0004-		●
424	ADAPTER FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9902-0003	●
424	ADAPTER FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0004-	●	●
424	ADAPTER EXC. FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9902-	●
424	ADAPTER EXC. FULL FLOATING CAB<W16> DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0004-0005		●
424	ADAPTER EXC. FULL FLOATING CAB<W16> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-		●
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9902-0003	●
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	9902-0003	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0004-	●	●

51 51 44 49 50 195 49 45 440 468 290 17 46 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1)	1-82550-183-1	01	1	9905-	●
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	9902-	●
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	9902-	●
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	9902-	●
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	9902-	●
50	BRACKET; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-53458-901-0	01	1	9902-	●
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28680-830-0	03	1	9902-	●
195	NUT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	9902-	●
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9902-9904	●
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9905-	●
290	NUT SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) M6 FLANGE	0-91150-106-0	01	1	9905-	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA)	1-81510-699-0	01	1	9905-	●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	02	1	9905-	●

88 81 88 88 282 79 505 78 77 79 424 88 456 505 78 40 77 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-888-0	01	1	9902-	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9902-	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9902-	●
40	BRACKET; MAG VLV WHEEL BASE 3500MM(35W) PTO ZF TRANS RR(BDM) (D)	1-82569-278-0	01	1	9902-	●
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (E)	1-53458-380-0	01	1	0004-		●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (F)	1-53458-741-2	01	1	0004-		●
77	HORN ASM ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-83430-039-2	01	1	9902-	●
77	HORN ASM EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-83430-041-1	01	1	9902-0003	●
77	HORN ASM EXC. ARGENTINE EQUIPMENT(NBQ),BRAZIL EQUIPMENT(TKK)	1-83430-041-1	01	1	0004-	●
77	HORN ASM	1-83430-041-1	01	1	0004-		●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9902-0003	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	0004-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-0003	●
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9902-0003	●
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9902-	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	9902-0003	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) PT1/8 ELBOW	8-94338-418-1	01	1	0004-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (F) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0004-		●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9902-0003	●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	0004-	●	●
282	BRACKET; MAG VLV CAB UP +110MM<TGG> (A)	1-82569-277-1	01	1	9902-9902	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	9903-0003	●
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0004-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9902-	●
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-741-2	01	1	0004-		●
424	ADAPTER FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9902-0003	●
424	ADAPTER FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0004-	●	●
424	ADAPTER EXC. FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9902-	●
424	ADAPTER EXC. FULL FLOATING CAB<W16> DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0004-0005		●
424	ADAPTER EXC. FULL FLOATING CAB<W16> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-		●
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9902-0003	●
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	9902-0003	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
