◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#77709) — 123 parça

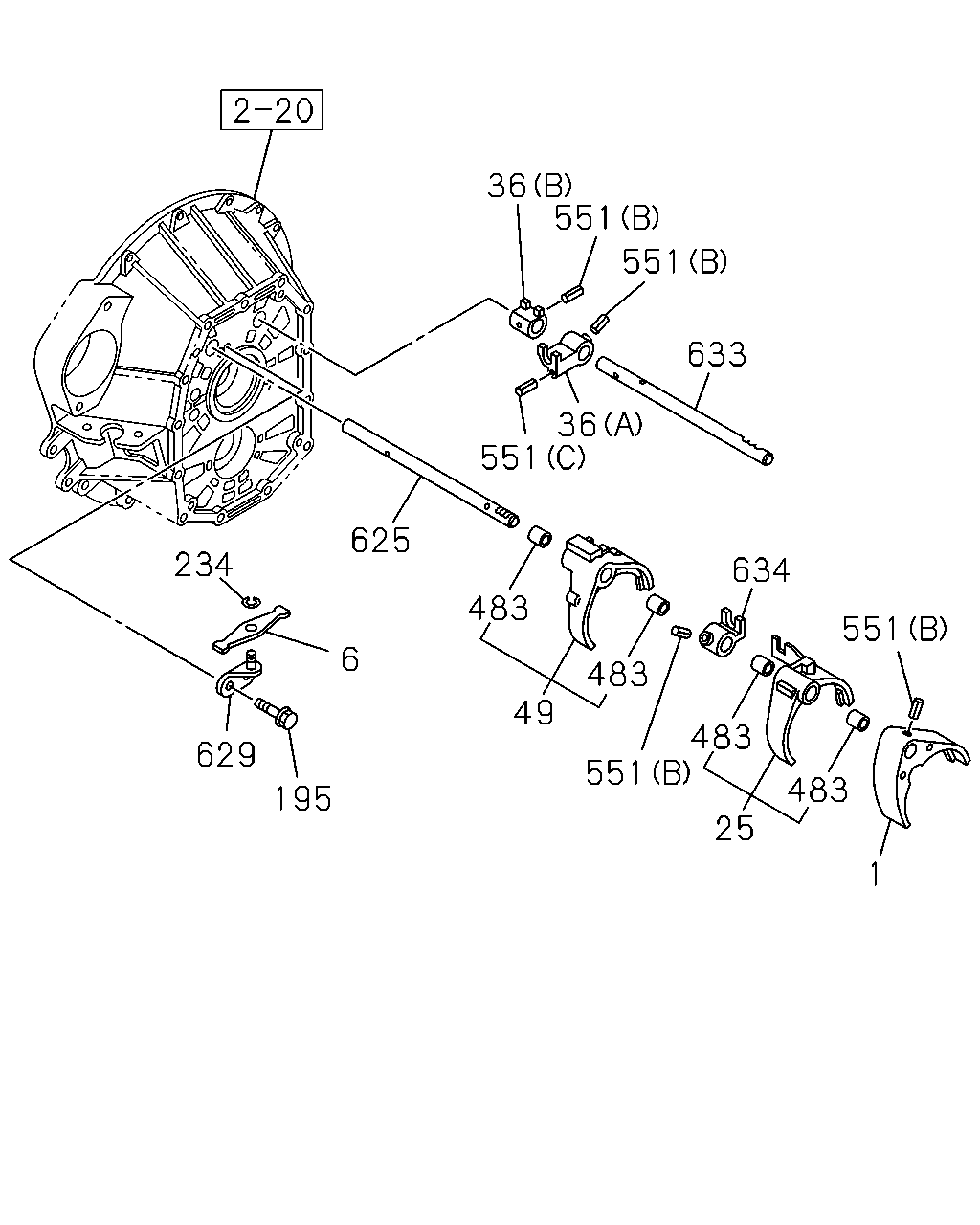

çizim 135581
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.302 ARM; SHIFT,1ST & REV
4HF1-S ENG(RLS) 		8-97241-320-2 01 1 0211-0501
1 04.302 ARM; SHIFT,1ST & REV
4HF1-N ENG(RJZ) 		8-97241-320-2 01 1 0502-
6 04.302 LEVER; RELAY
4HF1-S ENG(RLS) 		8-97241-344-0 01 1 0211-0501
6 04.302 LEVER; RELAY
4HF1-N ENG(RJZ) 		8-97241-344-0 01 1 0502-
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1-S ENG(RLS) 		8-97355-690-0 01 1 0211-0404
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1-S ENG(RLS) 		8-97362-731-1 01 1 0405-0501
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1-N ENG(RJZ) 		8-97362-731-2 01 1 0502-1407
25 04.302 ARM; SHIFT,2ND & 3RD
4HF1-N ENG(RJZ) 		8-98255-926-1 01 1 1408-
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HF1-S ENG(RLS) (A) 		8-97241-329-1 01 1 0211-0501
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HF1-N ENG(RJZ) (A) 		8-97241-329-1 01 1 0502-
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HF1-S ENG(RLS) (B) 		8-97241-330-0 01 1 0211-0501
36 04.303 BLOCK; SHIFT,4TH & 5TH
4HF1-N ENG(RJZ) (B) 		8-97241-330-0 01 1 0502-
49 04.302 ARM; SHIFT,4TH & 5TH
4HF1-S ENG(RLS) 		8-97258-716-0 01 1 0211-0501
49 04.302 ARM; SHIFT,4TH & 5TH
4HF1-N ENG(RJZ) 		8-97258-716-0 01 1 0502-
195 04.105 BOLT
4HF1-S ENG(RLS) 04.012 M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0211-0501
195 04.105 BOLT
4HF1-N ENG(RJZ) 04.012 M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0502-0604
195 04.105 BOLT
4HF1-N ENG(RJZ) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605-
234 04.311 RING; SNAP
4HF1-S ENG(RLS) 04.307 ID=12 		8-94460-357-0 01 1 0211-0501
234 04.311 RING; SNAP
4HF1-N ENG(RJZ) 04.307 ID=12 		8-94460-357-0 01 1 0502-
483 04.419 BUSHING; SHIFT ARM
4HF1-S ENG(RLS) 00.683 		8-97241-326-1 04 1 0211-0403
483 04.419 BUSHING; SHIFT ARM
4HF1-S ENG(RLS) 00.683 		8-97241-326-1 06 1 0404-0408
483 04.419 BUSHING; SHIFT ARM
4HF1-S ENG(RLS) 00.683 		8-97241-326-2 04 1 0409-0501
483 04.419 BUSHING; SHIFT ARM
4HF1-N ENG(RJZ) 00.683 		8-97241-326-2 04 1 0502-
551 04.303 PIN; SPRING
4HF1-S ENG(RLS) (A) L=25 OD=5 		1-09748-032-0 01 1 0211-0501
551 04.303 PIN; SPRING
4HF1-N ENG(RJZ) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-
551 04.303 PIN; SPRING
4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0211-0501
551 04.303 PIN; SPRING
4HF1-N ENG(RJZ) 04.302 (B) L=32 		8-97011-596-2 04 1 0502-
551 04.303 PIN; SPRING
4HF1-S ENG(RLS) (C) L=20 		8-97241-340-0 01 1 0211-0501
551 04.303 PIN; SPRING
4HF1-N ENG(RJZ) (C) L=20 		8-97241-340-0 01 1 0502-
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HF1-S ENG(RLS) 		8-97241-333-3 01 1 0211-0404
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HF1-S ENG(RLS) 		8-97362-741-0 01 1 0405-0501
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R
4HF1-N ENG(RJZ) 		8-97362-741-0 01 1 0502-
629 04.555 BRIDGE; LEVER
4HF1-S ENG(RLS) 		8-97237-107-1 01 1 0211-0501
629 04.555 BRIDGE; LEVER
4HF1-N ENG(RJZ) 		8-97237-107-1 01 1 0502-
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4HF1-S ENG(RLS) 		8-97358-832-0 01 1 0211-0404
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4HF1-S ENG(RLS) 		8-97362-743-0 01 1 0405-0501
633 04.309 ROD; GEAR SHIFT,4TH,5TH
4HF1-N ENG(RJZ) 		8-97362-743-0 01 1 0502-
634 04.303 BLOCK; SHIFT,LOW,REV
4HF1-S ENG(RLS) 		8-97241-327-1 01 1 0211-0501
634 04.303 BLOCK; SHIFT,LOW,REV
4HF1-N ENG(RJZ) 		8-97241-327-1 01 1 0502-

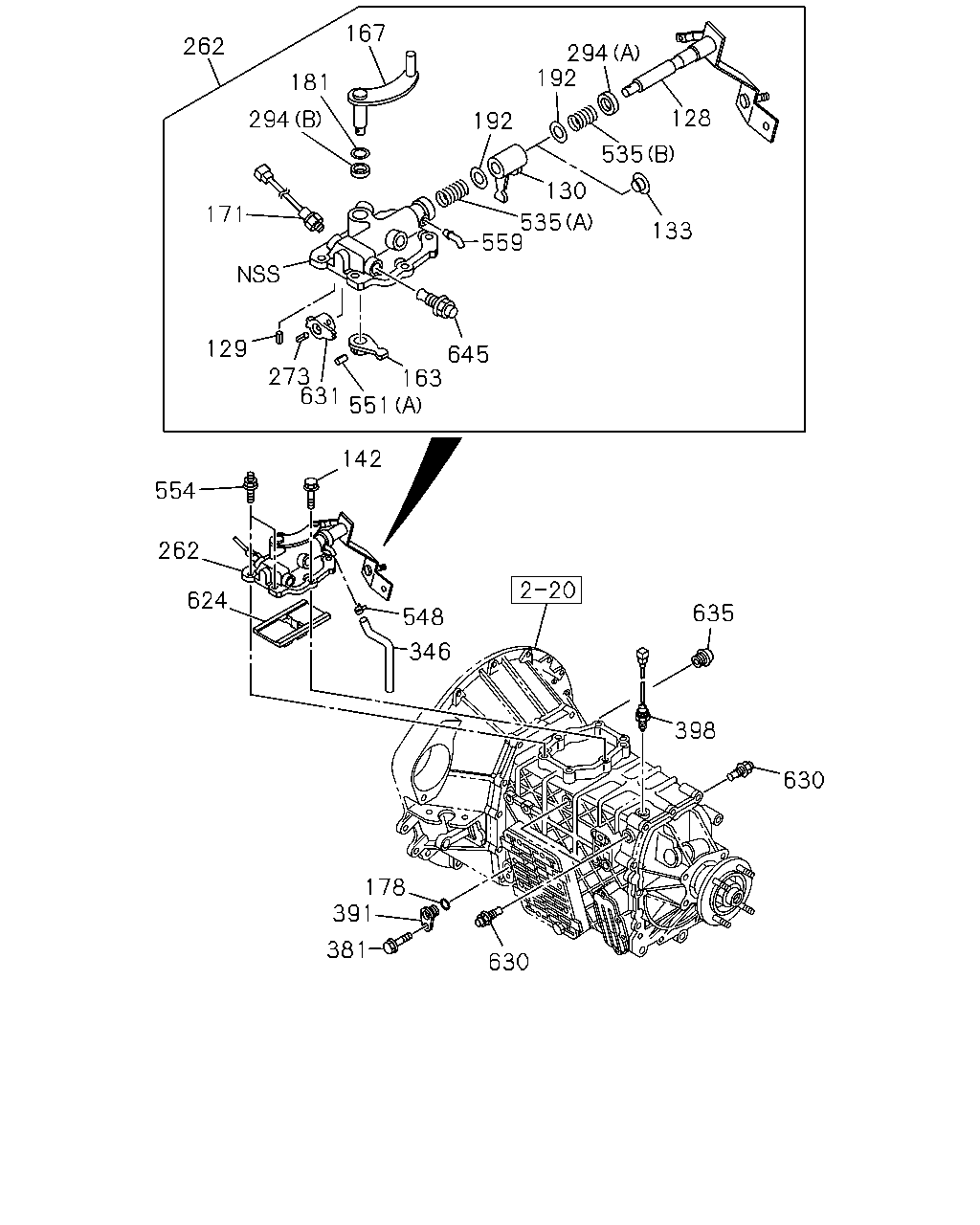

çizim 135597
167 262 294 192 181 128 294 192 535 130 171 535 559 133 129 645 163 551 273 631 142 554 262 624 635 548 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date
128 04.030 LEVER; SHIFT,EXTERNAL
4HF1-S ENG(RLS) 		8-97305-725-0 01 1 0211-0501
128 04.030 LEVER; SHIFT,EXTERNAL
4HF1-N ENG(RJZ) 		8-97305-725-0 01 1 0502-
129 04.027 PIN; SPR,SHIFT
4HF1-S ENG(RLS) L=30 OD=4 		1-09748-031-0 01 1 0211-0501
129 04.027 PIN; SPR,SHIFT
4HF1-N ENG(RJZ) L=30 OD=4 		1-09748-031-0 01 1 0502-
130 04.302 LEVER; SHIFT,INTERNAL
4HF1-S ENG(RLS) 		8-97306-647-0 01 1 0211-0501
130 04.302 LEVER; SHIFT,INTERNAL
4HF1-N ENG(RJZ) 		8-97306-647-0 01 1 0502-
133 04.027 SEAT; SPR
4HF1-S ENG(RLS) 		8-97305-667-0 01 1 0211-0501
133 04.027 SEAT; SPR
4HF1-N ENG(RJZ) 		8-97305-667-0 01 1 0502-
142 04.012 BOLT; QUAD BOX
4HF1-S ENG(RLS) 04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0211-0501
142 04.012 BOLT; QUAD BOX
4HF1-N ENG(RJZ) 04.356 M8X22 FLANGE 		8-94448-815-3 04 1 0502-0604
142 04.012 BOLT; QUAD BOX
4HF1-N ENG(RJZ) 04.356 M8X22 FLANGE 		8-97365-376-0 04 1 0605-
163 04.302 LEVER; SELECT,INTERNAL
4HF1-S ENG(RLS) 		8-97305-663-0 01 1 0211-0501
163 04.302 LEVER; SELECT,INTERNAL
4HF1-N ENG(RJZ) 		8-97305-663-0 01 1 0502-
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-S ENG(RLS) 		8-97306-648-0 01 1 0211-0501
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-N ENG(RJZ) 		8-97306-648-0 01 1 0502-0611
167 04.302 LEVER; SELECT,EXTERNAL
4HF1-N ENG(RJZ) 		8-98039-434-0 01 1 0612-
171 04.054 SWITCH; NEUTRAL
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0211-0501
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97316-688-1 01 1 0502-0611
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.698 		8-98023-050-0 01 1 0612-1312
171 04.054 SWITCH; NEUTRAL
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98242-172-1 01 1 1401-
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-S ENG(RLS) 		9-09567-113-0 01 1 0211-0501
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-N ENG(RJZ) 		9-09567-113-0 01 1 0502-
181 04.302 WASHER; PL,SELECT LEVER
4HF1-S ENG(RLS) 		1-09503-280-0 01 1 0211-0303
181 04.302 WASHER; PL,SELECT LEVER
4HF1-S ENG(RLS) 		8-97367-327-0 01 1 0304-0501
181 04.302 WASHER; PL,SELECT LEVER
4HF1-N ENG(RJZ) 		8-97367-327-0 01 1 0502-
192 04.309 WASHER; PL
4HF1-S ENG(RLS) 		8-97305-661-0 02 1 0211-0303
192 04.309 WASHER; PL
4HF1-S ENG(RLS) 		8-97305-661-0 01 1 0304-0501
192 04.309 WASHER; PL
4HF1-N ENG(RJZ) 		8-97305-661-0 01 1 0502-
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97256-825-7 01 1 0211-0404
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 		8-97362-750-0 01 1 0405-0501
262 04.105 BOX ASM; SHIFT CONT
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-97362-750-2 01 1 0502-1312
262 04.105 BOX ASM; SHIFT CONT
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 		8-98240-999-1 01 1 1401-
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8> 		8-97352-015-0 01 1 0211-0404
262 04.105 BOX ASM; SHIFT CONT
4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8> 		8-97362-755-0 01 1 0405-0501
262 04.105 BOX ASM; SHIFT CONT
4HF1-N ENG(RJZ) EXC. EXHAUST BRAKE<NF8> 		8-97362-755-2 01 1 0502-
273 04.309 PIN; SPR,STOPPER
4HF1-S ENG(RLS) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 0304-0501
273 04.309 PIN; SPR,STOPPER
4HF1-N ENG(RJZ) 04.307 D=4.2 L=25 		8-97103-142-0 01 1 0502-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-S ENG(RLS) (B) 		8-97305-662-0 01 1 0211-0501
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-N ENG(RJZ) (B) 		8-97305-662-0 01 1 0502-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-S ENG(RLS) (A) 		1-09625-599-0 01 1 0211-0303
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-S ENG(RLS) (A) 		8-97363-225-0 01 1 0304-0501
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HF1-N ENG(RJZ) (A) 		8-97363-225-0 01 1 0502-
346 04.545 HOSE; AIR
4HF1-S ENG(RLS) 		8-97309-855-0 01 1 0211-0501
346 04.545 HOSE; AIR
4HF1-N ENG(RJZ) 		8-97309-855-0 01 1 0502-
381 04.105 BOLT
4HF1-S ENG(RLS) 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501
381 04.105 BOLT
4HF1-N ENG(RJZ) 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512
381 04.105 BOLT
4HF1-N ENG(RJZ) 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601-
391 04.104 PLUG; SW HOLE
4HF1-S ENG(RLS) 		8-97300-273-1 01 1 0211-0501
391 04.104 PLUG; SW HOLE
4HF1-N ENG(RJZ) 		8-97300-273-1 01 1 0502-
398 02.698 SWITCH; REV LAMP
4HF1-S ENG(RLS) 04.054 		8-97316-688-1 01 1 0211-0501
398 02.698 SWITCH; REV LAMP
4HF1-N ENG(RJZ) 04.054 		8-97316-688-1 01 1 0502-0604
398 02.698 SWITCH; REV LAMP
4HF1-N ENG(RJZ) 		8-98023-050-0 01 1 0605-1312
398 02.698 SWITCH; REV LAMP
4HF1-N ENG(RJZ) 		8-98242-173-1 01 1 1401-
535 04.302 SPRING; LEVER
4HF1-S ENG(RLS) (A) 		8-97323-771-0 01 1 0211-0501
535 04.302 SPRING; LEVER
4HF1-N ENG(RJZ) (A) 		8-97323-771-0 01 1 0502-
535 04.302 SPRING; LEVER
4HF1-S ENG(RLS) (B) 		8-97323-772-0 01 1 0211-0501
535 04.302 SPRING; LEVER
4HF1-N ENG(RJZ) (B) 		8-97323-772-0 01 1 0502-
548 04.457 CLIP; HOSE
4HF1-S ENG(RLS) 03.278 		8-97031-674-0 01 1 0211-0501
548 04.457 CLIP; HOSE
4HF1-N ENG(RJZ) 03.278 		8-97031-674-0 01 1 0502-
551 04.303 PIN; SPRING
4HF1-S ENG(RLS) (A) L=25 OD=5 		1-09748-032-0 01 1 0211-0501
551 04.303 PIN; SPRING
4HF1-N ENG(RJZ) (A) L=25 OD=5 		1-09748-032-0 01 1 0502-
551 04.303 PIN; SPRING
4HF1-S ENG(RLS) 04.302 (B) L=32 		8-97011-596-2 04 1 0211-0501
551 04.303 PIN; SPRING
4HF1-N ENG(RJZ) 04.302 (B) L=32 		8-97011-596-2 04 1 0502-
551 04.303 PIN; SPRING
4HF1-S ENG(RLS) (C) L=20 		8-97241-340-0 01 1 0211-0501
551 04.303 PIN; SPRING
4HF1-N ENG(RJZ) (C) L=20 		8-97241-340-0 01 1 0502-
554 04.302 STUD; CONT BOX
4HF1-S ENG(RLS) M8X15,M8X25 L=49 		8-97352-677-0 02 1 0211-0501
554 04.302 STUD; CONT BOX
4HF1-N ENG(RJZ) M8X15,M8X25 L=49 		8-97352-677-0 02 1 0502-0604
554 04.302 STUD; CONT BOX
4HF1-N ENG(RJZ) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605-
559 04.302 PIPE; BREATHER
4HF1-S ENG(RLS) 		8-97305-517-0 01 1 0211-0501
559 04.302 PIPE; BREATHER
4HF1-N ENG(RJZ) 		8-97305-517-0 01 1 0502-0604
559 04.302 PIPE; BREATHER
4HF1-N ENG(RJZ) 04.510 		8-97358-318-0 01 1 0605-
624 04.105 PLATE; INTER LOCK
4HF1-S ENG(RLS) 		8-97241-317-2 01 1 0211-0501
624 04.105 PLATE; INTER LOCK
4HF1-N ENG(RJZ) 		8-97241-317-3 01 1 0502-
630 04.307 DETENT ASM
4HF1-S ENG(RLS) 		8-97241-341-0 03 1 0211-0501
630 04.307 DETENT ASM
4HF1-N ENG(RJZ) 		8-97241-341-0 03 1 0502-0604
630 04.307 DETENT ASM
4HF1-N ENG(RJZ) 		8-98019-536-0 03 1 0605-
631 04.105 STOPPER; SPRING
4HF1-S ENG(RLS) 		8-97305-666-0 01 1 0211-0501
631 04.105 STOPPER; SPRING
4HF1-N ENG(RJZ) 		8-97305-666-0 01 1 0502-
635 04.309 PLUG; DETENT
4HF1-S ENG(RLS) 00.206 		8-97229-313-2 01 1 0211-0501
635 04.309 PLUG; DETENT
4HF1-N ENG(RJZ) 00.206 		8-97229-313-2 01 1 0502-0611
635 04.309 PLUG; DETENT
4HF1-N ENG(RJZ) 00.206 		8-97380-892-0 01 1 0612-
645 04.311 DETENT ASM
4HF1-S ENG(RLS) 04.307 		8-97241-341-0 01 1 0405-0501
645 04.311 DETENT ASM
4HF1-N ENG(RJZ) 04.307 		8-97241-341-0 01 1 0502-0604
645 04.311 DETENT ASM
4HF1-N ENG(RJZ) 04.307 		8-98019-536-0 01 1 0605-
