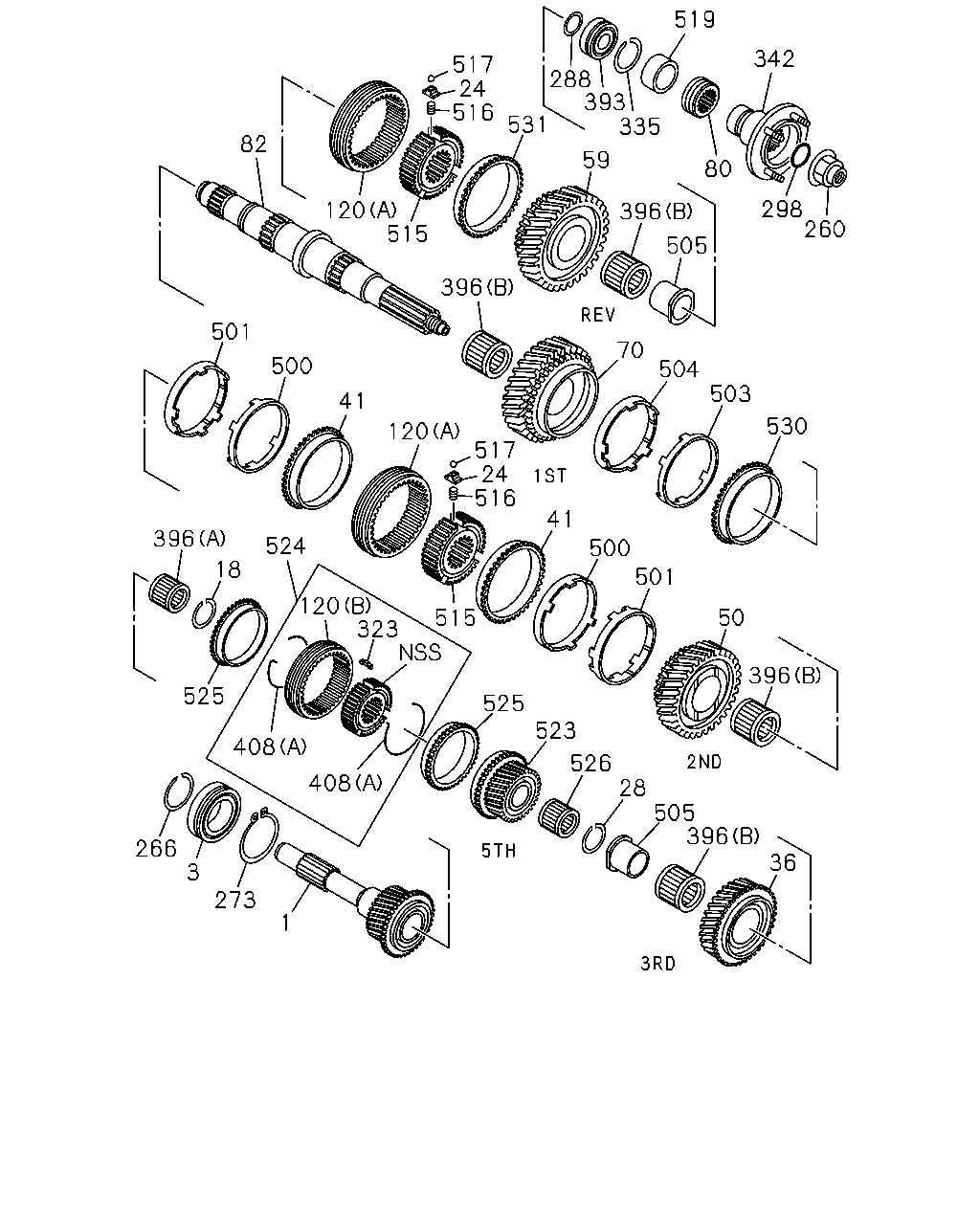

2-26 — MANUAL TRANSMISSION GEAR (#77708) — 154 parça

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1-S ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0211-0501
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1-N ENG(RJZ) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1-S ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0211-0501
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1-N ENG(RJZ) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1-S ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0211-0501
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1-N ENG(RJZ) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-
108	04.428 SHAFT; COUNTER 4HF1-S ENG(RLS) Z=45-49-33-20	8-97326-590-0	01	1	0211-0404
108	04.428 SHAFT; COUNTER 4HF1-S ENG(RLS) Z=45-49-33-20	8-97380-630-0	01	1	0405-0501
108	04.428 SHAFT; COUNTER 4HF1-N ENG(RJZ) Z=45-49-33-20	8-97380-630-1	01	1	0502-
132	04.433 SHAFT; REV 4HF1-S ENG(RLS)	8-97252-655-0	01	1	0211-0501
132	04.433 SHAFT; REV 4HF1-N ENG(RJZ)	8-97252-655-0	01	1	0502-
135	04.430 GEAR; REV IDLER 4HF1-S ENG(RLS) Z=25	8-97241-293-0	01	1	0211-0501
135	04.430 GEAR; REV IDLER 4HF1-N ENG(RJZ) Z=25	8-97241-293-0	01	1	0502-0512
135	04.430 GEAR; REV IDLER 4HF1-N ENG(RJZ) Z=25	8-98031-869-1	01	1	0601-
268	04.537 PLATE; ANTI LASH,COUNTER 4HF1-S ENG(RLS)	8-97257-300-1	01	1	0211-0501
268	04.537 PLATE; ANTI LASH,COUNTER 4HF1-N ENG(RJZ)	8-97257-300-1	01	1	0502-
314	04.419 BEARING; NEEDLE,REV GEAR 4HF1-S ENG(RLS) NSK	8-97253-114-0	01	1	0211-0501
314	04.419 BEARING; NEEDLE,REV GEAR 4HF1-N ENG(RJZ) NSK	8-97253-114-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0211-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.95	8-97320-549-0	01	1	0211-0404
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=3.01	8-97320-550-0	01	1	0211-0404
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=3.07	8-97320-551-0	01	1	0211-0404
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=3.13	8-97320-552-0	01	1	0211-0404
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=3.19	8-97320-553-0	01	1	0211-0404
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-S ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1-N ENG(RJZ) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-
408	04.384 SPRING 4HF1-S ENG(RLS) 04.422 (B)	8-94148-196-0	03	1	0211-0501
408	04.384 SPRING 4HF1-N ENG(RJZ) 04.422 (B)	8-94148-196-0	03	1	0502-
408	04.384 SPRING 4HF1-S ENG(RLS) (A)	8-94422-075-0	02	1	0211-0404
408	04.384 SPRING 4HF1-S ENG(RLS) (A)	8-97366-040-0	02	1	0405-0501
408	04.384 SPRING 4HF1-N ENG(RJZ) (A)	8-97366-040-1	02	1	0502-
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HF1-S ENG(RLS)	8-97253-107-0	02	1	0211-0501
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HF1-N ENG(RJZ)	8-97253-107-0	02	1	0502-
510	04.540 PIN; STRAIGHT,ANTI LASH 4HF1-S ENG(RLS) 00.862	9-08160-825-0	03	1	0211-0501
510	04.540 PIN; STRAIGHT,ANTI LASH 4HF1-N ENG(RJZ) 00.862	9-08160-825-0	03	1	0502-
511	04.416 RING; SNAP,ANTI LASH PLATE 4HF1-S ENG(RLS)	8-97254-767-0	01	1	0211-0501
511	04.416 RING; SNAP,ANTI LASH PLATE 4HF1-N ENG(RJZ)	8-97254-767-0	01	1	0502-

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1-S ENG(RLS) Z=28	8-97252-924-1	01	1	0211-0501
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1-N ENG(RJZ) Z=28	8-97252-924-1	01	1	0502-
3	04.403 BEARING; TOP GEAR SHAFT 4HF1-S ENG(RLS) NSK	8-97253-098-1	01	1	0211-0501
3	04.403 BEARING; TOP GEAR SHAFT 4HF1-N ENG(RJZ) NSK	8-97253-098-1	01	1	0502-
18	04.384 RING; SNAP,CLU HUB 4HF1-S ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0211-0501
18	04.384 RING; SNAP,CLU HUB 4HF1-N ENG(RJZ) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-
24	04.383 BLOCK; INDEX,SYN 4HF1-S ENG(RLS)	8-97241-313-1	06	1	0211-0501
24	04.383 BLOCK; INDEX,SYN 4HF1-N ENG(RJZ)	8-97241-313-1	06	1	0502-
28	04.416 RING; SNAP,3RD GEAR 4HF1-S ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0211-0501
28	04.416 RING; SNAP,3RD GEAR 4HF1-N ENG(RJZ) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1-S ENG(RLS) Z=34	8-97241-234-0	01	1	0211-0501
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1-N ENG(RJZ) Z=34	8-97241-234-0	01	1	0502-
41	04.383 RING; BLOCK,2ND & 3RD 4HF1-S ENG(RLS) Z=45	8-97241-306-1	02	1	0211-0501
41	04.383 RING; BLOCK,2ND & 3RD 4HF1-N ENG(RJZ) Z=45	8-97241-306-1	02	1	0502-
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1-S ENG(RLS) Z=38	8-97241-237-1	01	1	0211-0501
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1-N ENG(RJZ) Z=38	8-97241-237-1	01	1	0502-
59	04.417 GEAR; REV MAINSHAFT 4HF1-S ENG(RLS) Z=41	8-97241-244-0	01	1	0211-0501
59	04.417 GEAR; REV MAINSHAFT 4HF1-N ENG(RJZ) Z=41	8-97241-244-0	01	1	0502-
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1-S ENG(RLS) Z=43	8-97241-242-1	01	1	0211-0404
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1-S ENG(RLS) Z=43	8-97350-010-0	01	1	0405-0501
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1-N ENG(RJZ) Z=43	8-97350-010-0	01	1	0502-
80	04.343 GEAR; SPD DRIVE 4HF1-S ENG(RLS) Z=4	8-97253-556-0	01	1	0211-0501
80	04.343 GEAR; SPD DRIVE 4HF1-N ENG(RJZ) Z=4	8-97253-556-0	01	1	0502-
82	04.403 SHAFT; MAIN,TRANS 4HF1-S ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0211-0501
82	04.403 SHAFT; MAIN,TRANS 4HF1-N ENG(RJZ) Z=28-42-42-21	8-97253-117-3	01	1	0502-
120	04.383 SLEEVE 4HF1-S ENG(RLS) 04.535 (B) Z=45	8-94421-871-1	01	1	0211-0501
120	04.383 SLEEVE 4HF1-N ENG(RJZ) 04.535 (B) Z=45	8-94421-871-1	01	1	0502-
120	04.383 SLEEVE 4HF1-S ENG(RLS) (A) Z=45	8-97241-296-1	02	1	0211-0501
120	04.383 SLEEVE 4HF1-N ENG(RJZ) (A) Z=45	8-97241-296-1	02	1	0502-1311
120	04.383 SLEEVE 4HF1-N ENG(RJZ) (A) Z=45	8-98258-279-0	02	1	1312-
260	04.412 NUT; MAINSHAFT END 4HF1-S ENG(RLS) M27 H=25	8-97253-126-0	01	1	0211-0501
260	04.412 NUT; MAINSHAFT END 4HF1-N ENG(RJZ) M27 H=25	8-97253-126-0	01	1	0502-0604
260	04.412 NUT; MAINSHAFT END 4HF1-N ENG(RJZ) 04.525 M27 H=25	8-97360-410-0	01	1	0605-
266	04.525 RING; SNAP,BRG INNER 4HF1-S ENG(RLS)	8-97286-916-0	01	1	0211-0501
266	04.525 RING; SNAP,BRG INNER 4HF1-N ENG(RJZ)	8-97286-916-0	01	1	0502-
273	04.525 RING; SNAP,BRG OUTER 4HF1-S ENG(RLS)	8-97254-610-0	01	1	0211-0501
273	04.525 RING; SNAP,BRG OUTER 4HF1-N ENG(RJZ)	8-97254-610-0	01	1	0502-
288	04.399 SPACER; BRG,MAINSHAFT 4HF1-S ENG(RLS)	8-97252-942-0	01	1	0211-0501
288	04.399 SPACER; BRG,MAINSHAFT 4HF1-N ENG(RJZ)	8-97252-942-0	01	1	0502-
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1-S ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0211-0501
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1-N ENG(RJZ) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0502-0507
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1-N ENG(RJZ) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-
323	04.384 INSERT 4HF1-S ENG(RLS)	8-94448-202-2	03	1	0211-0501
323	04.384 INSERT 4HF1-N ENG(RJZ)	8-94448-202-2	03	1	0502-
335	04.383 RING; SNAP,BEARING 4HF1-S ENG(RLS)	8-97254-722-0	01	1	0211-0501
335	04.383 RING; SNAP,BEARING 4HF1-N ENG(RJZ)	8-97254-722-0	01	1	0502-
342	05.545 FLANGE; OUTPUT 4HF1-S ENG(RLS)	8-97252-814-1	01	1	0211-0501
342	05.545 FLANGE; OUTPUT 4HF1-N ENG(RJZ)	8-97252-814-1	01	1	0502-0604
342	05.545 FLANGE; OUTPUT 4HF1-N ENG(RJZ)	8-98031-640-0	01	1	0605-
393	04.352 BEARING; MAINSHAFT END 4HF1-S ENG(RLS)	8-97253-105-1	01	1	0211-0501
393	04.352 BEARING; MAINSHAFT END 4HF1-N ENG(RJZ)	8-97253-105-1	01	1	0502-
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1-S ENG(RLS) (A)	8-97253-102-1	01	1	0211-0501
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1-N ENG(RJZ) (A)	8-97253-102-1	01	1	0502-
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1-S ENG(RLS) (B)	8-97253-110-0	04	1	0211-0501
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1-N ENG(RJZ) (B)	8-97253-110-0	04	1	0502-
408	04.384 SPRING 4HF1-S ENG(RLS) 04.422 (B)	8-94148-196-0	03	1	0211-0501
408	04.384 SPRING 4HF1-N ENG(RJZ) 04.422 (B)	8-94148-196-0	03	1	0502-
408	04.384 SPRING 4HF1-S ENG(RLS) (A)	8-94422-075-0	02	1	0211-0404
408	04.384 SPRING 4HF1-S ENG(RLS) (A)	8-97366-040-0	02	1	0405-0501
408	04.384 SPRING 4HF1-N ENG(RJZ) (A)	8-97366-040-1	02	1	0502-
500	04.383 RING; OUTSIDE,3RD & 2ND 4HF1-S ENG(RLS)	8-97241-309-1	02	1	0211-0501
500	04.383 RING; OUTSIDE,3RD & 2ND 4HF1-N ENG(RJZ)	8-97241-309-1	02	1	0502-
501	04.383 RING; INSIDE,3RD & 2ND 4HF1-S ENG(RLS)	8-97241-312-1	02	1	0211-0501
501	04.383 RING; INSIDE,3RD & 2ND 4HF1-N ENG(RJZ)	8-97241-312-1	02	1	0502-
503	04.383 RING; OUTSIDE,LOW & REV 4HF1-S ENG(RLS)	8-97241-309-1	01	1	0211-0501
503	04.383 RING; OUTSIDE,LOW & REV 4HF1-N ENG(RJZ)	8-97241-309-1	01	1	0502-
504	04.383 RING; INSIDE,LOW & REV 4HF1-S ENG(RLS)	8-97241-312-1	01	1	0211-0501
504	04.383 RING; INSIDE,LOW & REV 4HF1-N ENG(RJZ)	8-97241-312-1	01	1	0502-
505	04.419 COLLAR; 3RD & REV 4HF1-S ENG(RLS)	8-97253-119-2	02	1	0211-0501
505	04.419 COLLAR; 3RD & REV 4HF1-N ENG(RJZ)	8-97253-119-2	02	1	0502-
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HF1-S ENG(RLS)	8-97241-298-2	02	1	0211-0501
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HF1-N ENG(RJZ)	8-97241-298-3	02	1	0502-
516	04.384 SPRING; SYNCHRO,INDEX 4HF1-S ENG(RLS)	8-97254-835-0	06	1	0211-0501
516	04.384 SPRING; SYNCHRO,INDEX 4HF1-N ENG(RJZ)	8-97254-835-0	06	1	0502-
517	04.384 BALL; SYNCHRO,INDEX 4HF1-S ENG(RLS)	8-97252-935-0	06	1	0211-0501
517	04.384 BALL; SYNCHRO,INDEX 4HF1-N ENG(RJZ)	8-97252-935-0	06	1	0502-
519	04.419 COLLAR; MAINSHAFT END,5TH 4HF1-S ENG(RLS) 04.415	8-97252-940-0	01	1	0211-0501
519	04.419 COLLAR; MAINSHAFT END,5TH 4HF1-N ENG(RJZ) 04.415	8-97252-940-0	01	1	0502-
523	04.395 GEAR; OD,MAINSHAFT 4HF1-S ENG(RLS) Z=22	8-97241-231-0	01	1	0211-0501
523	04.395 GEAR; OD,MAINSHAFT 4HF1-N ENG(RJZ) Z=22	8-97241-231-0	01	1	0502-
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HF1-S ENG(RLS)	8-97300-195-0	01	1	0211-0404
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HF1-S ENG(RLS)	8-97366-526-0	01	1	0405-0501
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HF1-N ENG(RJZ)	8-97366-526-0	01	1	0502-
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HF1-S ENG(RLS) Z=45	8-97309-532-0	02	1	0211-0501
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HF1-N ENG(RJZ) Z=45	8-97309-532-0	02	1	0502-
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HF1-S ENG(RLS)	8-97253-112-0	01	1	0211-0501
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HF1-N ENG(RJZ)	8-97253-112-0	01	1	0502-
530	04.383 RING; BLOCK,LOW 4HF1-S ENG(RLS) Z=45	8-97241-306-1	01	1	0211-0501
530	04.383 RING; BLOCK,LOW 4HF1-N ENG(RJZ) Z=45	8-97241-306-1	01	1	0502-
531	04.383 RING; BLOCK,REV 4HF1-S ENG(RLS) Z=45	8-97328-151-1	01	1	0211-0305
531	04.383 RING; BLOCK,REV 4HF1-S ENG(RLS) Z=45	8-97368-343-0	01	1	0306-0501
531	04.383 RING; BLOCK,REV 4HF1-N ENG(RJZ) Z=45	8-97368-343-0	01	1	0502-
