◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#77707) — 52 parça

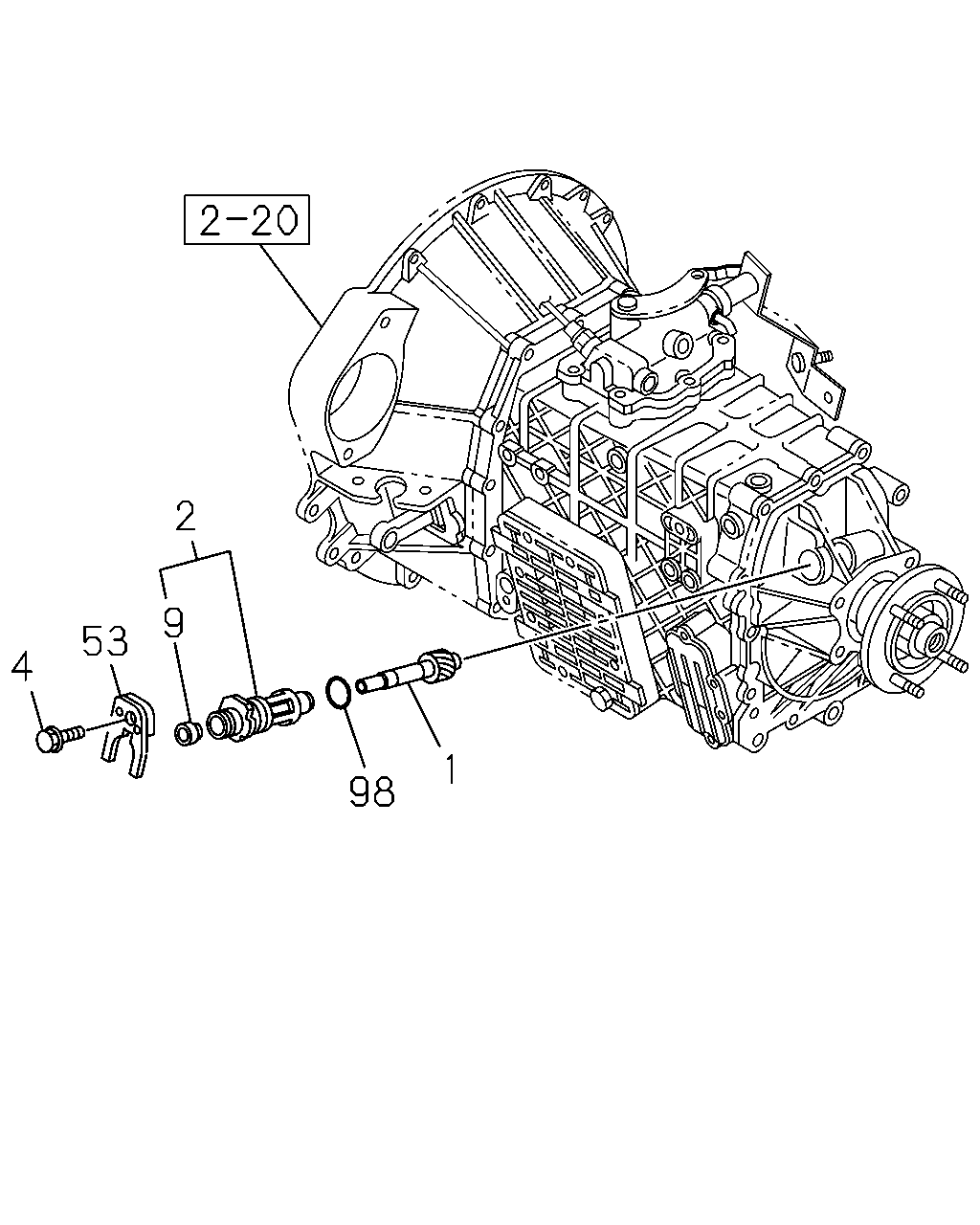

çizim 135594
2 9 53 4 1 98
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR TIRE 7-16-10L DISC 5.5F-16-115(BPM),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=14 		8-97253-561-1 01 1 0211-0505 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=14 		8-97253-561-1 01 1 0211-0505 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=14 		8-97253-561-1 01 1 0506- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR TIRE 7-16-10L DISC 5.5F-16-115(BPM),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=15 		8-97253-560-1 01 1 0211-0505 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=15 		8-97253-560-1 01 1 0211-0505 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) Z=15 		8-97253-560-1 01 1 0506-0706 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=15 		8-97253-560-1 01 1 0506-0706 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5 (CSB) Z=15 		8-97253-560-1 01 1 0506-0706 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) Z=15 		8-97253-560-1 01 1 0506-0706 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=15 		8-97253-560-1 01 1 0707-0804 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5 (CSB) Z=15 		8-97253-560-1 01 1 0707-0804 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) Z=15 		8-97253-560-1 01 1 0707-0804 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVE R(CUC) Z=15 		8-97253-560-1 01 1 0805- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=15 		8-97253-560-1 01 1 0805- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVE R(CUA) Z=15 		8-97253-560-1 01 1 0805- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SI LVER(CUA) Z=15 		8-97253-560-1 01 1 0805- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR TIRE 7-16-10L DISC 5.5F-16-115(BPM),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=16 		8-97253-558-1 01 1 0211-0505 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=16 		8-97253-558-1 01 1 0211-0505 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) Z=16 		8-97253-558-1 01 1 0506-0706 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA) Z=16 		8-97253-558-1 01 1 0506-0706 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) Z=16 		8-97253-558-1 01 1 0506-0706 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) Z=16 		8-97253-558-1 01 1 0707-0804 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) Z=16 		8-97253-558-1 01 1 0707-0804 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVE R(CUC) Z=16 		8-97253-558-1 01 1 0805- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SI LVER(CUC) Z=16 		8-97253-558-1 01 1 0805- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SI LVER(CUA) Z=16 		8-97253-558-1 01 1 0805- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR TIRE 7-16-10L DISC 5.5F-16-115(BPM),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "12,13,14,15" 		8-97253-125-0 01 1 0211-0505 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "12,13,14,15" 		8-97253-125-0 01 1 0211-0505 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "12,13,14,15" 		8-97253-125-0 01 1 0506-0706 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA) MARK "12,13,14,15" 		8-97253-125-0 01 1 0506-0706 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) MARK "12,13,14,15" 		8-97253-125-0 01 1 0506-0706 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "12,13,14,15" 		8-97253-125-0 01 1 0707-0804 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) MARK "12,13,14,15" 		8-97253-125-0 01 1 0707-0804 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "12,13,14,15" 		8-97253-125-0 01 1 0805- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SI LVER(CUC) MARK "12,13,14,15" 		8-97253-125-0 01 1 0805- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SI LVER(CUA) MARK "12,13,14,15" 		8-97253-125-0 01 1 0805- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR TIRE 7-16-10L DISC 5.5F-16-115(BPM),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "10,11,16,17" 		8-97253-124-0 01 1 0211-0505 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR TIRE 7-16-10 DISC 5.5F-16-115(BPL),FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "10,11,16,17" 		8-97253-124-0 01 1 0211-0505 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5 (CSA) MARK "10,11,16,17" 		8-97253-124-0 01 1 0506-0706 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 195/85R16 DISC 16-5.5J-11 6.5(CSA) MARK "10,11,16,17" 		8-97253-124-0 01 1 0506-0706 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) MARK "10,11,16,17" 		8-97253-124-0 01 1 0506-0706 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) MARK "10,11,16,17" 		8-97253-124-0 01 1 0707-0804 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR TIRE 205/85R16 DISC 16-5.5J-11 6.5(CSB) MARK "10,11,16,17" 		8-97253-124-0 01 1 0707-0804 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/7(R41) FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVE R(CUC) MARK "10,11,16,17" 		8-97253-124-0 01 1 0805- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SI LVER(CUC) MARK "10,11,16,17" 		8-97253-124-0 01 1 0805- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SI LVER(CUA) MARK "10,11,16,17" 		8-97253-124-0 01 1 0805- ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0211- ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97252-679-2 01 1 0211-0604 ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0605- ● ● ●
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0211- ● ● ●
