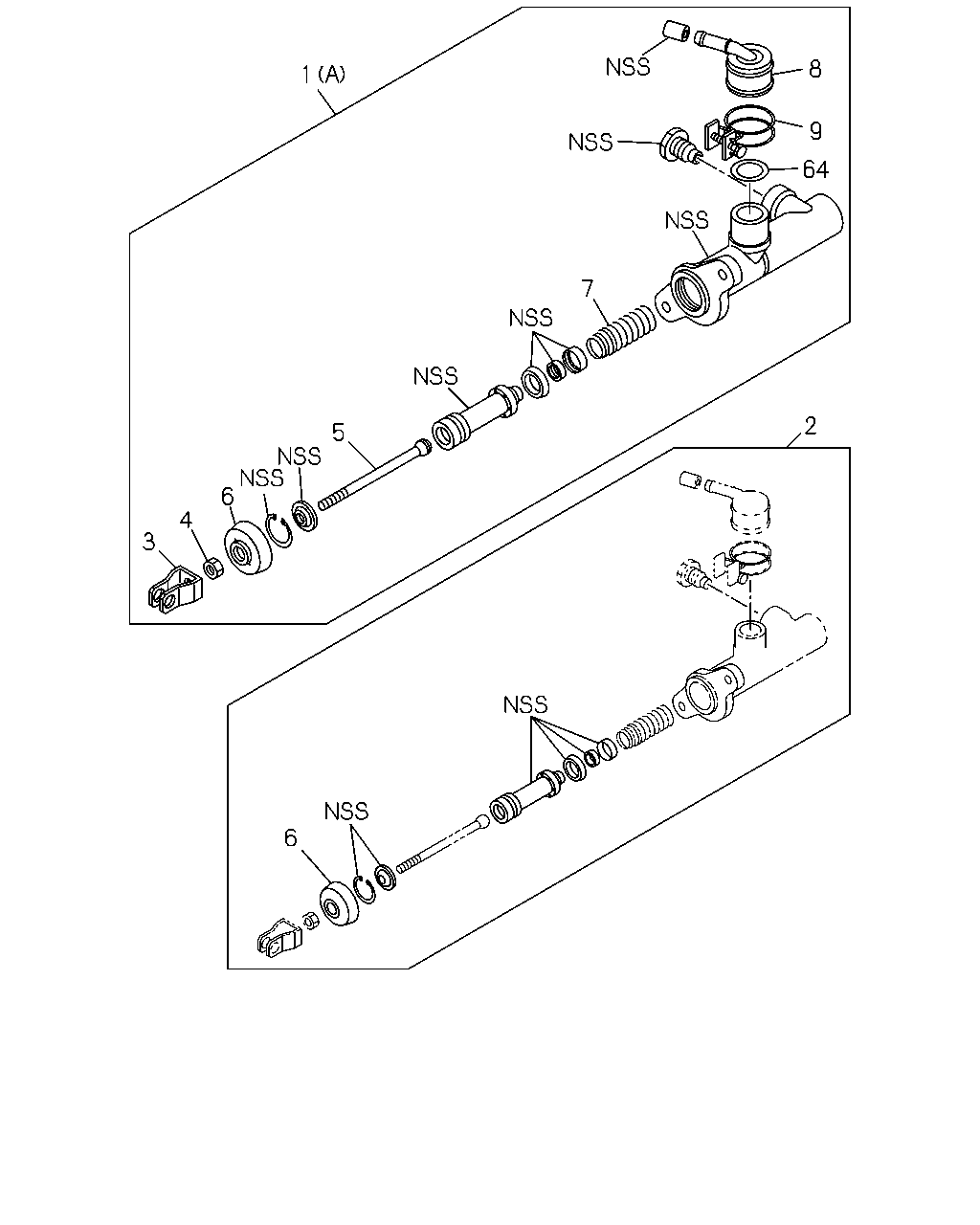

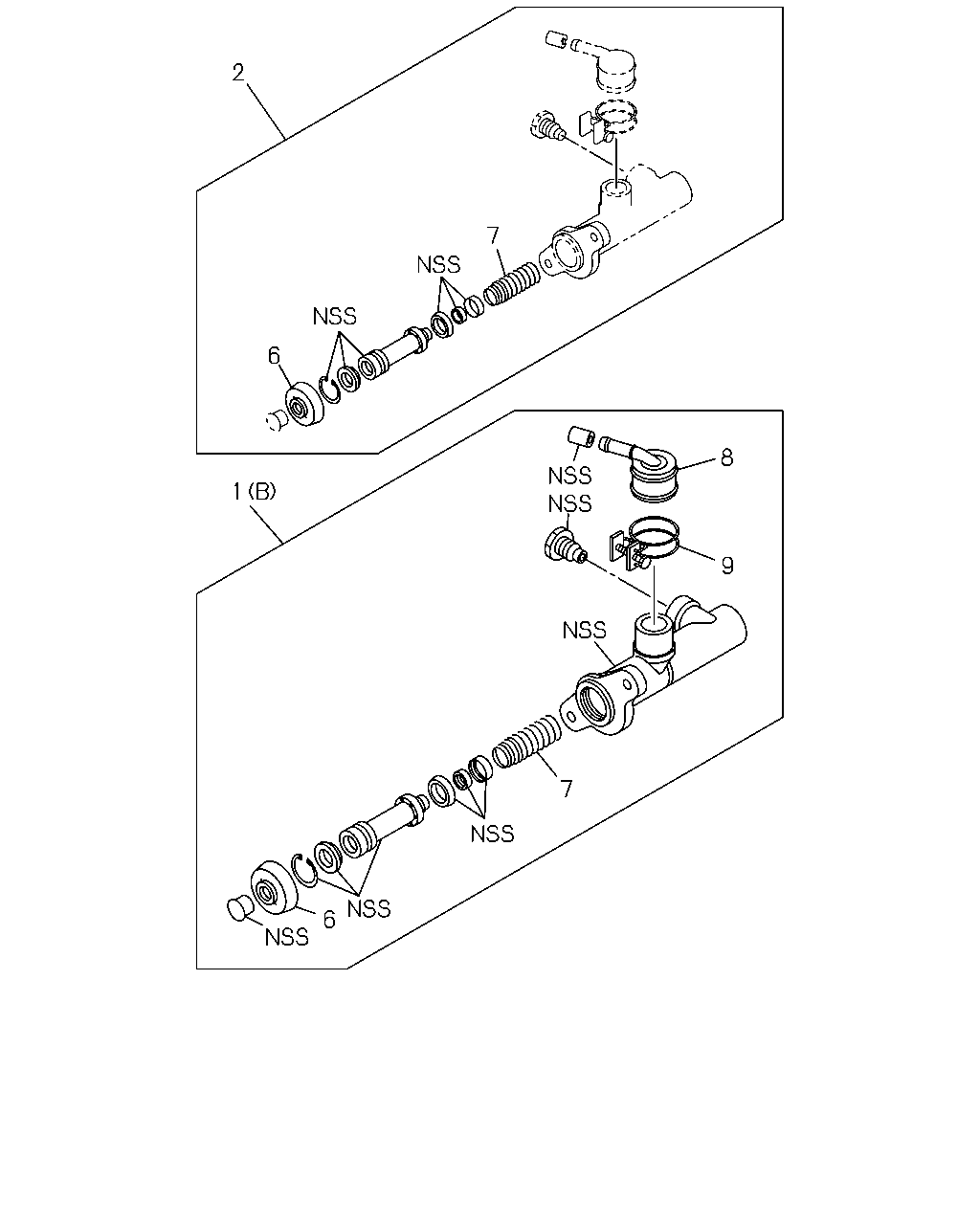

2-08 — CLUTCH MASTER CYLINDER (#77704) — 53 parça

2 7 6 8 1 9 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T> (B)	8-97210-748-1	01	1	0211-0704
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T> (B)	8-98083-061-0	01	1	0705-
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97167-406-0	01	1	0211-0501
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97167-406-0	01	1	0502-0803
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T> (A)	8-98117-644-0	01	1	0804-
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	5-87831-617-0	01	1	0211-
2	00.775 REPAIR KIT; CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0211-0501
2	00.775 REPAIR KIT; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0502-0803
2	00.775 REPAIR KIT; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	5-87832-226-0	01	1	0804-
6	00.775 BOOT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-153-0	01	1	0211-
6	00.775 BOOT; CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0211-0501
6	00.775 BOOT; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0502-
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-148-0	01	1	0211-
7	00.775 SPRING ASM; CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0211-0501
7	00.775 SPRING ASM; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0502-
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-190-0	01	1	0211-
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-766-0	01	1	0211-0501
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-766-0	01	1	0502-
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	0211-0501
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	0502-
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-143-0	01	1	0211-0704
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-98061-352-0	01	1	0705-

8 1 9 64 7 2 5 6 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T> (B)	8-97210-748-1	01	1	0211-0704
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T> (B)	8-98083-061-0	01	1	0705-
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97167-406-0	01	1	0211-0501
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97167-406-0	01	1	0502-0803
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T> (A)	8-98117-644-0	01	1	0804-
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	5-87831-617-0	01	1	0211-
2	00.775 REPAIR KIT; CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0211-0501
2	00.775 REPAIR KIT; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0502-0803
2	00.775 REPAIR KIT; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	5-87832-226-0	01	1	0804-
3	00.777 JOINT; JAW,CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-770-0	01	1	0211-0501
3	00.777 JOINT; JAW,CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-770-0	01	1	0502-
4	00.777 NUT; JAW JOINT 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8	9-09111-408-0	01	1	0211-0501
4	00.777 NUT; JAW JOINT 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8	9-09111-408-0	01	1	0502-0511
4	00.777 NUT; JAW JOINT 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T> M8	0-91111-508-0	01	1	0512-
5	00.775 ROD; PUSH,CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-768-0	01	1	0211-0501
5	00.775 ROD; PUSH,CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-768-0	01	1	0502-
6	00.775 BOOT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-153-0	01	1	0211-
6	00.775 BOOT; CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0211-0501
6	00.775 BOOT; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0502-
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-148-0	01	1	0211-
7	00.775 SPRING ASM; CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0211-0501
7	00.775 SPRING ASM; CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0502-
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-190-0	01	1	0211-
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-766-0	01	1	0211-0501
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-766-0	01	1	0502-
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	0211-0501
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	0502-
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-143-0	01	1	0211-0704
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-98061-352-0	01	1	0705-
64	00.777 GASKET; CONNECTOR 4HF1-S ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-767-0	01	1	0211-0501
64	00.777 GASKET; CONNECTOR 4HF1-N ENG(RJZ) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-767-0	01	1	0502-
