8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#7770) — 7 parça

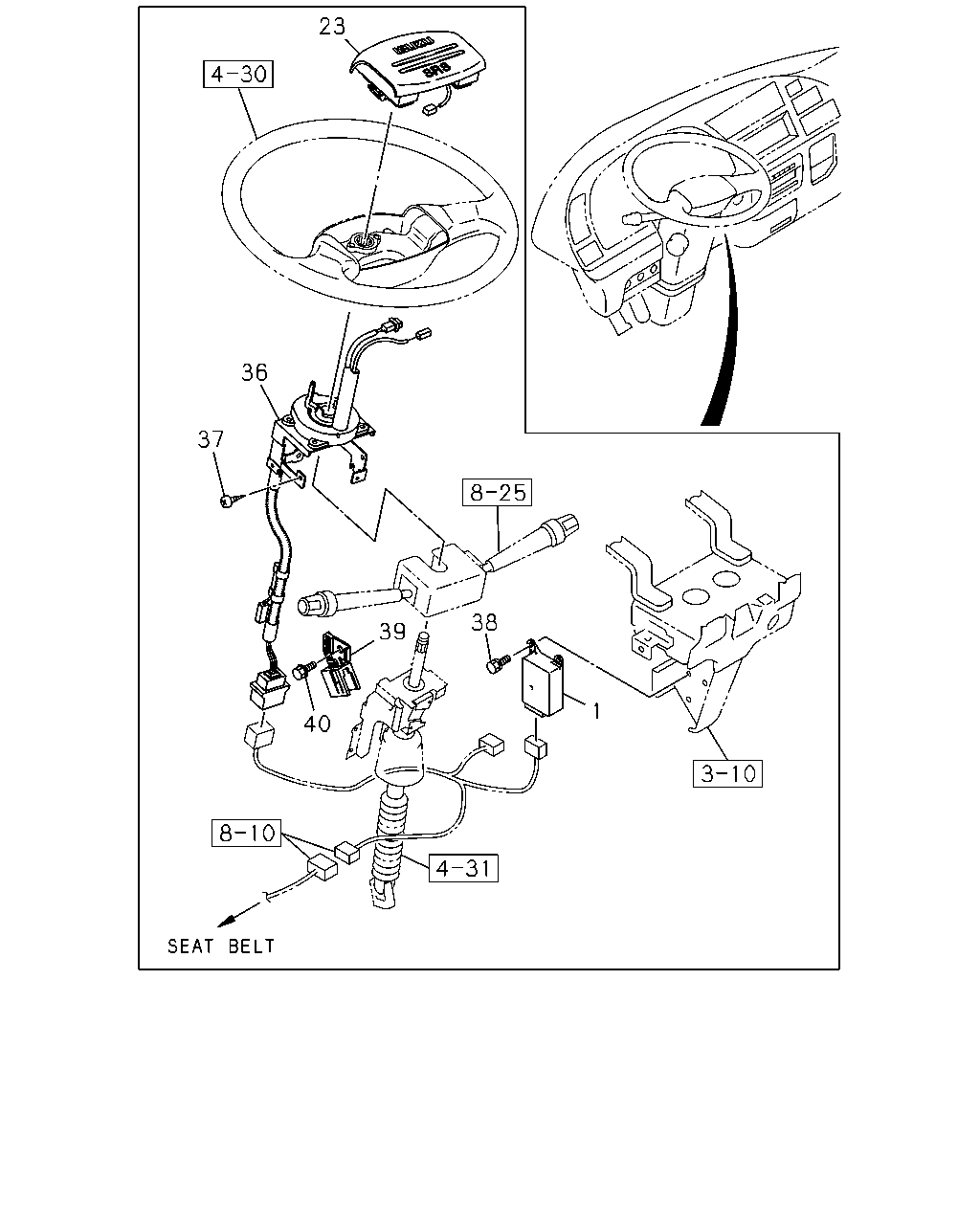

çizim 44557
23 36 37 38 39 1 40
BalonParca AdiParca NoAdetTipApplied Date
1 CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-80190-055-1 01 1 9905-
23 AIR BAG UNIT
AIR BAG(TFQ) 		1-75630-003-3 01 1 9905-
36 COIL; SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82698-074-2 01 1 9905-
37 SCREW; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9905-
38 BOLT; CONT UNIT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6X18 W/PL WASHER 		8-97105-796-0 03 1 9905-
39 HOLDER; CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) 		1-82699-955-1 01 1 9905-
40 BOLT; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9905-
