◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51278 - NKR MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#77699) — 24 parça

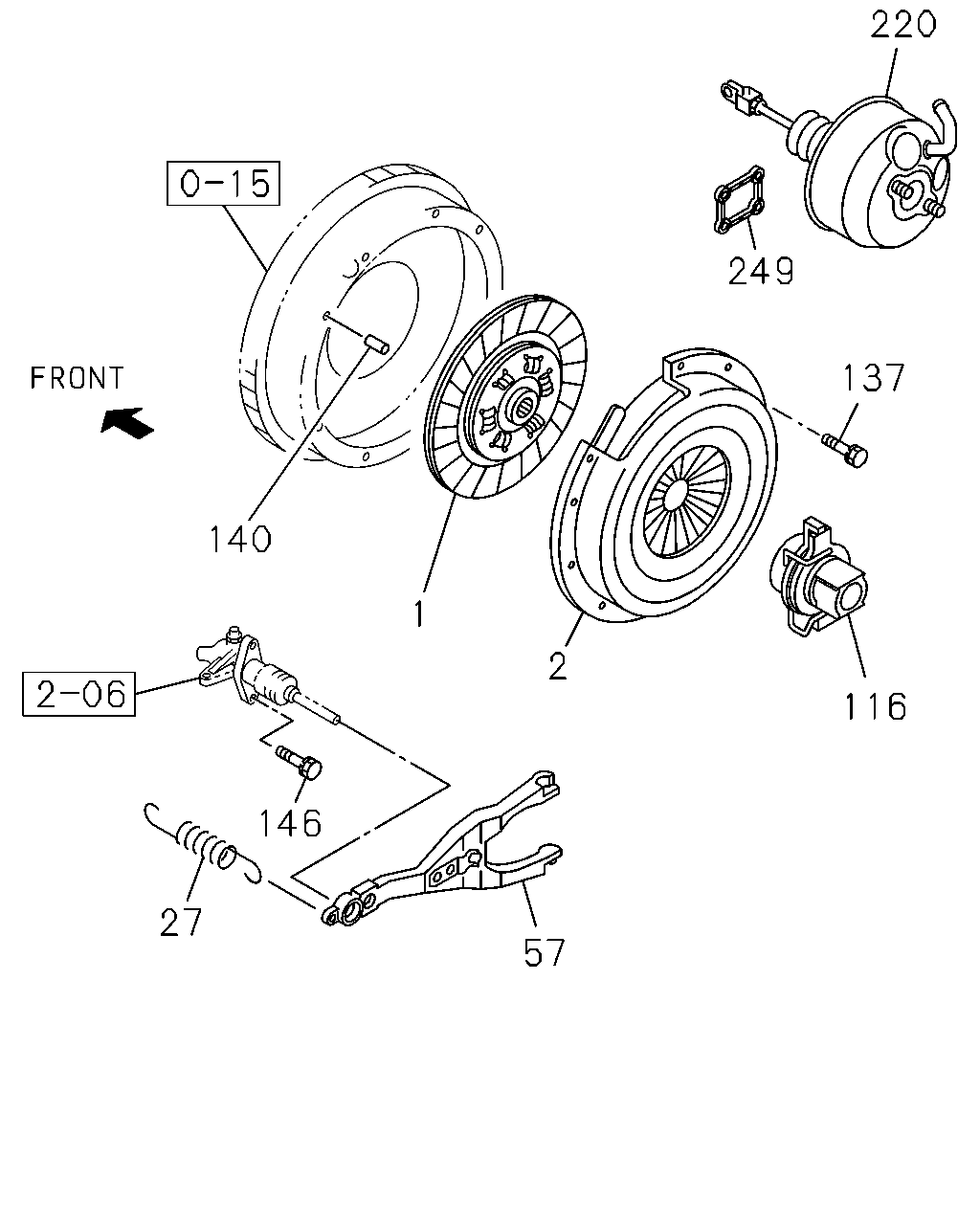

çizim 135579
220 249 137 140 1 2 116 146 27 57
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0211-0412
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-1402
1 00.886 DISC; CLUTCH 8-98255-959-1 01 1 1403-
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-049-2 01 1 0501-1501
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0211-0302
2 00.859 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0303-0412
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0501-
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-050-1 01 1 0211-
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1-S ENG(RLS) 		8-97184-359-0 01 1 0211-0501
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1-N ENG(RJZ) 		8-97184-359-0 01 1 0502-0812
27 00.837 SPRING; RETURN,SHIFT FORK
4HF1-N ENG(RJZ) 		8-98025-313-0 01 1 0901-
57 00.795 FORK; SHIFT,CLU
4HF1-S ENG(RLS) 		8-97255-303-0 01 1 0211-0501
57 00.795 FORK; SHIFT,CLU
4HF1-N ENG(RJZ) 		8-97255-303-0 01 1 0502-
116 00.799 BLOCK; SHIFT,CLU
4HF1-S ENG(RLS) 		8-97255-313-0 01 1 0211-0501
116 00.799 BLOCK; SHIFT,CLU
4HF1-N ENG(RJZ) 		8-97255-313-0 01 1 0502-
116 00.799 BLOCK; SHIFT,CLU
4HF1-S ENG(RLS) BEST VALUE PARTS 		5-87610-110-0 01 1 0211-0501
116 00.799 BLOCK; SHIFT,CLU
4HF1-N ENG(RJZ) BEST VALUE PARTS 		5-87610-110-0 01 1 0502-
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0211-0512
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0211-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH<S2T> 		8-97162-962-1 01 1 0211-
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH<S2T> 		8-97167-489-0 01 1 0211-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
