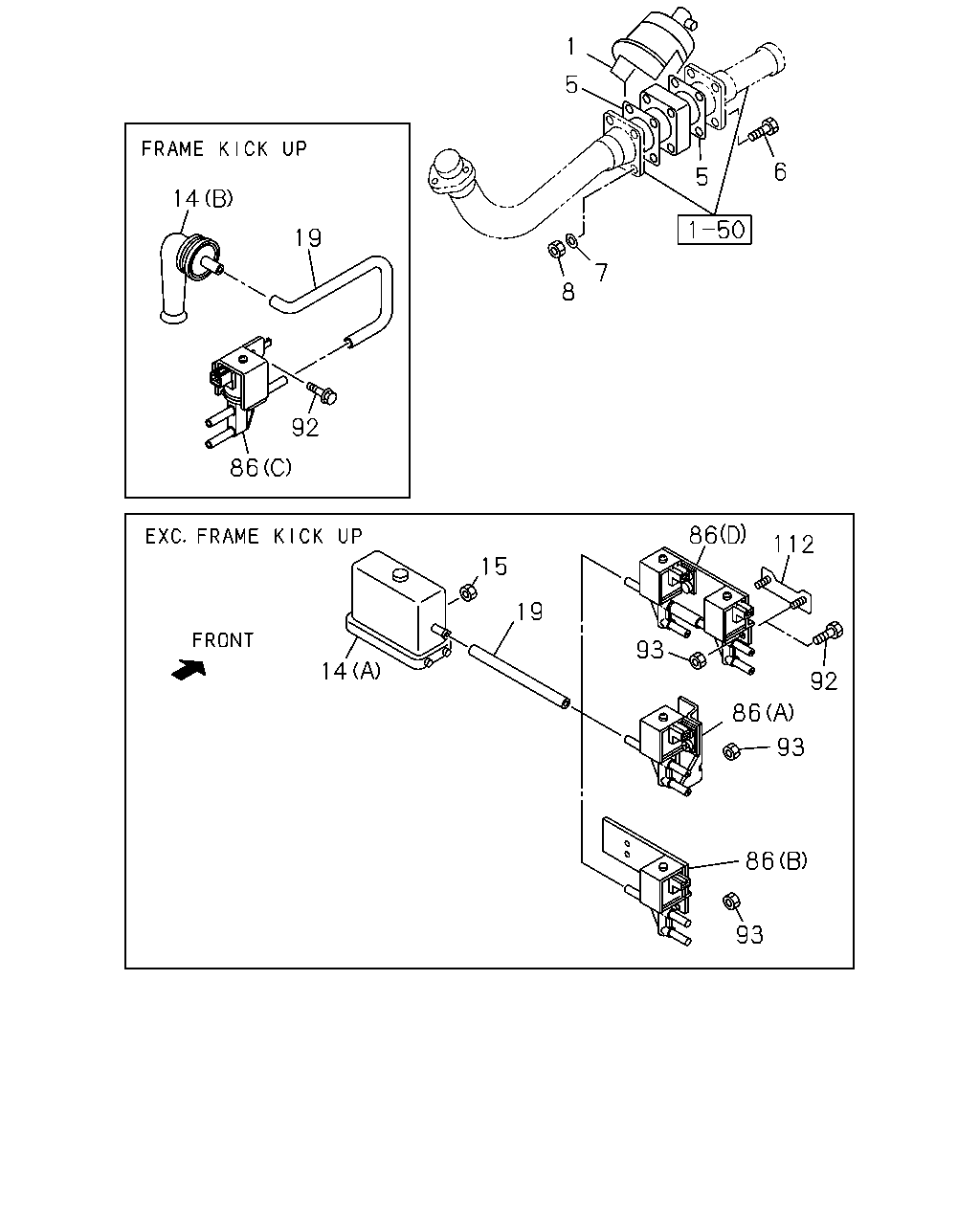

1-56 — EXHAUST BRAKE SYSTEM (#77698) — 58 parça

1 5 6 5 14 19 7 8 92 86 86 112 15 19 93 14 92 86 93 86 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8>	8-97287-193-1	01	1	0211-0501	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8>	8-97287-193-2	01	1	0502-1404	●	●	●
1	03.632 BRAKE UNIT; EXH 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8>	8-98268-705-0	01	1	1405-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0211-0501	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0502-	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	0211-0501	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	0502-0512	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> M8X70	0-10855-870-0	04	1	0601-	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	0211-0501	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	0502-	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0211-0501	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0502-0512	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	0601-	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (B)	8-97178-468-0	01	1	0211-0501	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (B)	8-97178-468-0	01	1	0502-	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-97033-888-0	01	1	0211-0501	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97033-888-0	01	1	0211-0501		●	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-97033-888-0	01	1	0502-	●
14	03.634 FILTER; AIR,EXH BRAKE 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A)	8-97033-888-0	01	1	0502-		●	●
15	03.634 NUT; AIR FILTER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
15	03.634 NUT; AIR FILTER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●
15	03.634 NUT; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
15	03.634 NUT; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●	●
15	03.634 NUT; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
15	03.634 NUT; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
19	03.630 HOSE; AIR FILTER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97091-033-0	01	1	0211-0501	●
19	03.630 HOSE; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97091-033-0	01	1	0502-	●
19	03.630 HOSE; AIR FILTER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501	●
19	03.630 HOSE; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0502-	●
19	03.630 HOSE; AIR FILTER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501		●
19	03.630 HOSE; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0502-		●
19	03.630 HOSE; AIR FILTER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0211-0501			●
19	03.630 HOSE; AIR FILTER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0502-			●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (D)	8-97043-776-1	01	1	0211-0405	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (D)	8-97374-148-0	01	1	0406-0501	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (D)	8-97374-148-0	01	1	0502-	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (C)	8-97066-716-0	01	1	0211-0405	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (C)	8-97374-153-0	01	1	0406-0501	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (C)	8-97374-153-2	01	1	0502-	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B)	8-97239-246-0	01	1	0211-0405	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B)	8-97374-152-0	01	1	0406-0501	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B)	8-97374-152-2	01	1	0502-	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97101-047-0	01	1	0211-0405		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97374-157-0	01	1	0406-0501		●	●
86	03.636 VALVE; MAG,EXH BRK 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A)	8-97374-157-2	01	1	0502-		●	●
92	08.900 BOLT; MAG VLV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●
92	08.900 BOLT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●
92	08.900 BOLT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
92	08.900 BOLT; MAG VLV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0304-0501	●
92	08.900 BOLT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●
92	08.900 BOLT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
93	08.917 NUT; MAG VLV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501	●
93	08.917 NUT; MAG VLV 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●
93	08.917 NUT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
93	08.917 NUT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●	●
93	08.917 NUT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
93	08.917 NUT; MAG VLV 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
112	03.640 PLATE; BRKT 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW>	8-97091-766-0	01	1	0211-0303	●
