Sayfa 1-50 - Isuzu EPC

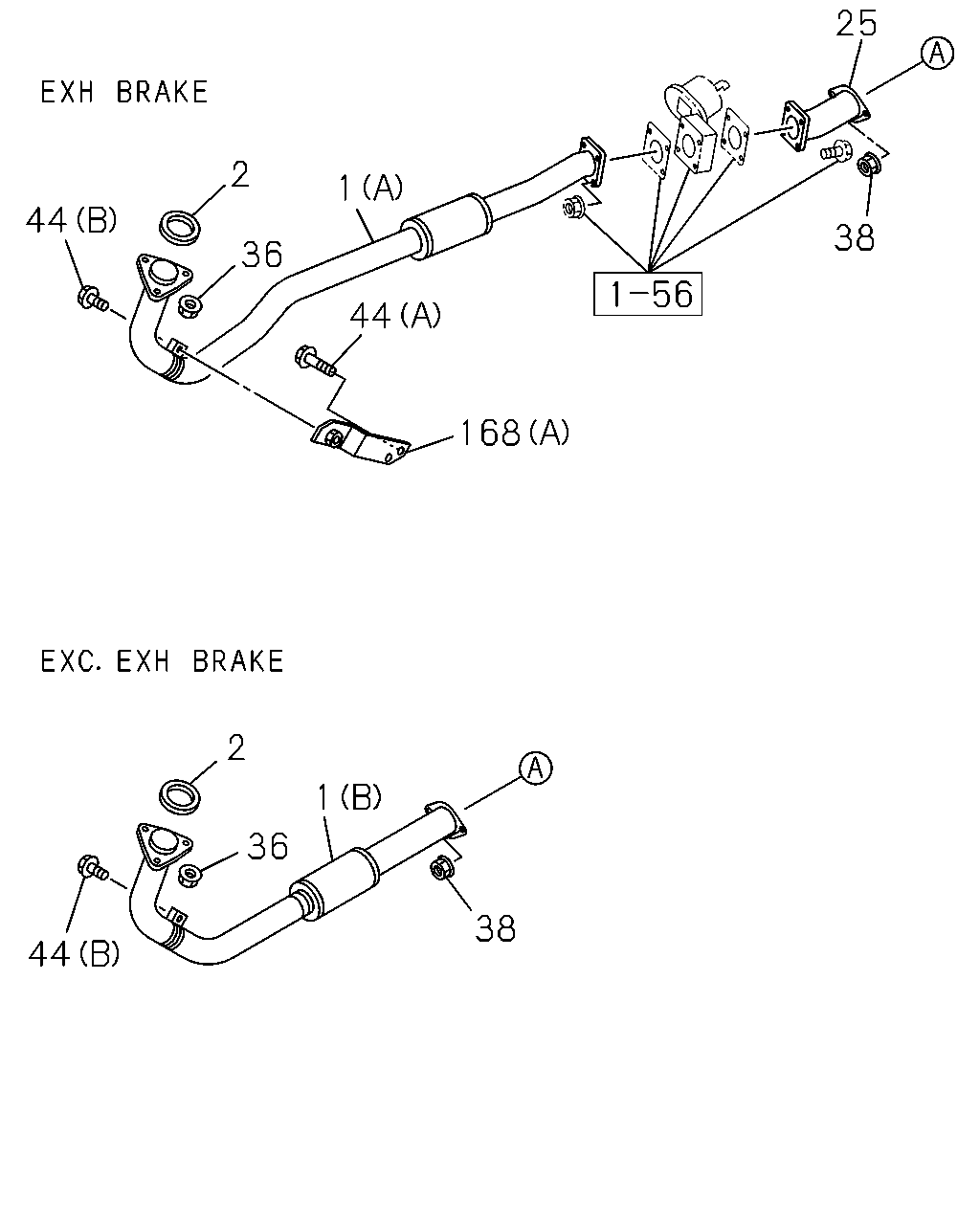

1-50 — EXHAUST PIPE AND SILENCER (#77696) — 313 parça

25 2 1 44 38 36 44 168 2 1 36 38 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> (A)	8-97139-391-3	01	1	0211-0501	●	●	●
1	03.609 PIPE; EXH 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (A)	8-97139-391-3	01	1	0502-	●	●	●
1	03.609 PIPE; EXH 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. EXHAUST BRAKE<NF8> (B)	8-97139-398-2	01	1	0211-0501	●
1	03.609 PIPE; EXH 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. EXHAUST BRAKE<NF8> (B)	8-97139-398-2	01	1	0502-	●
1	03.609 PIPE; EXH 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (A)	8-97218-433-2	01	1	0211-0501	●
1	03.609 PIPE; EXH 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (A)	8-97218-433-2	01	1	0502-	●
1	03.609 PIPE; EXH 4HF1-S ENG(RLS) EXC. EXHAUST BRAKE<NF8> (B)	8-97139-397-2	01	1	0211-0501		●	●
1	03.609 PIPE; EXH 4HF1-N ENG(RJZ) EXC. EXHAUST BRAKE<NF8> (B)	8-97139-397-2	01	1	0502-		●	●
2	03.611 GASKET; PIPE TO MANIF 4HF1-S ENG(RLS)	8-97180-749-2	01	1	0211-0408	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4HF1-S ENG(RLS)	8-97381-455-0	01	1	0409-0501	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4HF1-N ENG(RJZ)	8-97381-455-0	01	1	0502-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97162-361-1	01	1	0211-0501	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T)	8-97162-361-1	01	1	0502-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97105-987-1	01	1	0211-0501	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW>	8-97105-987-1	01	1	0502-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8>	8-97077-364-2	01	1	0211-0212		●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8>	8-97362-716-0	01	1	0301-0501		●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8>	8-97362-716-0	01	1	0502-		●	●
36	03.613 NUT; EXH PIPE 4HF1-S ENG(RLS) M10 FLANGE	8-97096-192-1	03	1	0211-0501	●	●	●
36	03.613 NUT; EXH PIPE 4HF1-N ENG(RJZ) M10 FLANGE	8-97096-192-1	03	1	0502-	●	●	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
38	00.002 NUT; SILENCER 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501		●	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
44	03.613 BOLT; BRKT 4HF1-S ENG(RLS) (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0211-0501	●	●	●
44	03.613 BOLT; BRKT 4HF1-N ENG(RJZ) (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0502-0512	●	●	●
44	03.613 BOLT; BRKT 4HF1-N ENG(RJZ) (A) M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	0601-	●	●	●
44	03.613 BOLT; BRKT 4HF1-S ENG(RLS) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●	●	●
44	03.613 BOLT; BRKT 4HF1-N ENG(RJZ) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0504	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0801	●	●	●
44	03.613 BOLT; BRKT 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●	●	●
44	03.613 BOLT; BRKT 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-S ENG(RLS) (A)	8-97075-343-1	01	1	0211-0501	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-N ENG(RJZ) (A)	8-97075-343-1	01	1	0502-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0211-0305	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0211-0305		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0306-0501	●
168	03.613 BRACKET; EXH PIPE,FRT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (B)	8-94468-174-1	01	1	0306-0501		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0502-0505	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0506-	●
168	03.613 BRACKET; EXH PIPE,FRT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (B)	8-94468-174-1	01	1	0506-		●	●

81 108 118 117 115 114 118 117 119 115 119 114 113 103 115 14 14 122 112 12 124 166 162 164 137 104 126 95 88 165 94 105 357 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH 4HF1-S ENG(RLS)	8-97206-526-2	01	1	0211-0501	●	●	●
12	03.701 SILENCER ASM; EXH 4HF1-N ENG(RJZ)	8-97206-526-2	01	1	0502-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HF1-S ENG(RLS) ID=64.7	8-94328-352-0	01	1	0211-0501	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0211-0501	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HF1-N ENG(RJZ) ID=64.7	8-94328-352-0	01	1	0502-	●	●	●
81	03.704 NUT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0305	●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0305		●	●
81	03.704 NUT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0501	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0501		●	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0505	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0506-0602	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0506-0602		●	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
81	03.704 NUT; BRKT 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) ID=61.6	8-97010-307-0	01	1	0211-0305	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0211-0305	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) ID=61.6	8-97010-307-0	01	1	0211-0305		●	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) ID=61.6	8-97010-307-0	01	1	0306-0501	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0306-0501	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6	8-97010-307-0	01	1	0306-0501		●	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) ID=61.6	8-97010-307-0	01	1	0502-0505	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0502-0505	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) ID=61.6	8-97010-307-0	01	1	0506-	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0506-	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6	8-97010-307-0	01	1	0506-		●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0211-0305	●	●	●
94	03.704 BOLT; CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0211-0305	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0211-0305		●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0306-0501	●	●	●
94	03.704 BOLT; CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0306-0501	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	0306-0501		●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0502-0505	●	●	●
94	03.704 BOLT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0502-0505	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0506-	●	●	●
94	03.704 BOLT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0506-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	0506-		●	●
95	03.708 BOLT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0501	●
95	03.708 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512	●
95	03.708 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
95	03.708 BOLT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
95	03.708 BOLT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0801	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●	●
104	03.704 NUT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
104	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
104	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●
104	03.704 NUT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
104	03.704 NUT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0211-0512	●	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602	●	●	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T)	8-97351-812-0	01	1	0211-0501	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T)	8-97351-812-0	01	1	0502-	●
112	03.706 BRACKET; HANGER 4HF1-S ENG(RLS)	8-97076-020-0	01	1	0211-0501	●	●	●
112	03.706 BRACKET; HANGER 4HF1-N ENG(RJZ)	8-97076-020-0	01	1	0502-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0211-	●	●	●
114	03.704 BRACKET; EXH SILENCER 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97172-313-0	01	1	0211-0501	●
114	03.704 BRACKET; EXH SILENCER 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (B)	8-97172-313-0	01	1	0502-	●
114	03.704 BRACKET; EXH SILENCER 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (A)	8-97105-989-0	01	1	0211-0501	●
114	03.704 BRACKET; EXH SILENCER 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A)	8-97105-989-0	01	1	0502-	●
114	03.704 BRACKET; EXH SILENCER 4HF1-S ENG(RLS) (A)	8-94329-856-0	01	1	0211-0501		●	●
114	03.704 BRACKET; EXH SILENCER 4HF1-N ENG(RJZ) (A)	8-94329-856-0	01	1	0502-		●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0211-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0211-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0211-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0211-	●	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0211-0512	●	●	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 02.559 M8	9-09110-408-0	01	1	0211-0512	●
124	03.704 NUT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 02.334 M8	0-91110-508-0	01	1	0601-	●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0211-0512		●	●
124	03.704 NUT; SUPPORT RUBBER 00.833 M10	0-91110-510-0	01	1	0601-		●	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97034-100-1	01	1	0506-		●	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97351-464-0	01	1	0211-0501	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (B)	8-97351-464-0	01	1	0502-	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (A)	8-97213-051-0	01	1	0211-0501	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A)	8-97213-051-0	01	1	0502-	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) (B)	8-97034-100-1	01	1	0211-0305		●	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97034-100-1	01	1	0306-0501		●	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97240-342-1	01	1	0306-0501		●	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) (C)	8-97240-342-1	01	1	0502-0505		●	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97240-342-1	01	1	0506-		●	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	0506-		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-97209-186-0	01	1	0211-0501	●
137	03.706 BRACKET; TAIL PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (A)	8-97209-186-0	01	1	0502-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0211-0305		●	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	0306-0501		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-S ENG(RLS) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97360-459-0	01	1	0306-0501		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-N ENG(RJZ) (C)	8-97360-459-0	01	1	0502-0505		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-N ENG(RJZ) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97360-459-0	01	1	0506-		●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE REAR WIDE TREAD(V4T) L=148	8-97145-971-0	01	1	0211-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. REAR WIDE TREAD(V4T) L=70	8-97222-645-0	01	1	0211-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0211-		●	●
164	03.706 COLLAR; DIST,TAIL PIPE REAR WIDE TREAD(V4T) L=37.5	9-22151-217-0	01	1	0211-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0211-		●	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. REAR WIDE TREAD(V4T) 03.616 L=23	9-22151-175-0	01	1	0211-	●
165	03.706 BOLT; SUPPORT RUBBER REAR WIDE TREAD(V4T) M10X70 FLANGE	0-28081-070-0	01	1	0211-0512	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0211-0512		●	●
165	03.706 BOLT; SUPPORT RUBBER REAR WIDE TREAD(V4T) M10X70 FLANGE	0-28051-070-0	01	1	0601-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-		●	●
165	03.706 BOLT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●
165	03.706 BOLT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI REAR WIDE TREAD(V4T) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI REAR WIDE TREAD(V4T) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. REAR WIDE TREAD(V4T) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0211-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. REAR WIDE TREAD(V4T) ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605	●	●	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●

124 166 162 164 165 126 95 104 137 105 88 105 357 94 81 125 70 126 88 144 143 168 97 94 105 164 95 124 166 162 164 165 162 95 165 166 105 88 104 104 137 94 137 105 88 94 357 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
70	03.706 BOLT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0305	●
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0305		●	●
70	03.706 BOLT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0306-0501	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0306-0501		●	●
70	03.706 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0505	●
70	03.706 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0506-0512	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0506-0512		●	●
70	03.706 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
70	03.706 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
81	03.704 NUT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0305	●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0305		●	●
81	03.704 NUT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0501	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0306-0501		●	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0505	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0506-0602	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0506-0602		●	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
81	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
81	03.704 NUT; BRKT 4HF1-S ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
81	03.704 NUT; BRKT 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) ID=61.6	8-97010-307-0	01	1	0211-0305	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0211-0305	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) ID=61.6	8-97010-307-0	01	1	0211-0305		●	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) ID=61.6	8-97010-307-0	01	1	0306-0501	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0306-0501	●
88	03.708 CLAMP; EXH PIPE 4HF1-S ENG(RLS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6	8-97010-307-0	01	1	0306-0501		●	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) ID=61.6	8-97010-307-0	01	1	0502-0505	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0502-0505	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) ID=61.6	8-97010-307-0	01	1	0506-	●	●	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) ID=61.6	8-97010-307-0	01	1	0506-	●
88	03.708 CLAMP; EXH PIPE 4HF1-N ENG(RJZ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=61.6	8-97010-307-0	01	1	0506-		●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0211-0305	●	●	●
94	03.704 BOLT; CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0211-0305	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0211-0305		●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0306-0501	●	●	●
94	03.704 BOLT; CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0306-0501	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	0306-0501		●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0502-0505	●	●	●
94	03.704 BOLT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0502-0505	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0506-	●	●	●
94	03.704 BOLT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.708 M8X45	0-20800-845-0	01	1	0506-	●
94	03.704 BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.708 M8X45	0-20800-845-0	01	1	0506-		●	●
95	03.708 BOLT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0211-0501	●
95	03.708 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512	●
95	03.708 BOLT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
95	03.708 BOLT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
95	03.708 BOLT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
97	03.708 WASHER; PL,CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0305	●
97	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0305		●	●
97	03.708 WASHER; PL,CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0306-0501	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0306-0501		●	●
97	03.708 WASHER; PL,CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0502-0505	●
97	03.708 WASHER; PL,CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0506-0605	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0506-0605		●	●
97	03.708 WASHER; PL,CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●
97	03.708 WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-		●	●
104	03.704 NUT; BRKT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0501	●
104	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
104	03.704 NUT; BRKT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●
104	03.704 NUT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
104	03.704 NUT; BRKT EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0211-0512	●	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602	●	●	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
124	03.704 NUT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 02.559 M8	9-09110-408-0	01	1	0211-0512	●
124	03.704 NUT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 02.334 M8	0-91110-508-0	01	1	0601-	●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0211-0512		●	●
124	03.704 NUT; SUPPORT RUBBER 00.833 M10	0-91110-510-0	01	1	0601-		●	●
125	03.708 NUT; CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 02.559 M8	9-09110-408-0	01	1	0211-0305	●
125	03.708 NUT; CLAMP 02.559 M8	9-09110-408-0	01	1	0211-0305		●	●
125	03.708 NUT; CLAMP 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 02.559 M8	9-09110-408-0	01	1	0306-0501	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 M8	9-09110-408-0	01	1	0306-0501		●	●
125	03.708 NUT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 02.559 M8	9-09110-408-0	01	1	0502-0505	●
125	03.708 NUT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 02.559 M8	9-09110-408-0	01	1	0506-0512	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.559 M8	9-09110-408-0	01	1	0506-0512		●	●
125	03.708 NUT; CLAMP 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 02.334 M8	0-91110-508-0	01	1	0601-	●
125	03.708 NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 02.334 M8	0-91110-508-0	01	1	0601-		●	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97034-100-1	01	1	0506-		●	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97351-464-0	01	1	0211-0501	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (B)	8-97351-464-0	01	1	0502-	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (A)	8-97213-051-0	01	1	0211-0501	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A)	8-97213-051-0	01	1	0502-	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) (B)	8-97034-100-1	01	1	0211-0305		●	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-97034-100-1	01	1	0306-0501		●	●
126	03.705 PIPE; EXH,RR 4HF1-S ENG(RLS) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97240-342-1	01	1	0306-0501		●	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) (C)	8-97240-342-1	01	1	0502-0505		●	●
126	03.705 PIPE; EXH,RR 4HF1-N ENG(RJZ) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97240-342-1	01	1	0506-		●	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	0506-		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-97209-186-0	01	1	0211-0501	●
137	03.706 BRACKET; TAIL PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) (A)	8-97209-186-0	01	1	0502-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0211-0305		●	●
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-94468-175-0	01	1	0306-0501		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-S ENG(RLS) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97360-459-0	01	1	0306-0501		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-N ENG(RJZ) (C)	8-97360-459-0	01	1	0502-0505		●	●
137	03.706 BRACKET; TAIL PIPE 4HF1-N ENG(RJZ) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97360-459-0	01	1	0506-		●	●
143	03.704 RUBBER; SUPPORT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T)	8-97229-586-0	01	1	0211-0305	●
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0211-0305		●	●
143	03.704 RUBBER; SUPPORT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T)	8-97229-586-0	01	1	0306-0308	●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97229-586-0	01	1	0306-0308		●	●
143	03.704 RUBBER; SUPPORT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T)	8-97371-655-0	01	1	0309-0501	●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97371-655-0	01	1	0309-0501		●	●
143	03.704 RUBBER; SUPPORT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T)	8-97371-655-0	01	1	0502-0505	●
143	03.704 RUBBER; SUPPORT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T)	8-97371-655-1	01	1	0506-	●
143	03.704 RUBBER; SUPPORT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97371-655-1	01	1	0506-		●	●
144	03.613 NUT; MTG RUBBER 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0305	●
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0305		●	●
144	03.613 NUT; MTG RUBBER 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0306-0501	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0306-0501		●	●
144	03.613 NUT; MTG RUBBER 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0505	●
144	03.613 NUT; MTG RUBBER 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0506-0602	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0506-0602		●	●
144	03.613 NUT; MTG RUBBER 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
144	03.613 NUT; MTG RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE REAR WIDE TREAD(V4T) L=148	8-97145-971-0	01	1	0211-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. REAR WIDE TREAD(V4T) L=70	8-97222-645-0	01	1	0211-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0211-		●	●
164	03.706 COLLAR; DIST,TAIL PIPE REAR WIDE TREAD(V4T) L=37.5	9-22151-217-0	01	1	0211-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0211-		●	●
164	03.706 COLLAR; DIST,TAIL PIPE EXC. REAR WIDE TREAD(V4T) 03.616 L=23	9-22151-175-0	01	1	0211-	●
165	03.706 BOLT; SUPPORT RUBBER REAR WIDE TREAD(V4T) M10X70 FLANGE	0-28081-070-0	01	1	0211-0512	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0211-0512		●	●
165	03.706 BOLT; SUPPORT RUBBER REAR WIDE TREAD(V4T) M10X70 FLANGE	0-28051-070-0	01	1	0601-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-		●	●
165	03.706 BOLT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0211-0512	●
165	03.706 BOLT; SUPPORT RUBBER EXC. REAR WIDE TREAD(V4T) 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI REAR WIDE TREAD(V4T) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI REAR WIDE TREAD(V4T) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. REAR WIDE TREAD(V4T) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0211-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. REAR WIDE TREAD(V4T) ID=8.4 OD=26	0-91614-808-0	02	1	0606-	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-S ENG(RLS) (A)	8-97075-343-1	01	1	0211-0501	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-N ENG(RJZ) (A)	8-97075-343-1	01	1	0502-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0211-0305	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0211-0305		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0306-0501	●
168	03.613 BRACKET; EXH PIPE,FRT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (B)	8-94468-174-1	01	1	0306-0501		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0502-0505	●
168	03.613 BRACKET; EXH PIPE,FRT 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) 03.704 (B)	8-94468-174-1	01	1	0506-	●
168	03.613 BRACKET; EXH PIPE,FRT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.704 (B)	8-94468-174-1	01	1	0506-		●	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0211-0605	●	●	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
