1-45 — WATER SEDIMENTER; FUEL (#77695) — 58 parça

1 9 7 57 41 15 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 SEDIMENTER; FUEL 4HF1-S ENG(RLS)	8-97207-734-1	01	1	0211-0501	●	●	●
1	03.890 SEDIMENTER; FUEL 4HF1-N ENG(RJZ)	8-97207-734-1	01	1	0502-	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-S ENG(RLS)	8-94132-674-0	01	1	0211-0501	●	●	●
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1-N ENG(RJZ)	8-94132-674-0	01	1	0502-	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-S ENG(RLS)	8-94132-675-0	01	1	0211-0501	●	●	●
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1-N ENG(RJZ)	8-94132-675-0	01	1	0502-	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-S ENG(RLS)	8-94447-156-0	01	1	0211-0501	●	●	●
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1-N ENG(RJZ)	8-94447-156-0	01	1	0502-	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-S ENG(RLS)	8-97079-821-0	01	1	0211-0501	●	●	●
15	03.890 SENSOR ASM; SEDIMENTER 4HF1-N ENG(RJZ)	8-97079-821-0	01	1	0502-	●	●	●
37	03.890 PLUG; SENSOR 4HF1-S ENG(RLS)	8-97123-549-0	01	1	0211-0501	●	●	●
37	03.890 PLUG; SENSOR 4HF1-N ENG(RJZ)	8-97123-549-0	01	1	0502-	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-S ENG(RLS) 08.927	9-09563-334-0	01	1	0211-0501	●	●	●
41	03.890 GASKET; SENSOR TO CASE 4HF1-N ENG(RJZ) 08.927	9-09563-334-0	01	1	0502-	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-S ENG(RLS)	8-94369-299-3	01	1	0211-0501	●	●	●
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HF1-N ENG(RJZ)	8-94369-299-3	01	1	0502-	●	●	●

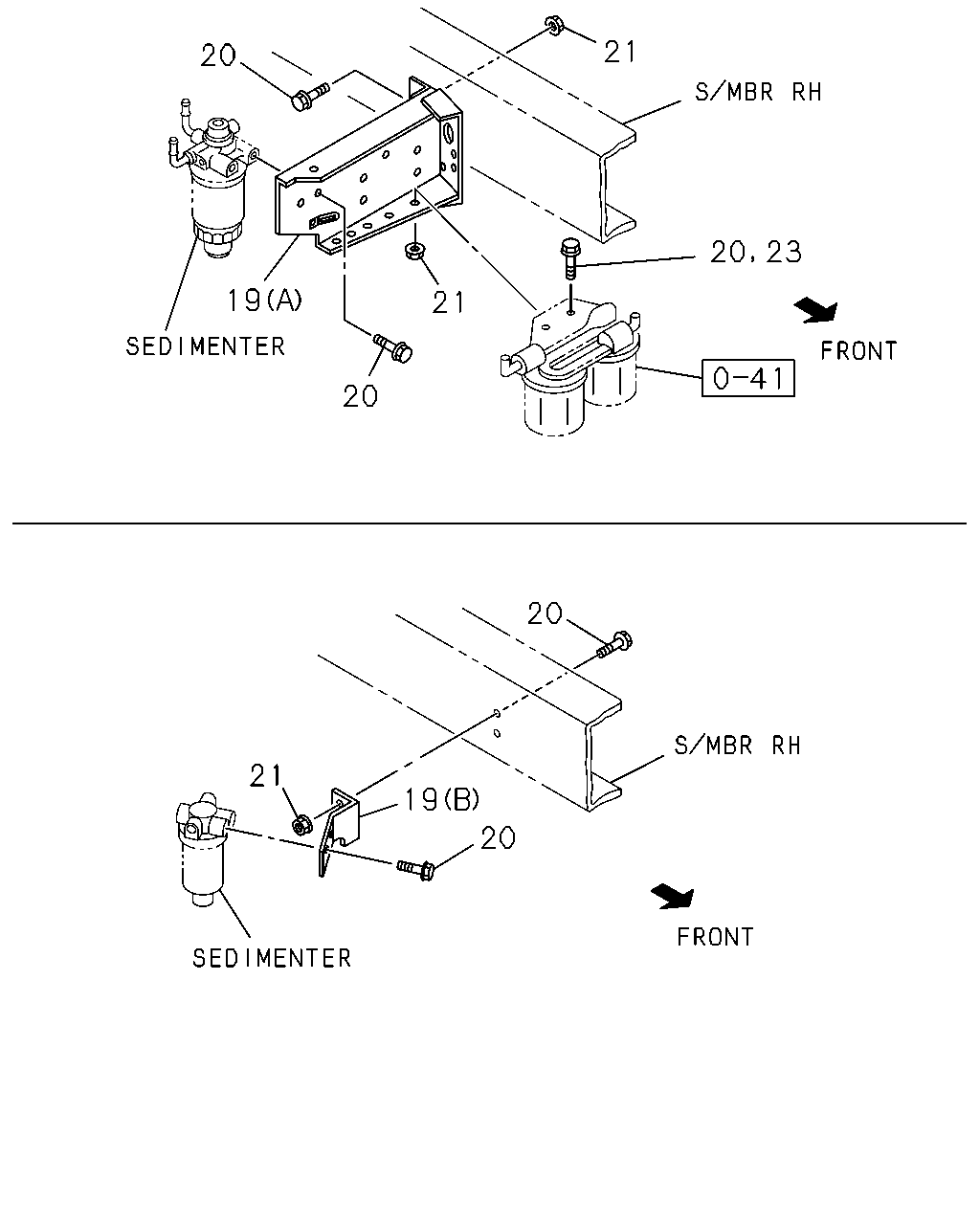

21 20 19 21 20 20 21 19 20 20 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0211-0501	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A)	8-97226-277-0	01	1	0502-	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0211-0501	●	●
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (B)	8-94366-685-0	01	1	0502-	●	●
19	03.890 BRACKET; FUEL SEDIMENTER (A)	8-97103-344-1	01	1	0211-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0302			●
20	03.890 BOLT; BRKT TO SEDIMENTER 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0303-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302			●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302			●
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0512			●
20	03.890 BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	0601-			●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0211-0501	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	03	1	0601-	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0211-0501	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	0502-0512	●	●
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 00.206 M8X30 FLANGE	0-28050-830-0	02	1	0601-	●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0211	●	●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302	●	●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0302			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501	●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0303-0501		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0302			●
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	01	1	0303-0602			●
21	03.890 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-			●
21	03.890 NUT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0211-0501	●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	03	1	0502-0602	●	●
21	03.890 NUT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.162 M10 FLANGE	0-91180-110-0	03	1	0603-	●	●
21	03.890 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	02	1	0211-0602			●
21	03.890 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-			●
23	03.890 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0211-0302	●	●	●
23	03.890 BOLT; BRKT TO FRAME 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501	●	●	●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●	●	●
23	03.890 BOLT; BRKT TO FRAME 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●	●
