Sayfa 1-41 - Isuzu EPC

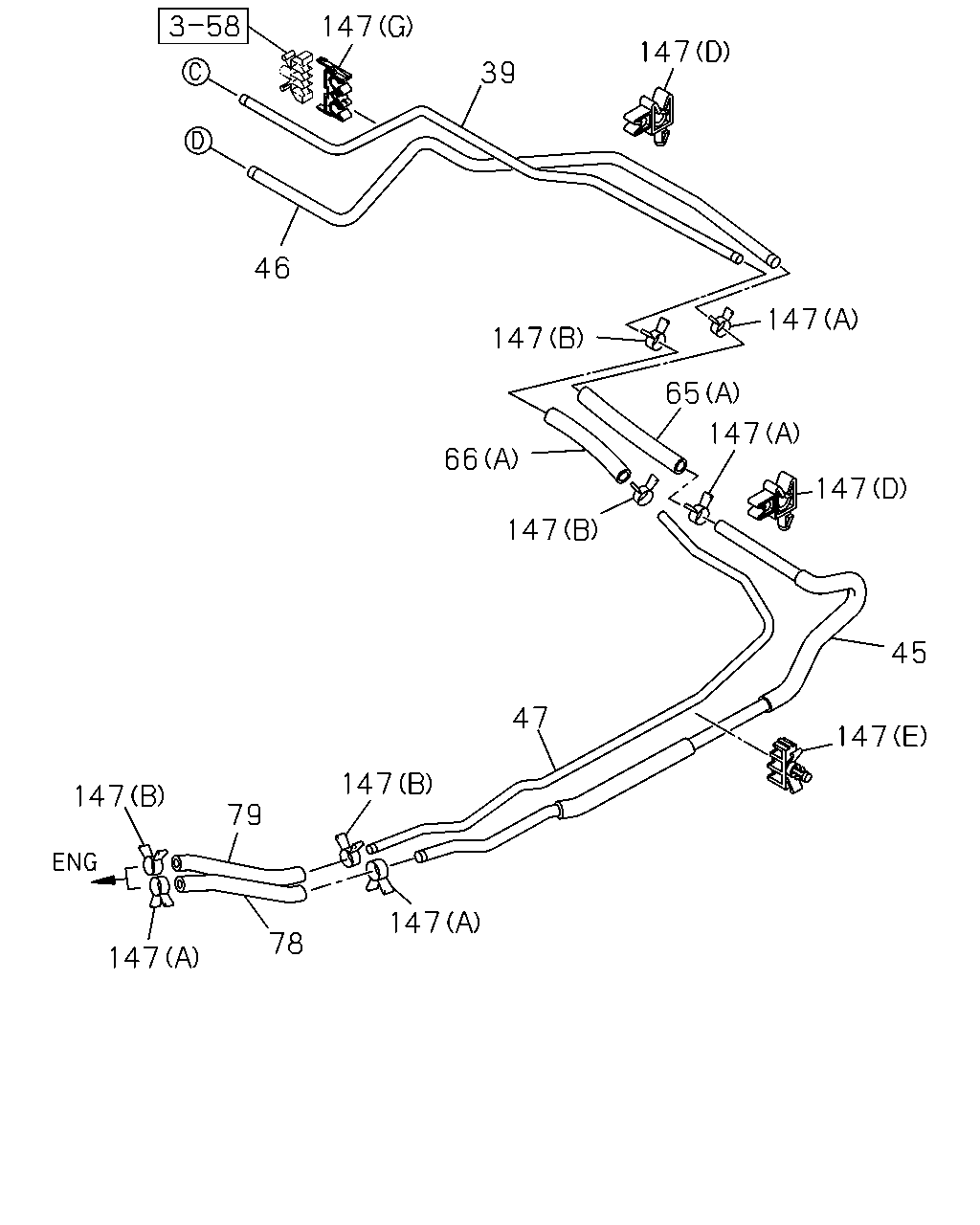

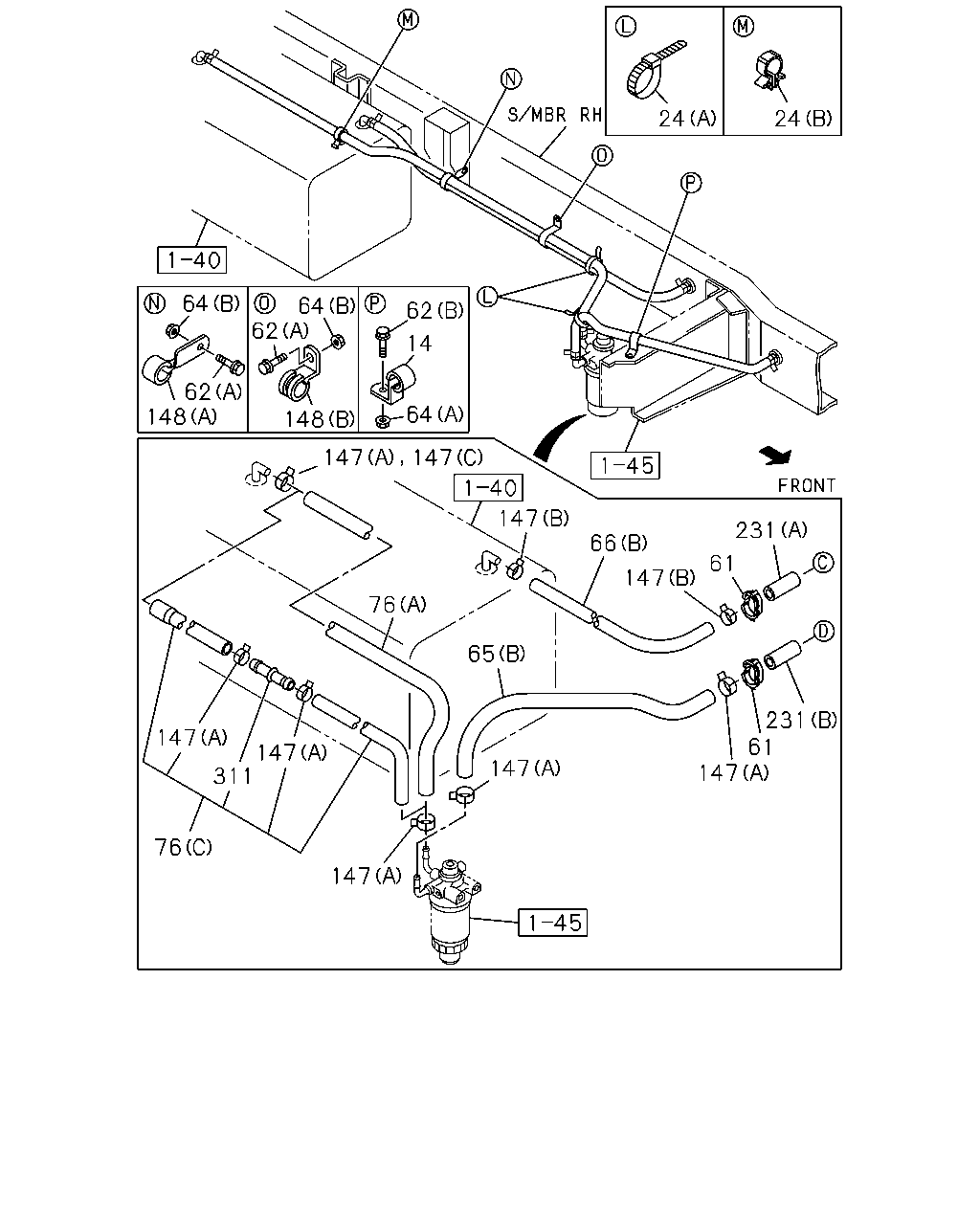

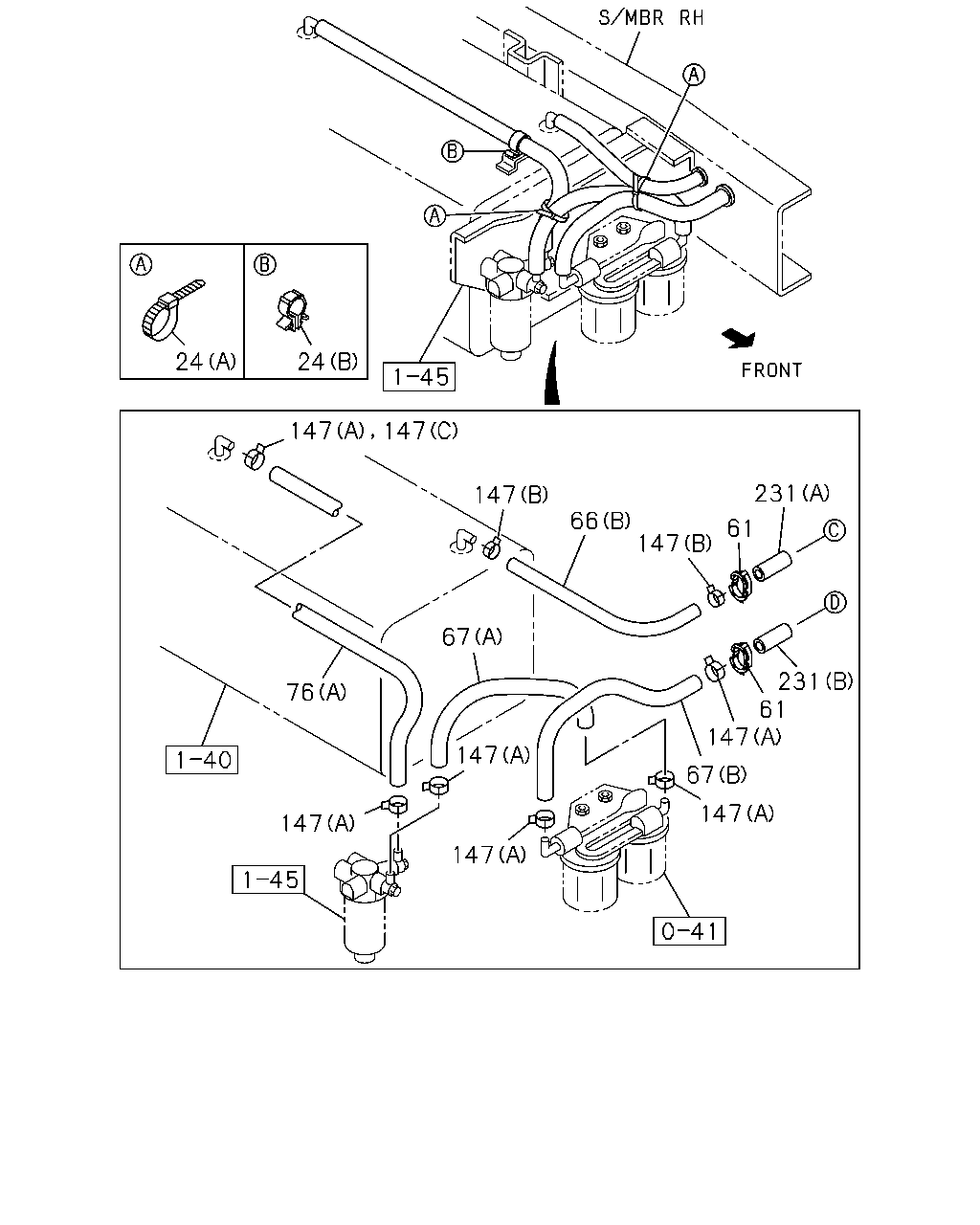

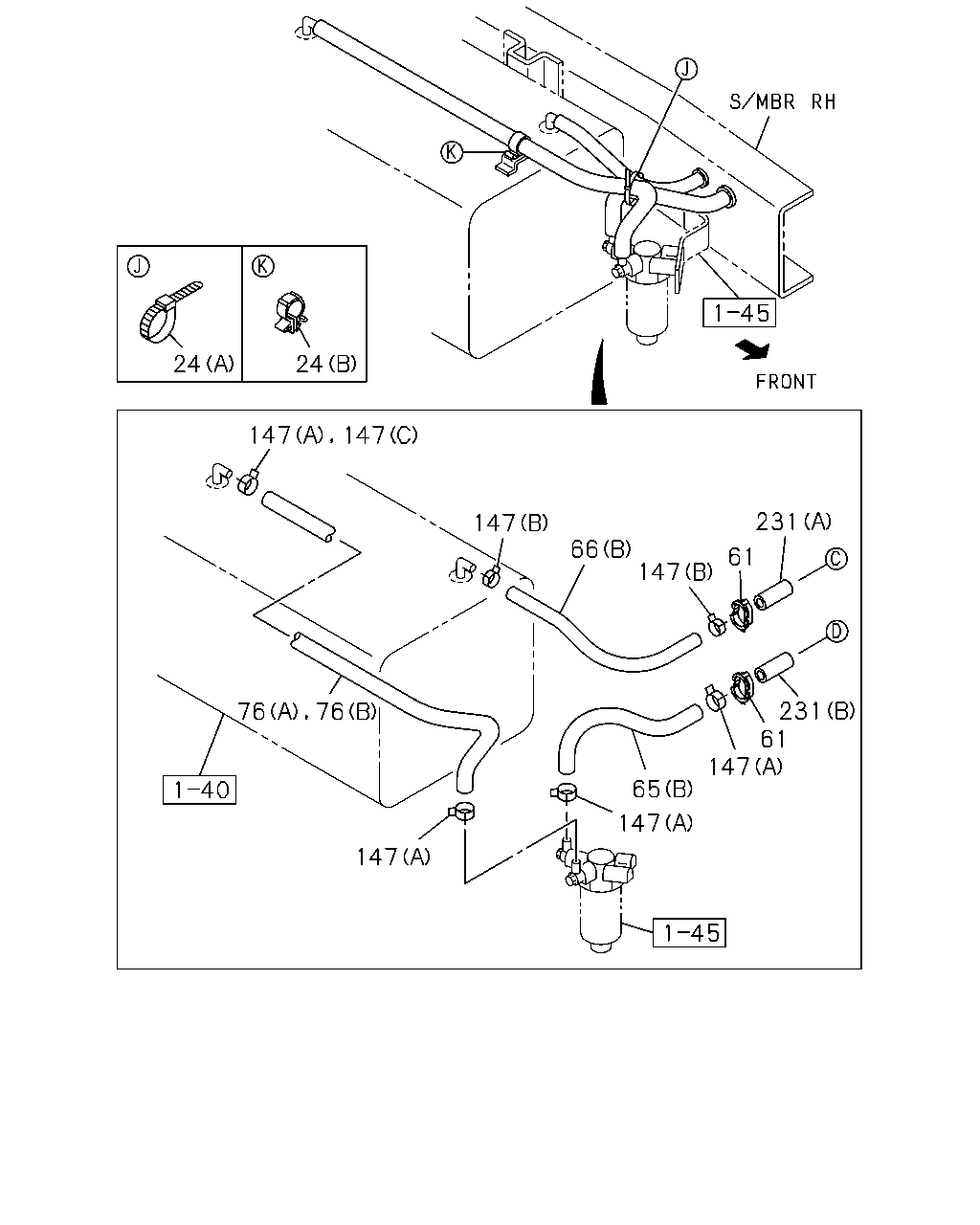

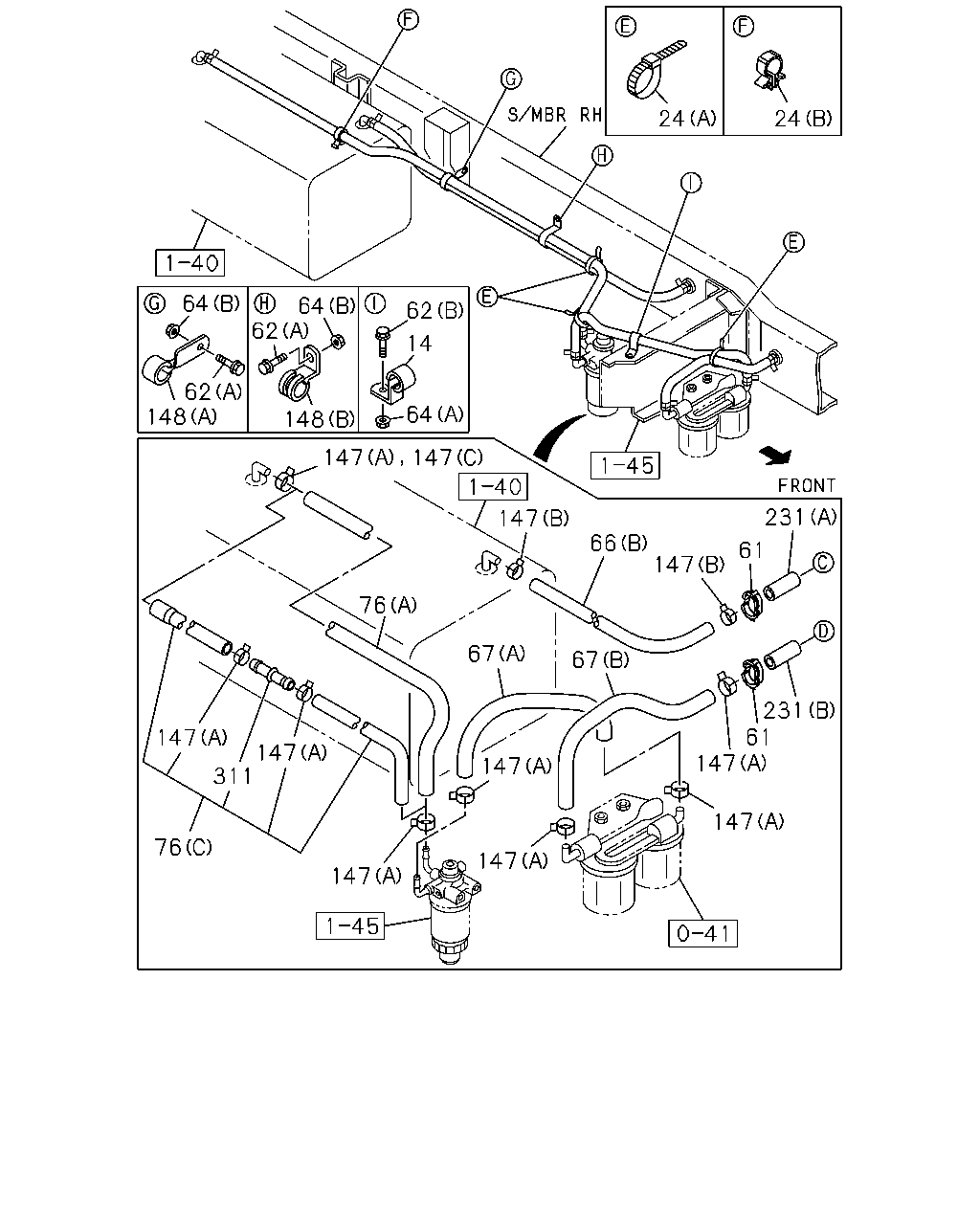

1-41 — FUEL PIPING; CHASSIS (#77694) — 964 parça

24 24 147 147 231 147 66 147 61 231 61 147 76 76 65 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> (A) L=140	5-09707-031-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501		●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) (B)	8-97089-536-0	01	1	0211-0212	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> (B)	8-97089-536-0	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B)	8-97089-536-0	01	1	0301-0401		●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-			●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (B) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0301-0301			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0302-0401			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> EXC. FUEL TANK 75 LITTER<7GX> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=1080	8-97363-051-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1080	8-97363-051-0	01	1	0402-0501			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=1080	8-97363-051-0	01	1	0502-			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (C) L=1130	8-97363-059-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) (C) L=1130	8-97363-059-0	01	1	0402-0501			●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) (C) L=1130	8-97363-059-1	01	1	0502-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-1005	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1006-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	02	1	1006-			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 06.672 (F)	8-94363-358-0	01	1	0211-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	05	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	07	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	07	1	0912-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0305	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-1005			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.762 (C) ID=19	8-94238-569-0	01	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.762 (C) ID=19	8-94238-569-0	01	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (C) ID=19	8-98150-356-0	01	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	06	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (B) ID=13	8-98150-357-0	06	1	0912-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-S ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0211-0501	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-N ENG(RJZ) (B) OD=15 L=50	8-97077-629-0	01	1	0502-	●	●	●

147 51 97 147 147 147 78 147 147 45 79 47 147 101 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	03.163 PIPE; FUEL,DELIVERY 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97326-027-1	01	1	0211-0501	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97326-027-1	01	1	0502-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97326-016-0	01	1	0211-0501	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-S ENG(RLS)	8-97326-016-0	01	1	0211-0501		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97326-016-0	01	1	0502-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-N ENG(RJZ)	8-97326-016-0	01	1	0502-		●	●
47	03.163 PIPE; FUEL,RETURN 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97326-028-1	01	1	0211-0501	●
47	03.163 PIPE; FUEL,RETURN 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97326-028-1	01	1	0502-	●
47	03.163 PIPE; FUEL,RETURN 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97326-022-1	01	1	0211-0501	●
47	03.163 PIPE; FUEL,RETURN 4HF1-S ENG(RLS)	8-97326-022-1	01	1	0211-0501		●	●
47	03.163 PIPE; FUEL,RETURN 4HF1-N ENG(RJZ)	8-97326-022-1	01	1	0502-	●	●	●
51	03.162 NUT; CLIP,PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 06.822 M10	9-09111-410-0	02	1	0211-0501	●
51	03.162 NUT; CLIP,PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 06.822 M10	9-09111-410-0	02	1	0502-0512	●
51	03.162 NUT; CLIP,PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 00.787 M10	0-91111-510-0	02	1	0601-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-S ENG(RLS) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-N ENG(RJZ) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1-S ENG(RLS) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1-N ENG(RJZ) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●	●	●
97	03.162 BRACKET; CLIP 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97227-671-0	02	1	0211-0501	●
97	03.162 BRACKET; CLIP 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97227-671-0	02	1	0502-0611	●
97	03.162 BRACKET; CLIP 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-98034-748-1	02	1	0612-	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-1005	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1006-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	02	1	1006-			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 06.672 (F)	8-94363-358-0	01	1	0211-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	05	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	07	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	07	1	0912-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0305	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-1005			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.762 (C) ID=19	8-94238-569-0	01	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.762 (C) ID=19	8-94238-569-0	01	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (C) ID=19	8-98150-356-0	01	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	06	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (B) ID=13	8-98150-357-0	06	1	0912-		●	●

24 24 147 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> (A) L=140	5-09707-031-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501		●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) (B)	8-97089-536-0	01	1	0211-0212	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> (B)	8-97089-536-0	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B)	8-97089-536-0	01	1	0301-0401		●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-			●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> EXC. FUEL TANK 75 LITTER<7GX> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=1080	8-97363-051-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1080	8-97363-051-0	01	1	0402-0501			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=1080	8-97363-051-0	01	1	0502-			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (C) L=1130	8-97363-059-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) (C) L=1130	8-97363-059-0	01	1	0402-0501			●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) (C) L=1130	8-97363-059-1	01	1	0502-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-1005	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1006-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	02	1	1006-			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 06.672 (F)	8-94363-358-0	01	1	0211-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	05	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	07	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	07	1	0912-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0305	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-1005			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.762 (C) ID=19	8-94238-569-0	01	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.762 (C) ID=19	8-94238-569-0	01	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (C) ID=19	8-98150-356-0	01	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	06	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (B) ID=13	8-98150-357-0	06	1	0912-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-S ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0211-0501	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-N ENG(RJZ) (B) OD=15 L=50	8-97077-629-0	01	1	0502-	●	●	●

147 147 39 46 147 147 65 147 66 147 147 45 47 147 147 147 79 147 78 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	03.163 PIPE; FUEL 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97363-971-1	01	1	0211-0501	●
39	03.163 PIPE; FUEL 4HF1-S ENG(RLS)	8-97363-971-1	01	1	0211-0501		●
39	03.163 PIPE; FUEL 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97363-971-1	01	1	0502-	●
39	03.163 PIPE; FUEL 4HF1-N ENG(RJZ)	8-97363-971-1	01	1	0502-		●
39	03.163 PIPE; FUEL 4HF1-S ENG(RLS)	8-97326-014-0	01	1	0211-0301			●
39	03.163 PIPE; FUEL 4HF1-S ENG(RLS)	8-97363-972-1	01	1	0302-0501			●
39	03.163 PIPE; FUEL 4HF1-N ENG(RJZ)	8-97363-972-1	01	1	0502-			●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97326-027-1	01	1	0211-0501	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97326-027-1	01	1	0502-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97326-016-0	01	1	0211-0501	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-S ENG(RLS)	8-97326-016-0	01	1	0211-0501		●	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97326-016-0	01	1	0502-	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1-N ENG(RJZ)	8-97326-016-0	01	1	0502-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97326-008-0	01	1	0211-0301	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-S ENG(RLS)	8-97326-008-0	01	1	0211-0301		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97363-968-0	01	1	0302-0501	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-S ENG(RLS)	8-97363-968-0	01	1	0302-0501		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW>	8-97363-968-0	01	1	0502-	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-N ENG(RJZ)	8-97363-968-0	01	1	0502-		●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-S ENG(RLS)	8-97326-009-0	01	1	0211-0301			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-S ENG(RLS)	8-97363-969-0	01	1	0302-0501			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1-N ENG(RJZ)	8-97363-969-0	01	1	0502-			●
47	03.163 PIPE; FUEL,RETURN 4HF1-S ENG(RLS) FRAME-KICK UP<7EW>	8-97326-028-1	01	1	0211-0501	●
47	03.163 PIPE; FUEL,RETURN 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW>	8-97326-028-1	01	1	0502-	●
47	03.163 PIPE; FUEL,RETURN 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW>	8-97326-022-1	01	1	0211-0501	●
47	03.163 PIPE; FUEL,RETURN 4HF1-S ENG(RLS)	8-97326-022-1	01	1	0211-0501		●	●
47	03.163 PIPE; FUEL,RETURN 4HF1-N ENG(RJZ)	8-97326-022-1	01	1	0502-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (B) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0301-0301			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0302-0401			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> EXC. FUEL TANK 75 LITTER<7GX> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=1080	8-97363-051-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1080	8-97363-051-0	01	1	0402-0501			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=1080	8-97363-051-0	01	1	0502-			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-S ENG(RLS) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4HF1-N ENG(RJZ) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1-S ENG(RLS) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4HF1-N ENG(RJZ) L=220 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-1005	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1006-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	02	1	1006-			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 06.672 (F)	8-94363-358-0	01	1	0211-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	05	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	07	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	07	1	0912-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0305	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-1005			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.762 (C) ID=19	8-94238-569-0	01	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.762 (C) ID=19	8-94238-569-0	01	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (C) ID=19	8-98150-356-0	01	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	06	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (B) ID=13	8-98150-357-0	06	1	0912-		●	●

24 24 64 64 62 62 14 62 148 64 148 147 147 231 147 66 147 61 76 67 67 231 61 147 147 147 311 147 147 76 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.162 CLIP; HOSE 4HF1-S ENG(RLS) 03.630 ID=19 H=21 L=24	5-09700-360-0	01	1	0211-0501			●
14	03.162 CLIP; HOSE 4HF1-N ENG(RJZ) 03.630 ID=19 H=21 L=24	5-09700-360-0	01	1	0502-			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> (A) L=140	5-09707-031-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501		●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) (B)	8-97089-536-0	01	1	0211-0212	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> (B)	8-97089-536-0	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B)	8-97089-536-0	01	1	0301-0401		●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-			●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●
62	03.162 BOLT; CLIP FIX 4HF1-S ENG(RLS) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-			●
62	03.162 BOLT; CLIP FIX 4HF1-S ENG(RLS) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
64	03.162 NUT; CLIP 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-			●
64	03.162 NUT; CLIP 4HF1-S ENG(RLS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0211-0501			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> EXC. FUEL TANK 75 LITTER<7GX> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=1080	8-97363-051-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1080	8-97363-051-0	01	1	0402-0501			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=1080	8-97363-051-0	01	1	0502-			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (B) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (A) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●	●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
67	03.163 HOSE; FUEL,DELIVERY 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (C) L=1130	8-97363-059-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) (C) L=1130	8-97363-059-0	01	1	0402-0501			●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) (C) L=1130	8-97363-059-1	01	1	0502-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-1005	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1006-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	02	1	1006-			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 06.672 (F)	8-94363-358-0	01	1	0211-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	05	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	07	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	07	1	0912-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0305	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-1005			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.762 (C) ID=19	8-94238-569-0	01	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.762 (C) ID=19	8-94238-569-0	01	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (C) ID=19	8-98150-356-0	01	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	06	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (B) ID=13	8-98150-357-0	06	1	0912-		●	●
148	03.162 CLIP; HOSE,FUEL 4HF1-S ENG(RLS) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0211-0501			●
148	03.162 CLIP; HOSE,FUEL 4HF1-N ENG(RJZ) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0502-			●
148	03.162 CLIP; HOSE,FUEL 4HF1-S ENG(RLS) 04.866 (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0211-0501			●
148	03.162 CLIP; HOSE,FUEL 4HF1-N ENG(RJZ) 04.866 (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0502-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-S ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0211-0501	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-N ENG(RJZ) (B) OD=15 L=50	8-97077-629-0	01	1	0502-	●	●	●
311	03.163 JOINT; HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02>	8-97353-668-0	01	1	0306-0401			●
311	03.163 JOINT; HOSE 4HF1-S ENG(RLS)	8-97353-668-0	01	1	0402-0501			●
311	03.163 JOINT; HOSE 4HF1-N ENG(RJZ)	8-97353-668-0	01	1	0502-			●

24 24 64 64 62 62 14 62 148 64 148 147 147 147 231 66 61 147 76 65 231 61 147 147 147 311 147 76 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.162 CLIP; HOSE 4HF1-S ENG(RLS) 03.630 ID=19 H=21 L=24	5-09700-360-0	01	1	0211-0501			●
14	03.162 CLIP; HOSE 4HF1-N ENG(RJZ) 03.630 ID=19 H=21 L=24	5-09700-360-0	01	1	0502-			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0301			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> (A) L=140	5-09707-031-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	0502-			●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0211-0212	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 02.559 (A) L=250	5-09707-030-1	01	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0402-0501		●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 02.559 (A) L=250	5-09707-030-1	01	1	0502-	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	0502-		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) (B)	8-97089-536-0	01	1	0211-0212	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> (B)	8-97089-536-0	01	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B)	8-97089-536-0	01	1	0301-0401		●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0211-0212			●
24	03.162 CLIP; FUEL HOSE FUEL TANK 75 LITTER<7GX> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401	●
24	03.162 CLIP; FUEL HOSE FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401		●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0301-0401			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0402-0501			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-	●	●
24	03.162 CLIP; FUEL HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	0502-			●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0211-	●	●	●
62	03.162 BOLT; CLIP FIX 4HF1-S ENG(RLS) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0211-0501			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) (B) M6X20 FLANGE	0-28650-620-0	01	1	0601-			●
62	03.162 BOLT; CLIP FIX 4HF1-S ENG(RLS) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512			●
62	03.162 BOLT; CLIP FIX 4HF1-N ENG(RJZ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
64	03.162 NUT; CLIP 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0501			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-			●
64	03.162 NUT; CLIP 4HF1-S ENG(RLS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0211-0501			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602			●
64	03.162 NUT; CLIP 4HF1-N ENG(RJZ) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0501		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (B) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0301-0301			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0302-0401			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0402-0501			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0502-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0311		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0312-0501		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0502-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0501		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0502-		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> EXC. FUEL TANK 75 LITTER<7GX> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (B) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0211-0212			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) (B) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0401	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0402-0501	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) (B) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0502-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (B) L=1080	8-97363-051-0	01	1	0301-0401			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-S ENG(RLS) (B) L=1080	8-97363-051-0	01	1	0402-0501			●
66	03.163 HOSE; FUEL,RETURN PIPE 4HF1-N ENG(RJZ) (B) L=1080	8-97363-051-0	01	1	0502-			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) EXC. FUEL TANK 75 LITTER<7GX> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02>,FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. REAR WIDE TREAD(V4T),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=760 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B),FUEL TANK 75 LITTER<7GX> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0211-0212			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) L=430	8-97353-526-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) (A) L=180	8-97363-052-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0301-0401	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0402-0501	●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> (A) L=400	8-97363-056-0	01	1	0502-	●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0301-0401		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0402-0501		●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) EXC. FUEL FILTER DUAL(S6B) (A) L=350	8-97353-528-0	01	1	0502-		●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> (C) L=1130	8-97363-059-0	01	1	0301-0401			●
76	03.163 HOSE; FUEL,TANK 4HF1-S ENG(RLS) (C) L=1130	8-97363-059-0	01	1	0402-0501			●
76	03.163 HOSE; FUEL,TANK 4HF1-N ENG(RJZ) (C) L=1130	8-97363-059-1	01	1	0502-			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-1005	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	1006-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	02	1	1006-			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 06.672 (F)	8-94363-358-0	01	1	0211-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	02	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (D) ID=12 & 6.35	8-97215-437-0	03	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (D) ID=12 & 6.35	8-97215-437-0	03	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	05	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	05	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	0211-0212		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	07	1	0301-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	07	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	07	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (A) ID=16	8-98008-098-0	07	1	0912-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0301	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 75 LITTER<7GX> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) (E) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0211-0301		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (G) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0502-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0211-0305	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 04.930 (A) ID=16	8-94238-568-0	02	1	0306-0401			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	02	1	0402-0501			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 04.930 (A) ID=16	8-94238-568-0	02	1	0912-1005			●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 75 LITTER<7GX> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02> 01.762 (C) ID=19	8-94238-569-0	01	1	0301-0401		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.762 (C) ID=19	8-94238-569-0	01	1	0402-0501	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.762 (C) ID=19	8-94238-569-0	01	1	0502-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (C) ID=19	8-98150-356-0	01	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	04	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-S ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	0211-0501		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) 01.219 (B) ID=13	8-94238-571-0	06	1	0502-0911		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) EXC. FRAME-KICK UP<7EW> (B) ID=13	8-98150-357-0	06	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1-N ENG(RJZ) (B) ID=13	8-98150-357-0	06	1	0912-		●	●
148	03.162 CLIP; HOSE,FUEL 4HF1-S ENG(RLS) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0211-0501			●
148	03.162 CLIP; HOSE,FUEL 4HF1-N ENG(RJZ) 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	0502-			●
148	03.162 CLIP; HOSE,FUEL 4HF1-S ENG(RLS) 04.866 (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0211-0501			●
148	03.162 CLIP; HOSE,FUEL 4HF1-N ENG(RJZ) 04.866 (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0502-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0211-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-S ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0211-0501	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4HF1-N ENG(RJZ) (B) OD=15 L=50	8-97077-629-0	01	1	0502-	●	●	●
311	03.163 JOINT; HOSE 4HF1-S ENG(RLS) FUEL TANK 100 LITTER<N02>	8-97353-668-0	01	1	0306-0401			●
311	03.163 JOINT; HOSE 4HF1-S ENG(RLS)	8-97353-668-0	01	1	0402-0501			●
311	03.163 JOINT; HOSE 4HF1-N ENG(RJZ)	8-97353-668-0	01	1	0502-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
